Eaton
AGC-V-2-R BUS SMALL DIMENSION FUSE (8)

Mouse over image to zoom, click to enlarge

  • AGC-V-2-R BUS SMALL DIMENSION FUSE (8)
  • AGC-V-2-R BUS SMALL DIMENSION FUSE (8)
  • AGC-V-2-R BUS SMALL DIMENSION FUSE (8)

Description: EATON, AGC-V-2-R, Fuse, Fast-Acting, Series: GBB, 1 A, 250 V AC/32 V DC, 100 AIC at 250 V AC/10 kAIC at 125 V DC Interrupt, Glass

Manufacturer PN: AGC-V-2-R

UPC:  05171265455

Kendall Electric Inc PN: 3904182

Invoice Description:

AGC-V-2-R BUS SMALL DIMENSION FUSE (8)


SPEC SHEET

▸ See All in Fast Acting Fuses


How Can We Make This Page Better?

EATON AGC-V-2-R GBB Fast-Acting Fuse, 1 A, 250 V AC/32 V DC, 100 AIC at 250 V AC/10 kAIC at 125 V DC Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

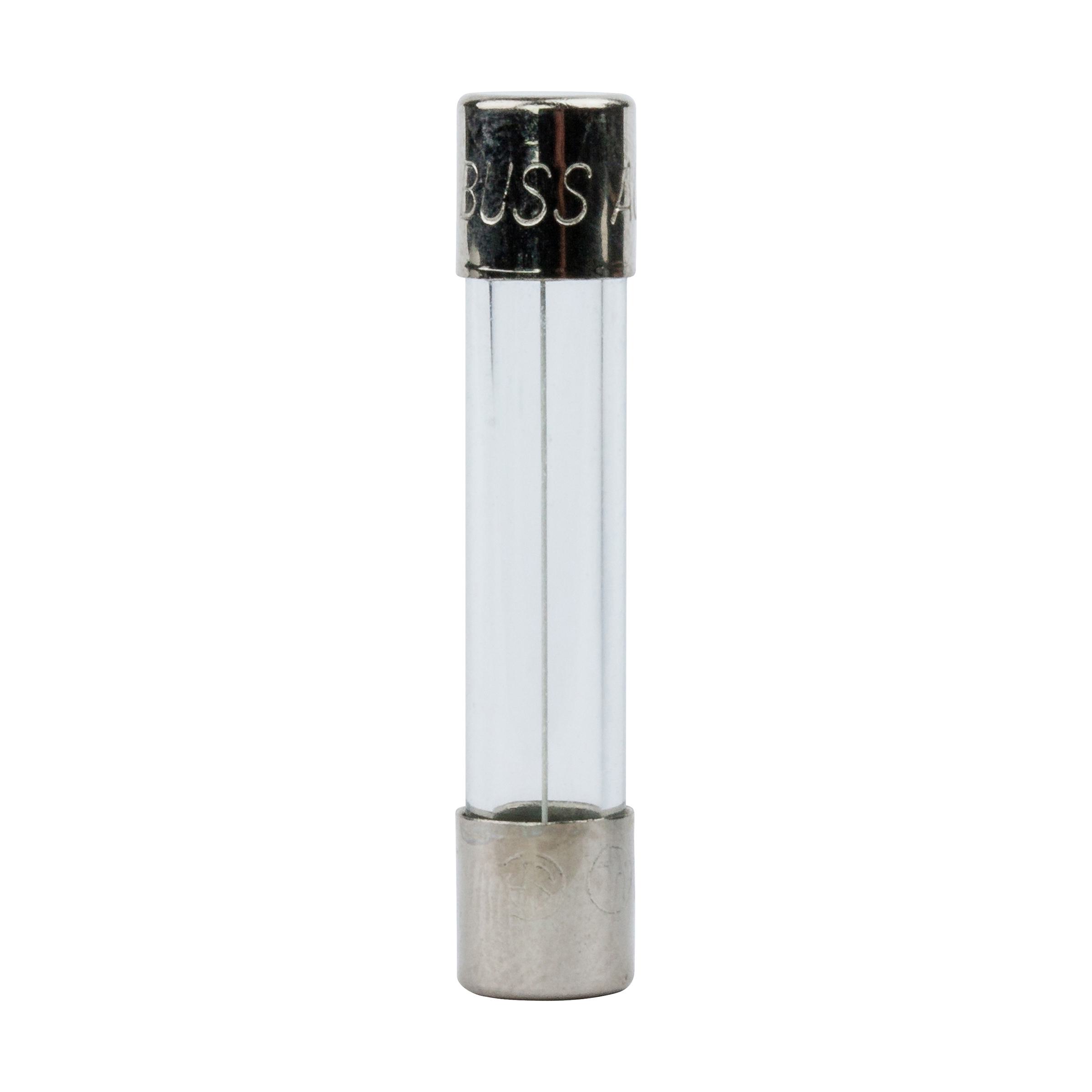

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits.  Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
EATON, AGC-V-2-R, Fuse, Fast-Acting, Series: GBB, 1 A, 250 V AC/32 V DC, 100 AIC at 250 V AC/10 kAIC at 125 V DC Interrupt, Glass

Specifications

 Amperage Rating 1 A
 Application For Industrial Facilities & Factories - Facility: Safety and Security Systems
 Brand Name EATON
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number AGC-V-2-R
 Material Glass
 PART NUMBER KEYWORDS AGC-V-2-R ; AGCV2R ; 10515872 ; 051712654555 ; 51712654555 ; 05171265455
 Response Time 60 min at 135%
 Series GBB
 Standards/Approvals CE Marked|RoHS Compliant
 Type Fast-Acting
 Voltage Rating 250 V AC/32 V DC

Features

▪ Package Type: Standard
▪ Connection Type: Ferrule End x Ferrule End
▪ Weight: 0.001 lbs
▪ Width: 0.25 in
▪ Length: 0.25 in
▪ Height: 1.25 in
▪ Used With: Axial leads
▪ Indicator: Non-Indicating

Resources

 Catalog Page
 Product Data Sheet
