Eaton

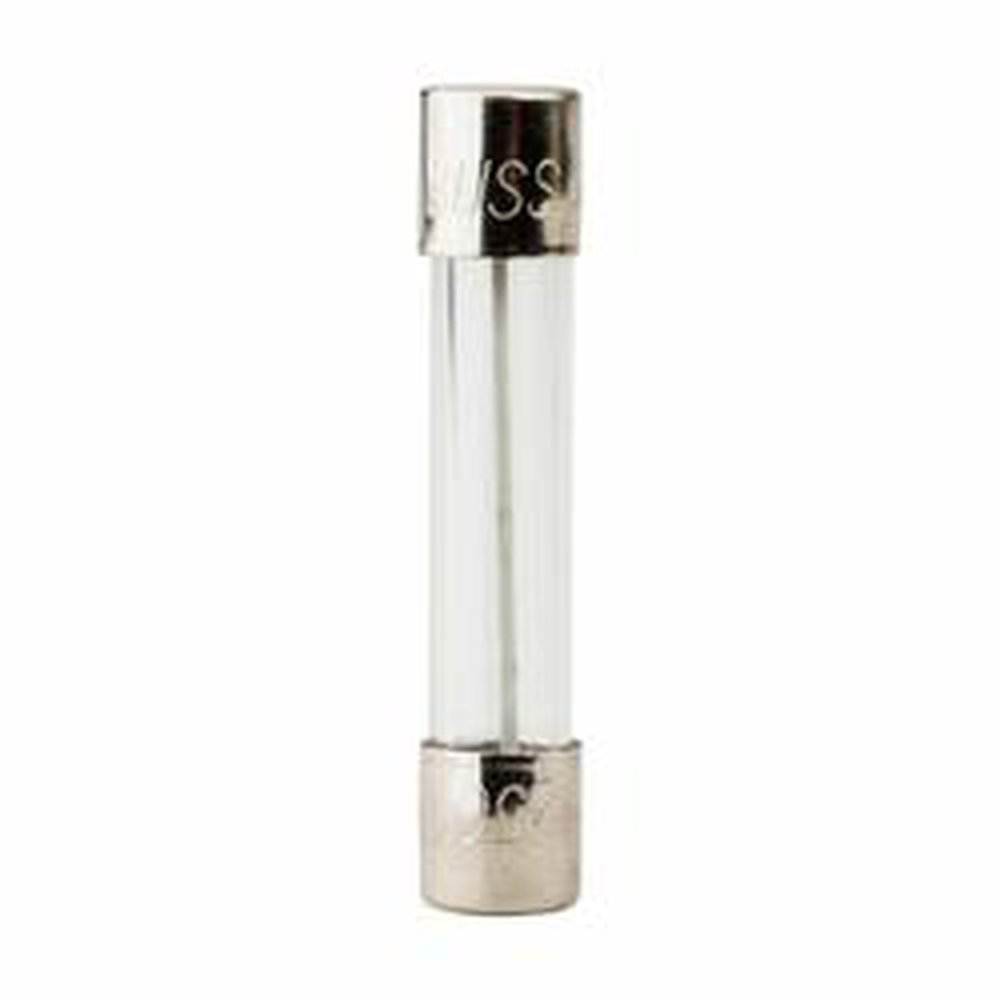

AGC-1-R BUS SMALL DIMENSION FUSE

Mouse over image to zoom, click to enlarge

  • AGC-1-R BUS SMALL DIMENSION FUSE
  • AGC-1-R BUS SMALL DIMENSION FUSE
  • AGC-1-R BUS SMALL DIMENSION FUSE

Description: Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 1 A, 250 V AC, 35 A, 10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Manufacturer PN: AGC-1-R

UPC:  05171265481

Kendall Electric Inc PN: 2652141

Invoice Description:

AGC-1-R BUS SMALL DIMENSION FUSE


SPEC SHEET

How Can We Make This Page Better?

Bussmann AGC-1-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 1 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body

Log In for Pricing and Availability




Description

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits.  Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 1 A, 250 V AC, 35 A, 10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Specifications

 Amperage Rating 1 A
 Application Electronic Circuit Applications
 Body Size 1/4 in Dia x 1-1/4 in L
 Body Type Cylindrical
 Brand Name Bussmann
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number AGC-1-R
 Material Glass
 Mounting Type Holder
 PART NUMBER KEYWORDS AGC-1-R ; AGC1R ; 9383108 ; 051712654814 ; 51712654814 ; 05171265481 ; 00051712654814
 Rejection Non Rejection Non-Rejection
 Response Time 60 min, 120 s
 Series AGC
 Standards/Approvals RoHS Compliant|CSA Certified|CSA Class 1422-01|UL File No. 053787|CE Certified|UL Listed|UL 248-14 Guide JDYX|UL File No. E19180
 Terminal Type Ferrule
 Type Small Dimension
 Video Links
 Voltage Rating 250 V AC

Features

▪ Fast acting for maximum component protection
▪ Wide amp/volt ratings allow versatility of protecting electronic circuits
▪ 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
▪ 60 min maximum at 135%, 120 sec maximum at 200% response time

Resources

 Catalog
 Catalog Page
 Product Data Sheet
