Hubbell

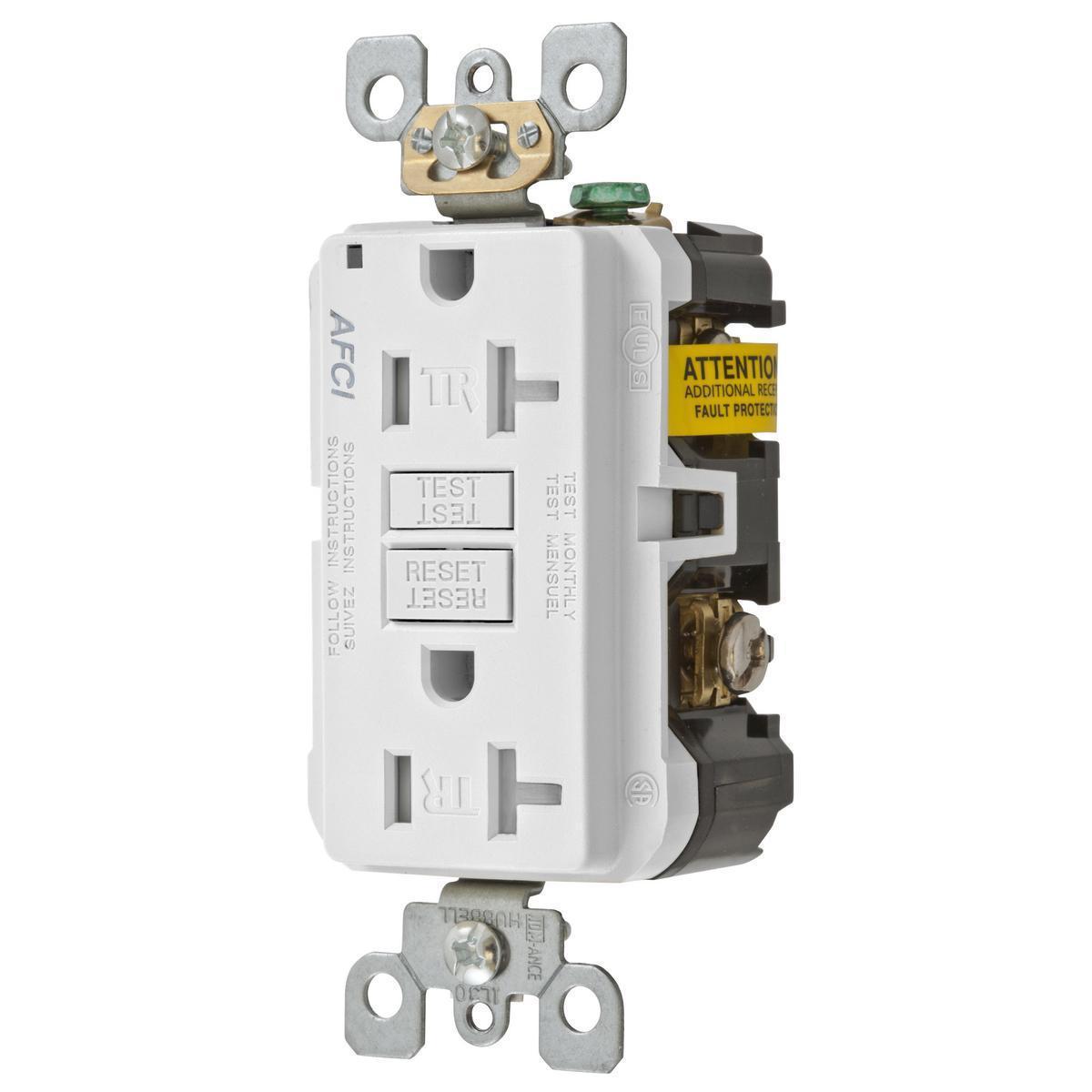

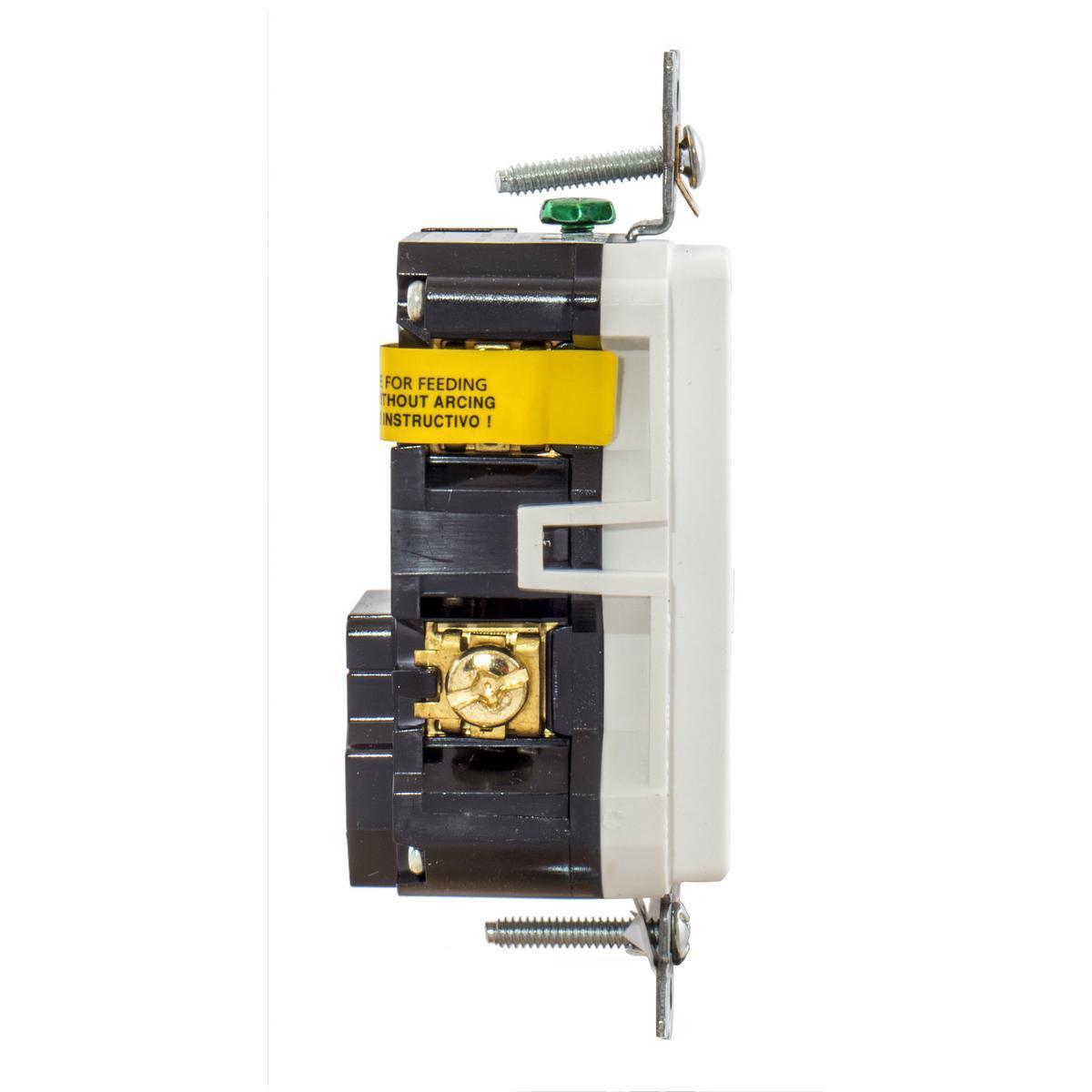

AFR20TRW HUBBELL 20A ARC TR RCPT 78358542616

Mouse over image to zoom, click to enlarge

  • AFR20TRW HUBBELL 20A ARC TR RCPT 78358542616
  • AFR20TRW HUBBELL 20A ARC TR RCPT 78358542616
  • AFR20TRW HUBBELL 20A ARC TR RCPT 78358542616
  • AFR20TRW HUBBELL 20A ARC TR RCPT 78358542616

Description: Wiring Device-Kellems, AFR20TRW, Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Residential Grade, -30 to 150 deg F, Screw Terminal, Thermoplastic/Composite, White, 1.31 in W x 1.29 in D x 4.21 in H Dimensions

Manufacturer PN: AFR20TRW

UPC:  78358542616

Kendall Electric Inc PN: 3474698

Invoice Description:

AFR20TRW HUBBELL 20A ARC TR RCPT 78358542616


SPEC SHEET

▸ See All in AFCI Receptacles


How Can We Make This Page Better?

Wiring Device-Kellems AFR20TRW Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Arc fault circuit interrupter (AFCI) protection shall be provided in dwelling units for all 120 VAC, single phase, 15 A and 20 A branch circuits supplying outlets or devices in kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas or similar rooms or areas. AFCI protection shall also be installed in dormitory unit bedrooms, living rooms, hallways, closets and similar rooms.
Wiring Device-Kellems, AFR20TRW, Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Residential Grade, -30 to 150 deg F, Screw Terminal, Thermoplastic/Composite, White, 1.31 in W x 1.29 in D x 4.21 in H Dimensions

Specifications

 Amperage Rating 20 A
 Application Commercial, Industrial and Residential Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Dimensions 1.31 in W x 1.29 in D x 4.21 in H
 Grade Commercial/Residential
 Horsepower 1 hp
 Manufacturer Part Number AFR20TRW
 Material Thermoplastic/Composite
 NEMA Rating 5-15R
 Number of Poles 2
 Number of Wires 3
 Standards/Approvals CSA C22.2 No. 42|Federal Specification WC596|NEMA WD6|NEC 406.12/210.52|UL 1699A|UL 498 File No. E366570
 Temperature Rating -30 to 150 deg F
 Terminal Type Screw
 Type 1-Phase Decorator Duplex Standard Tamper Resistant Screw Mount
 Video Links
 Voltage Rating 125 VAC

Features

▪ Meets new 2017 national electric code for AFCI protection
▪ Meets or exceeds UL requirements for tripping time on series and parallel arcs
▪ Tamper resistant and self-grounding construction are standard features
▪ Automatically tests the AFCI each time the reset button is pressed in place
▪ No reset when tested if AFCI functionality is compromised
▪ 20 A protection feed-through
▪ Indoor dry unless protected by additional mean environmental conditions
▪ Straight blade receptacle
▪ 2500 W power rating
