Hubbell

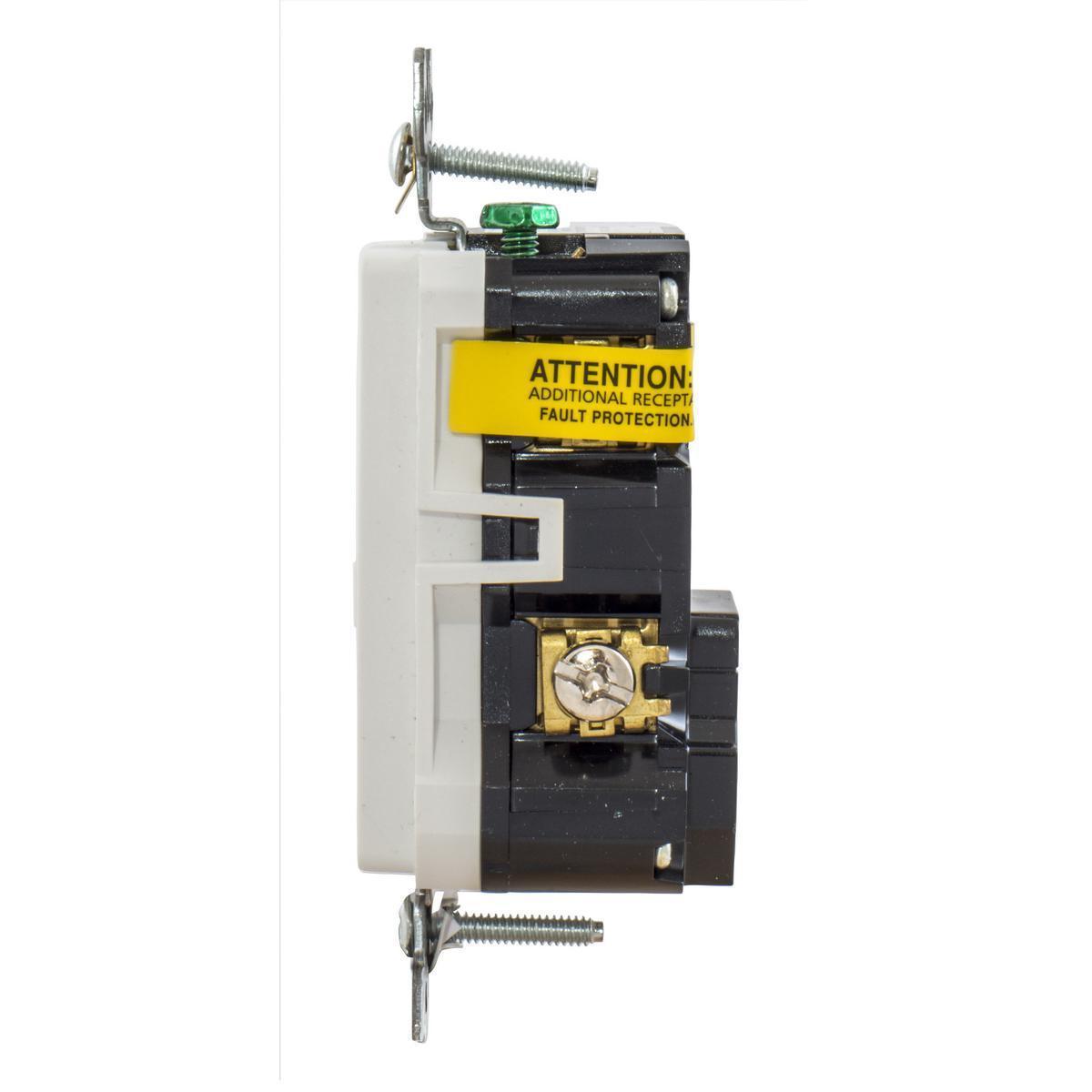

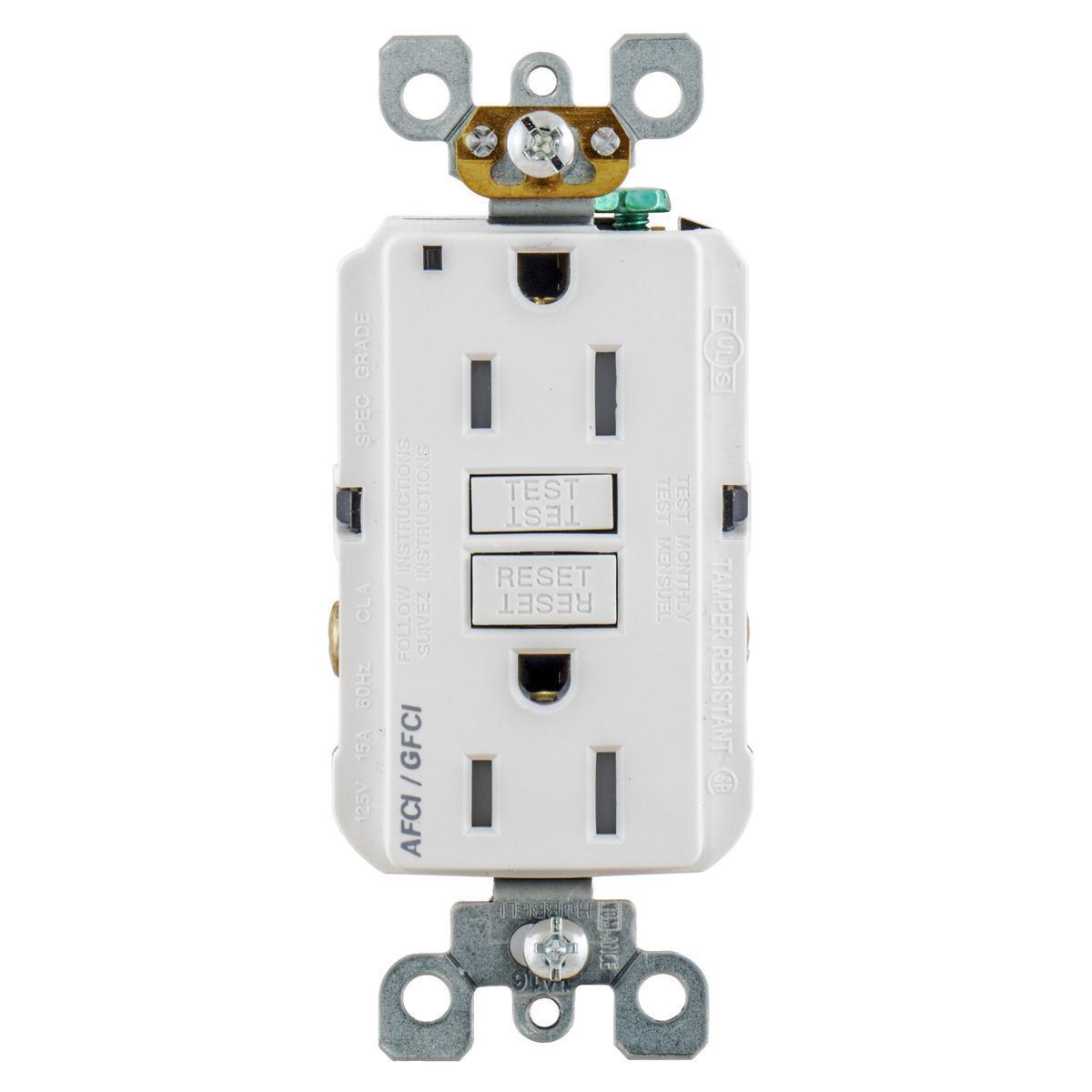

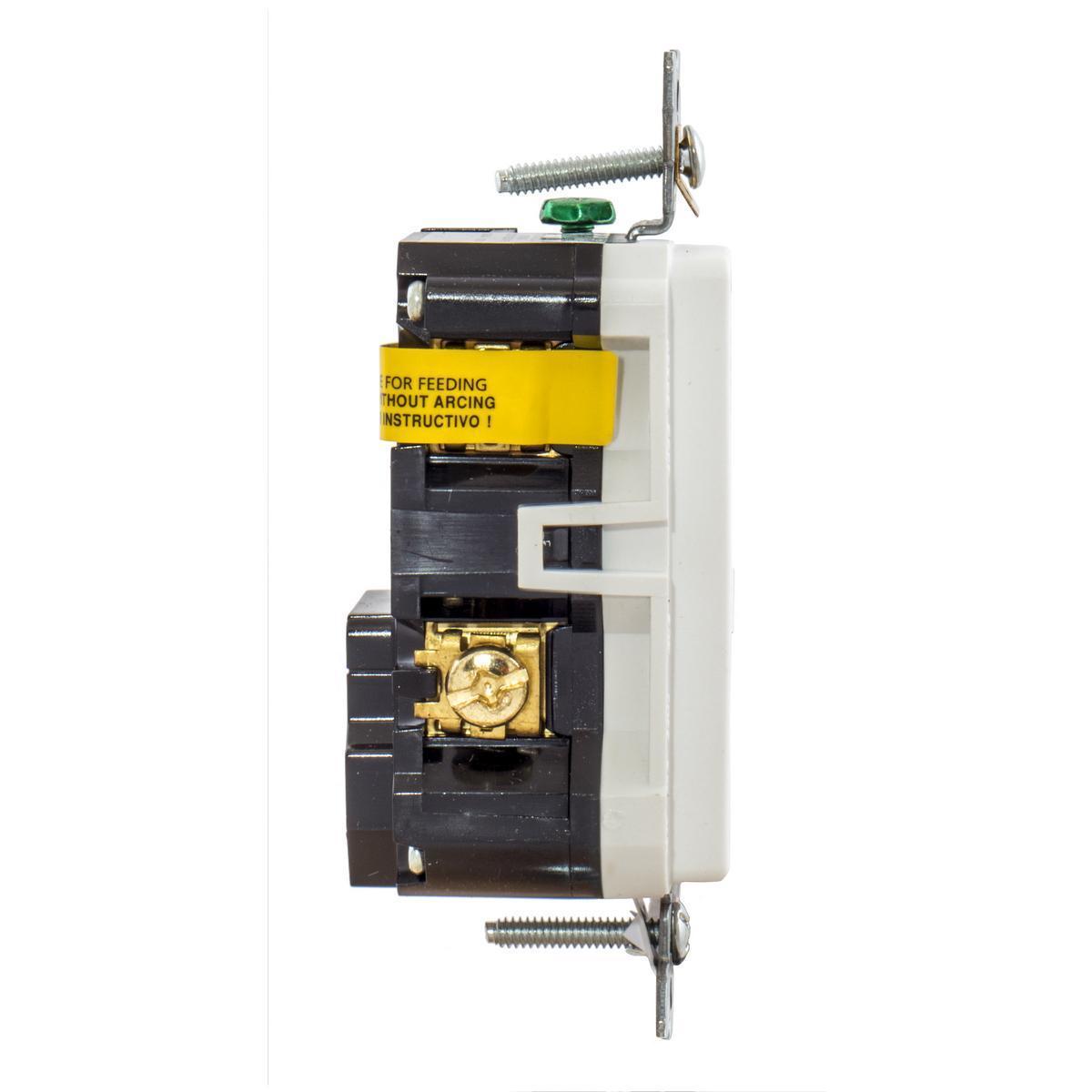

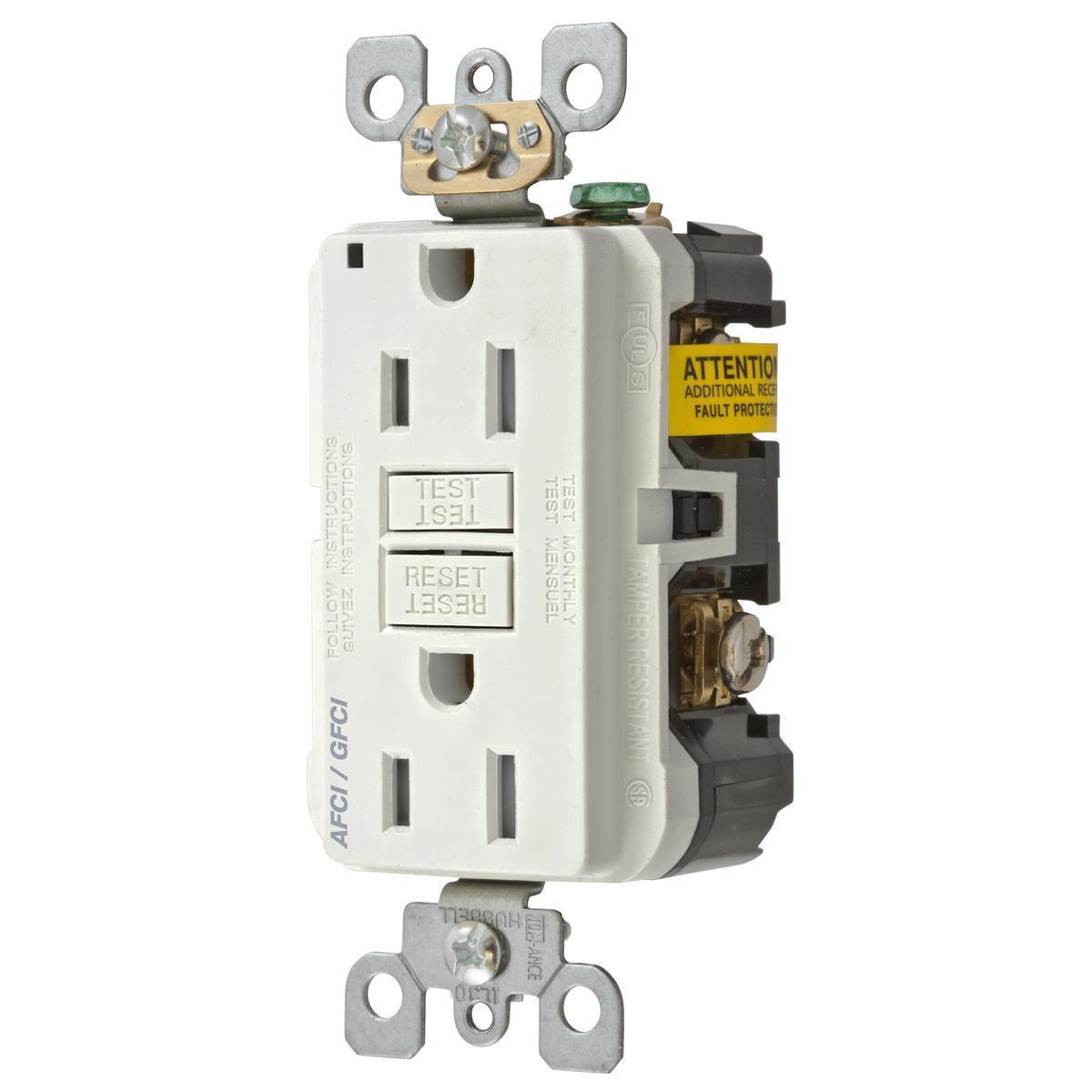

AFGF15TRW HUBBELL 15A COMB AF/GF REC WHITE

Mouse over image to zoom, click to enlarge

  • AFGF15TRW HUBBELL 15A COMB AF/GF REC WHITE
  • AFGF15TRW HUBBELL 15A COMB AF/GF REC WHITE
  • AFGF15TRW HUBBELL 15A COMB AF/GF REC WHITE
  • AFGF15TRW HUBBELL 15A COMB AF/GF REC WHITE
  • AFGF15TRW HUBBELL 15A COMB AF/GF REC WHITE

Description: Hubbell Wiring Device-Kellems AFCI/GFCI Receptacle, 1-Phase Autoground Clip Tamper Resistant Standard Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, -30 to 150 deg F, Screw Terminal, Composite, White, 1.68 in W x 1.43 in D x 4.21 in H

Manufacturer PN: AFGF15TRW

UPC:  88377843000

Kendall Electric Inc PN: 3955472

Invoice Description:

AFGF15TRW HUBBELL 15A COMB AF/GF REC WHITE


SPEC SHEET

▸ See All in AFCI/GFCI Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems AFGF15TRW 1-Phase Autoground Clip Tamper Resistant Standard Screw Mount AFCI/GFCI Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

15A COMB AF/GF REC WHITE.
Hubbell Wiring Device-Kellems AFCI/GFCI Receptacle, 1-Phase Autoground Clip Tamper Resistant Standard Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, -30 to 150 deg F, Screw Terminal, Composite, White, 1.68 in W x 1.43 in D x 4.21 in H

Specifications

 Amperage Rating 15 A
 Application Dry Locations, Indoor and Electrical Safety Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Dimensions 1.68 in W x 1.43 in D x 4.21 in H
 Horsepower 1/2 hp
 Manufacturer Part Number AFGF15TRW
 Material Composite
 NEMA Rating 5-15R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS AFGF15TRW ; 13909221 ; 883778430008 ; 88377843000 ; 00883778430008
 Standards/Approvals UL 498|CSA C22.2 No. 42 No. M-02A|UL94 V-2 Flammability Rating|NEMA WD6
 Temperature Rating -30 to 150 deg F
 Terminal Type Screw
 Type 1-Phase Autoground Clip Tamper Resistant Standard Screw Mount
 Video Links
 Voltage Rating 125 V AC

Features

▪ Cost effective solution conveniently located within living space
▪ clearly visible, easily resettable if necessary
▪ Dual functionality, interrupts power if a ground fault or arc fault is detected
▪ Safety feature prevents device from resetting if it can no longer provide protection or is reverse wired
▪ Intuitive visual indication is provided for power (LED green ON), trip condition (LED green OFF)
