Description: GE Pro-Stock™ Lighting Panelboard, 3-Phase Interior Unassembled, Series: A-Series™ II, 277/480 VAC, 400 A, 3 Pole, 42 Circuits, Copper Bus, Feed-Through Feed, Bolted-On Mounting, NEMA 1/3R/12 Enclosure, 73-1/2 in L x 17 in W x 76 in H Dimensions

Manufacturer PN: AEU3424RCXAXT1B4

UPC:  78317512032

Kendall Electric Inc PN: 2559565

Invoice Description:

AEU3424RCXAXT1B4 GE PANELBOARD INTERIOR, 480V 3PH 400A 42CIR


SPEC SHEET

▸ See All in Lighting Panelboards


How Can We Make This Page Better?

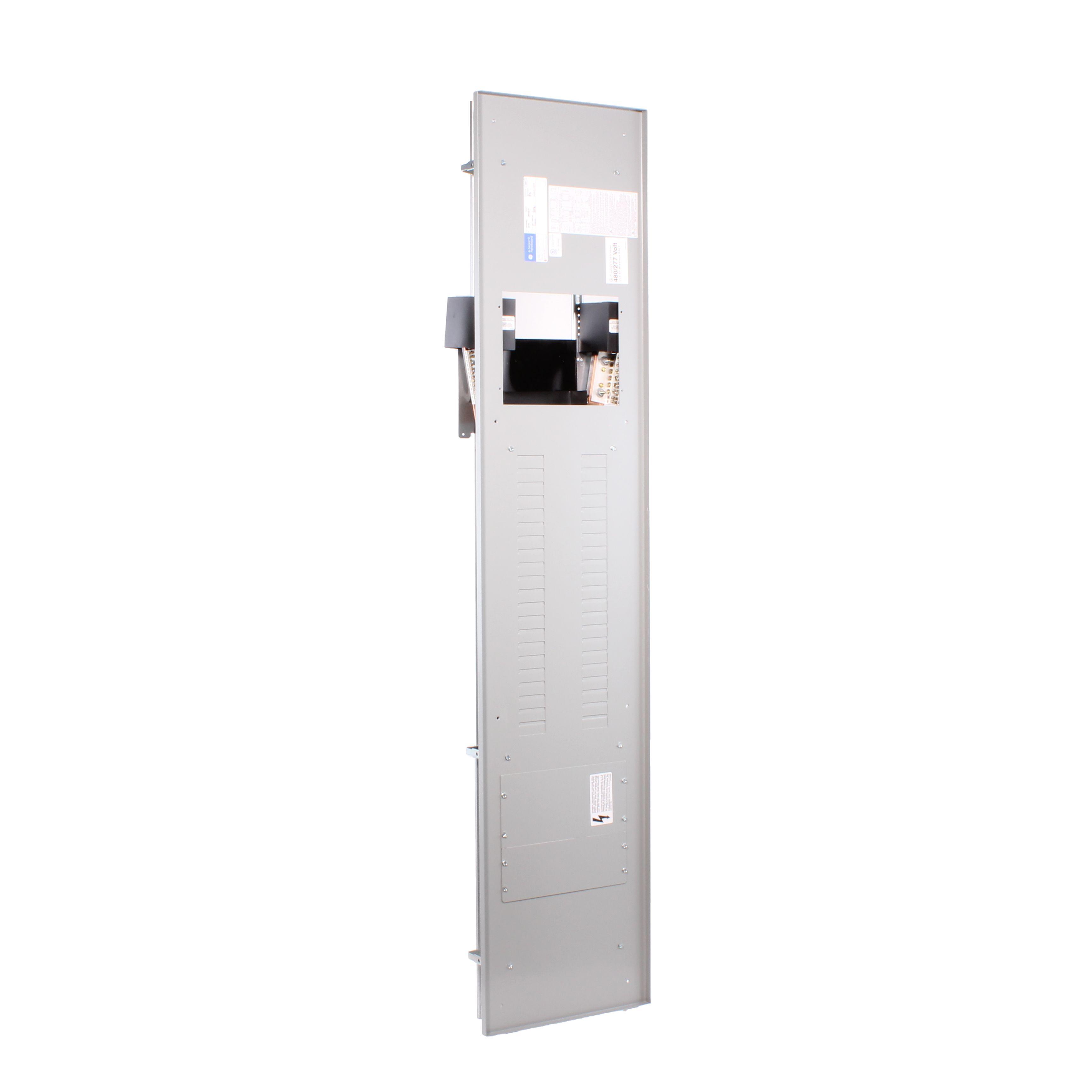

GE Pro-Stock™ AEU3424RCXAXT1B4 A-Series™ II 3-Phase Interior Unassembled Lighting Panelboard, 277/480 VAC, 400 A, 3 Poles

Log In for Pricing and Availability




Description

GE Pro-Stock™ Lighting Panelboard, 3-Phase Interior Unassembled, Series: A-Series™ II, 277/480 VAC, 400 A, 3 Pole, 42 Circuits, Copper Bus, Feed-Through Feed, Bolted-On Mounting, NEMA 1/3R/12 Enclosure, 73-1/2 in L x 17 in W x 76 in H Dimensions

Specifications

 Amperage Rating 400 A
 Application Electrical Distribution and Control Applications
 Brand Name GE
 Bus Material Copper
 Dimensions 73-1/2 in L x 17 in W x 76 in H
 Enclosure NEMA 1/3R/12
 Feed Type Feed-Through
 Manufacturer Part Number AEU3424RCXAXT1B4
 Mounting Type Bolted-On
 Number of Circuits 42
 Number of Poles 3
 Series A-Series™ II
 Standards/Approvals CSA Certified|California Building Code Seismic Zone 4|Federal Specification W-P-115C|International Building Code Seismic Zone 3 and 4|NEC Article 384|UL 67|UL 50|UL 943
 Type 3-Phase Interior Unassembled
 Voltage Rating 277/480 VAC

Features

▪ Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
▪ Up to six poles of sub feed available in 400 A and 600 A and up to 3-poles of sub feed available in 225 A
▪ 76 in H box/front
▪ 32 go schedule
▪ Maximum system voltage is up to 480 VAC for AE panelboard line
▪ Field installable kits allow you to shift gears on the fly
▪ Standard Pro-Stock™ panels have the capability of adding sub feed breaker or feed-through lug in the field
▪ All panel are convertible between main lug or main breaker
▪ Reversible interior and no need to specify top or bottom feed
▪ Solid state Spectra™ rms or thermal magnetic breakers available as mains or sub-feeds
▪ Flush or surface mounted trims with door within door and front hinge to box options available
▪ Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
▪ Extruded split neutrals speed and simplify wiring
