Broan-NuTone
AE50-110DC NUTONE EXHAUST FAN 50-80-110CFM

Mouse over image to zoom, click to enlarge

  • AE50-110DC NUTONE EXHAUST FAN 50-80-110CFM
  • AE50-110DC NUTONE EXHAUST FAN 50-80-110CFM
  • AE50-110DC NUTONE EXHAUST FAN 50-80-110CFM
  • AE50-110DC NUTONE EXHAUST FAN 50-80-110CFM
  • AE50-110DC NUTONE EXHAUST FAN 50-80-110CFM

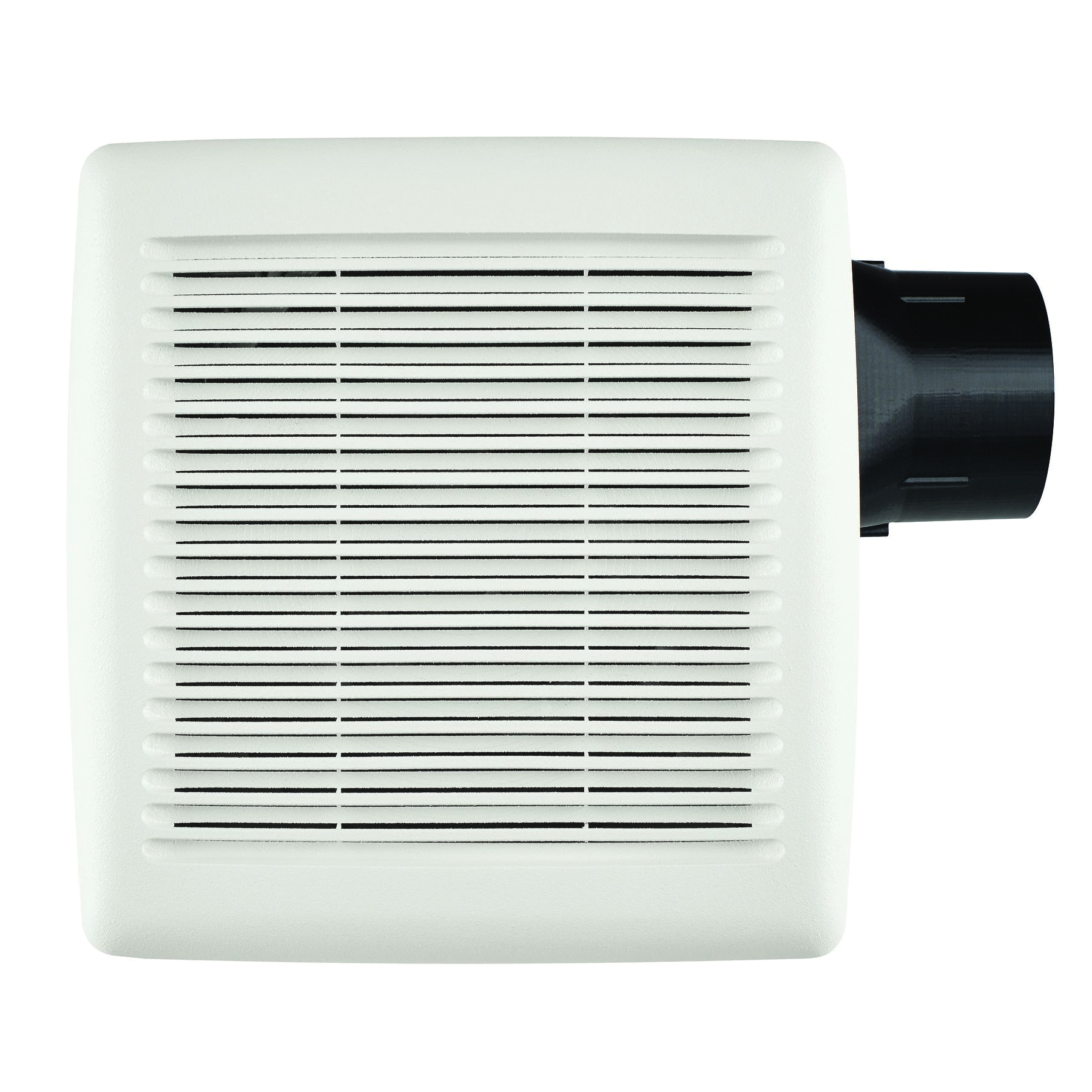

Description: Broan® Bathroom Exhaust Fan, Series: Flex DC™ Series, 50 to 110 cfm Flow Rate, 4 in Diameter Duct, 120 V, 0.3 A Current/Amps, 60 Hz Frequency, 14.9 W Wattage Consumption, <0.3 to 1.4 sones, 11-1/2 in Grille Length, 12 in Grille Width, Polymeric Grille, 9-1/4 in Housing Length, 10 in Housing Width, 5-3/4 in Housing Height, 26 ga Galvanized Steel Housing Material, Ceiling Mounting, White

Manufacturer PN: AE50110DC

UPC:  02671525697

Kendall Electric Inc PN: 4107599

Invoice Description:

AE50-110DC NUTONE EXHAUST FAN 50-80-110CFM


SPEC SHEET

▸ See All in Bathroom Exhaust Fans


How Can We Make This Page Better?

Broan® AE5011DC Flex DC™ Series Bathroom Exhaust Fan, 50 to 110 cfm, 4 in Dia Duct, 14.9 W, 120 V, 0.3 A, <0.3 to 1.4 sones

Log In for Pricing and Availability




Description

Broan® AE50110DC Flex DC™ Series Exhaust Bath Fan, ENERGY STAR® offers easy, room side installation, with "No Attic Access Required". Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50/80/110 at a quiet operation of <0.3-0.4-0.9 sones.

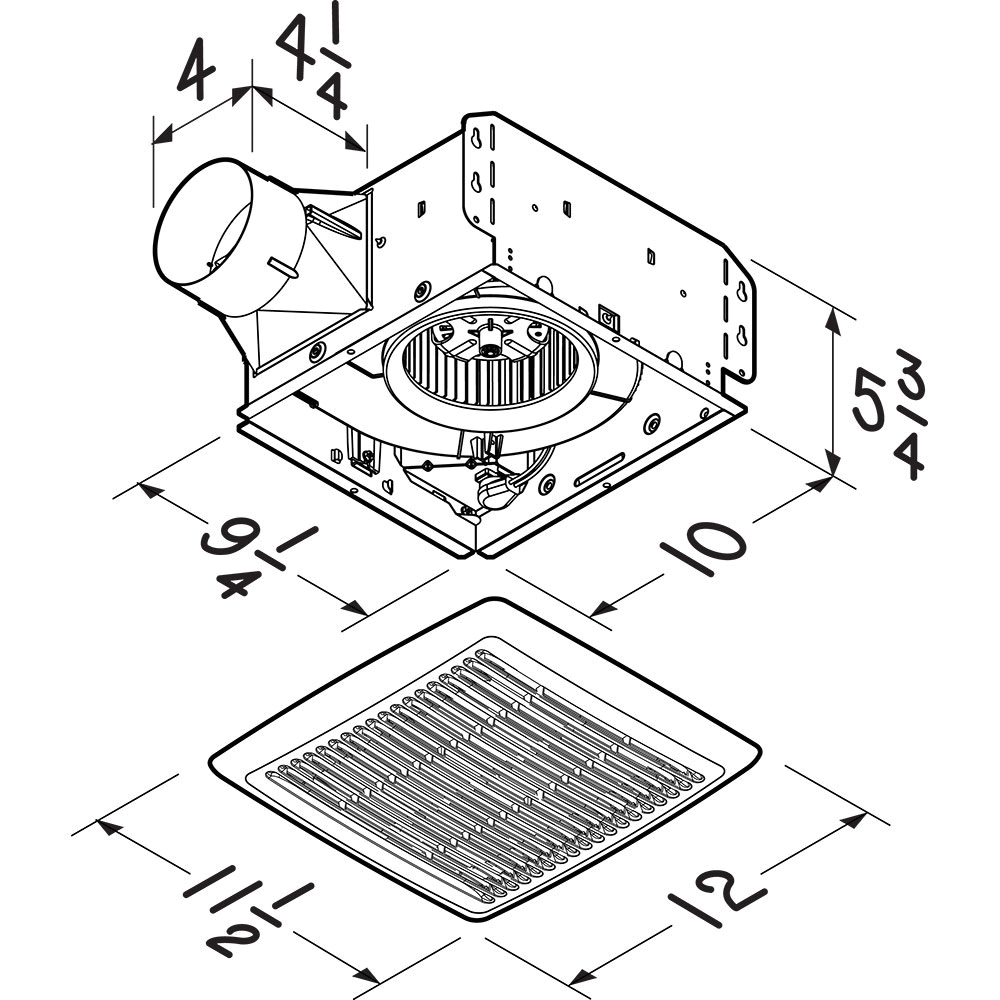

Broan® Bathroom Exhaust Fan, Series: Flex DC™ Series, 50 to 110 cfm Flow Rate, 4 in Diameter Duct, 120 V, 0.3 A Current/Amps, 60 Hz Frequency, 14.9 W Wattage Consumption, <0.3 to 1.4 sones, 11-1/2 in Grille Length, 12 in Grille Width, Polymeric Grille, 9-1/4 in Housing Length, 10 in Housing Width, 5-3/4 in Housing Height, 26 ga Galvanized Steel Housing Material, Ceiling Mounting, White

Specifications

 Brand Name Broan
 Color White
 Current Amps 0.3 A
 Duct Diameter 4 in
 Flow Rate 50 to 110 cfm
 Frequency Rating 60 Hz
 Grille Length 11/1/2002 in
 Grille Material Polymeric
 Grille Width 12 in
 Housing Height 5/3/2004 in
 Housing Length 9/1/2004 in
 Housing Material 26 ga Galvanized Steel
 Housing Width 10 in
 Manufacturer Part Number AE5011DC
 Mounting Type Ceiling
 Series Flex DC™ Series
 Sones <0.3 to 1.4 sones
 Standards/Approvals cULus Listed|ENERGY STAR Certified|HVI 2100 Certified
 Video Links
 Voltage Rating 120 V
 Wattage Consumption 14.9 W

Features

▪ FlexFlow™ technology, select between 50, 80 or 110 cfm
▪ Quiet operation at <0.3/0.4/0.9 sones
▪ Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
▪ Retrofit installations can be done entirely from the room-side - no attic access required
▪ This means a faster, easier installation, so you can move on to something else
▪ Flex DC™ fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
▪ Plug in, permanently lubricated, brushless DC motor - engineered for continuous operation
▪ Can be installed in a wall if mounted 8 ft or more above the floor
▪ UL listed for use over tubs and showers with a GFCI circuit, so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
