Louisville Ladder

Mouse over image to zoom, click to enlarge

Description: Louisville® Extension Ladder, Multi-Section, Series: AE2000, 20 ft Overall Length, ANSI Code: Type IA, 300 lb, Aluminum, 17 ft Maximum Working Length, 10 ft Section Length, 12 in Adjustable Increments, 17-13/16 in Outside Shoe Base Width, Conductive/Modified I-Beam Rail, Swivel Safety Shoe

Manufacturer PN: AE2220

UPC: 72886501511

Kendall Electric Inc PN: 4844049

Invoice Description:

AE2220 LOUISVIL 20FT ALUM 2-SEC EXT

▸ See All in Extension Ladders

How Can We Make This Page Better?

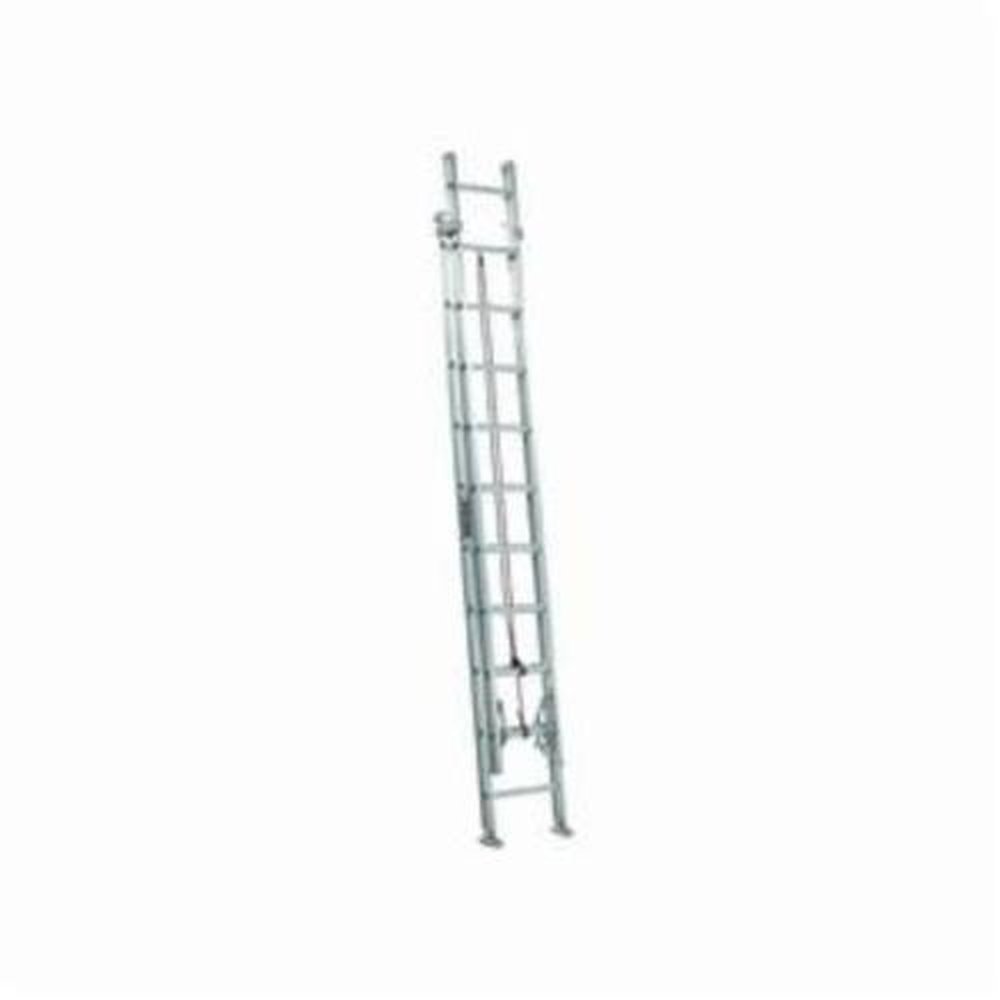

Louisville® AE2220 AE2000 Multi-Section Extension Ladder, 20 ft OAL, 300 lb Load, 12 in Adjustable Increments, Aluminum, Type IA

Note: Lead times are estimates only

Description Specifications Features Resources

Description

This Louisville 20 foot aluminum industrial extension ladder has a 300 lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, mar-resistant rail end caps, rope and pulley, full I-beam for a more stable connection and to prevent twisting, and swivel safety shoes to be used as tread down or in spike position. The Louisville AE2220 aluminum extension ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Louisville® Extension Ladder, Multi-Section, Series: AE2000, 20 ft Overall Length, ANSI Code: Type IA, 300 lb, Aluminum, 17 ft Maximum Working Length, 10 ft Section Length, 12 in Adjustable Increments, 17-13/16 in Outside Shoe Base Width, Conductive/Modified I-Beam Rail, Swivel Safety Shoe

Specifications

ANSI Code	Type IA
Adjustable Increments	12 in
Application	For working on light construction and residential jobs
Brand Name	Louisville®
Load Capacity	300 lb
Manufacturer Part Number	AE2220
Material	Aluminum
Maximum Working Length	17 ft
Outside Shoe Base Width	17-13/16 in
Overall Length	20 ft
PART NUMBER KEYWORDS	AE2220 ; 728865015112 ; 72886501511
Rail Type	Conductive/Modified I-Beam
Section Length	10 ft
Series	AE2000
Shoe Type	Swivel Safety
Standards/Approvals	ANSI A14.2\|CSA Certified\|OSHA Compliant
Type	Multi-Section
