Hubbell

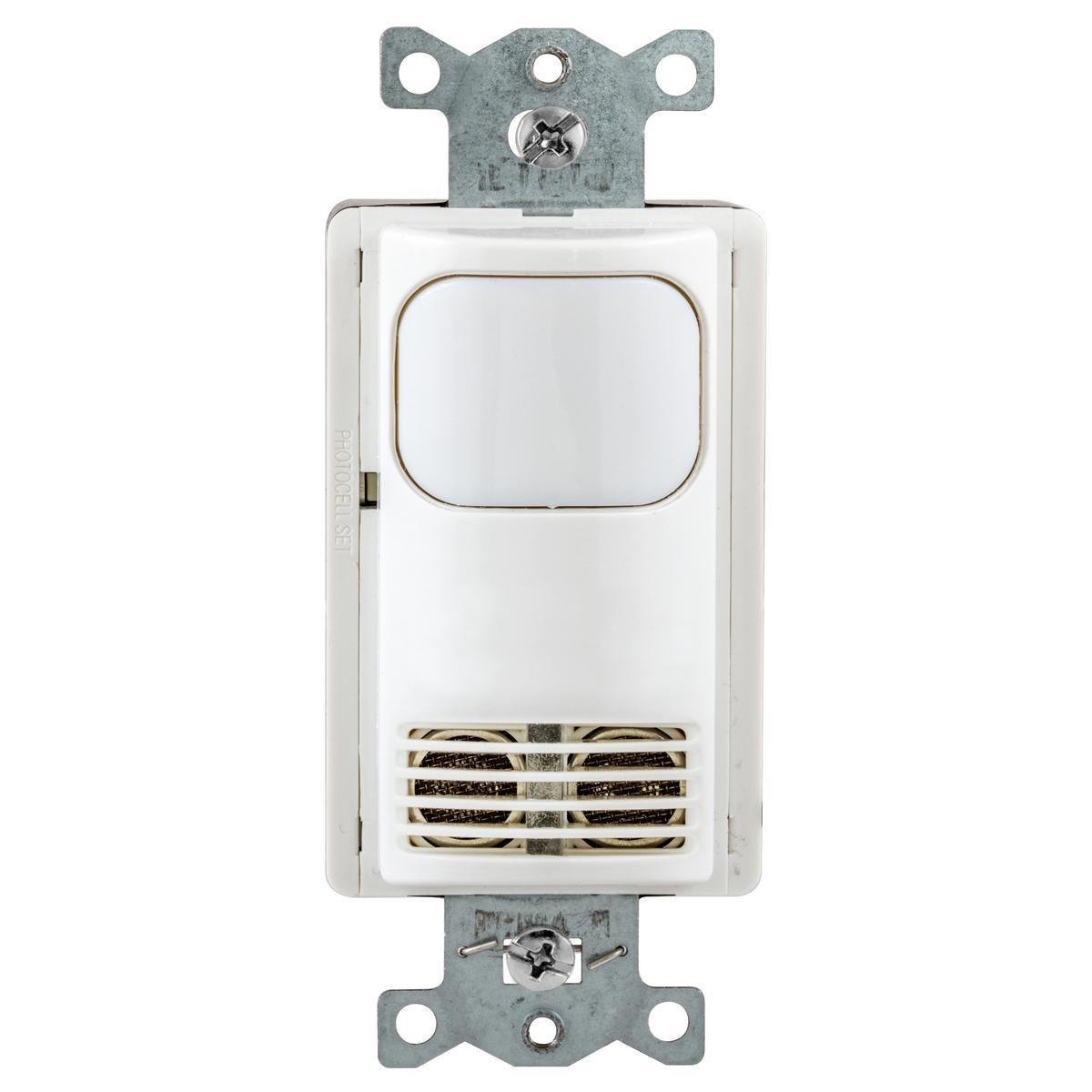

AD2000W1N HUBBELL WS,VAC/OCC,DT,1 R,120/277V,NO BTN,WH

Mouse over image to zoom, click to enlarge

  • AD2000W1N HUBBELL WS,VAC/OCC,DT,1 R,120/277V,NO BTN,WH
  • AD2000W1N HUBBELL WS,VAC/OCC,DT,1 R,120/277V,NO BTN,WH

Description: Wiring Device-Kellems, AD2000W1N, Wall Switch Sensor With Photocell, 1-Circuit 1 Relay Dual Technology, Series: AD2000, 120 V AC, 800/1000/1800 W Power, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage, 4 to 30 min Time Delay, Fluorescent/Incandescent Lamp, Screw Terminal Connection, Automatic On Control Output, Wall Mounting, 0 to 40 deg C, Plastic, White, 1.71 in W x 1.69 in D x 4.13 in H Dimensions

Manufacturer PN: AD2000W1N

UPC:  78358541332

Kendall Electric Inc PN: 3953568

Invoice Description:

AD2000W1N HUBBELL WS,VAC/OCC,DT,1 R,120/277V,NO BTN,WH


SPEC SHEET

▸ See All in Wall Mount Vacancy Sensors


How Can We Make This Page Better?

Wiring Device-Kellems AD2000W1N AD2000 1-Circuit 1 Relay Dual Technology Wall Switch Sensor With Photocell, 120 V AC, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage, Wall Mounting

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Combines PIR and us technology, minimizing the risk of lights turning on when the space is unoccupied. Once occupancy is detected by both technologies within the space lights are turned ON, only one technology is necessary to keep the lights On. Adaptive technology provides better control. Hubbell® patented breakthrough in advanced control feature smart microprocessors constantly monitoring the controlled area and adjust the sensitivity and timer based on environmental history. The optimum choice when performance is paramount.
Wiring Device-Kellems, AD2000W1N, Wall Switch Sensor With Photocell, 1-Circuit 1 Relay Dual Technology, Series: AD2000, 120 V AC, 800/1000/1800 W Power, Passive Infrared/Ultrasonic Sensor, 1000 sq-ft Coverage, 4 to 30 min Time Delay, Fluorescent/Incandescent Lamp, Screw Terminal Connection, Automatic On Control Output, Wall Mounting, 0 to 40 deg C, Plastic, White, 1.71 in W x 1.69 in D x 4.13 in H Dimensions

Specifications

 Application Indoor Dry Environment Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Connection Type Screw Terminal
 Control Output Automatic On
 Coverage 1000 sq-ft
 Dimensions 1.71 in W x 1.69 in D x 4.13 in H
 Lamp Type Fluorescent/Incandescent
 Manufacturer Part Number AD2000W1N
 Material Plastic
 Mounting Type Wall
 PART NUMBER KEYWORDS AD2000W1N ; 13029040 ; 783585413327 ; 78358541332 ; 00783585413327
 Power Rating 800/1000/1800 W
 Sensor Type Passive Infrared/Ultrasonic
 Series AD2000
 Standards/Approvals ASHRAE 90.1|CSA Certified|cULus Listed|UL Listed
 Temperature Rating 0 to 40 deg C
 Time Delay 4 to 30 min
 Type 1-Circuit 1 Relay Dual Technology
 Voltage Rating 120 V AC

Features

▪ Dual technology sensing combines the individual advantages of passive infrared and ultrasonic detection
▪ No neutral required
▪ Built in photocell with manual super saver mode for daylight harvesting
▪ Impact resistant hard lens is standard and color matched to the switch
