Eaton

Mouse over image to zoom, click to enlarge

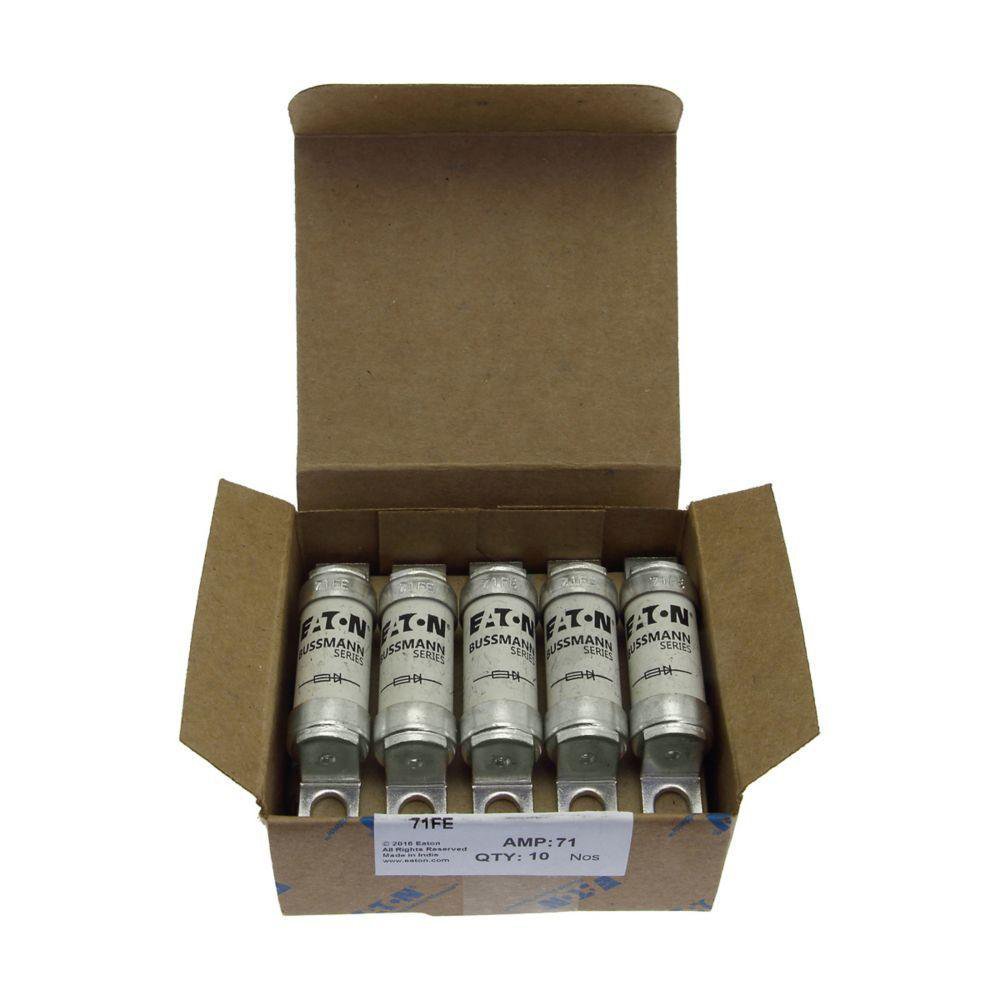

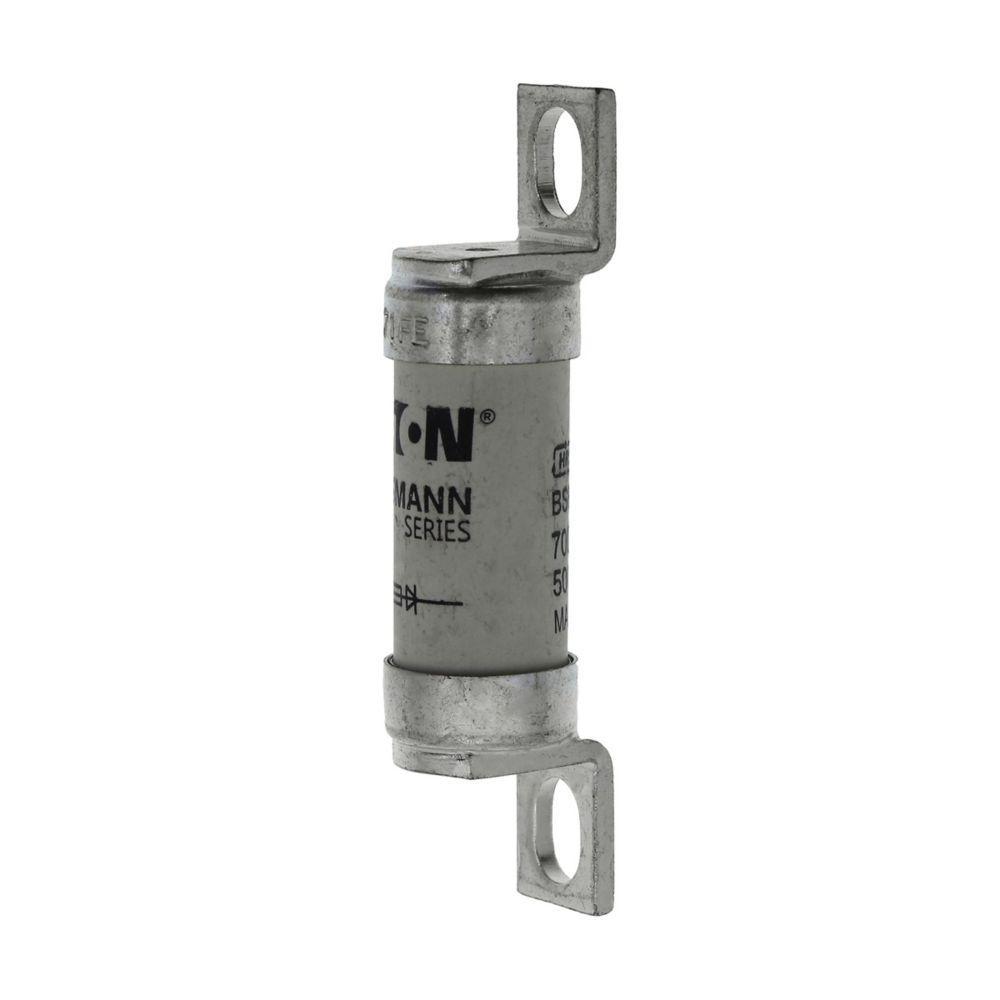

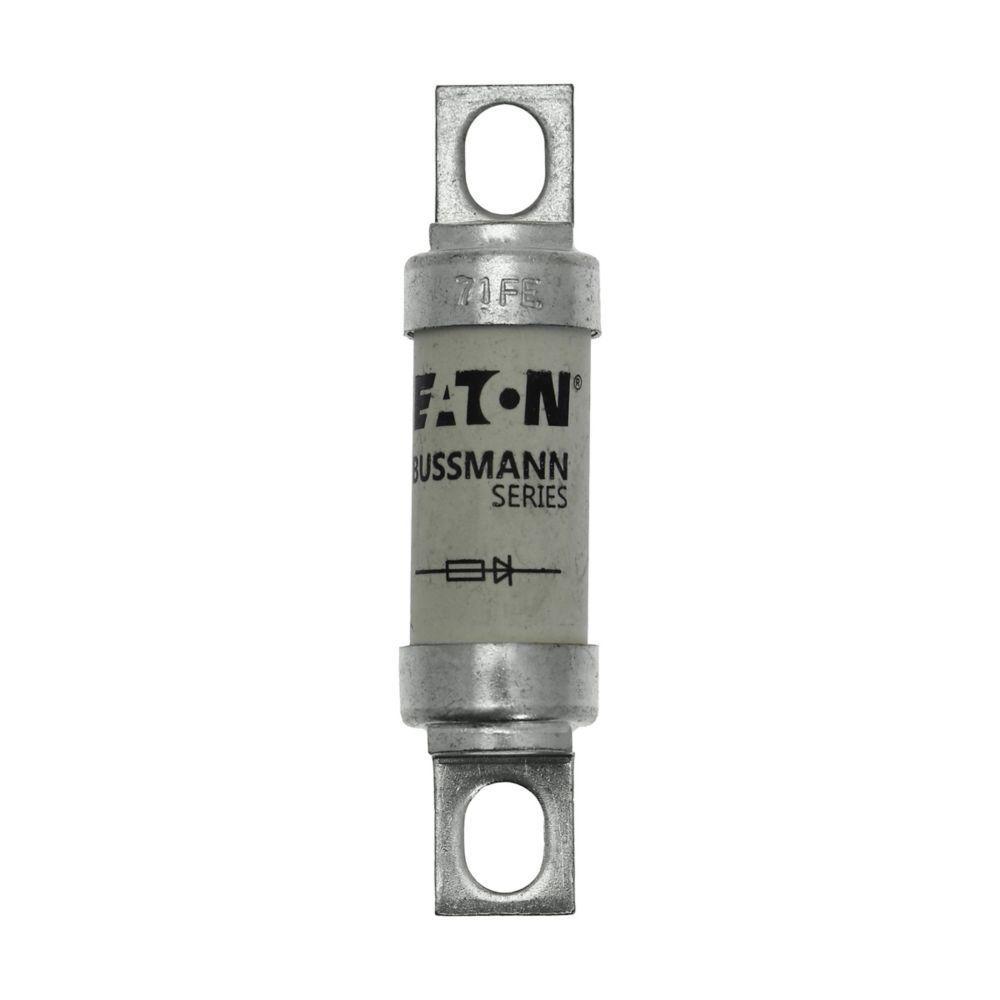

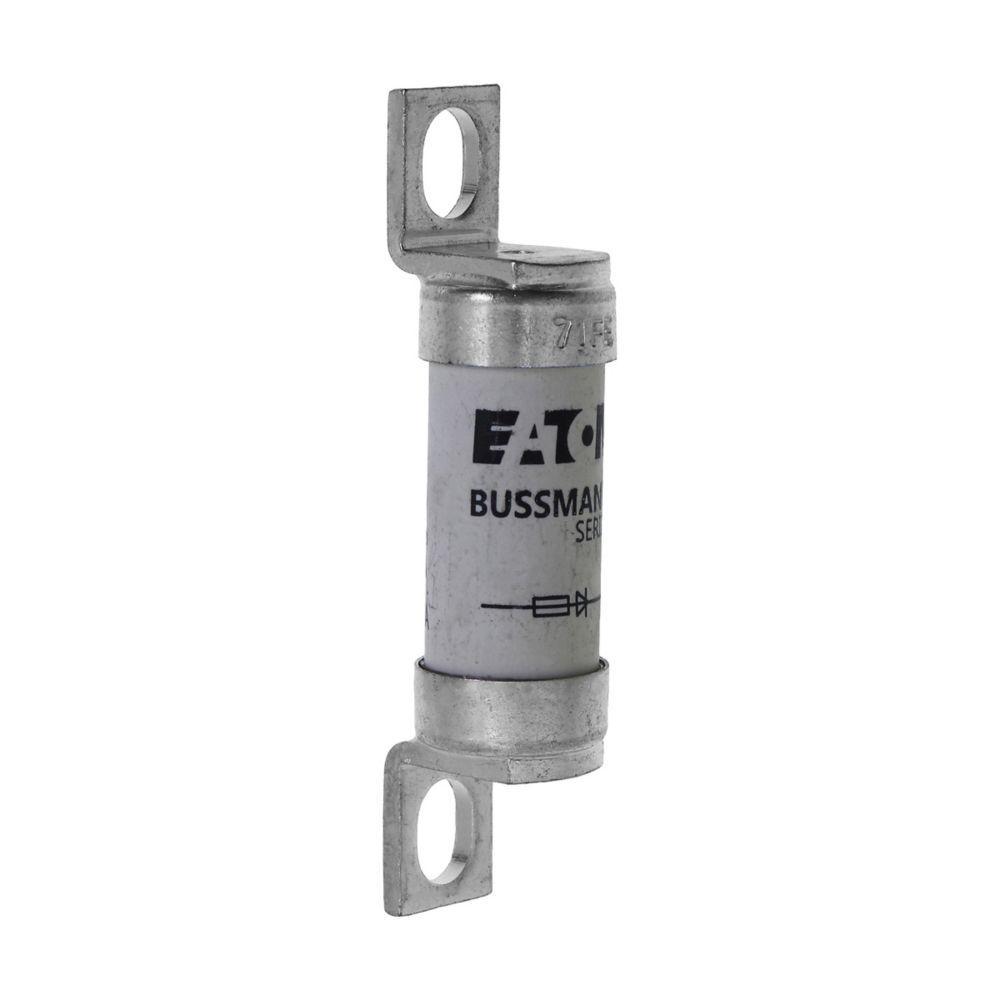

Description: Bussmann High Speed Fuse, British Standard Semi-Conductor, Non-Indicating, 71 A, 690 V, 200 kA Interrupt, Blade End Terminal, Stud Mounting, 3.031 in L x 0.673 in W x 0.752 in H Body

Manufacturer PN: 71FE

UPC: 05171283721

Kendall Electric Inc PN: 2353524

Invoice Description:

71FE BRITISH BS 88 690V 71 AMP FUSE BUSS

SPEC SHEET

How Can We Make This Page Better?

Bussmann 71FE British Standard Semi-Conductor High Speed Fuse, 71 A, 690 V, 200 kA Interrupt

Note: Lead times are estimates only

Description Specifications Features Resources

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed Fuse, British Standard Semi-Conductor, Non-Indicating, 71 A, 690 V, 200 kA Interrupt, Blade End Terminal, Stud Mounting, 3.031 in L x 0.673 in W x 0.752 in H Body

Specifications

Amperage Rating	71 A
Application	Aftermarket, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories Facility, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems
Body Size	3.031 in L x 0.673 in W x 0.752 in H
Brand Name	Bussmann
Indicating Non Indicating	Non-Indicating
Manufacturer Part Number	71FE
Mounting Type	Stud
PART NUMBER KEYWORDS	71FE ; 10515977 ; 051712837217 ; 51712837217 ; 05171283721 ; 00051712837217 ; 5027590488976
Standards/Approvals	IEC Rated ,UL Recognized,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,CE-markering,RoHS-compliant
Terminal Type	Blade End
Type	British Standard Semi-Conductor
Video Links
Voltage Rating	690 V
