Schneider Electric
  • ABL8RPS24100 SQD POWER SUPPLY 24VDC
  • ABL8RPS24100 SQD POWER SUPPLY 24VDC
  • ABL8RPS24100 SQD POWER SUPPLY 24VDC
  • ABL8RPS24100 SQD POWER SUPPLY 24VDC
  • ABL8RPS24100 SQD POWER SUPPLY 24VDC
  • ABL8RPS24100 SQD POWER SUPPLY 24VDC

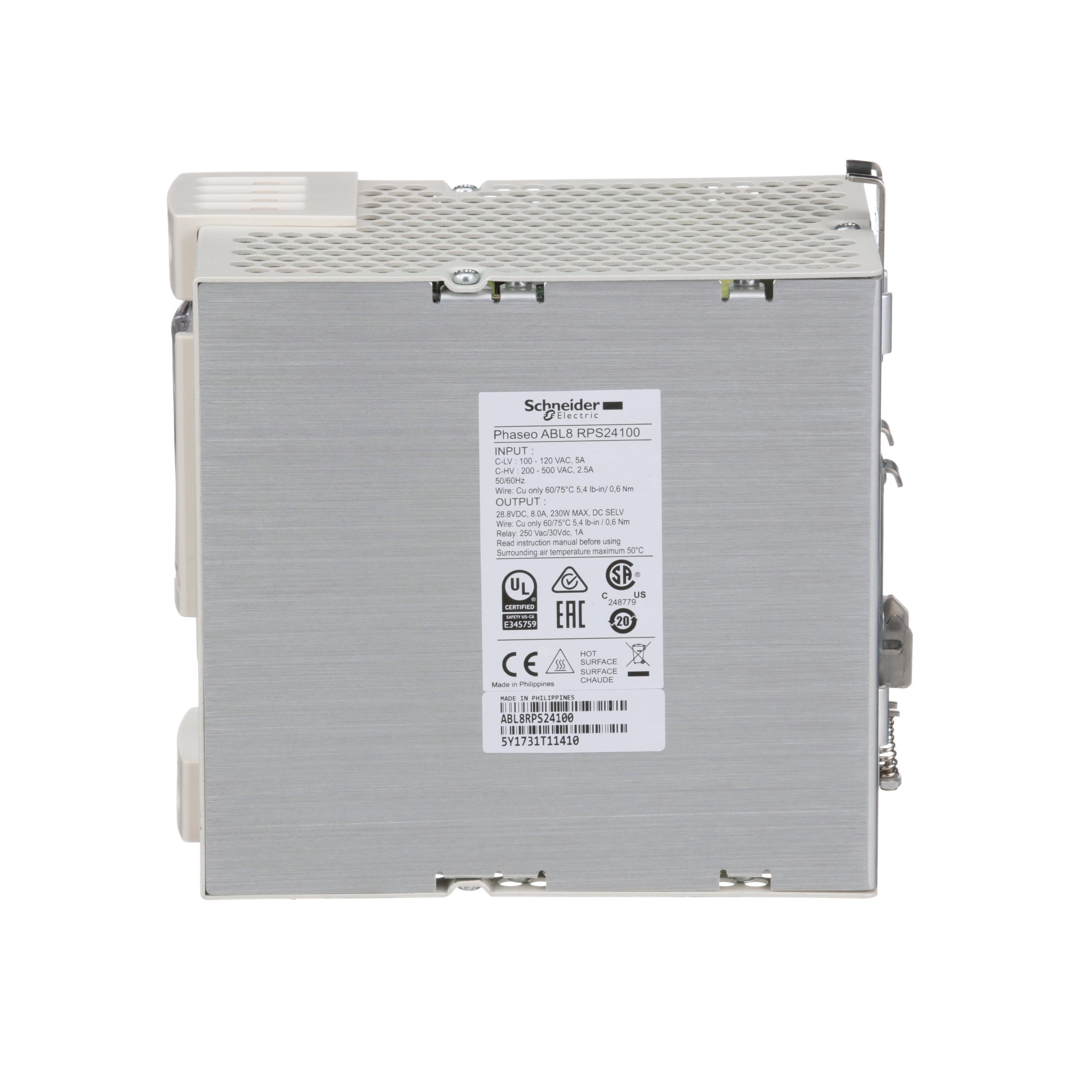

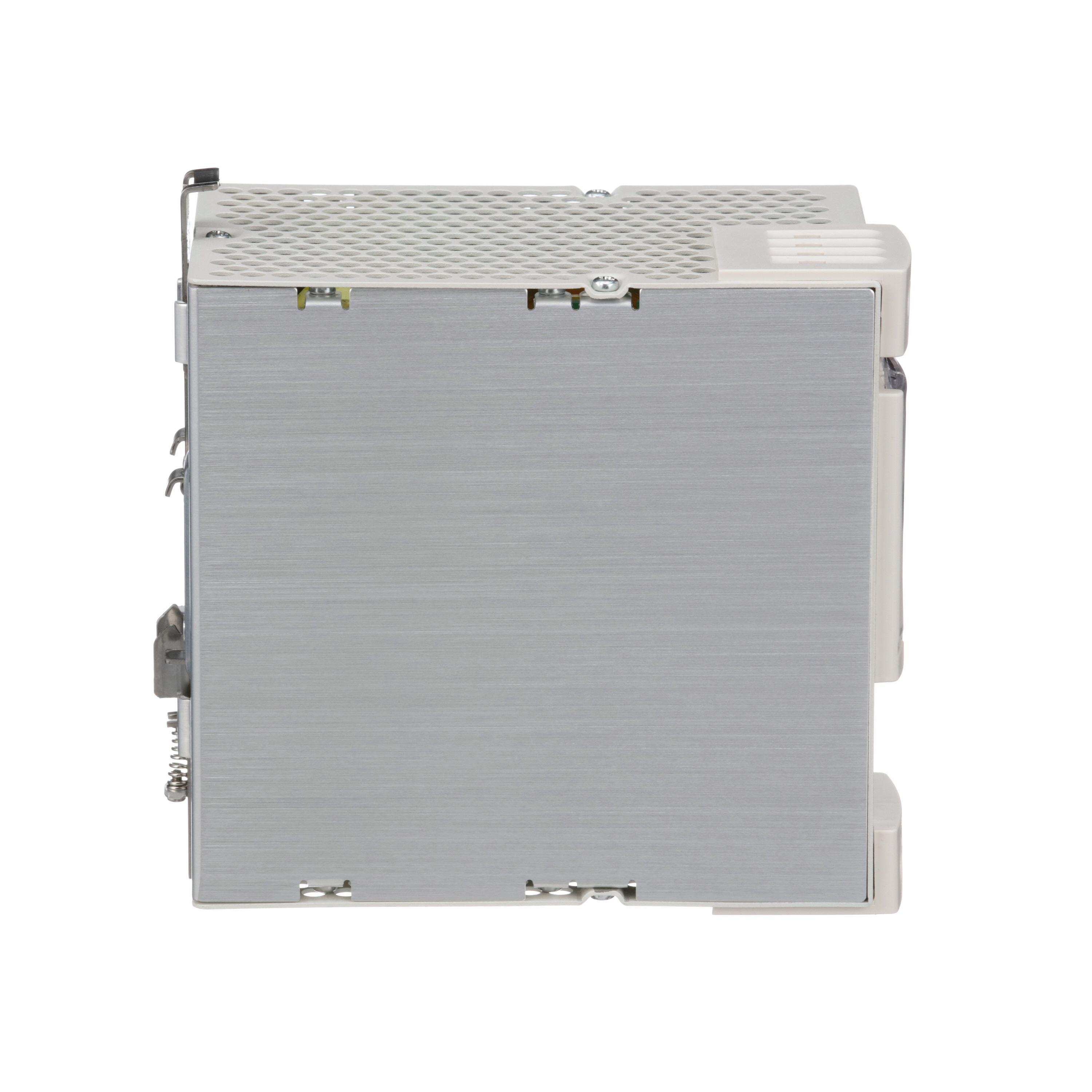

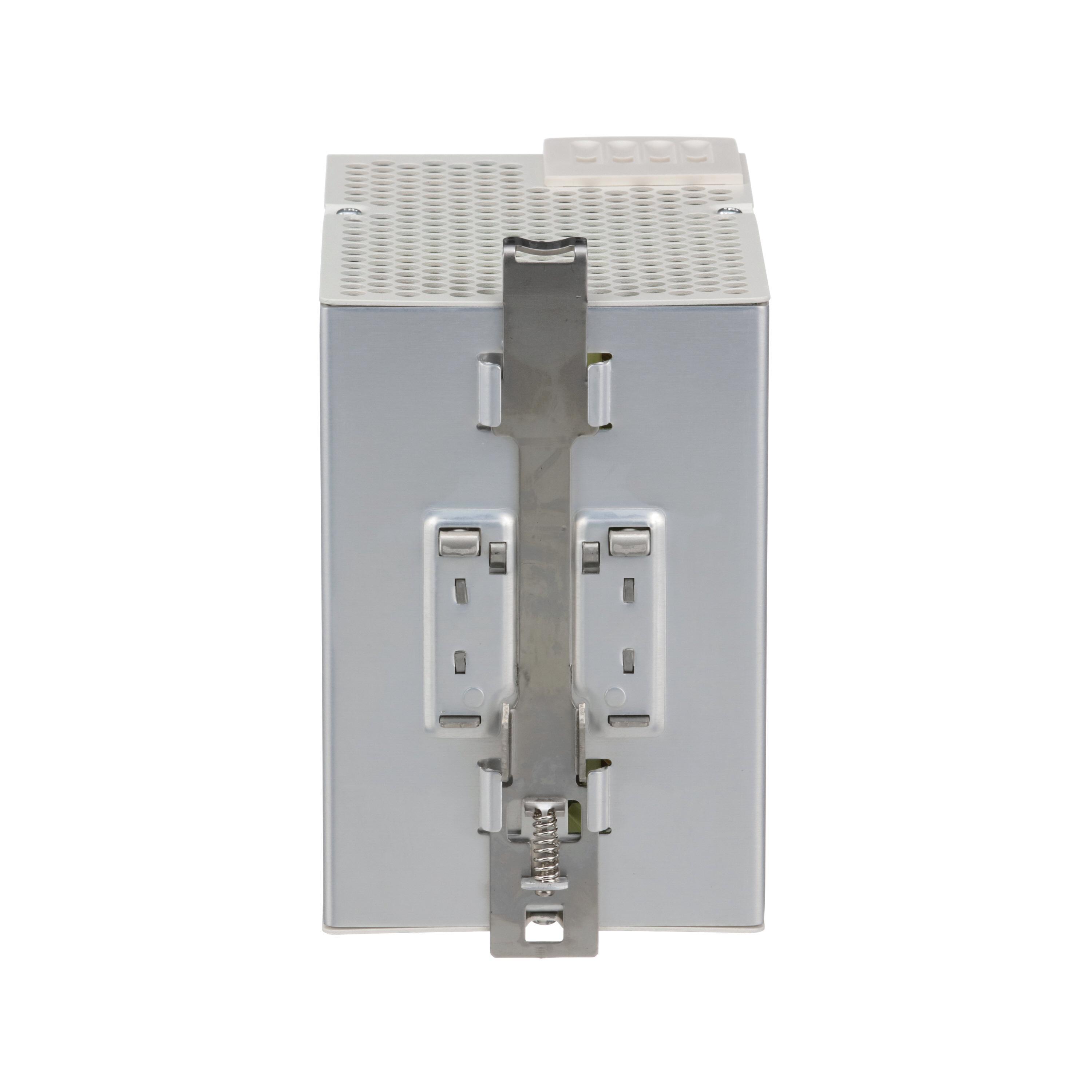

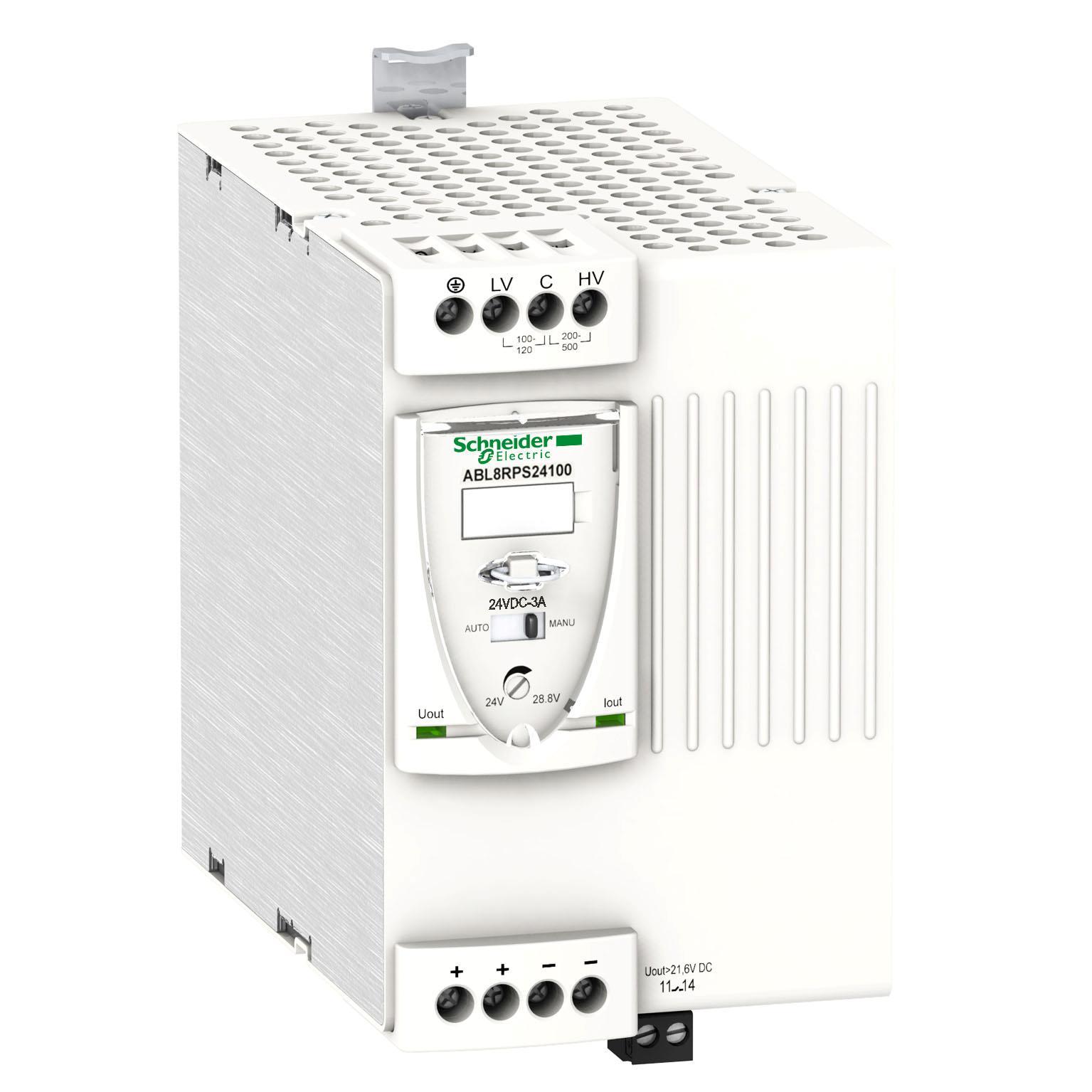

Description: Schneider Electric Phaseo™ Square D™ DC Power Supply, 1/2-Phase Regulated Switch Mode Universal, Series: ABL, 100 to 120 VAC, 200 to 500 VAC Input, 24 VDC Output, 240 W Power, 10 A, 47 to 63 Hz Frequency, DIN Rail Mounting, 86 mm Width, 145 mm Depth, 143 mm Height

Manufacturer PN: ABL8RPS24100

UPC:  38911940562

Kendall Electric Inc PN: 4004700

Invoice Description:

ABL8RPS24100 SQD POWER SUPPLY 24VDC


SPEC SHEET

▸ See All in Electronic Transformers


How Can We Make This Page Better?

Schneider Electric Phaseo™ Square D™ ABL8RPS24100 1/2-Phase Regulated Switch Mode Universal DC Power Supply, 100 to 120 VAC, 200 to 500 VAC Input, 24 VDC Output, 240 W Power Rating, 10 A, DIN Rail Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This regulated switch mode power supply (SMPS) is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food, beverage, mining, oil, gas and water. It also offers a high degree of output voltage stability and remote diagnostics. It installs easily on DIN rail and is 85 mm wide. It is also equipped with a PFC (power factor correction) filter.
Schneider Electric Phaseo™ Square D™ DC Power Supply, 1/2-Phase Regulated Switch Mode Universal, Series: ABL, 100 to 120 VAC, 200 to 500 VAC Input, 24 VDC Output, 240 W Power, 10 A, 47 to 63 Hz Frequency, DIN Rail Mounting, 86 mm Width, 145 mm Depth, 143 mm Height

Specifications

 Amperage Rating 10 A
 Application Industry, Building, Simple Machines, Conveying, Process, Automobile Sector, Tertiary and Garage Doors Applications
 Brand Name Square D
 Depth 145 mm
 Frequency Rating 47 to 63 Hz
 Height 143 mm
 Input Voltage 100 to 120 VAC, 200 to 500 VAC
 Manufacturer Part Number ABL8RPS24100
 Mounting Type DIN Rail
 Output Voltage 24 VDC
 Power Rating 240 W
 Series ABL
 Standards/Approvals RoHS Compliant|REACH Compliant|IP20 EN/IEC 60529|UL 508|CE Certified|cCSAus Certified|EAC Certified|RCM Certified|KC Certified|CSA C22.2 File No. 60950-1|Green Premium|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type 1/2-Phase Regulated Switch Mode Universal
 Width 86 mm

Features

▪ Highly compact size
▪ Wide voltage range
▪ Fixing by screw or on omega rail
▪ Advanced diagnostics by LED and relay contact
▪ Integrated anti-harmonics filter
▪ Power factor correction filter IEC 61000-3-2
