Eaton
ABC-5-R BUS ABC 5A FA

Mouse over image to zoom, click to enlarge

Description: Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 5 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Manufacturer PN: ABC-5-R

UPC:  05171264628

Kendall Electric Inc PN: 2734483

Invoice Description:

ABC-5-R BUS ABC 5A FA


SPEC SHEET

▸ See All in Electronic Fuses


How Can We Make This Page Better?

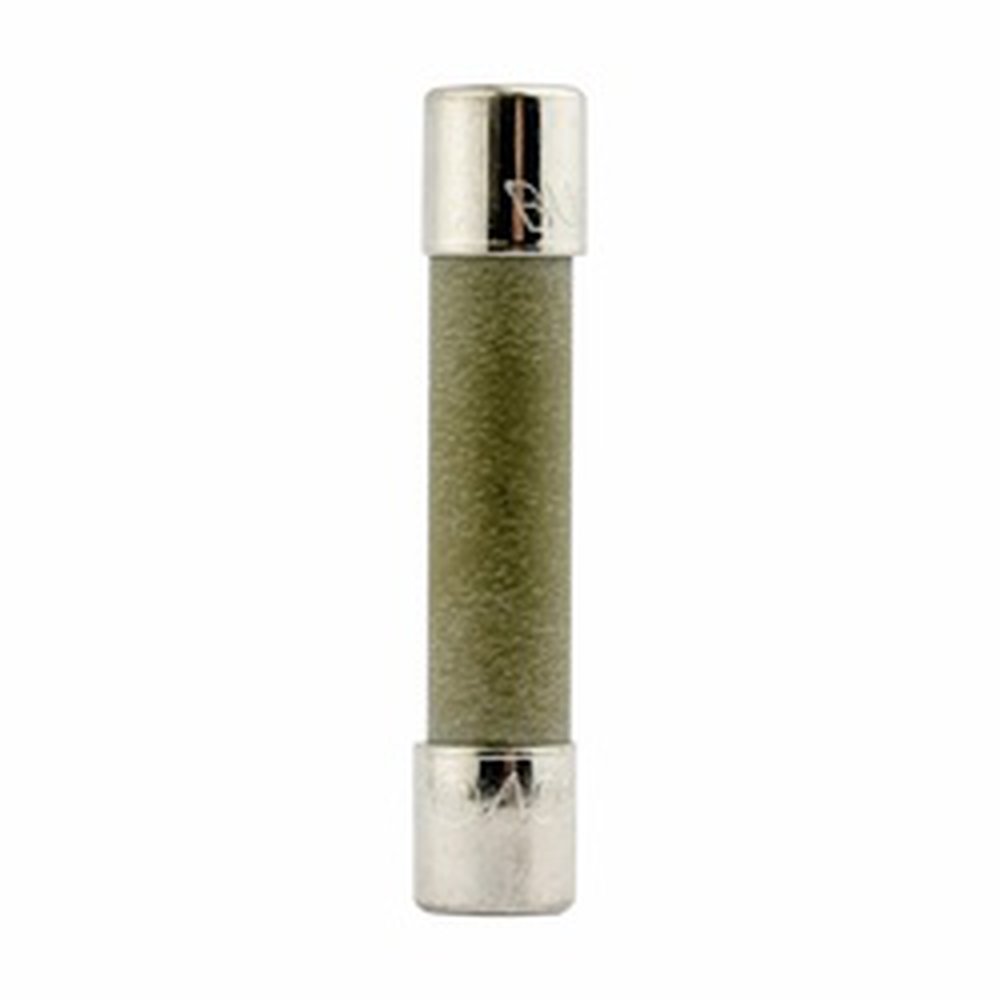

Bussmann ABC-5-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 5 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, Cylindrical Body

Log In for Pricing and Availability




Description

Fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits.  Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's ABC fast-acting, ceramic body tube 1/4" x 1-1/4" fuses are designed with higher interrupting ratings and voltage ratings to UL 248-14 for overcurrent protection of electronic circuits. This is a RoHS compliant fuse. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 5 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Specifications

 Amperage Rating 5 A
 Application Electronic Circuit Applications
 Body Size 1/4 in Dia x 1-1/4 in L
 Body Type Cylindrical
 Brand Name Bussmann
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number ABC-5-R
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS ABC-5-R ; ABC5R ; 9383103 ; 051712646284 ; 51712646284 ; 05171264628 ; 00051712646284
 Rejection Non Rejection Non-Rejection
 Response Time 4 hr, 60 min, 120 s
 Series ABC
 Standards/Approvals RoHS Compliant,CE Marked
 Terminal Type Ferrule
 Type Small Dimension
 Video Links
 Voltage Rating 250 V AC/125 V DC

Features

▪ Ceramic body allows for higher amp/volt rating combinations
▪ 200 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
▪ 4 hr minimum at 100%, 60 min maximum at 135%, 120 sec maximum at 200% response time

Resources

 Catalog
 Catalog Page
 Product Data Sheet
