Eaton

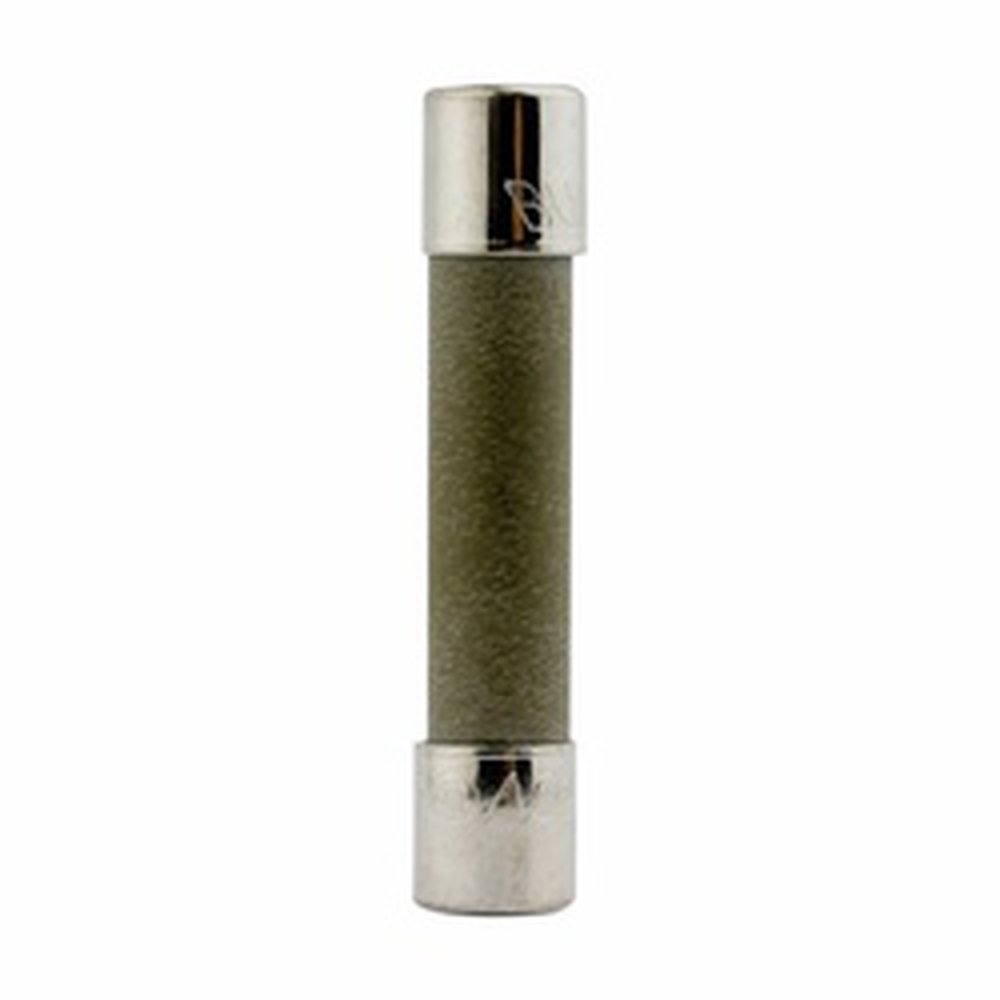

ABC-10-R BUS FUSE SMALL DIMENSION

Mouse over image to zoom, click to enlarge

Description: Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 10 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Manufacturer PN: ABC-10-R

UPC:  05171264616

Kendall Electric Inc PN: 2639691

Invoice Description:

ABC-10-R BUS FUSE SMALL DIMENSION


SPEC SHEET

▸ See All in Electronic Fuses


How Can We Make This Page Better?

Bussmann ABC-10-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 10 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, Cylindrical Body

Log In for Pricing and Availability




Description

Fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits.  Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's ABC fast-acting, ceramic body tube 1/4" x 1-1/4" fuses are designed with higher interrupting ratings and voltage ratings to UL 248-14 for overcurrent protection of electronic circuits. This is a RoHS compliant fuse. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Bussmann Fast Acting Fuse, Small Dimension, Series: ABC, Non-Indicating, Non-Rejection, 10 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Specifications

 Amperage Rating 10 A
 Application Electronic Circuit Applications
 Body Size 1/4 in Dia x 1-1/4 in L
 Body Type Cylindrical
 Brand Name Bussmann
 Element Single
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number ABC-10-R
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS ABC-10-R ; ABC10R ; 9383093 ; 051712646161 ; 51712646161 ; 05171264616 ; 00051712646161
 Rejection Non Rejection Non-Rejection
 Response Time 4 hr, 60 min, 120 s
 Series ABC
 Standards/Approvals RoHS Compliant,CE Marked
 Terminal Type Ferrule
 Type Small Dimension
 Video Links
 Voltage Rating 250 V AC/125 V DC

Features

▪ Ceramic body allows for higher amp/volt rating combinations
▪ 200 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
▪ 4 hr minimum at 100%, 60 min maximum at 135%, 120 sec maximum at 200% response time
