Eaton

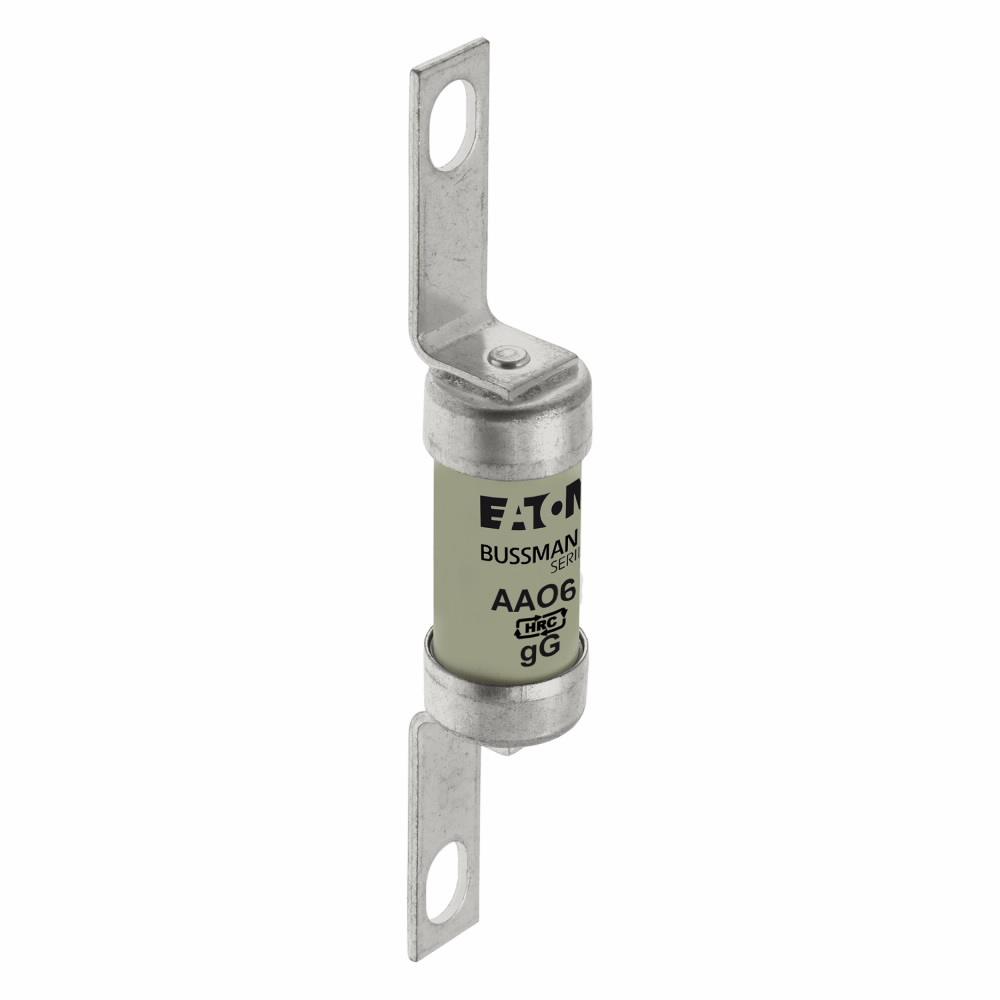

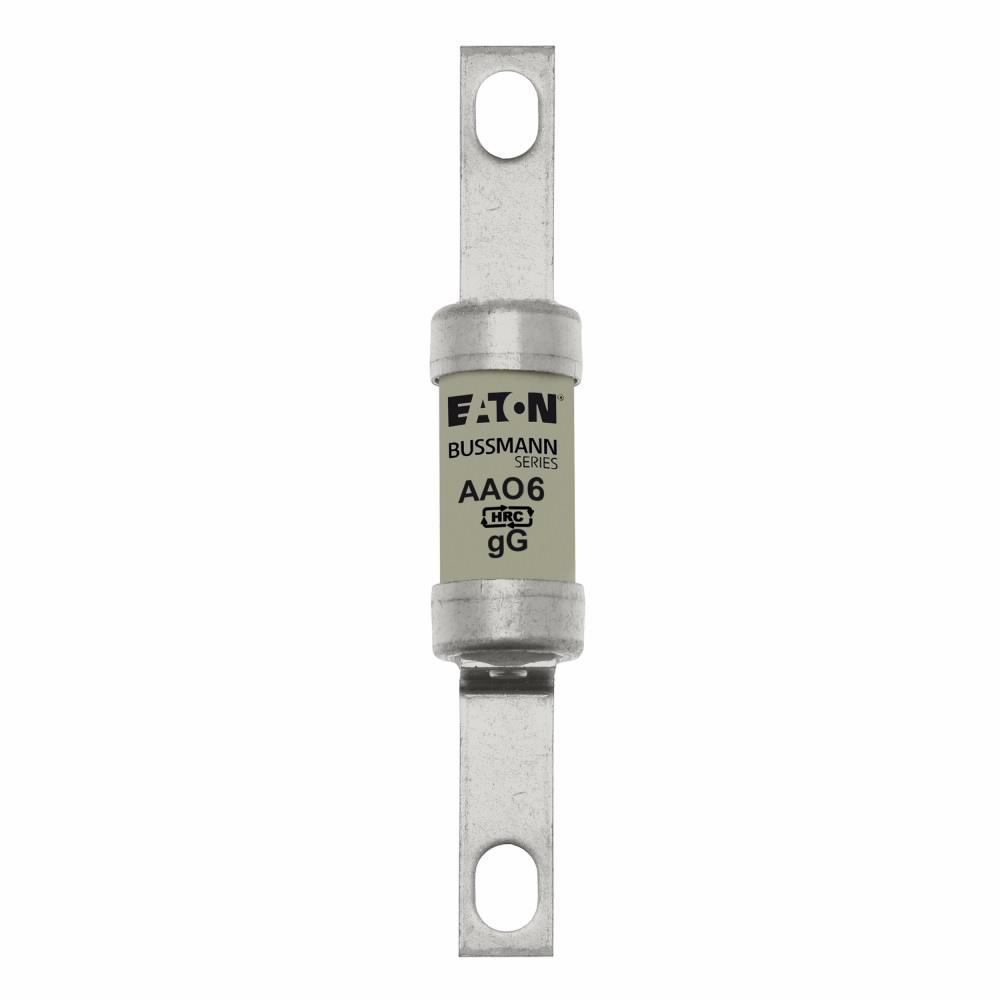

  • AAO6 BUSSMANN 6AMP 550V AC BS88 GG FUSE
  • AAO6 BUSSMANN 6AMP 550V AC BS88 GG FUSE
  • AAO6 BUSSMANN 6AMP 550V AC BS88 GG FUSE
  • AAO6 BUSSMANN 6AMP 550V AC BS88 GG FUSE
  • AAO6 BUSSMANN 6AMP 550V AC BS88 GG FUSE

Description: Bussmann Fuse Link, High Rupture Capacity Low Voltage, Series: AAO, 550 V AC, 6 A, Rated Breaking Capacity: 80 kA, Stud Mount, Ceramic, 13.7 mm Dia x 85 mm L

Manufacturer PN: AAO6

UPC:  05171283848

Kendall Electric Inc PN: 4106045

Invoice Description:

AAO6 BUSSMANN 6AMP 550V AC BS88 GG FUSE


SPEC SHEET

▸ See All in Fuse Links


How Can We Make This Page Better?

Bussmann AAO6 High Rupture Capacity Low Voltage Fuse Link, 550 V AC, 6 A, Ceramic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.
Bussmann Fuse Link, High Rupture Capacity Low Voltage, Series: AAO, 550 V AC, 6 A, Rated Breaking Capacity: 80 kA, Stud Mount, Ceramic, 13.7 mm Dia x 85 mm L

Specifications

 Amperage Rating 6 A
 Application Power Distribution, Cable and Motor Protection Applications
 Brand Name Bussmann
 Dimensions 13.7 mm Dia x 85 mm L
 Manufacturer Part Number AAO6
 Material Ceramic
 Mounting Type Stud
 PART NUMBER KEYWORDS AAO6 ; 10515972 ; 051712838481 ; 51712838481 ; 05171283848 ; 00051712838481 ; 5027590491624
 Rated Breaking Capacity 80 kA
 Series AAO
 Standards/Approvals BS 88 Part 1|IEC 60269|CE Certified
 Type High Rupture Capacity Low Voltage
 Video Links
 Voltage Rating 550 V AC

Features

▪ Good peak let through current limitation
▪ Power loss values well within the limits of IEC 60269
▪ 1:1:6 selective coordination ratio between minor and major fuse
