Description: Bussmann Fuse Link, High Rupture Capacity Low Voltage, Series: AAO, 550 V AC, 10 A, Rated Breaking Capacity: 80 kA, Stud Mount, Ceramic, 13.7 mm Dia x 85 mm L

Manufacturer PN: BK45X1

UPC:  88856900256

Kendall Electric Inc PN: 2738334

Invoice Description:

AAO10 BUSS 10AMP 550V AC BS88 gG FUSE 05171283838

▸ See All in Pulleys & Sheaves


How Can We Make This Page Better?

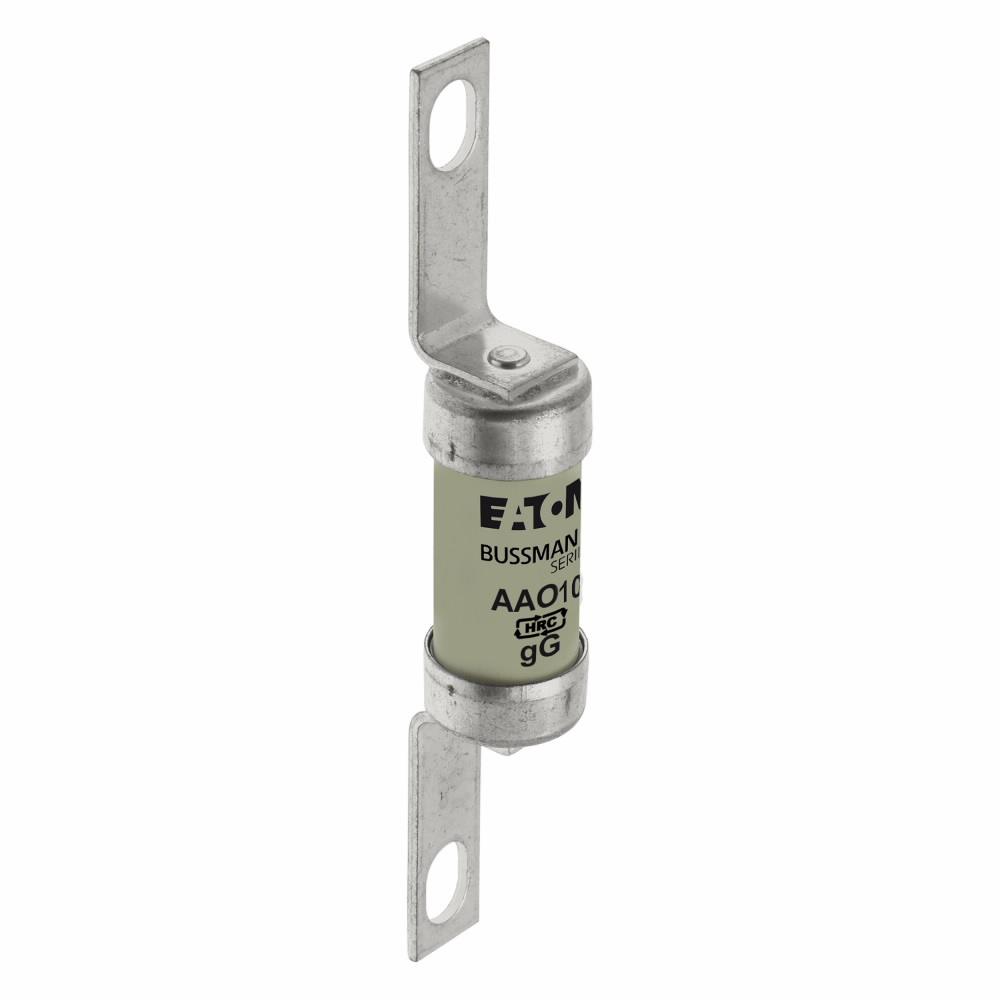

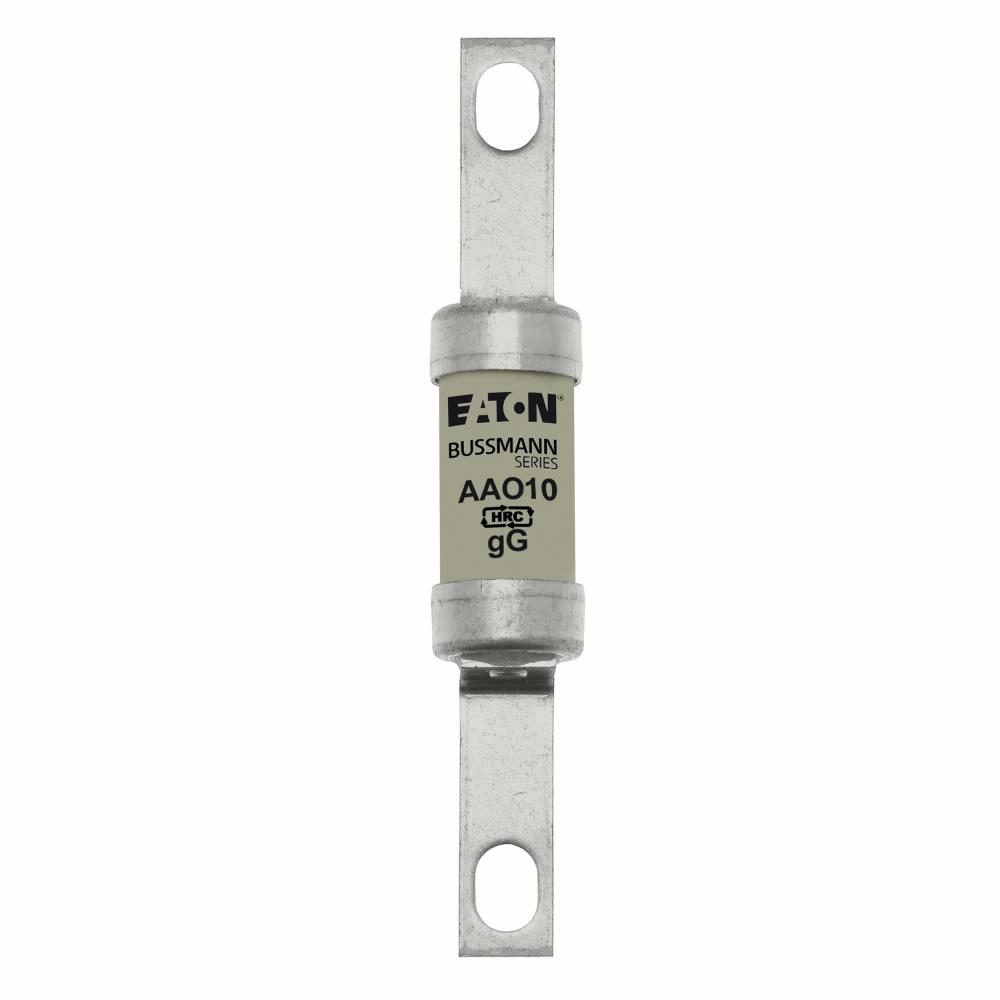

Bussmann AAO10 High Rupture Capacity Low Voltage Fuse Link, 550 V AC, 10 A, Ceramic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.
Bussmann Fuse Link, High Rupture Capacity Low Voltage, Series: AAO, 550 V AC, 10 A, Rated Breaking Capacity: 80 kA, Stud Mount, Ceramic, 13.7 mm Dia x 85 mm L

Specifications

 Amperage Rating 10 A
 Application Power Distribution, Cable and Motor Protection Applications
 Brand Name Bussmann
 Dimensions 13.7 mm Dia x 85 mm L
 Manufacturer Part Number AAO10
 Material Ceramic
 Mounting Type Stud
 PART NUMBER KEYWORDS AAO10 ; 10515962 ; 051712838382 ; 51712838382 ; 05171283838 ; 00051712838382 ; 5027590491518
 Rated Breaking Capacity 80 kA
 Series AAO
 Standards/Approvals IEC 60269-2 ,BS88 ,BS88 ,IEC 60269-2 ,BS88 ,IEC 60269-2 ,IEC 60269-2 ,BS88 ,BS88 ,IEC 60269-2,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Conforme a RoHS,Con marchio CE,CE-markering,RoHS-compliant,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE
 Type High Rupture Capacity Low Voltage
 Video Links
 Voltage Rating 550 V AC

Features

▪ Good peak let through current limitation
▪ Power loss values well within the limits of IEC 60269
▪ 1:1:6 selective coordination ratio between minor and major fuse
