A806NF HOF NEMA 4 ENCLOSURE..

Mouse over image to zoom, click to enlarge

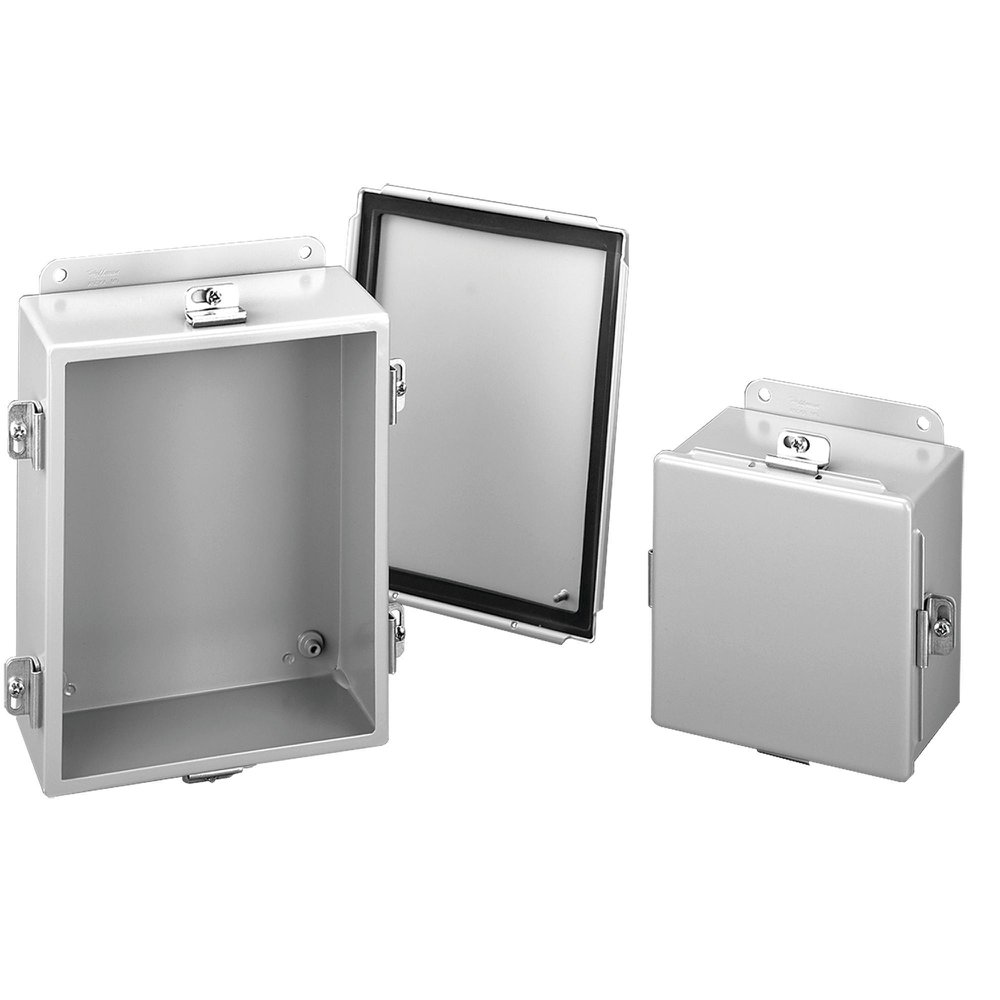

Description: Hoffman Junction Box, Series: A51NF, 8 in Height, 6 in Width, 3-1/2 in Depth, NEMA 4/IP66 NEMA Rating, Screw Clamp/Solid Cover, 6.75 x 4.88 in Panel, Wall Mounting, Steel, Polyester Powder Painted, Gray

Manufacturer PN: A806NF

UPC:  78351055300

Kendall Electric Inc PN: 34197

Invoice Description:

A806NF HOF NEMA 4 ENCLOSURE..


SPEC SHEET

▸ See All in Junction Boxes


How Can We Make This Page Better?

Hoffman A806NF Junction Box, 8 in H x 6 in W x 3-1/2 in D, Screw Clamp/Solid Cover, NEMA 4/IP66 NEMA Rating, Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Clamps on all four sides securely close this enclosure to protect components in indoor or outdoor applications, yet are easy to remove for access and modifications.
Hoffman Junction Box, Series: A51NF, 8 in Height, 6 in Width, 3-1/2 in Depth, NEMA 4/IP66 NEMA Rating, Screw Clamp/Solid Cover, 6.75 x 4.88 in Panel, Wall Mounting, Steel, Polyester Powder Painted, Gray

Specifications

 Application For clamps on all four sides securely close this enclosure to protect components in indoor or outdoor, yet are easy to remove for access and modifications
 Brand Name nVent HOFFMAN
 Color Gray
 Cover Type Screw Clamp/Solid
 Depth 3-1/2 in
 Finish Polyester Powder Painted
 Height 8 in
 Manufacturer Part Number A806NF
 Material Steel
 Mounting Type Wall
 NEMA Rating NEMA 4/IP66
 PART NUMBER KEYWORDS A806NF ; 8300299 ; 783510553005 ; 78351055300 ; 00783510553005
 Panel Size 6.75 x 4.88 in
 Series A51NF
 Standards/Approvals cUL Listed per CSA C22.2 File No. 94 File No. E27525|CSA File No. 42184|IEC 60529|UL 50/50E Listed File No. E27525|REACH Compliant
 Width 6 in

Features

▪ Seams continuously welded and ground smooth
▪ Stainless steel screw-down clamps on four sides of cover
▪ Bonding provision on cover
▪ Oil-resistant gasket
▪ Weldnuts for mounting optional panels and terminal block kits in size 6.00 x 4.00 in (152 x 102 mm) and larger
▪ External welded-on mounting brackets for easy installation
