nVent

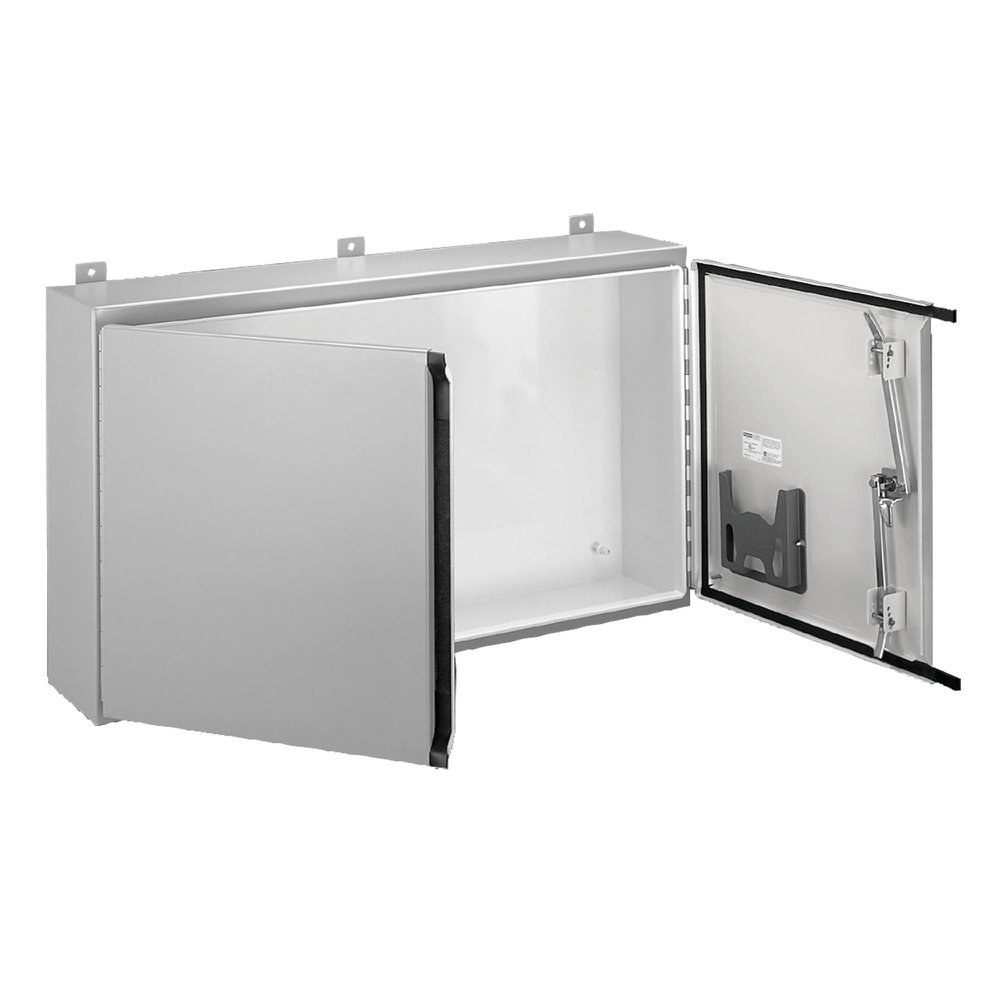

A484812WFLP HOF NEMA12 2DOOR ENCL..

Mouse over image to zoom, click to enlarge

Description: nVent HOFFMAN Enclosure, 2-Door, Series: A12, 48 in Length, 48 in Width, 12 in Depth, NEMA 12/IP55, Continuous Hinged Cover, 44 x 44 in Panel, Lock: 3-Point Latch/Keyed Handle, Wall Mount, Steel, Painted, Gray

Manufacturer PN: A484812WFLP

UPC:  78351027650

Kendall Electric Inc PN: 34026

Invoice Description:

A484812WFLP HOF NEMA12 2DOOR ENCL..


SPEC SHEET

▸ See All in Wall Mount Enclosures


How Can We Make This Page Better?

nVent HOFFMAN A484812WFLP A12 2-Door Enclosure With Handle, 48 in L x 48 in W x 12 in D, NEMA 12/IP55 NEMA Rating, Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Ideal for larger wall-mount applications requiring ease of installation and access to full-width internal panel. Overlapping door design allows easy access in areas with minimal aisle space.
nVent HOFFMAN Enclosure, 2-Door, Series: A12, 48 in Length, 48 in Width, 12 in Depth, NEMA 12/IP55, Continuous Hinged Cover, 44 x 44 in Panel, Lock: 3-Point Latch/Keyed Handle, Wall Mount, Steel, Painted, Gray

Specifications

 Application For larger wall mount applications
 Brand Name nVent HOFFMAN
 Color Gray
 Cover Type Continuous Hinged
 Depth 12 in
 Finish Painted
 Length 48 in
 Lock 3-Point Latch/Keyed Handle
 Manufacturer Part Number A484812WFLP
 Material Steel
 Mounting Type Wall
 NEMA Rating NEMA 12/IP55
 PART NUMBER KEYWORDS A484812WFLP ; 8266742 ; 783510276508 ; 78351027650 ; 00783510276508
 Panel Size 44 x 44 in
 Series A12
 Standards/Approvals cUL Listed per CSA C22.2 File No. 94 File No. E61997|CSA File No. 42186|IEC 60529|RoHS Compliant|UL 508A File No. E61997|REACH Compliant
 Type 2-Door
 Width 48 in

Features

▪ Seams continuously welded and ground smooth
▪ External welded-on mounting brackets for easy installation
▪ External formed body flange channels away liquids
▪ Gasketed overlapping doors eliminate need for center post
▪ Removable heavy gauge continuous hinge pin
▪ Data pocket is high-impact thermoplastic
▪ Collar studs for mounting optional panels
▪ Bonding provision on both doors
