Eaton
A200M4CX CH A 200M4CX

Mouse over image to zoom, click to enlarge

  • A200M4CX CH A 200M4CX
  • A200M4CX CH A 200M4CX
  • A200M4CX CH A 200M4CX

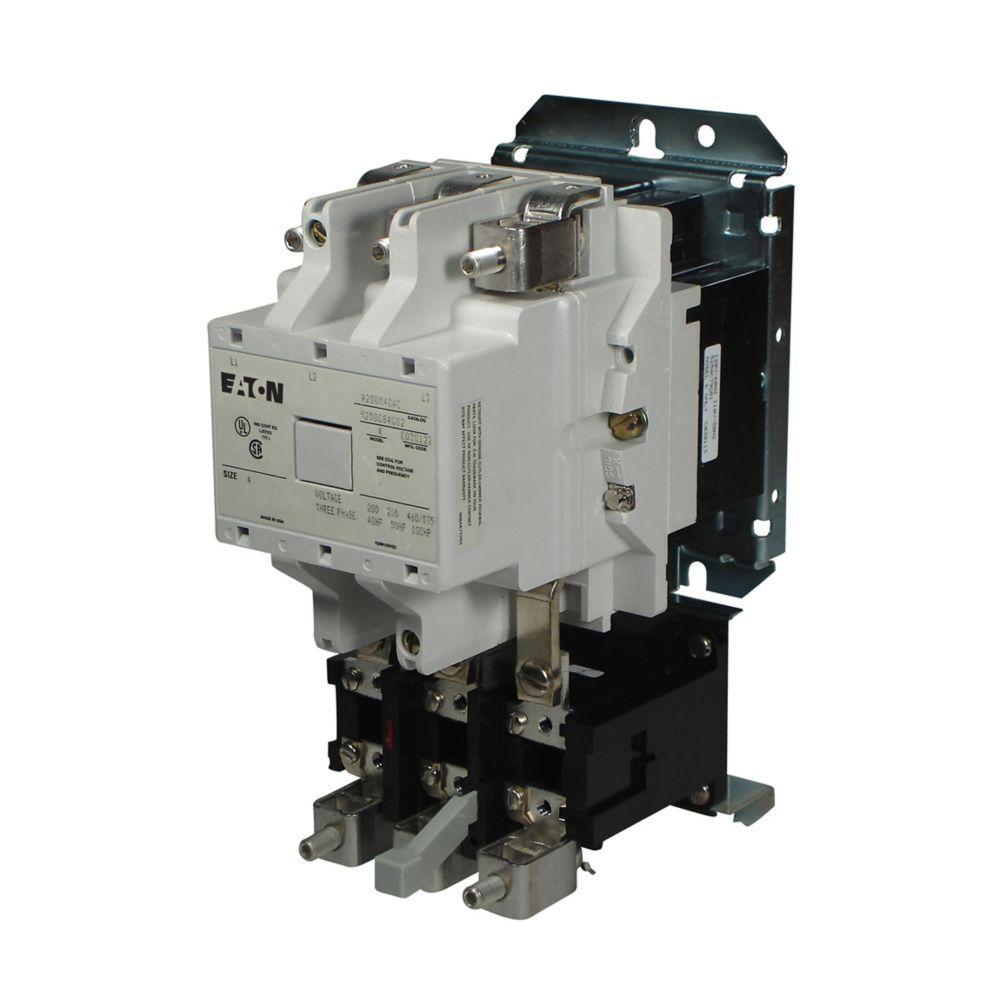

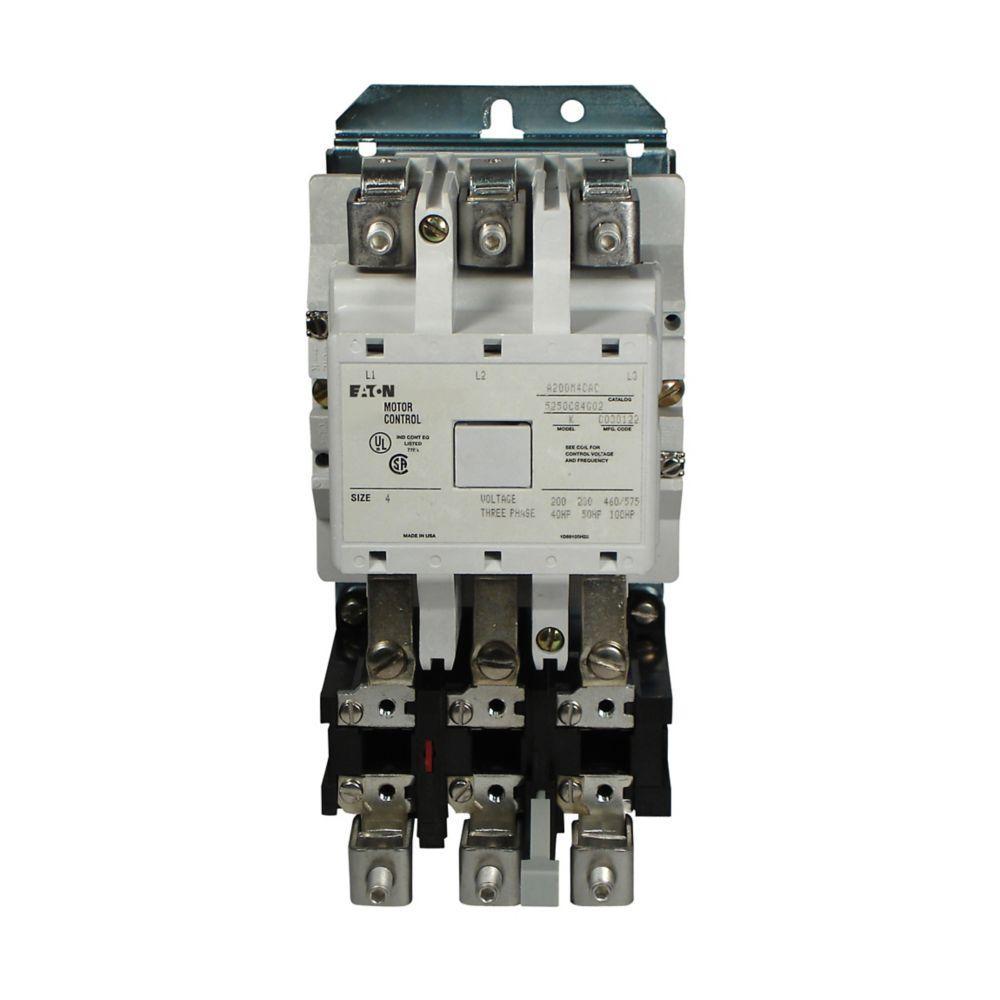

Description: EATON NEMA Starter, Magnetic, Series: A200, 600 V AC, 135 A, 60 Hz Frequency, 100 hp Motor, 480 VAC Coil, 3 Pole, Screw Connection, Non-Reversing Action, Bi-Metal Overload Relay, 1NO-1NC Auxiliary, NEMA 4 Enclosure, -4 to 140 deg F Operating, 6.75 in L x 6.63 in W x 4.63 in H Dimensions

Manufacturer PN: A200M4CX

UPC:  78667800723

Kendall Electric Inc PN: 2496675

Invoice Description:

A200M4CX CH A 200M4CX


SPEC SHEET

▸ See All in Magnetic Starters


How Can We Make This Page Better?

EATON A200M4CX Magnetic NEMA Starter, 480 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 4 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified.
EATON NEMA Starter, Magnetic, Series: A200, 600 V AC, 135 A, 60 Hz Frequency, 100 hp Motor, 480 VAC Coil, 3 Pole, Screw Connection, Non-Reversing Action, Bi-Metal Overload Relay, 1NO-1NC Auxiliary, NEMA 4 Enclosure, -4 to 140 deg F Operating, 6.75 in L x 6.63 in W x 4.63 in H Dimensions

Specifications

 Amperage Rating 135 A
 Application Motor and Power Control Equipment Applications
 Auxiliary Contact Rating 1NO-1NC
 Brand Name EATON
 Coil Voltage 480 V AC
 Connection Type Screw
 Dimensions 6.75 in L x 6.63 in W x 4.63 in H
 Enclosure NEMA 4
 Frequency Rating 60 Hz
 Manufacturer Part Number A200M4CX
 Motor Power 100 hp
 Number of Poles 3
 Operating Temperature -4 to 140 deg F
 Overload Relay Bi-Metal
 PART NUMBER KEYWORDS A200M4CX ; 7439319 ; 786678007236 ; 78667800723 ; 00786678007236
 Series A200
 Standards/Approvals UL Listed,CSA Certified
 Type Magnetic
 Voltage Rating 600 V AC

Features

▪ Straight through wiring, up front, out front terminals for ease in installation
▪ Unique accessory mounting cavities reduce panel space requirements
▪ Snap-in accessories for application flexibility
▪ Vertical and horizontal interlocking capability increases application flexibility
▪ Ambient compensated overload relays available as standard, offering superior motor protection in variable motor/controller environments
▪ Isolated normally open relay contact available in kit mounting form on type b overload relay
▪ 40 hp at 208 VAC, 50 hp at 240 VAC, 100 hp at 480 VAC
