Eaton

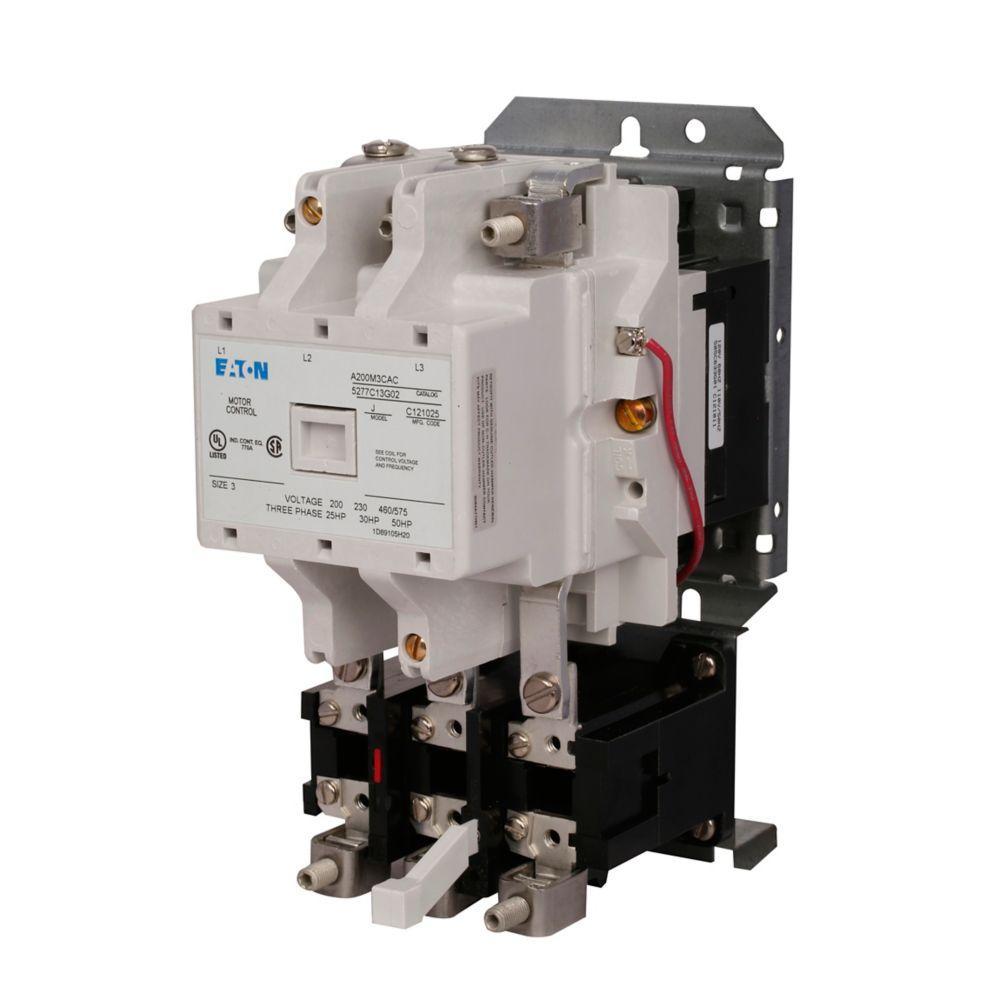

A200M3CAC CH A200 STARTER SIZE 3 OPEN 3 POLE 120V / 60HZ COIL

Mouse over image to zoom, click to enlarge

  • A200M3CAC CH A200 STARTER SIZE 3 OPEN 3 POLE 120V / 60HZ COIL
  • A200M3CAC CH A200 STARTER SIZE 3 OPEN 3 POLE 120V / 60HZ COIL

Description: EATON Motor Control Starter, Series: Freedom A200, 600 V AC, 90 A, 50/60 Hz Frequency, 50 hp Motor, 110/120 VAC Coil, 3 Pole, Screw Clamp Connection, Non-Reversing Action, Bi-Metal Overload Relay, NEMA 3 Enclosure, -4 to 140 deg F Operating, 4.62 in W x 6.75 in D x 9.93 in H Dimensions

Manufacturer PN: A200M3CAC

UPC:  78667823125

Kendall Electric Inc PN: 2103832

Invoice Description:

A200M3CAC CH A200 STARTER SIZE 3 OPEN 3 POLE 120V / 60HZ COIL


SPEC SHEET

How Can We Make This Page Better?

EATON A200M3CAC Freedom A200 Motor Control Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 3 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified.
EATON Motor Control Starter, Series: Freedom A200, 600 V AC, 90 A, 50/60 Hz Frequency, 50 hp Motor, 110/120 VAC Coil, 3 Pole, Screw Clamp Connection, Non-Reversing Action, Bi-Metal Overload Relay, NEMA 3 Enclosure, -4 to 140 deg F Operating, 4.62 in W x 6.75 in D x 9.93 in H Dimensions

Specifications

 Amperage Rating 90 A
 Application Motor and Power Control Equipment Applications
 Brand Name EATON
 Coil Voltage 110/120 V AC
 Connection Type Screw Clamp
 Dimensions 4.62 in W x 6.75 in D x 9.93 in H
 Enclosure NEMA 3
 Frequency Rating 50/60 Hz
 Manufacturer Part Number A200M3CAC
 Motor Power 50 hp
 Number of Poles 3
 Operating Temperature -4 to 140 deg F
 Overload Relay Bi-Metal
 PART NUMBER KEYWORDS A200M3CAC ; 7444592 ; 786678231259 ; 78667823125 ; 00786678231259
 Series Freedom A200
 Standards/Approvals UL Listed,CSA Certified
 Voltage Rating 600 V AC

Features

▪ Straight through wiring, up-front, out front terminals for ease in installation
▪ Unique accessory mounting cavities reduce panel space requirements
▪ Snap-in accessories for application flexibility
▪ Vertical and horizontal interlocking capability increases application flexibility
▪ Ambient compensated overload relays available as standard, offering superior motor protection in variable motor/controller environments
▪ Isolated normally open relay contact available in kit mounting form on type B overload relay
▪ 25 hp at 208 VAC, 30 hp at 240 VAC, 50 hp at 480 VAC
▪ Wired for separate control
