Eaton

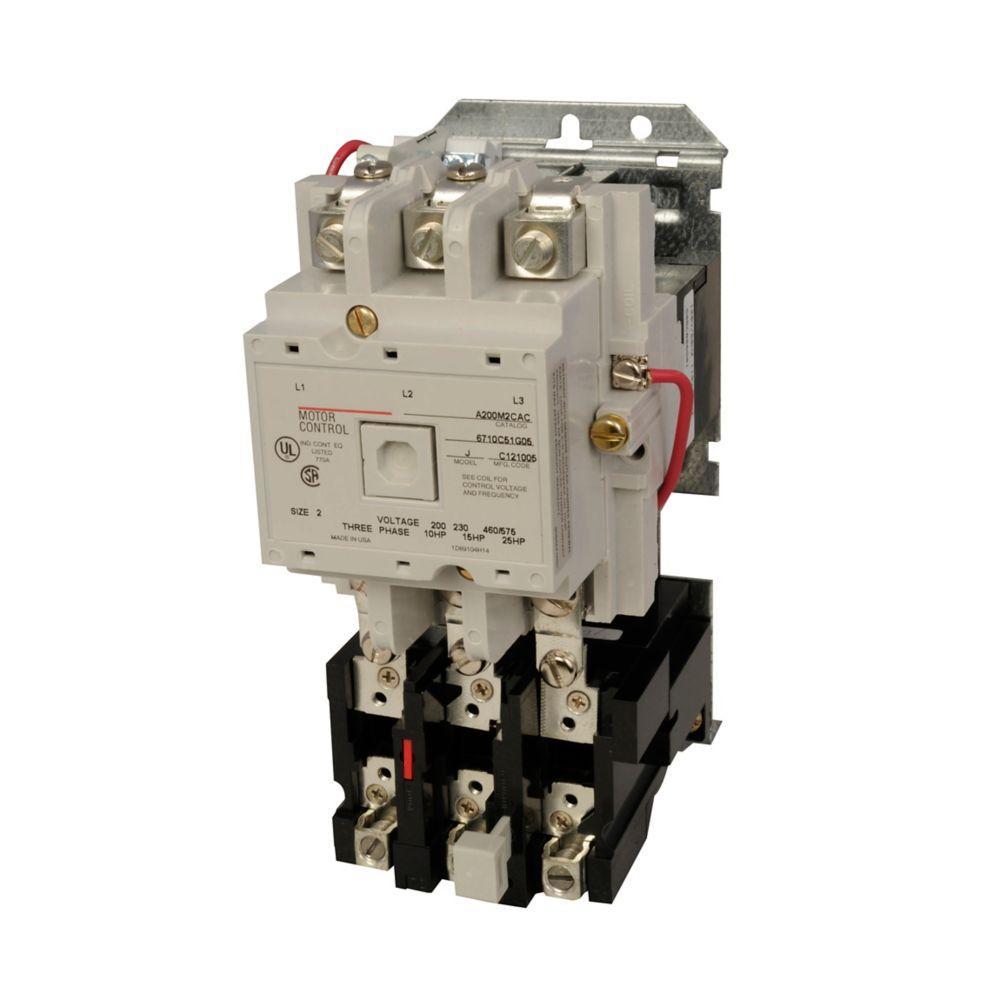

A200M2CAC CH A200 STARTER SIZE 2 OPEN 3 POLE 120V 60HZ COIL

Mouse over image to zoom, click to enlarge

  • A200M2CAC CH A200 STARTER SIZE 2 OPEN 3 POLE 120V 60HZ COIL
  • A200M2CAC CH A200 STARTER SIZE 2 OPEN 3 POLE 120V 60HZ COIL

Description: EATON NEMA Starter, Magnetic Non-Reversing, Series: A200, 600 V AC, 45 A, 50/60 Hz Frequency, 25 hp Motor, 120 VAC Coil, 3 Pole, Screw Connection, Bi-Metal Overload Relay, 1NO-1NC Auxiliary, NEMA 2 Enclosure, 8.2 in L x 6.1 in W x 5 in H Dimensions

Manufacturer PN: A200M2CAC

UPC:  78667823121

Kendall Electric Inc PN: 2235600

Invoice Description:

A200M2CAC CH A200 STARTER SIZE 2 OPEN 3 POLE 120V 60HZ COIL


SPEC SHEET

▸ See All in Magnetic Starters


How Can We Make This Page Better?

EATON A200M2CAC Magnetic Non-Reversing NEMA Starter, 120 VAC V Coil, 3 Poles, NEMA 2 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified.
EATON NEMA Starter, Magnetic Non-Reversing, Series: A200, 600 V AC, 45 A, 50/60 Hz Frequency, 25 hp Motor, 120 VAC Coil, 3 Pole, Screw Connection, Bi-Metal Overload Relay, 1NO-1NC Auxiliary, NEMA 2 Enclosure, 8.2 in L x 6.1 in W x 5 in H Dimensions

Specifications

 Amperage Rating 45 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Auxiliary Contact Rating 1NO-1NC
 Brand Name EATON
 Coil Voltage 120 V AC
 Connection Type Screw
 Dimensions 8.2 in L x 6.1 in W x 5 in H
 Enclosure NEMA 2
 Frequency Rating 50/60 Hz
 Manufacturer Part Number A200M2CAC
 Motor Power 25 hp
 Number of Poles 3
 Overload Relay Bi-Metal
 PART NUMBER KEYWORDS A200M2CAC ; 7444565 ; 786678231211 ; 78667823121 ; 00786678231211
 Series A200
 Standards/Approvals CSA Certified,UL Listed
 Type Magnetic Non-Reversing
 Voltage Rating 600 V AC

Features

▪ Straight through wiring, up-front, out front terminals for ease in installation
▪ Unique accessory mounting cavities reduce panel space requirements
▪ Snap-in accessories for application flexibility
▪ Vertical and horizontal interlocking capability increases application flexibility
▪ Wired for separate control
▪ 7-1/2 hp at 115 VAC, 10 hp at 208 VAC, 15 hp at 240 VAC, 25 at 480 VAC
