Eaton

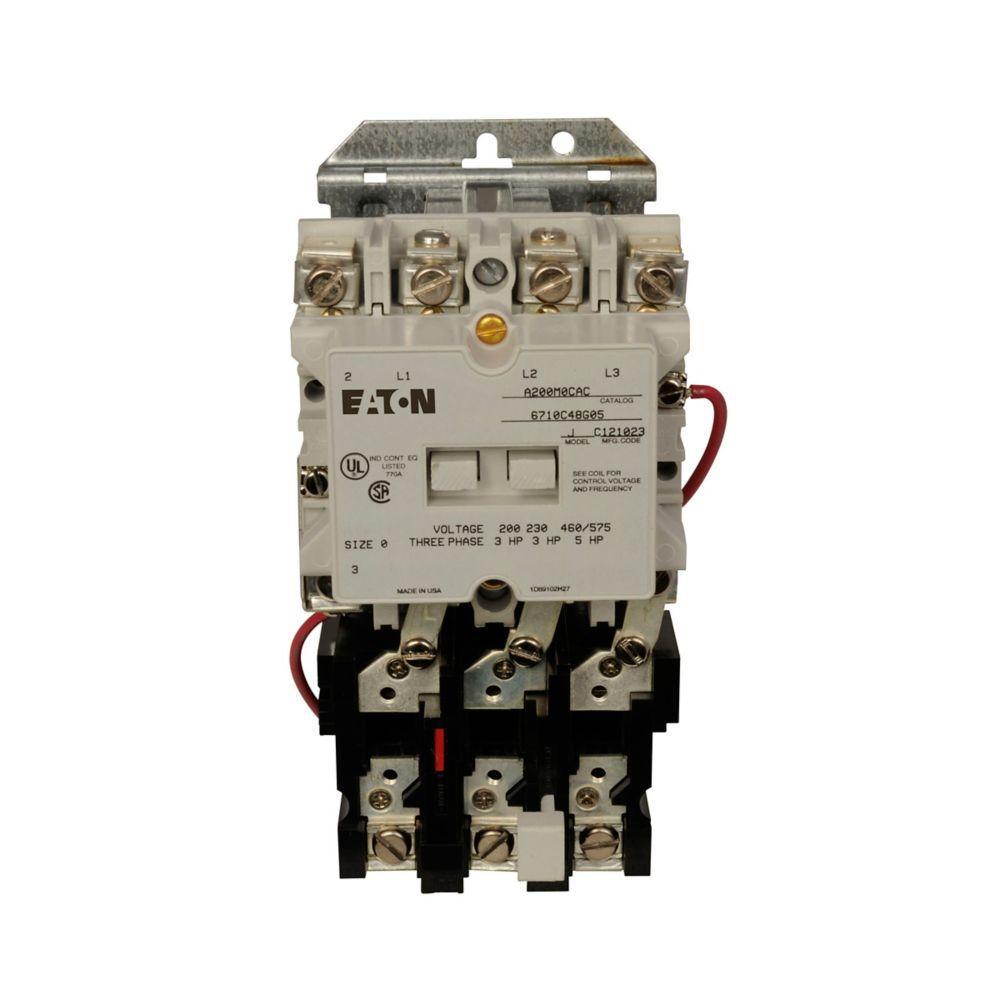

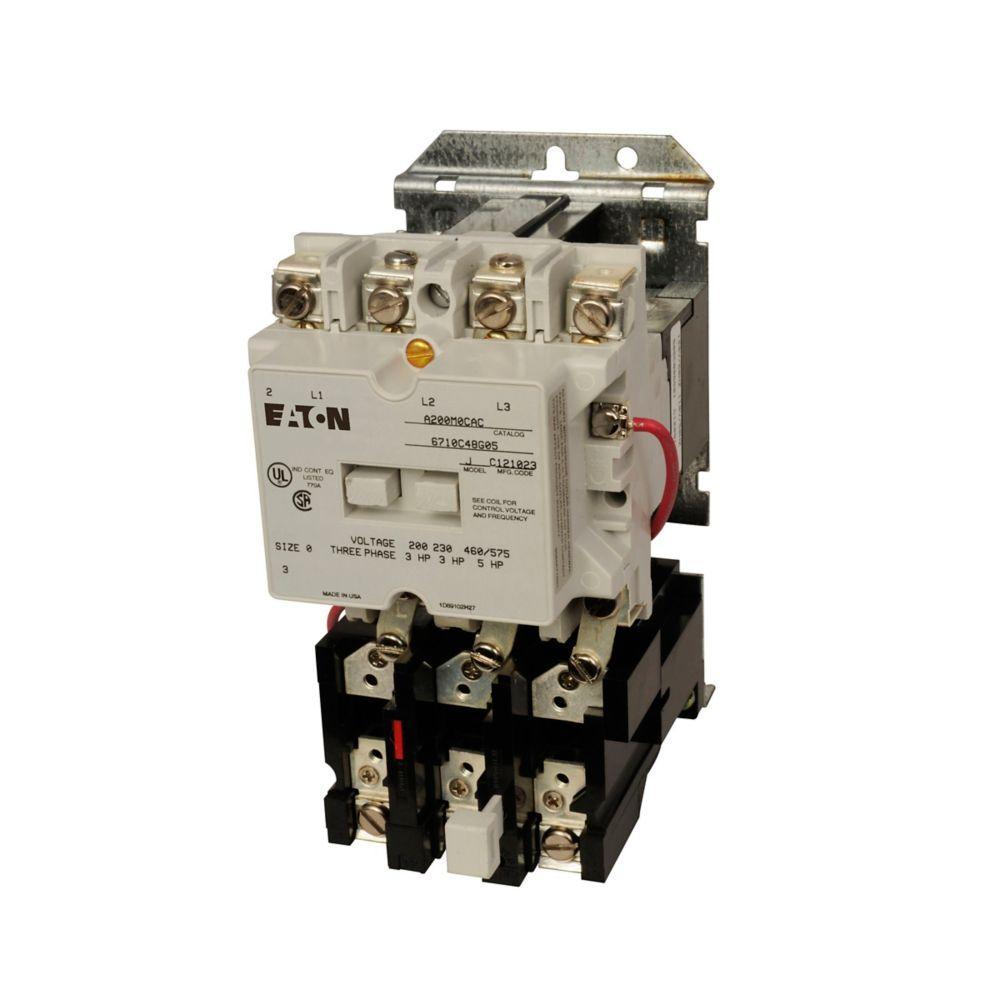

A200M0CAC CH A200 - STARTER, SIZE 0, OPEN, 3 POLE, 120V / 60HZ COIL

Mouse over image to zoom, click to enlarge

  • A200M0CAC CH A200 - STARTER, SIZE 0, OPEN, 3 POLE, 120V / 60HZ COIL
  • A200M0CAC CH A200 - STARTER, SIZE 0, OPEN, 3 POLE, 120V / 60HZ COIL
  • A200M0CAC CH A200 - STARTER, SIZE 0, OPEN, 3 POLE, 120V / 60HZ COIL

Description: EATON, A200M0CAC, Motor Control Starter, Series: Freedom A200, 600 V AC, 18 A, 50/60 Hz Frequency, 5 hp Motor, 110/120 V AC Coil, 3 Pole, Screw Clamp Connection, Non-Reversing Action, Bi-Metal Overload Relay, Open Enclosed Enclosure, -4 to 140 deg F Operating, 3.31 in W x 4.61 in D x 6.45 in H Dimensions

Manufacturer PN: A200M0CAC

UPC:  78667823110

Kendall Electric Inc PN: 2167303

Invoice Description:

A200M0CAC CH A200 - STARTER, SIZE 0, OPEN, 3 POLE, 120V / 60HZ COIL


SPEC SHEET

How Can We Make This Page Better?

EATON A200M0CAC Freedom A200 Motor Control Starter, 110/120 V AC V Coil, Non-Reversing Action, 3 Poles, Open Enclosed Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified.
EATON, A200M0CAC, Motor Control Starter, Series: Freedom A200, 600 V AC, 18 A, 50/60 Hz Frequency, 5 hp Motor, 110/120 V AC Coil, 3 Pole, Screw Clamp Connection, Non-Reversing Action, Bi-Metal Overload Relay, Open Enclosed Enclosure, -4 to 140 deg F Operating, 3.31 in W x 4.61 in D x 6.45 in H Dimensions

Specifications

 Amperage Rating 18 A
 Application Motor and Power Control Equipment Applications
 Brand Name EATON
 Coil Voltage 110/120 V AC
 Connection Type Screw Clamp
 Dimensions 3.31 in W x 4.61 in D x 6.45 in H
 Enclosure Open Enclosed
 Frequency Rating 50/60 Hz
 Manufacturer Part Number A200M0CAC
 Motor Power 5 hp
 Number of Poles 3
 Operating Temperature -4 to 140 deg F
 Overload Relay Bi-Metal
 PART NUMBER KEYWORDS A200M0CAC ; 7444506 ; 786678231105 ; 78667823110 ; 00786678231105
 Series Freedom A200
 Standards/Approvals UL Listed,CSA Certified
 Voltage Rating 600 V AC

Features

▪ Straight through wiring, up-front, out front terminals for ease in installation
▪ Unique accessory mounting cavities reduce panel space requirements
▪ Snap-in accessories for application flexibility
▪ Vertical and horizontal interlocking capability increases application flexibility
▪ Ambient compensated overload relays available as standard, offering superior motor protection in variable motor/controller environments
▪ Isolated normally open relay contact available in kit mounting form on type B overload relay
▪ 1 hp at 115 VAC, 3 hp at 208/240 VAC, 5 hp at 480 VAC
▪ Wired for separate control
▪ NEMA Size 0
