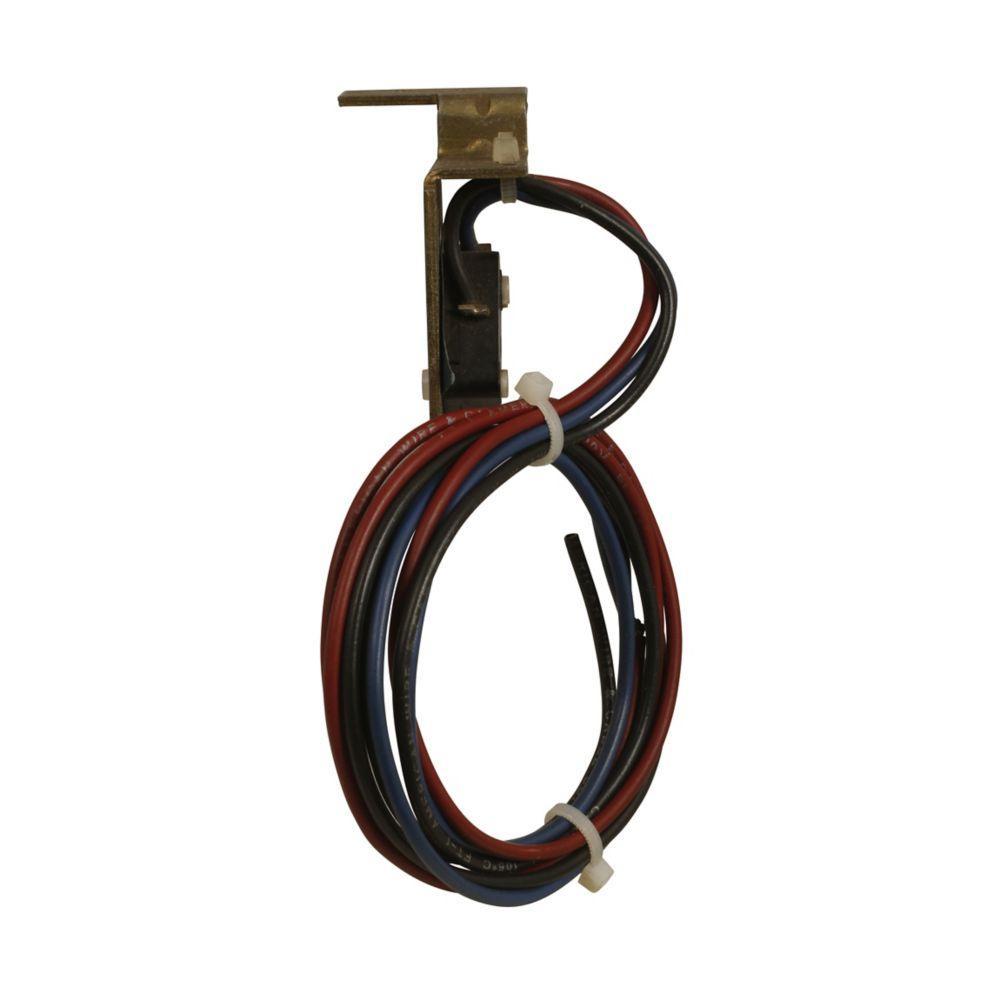

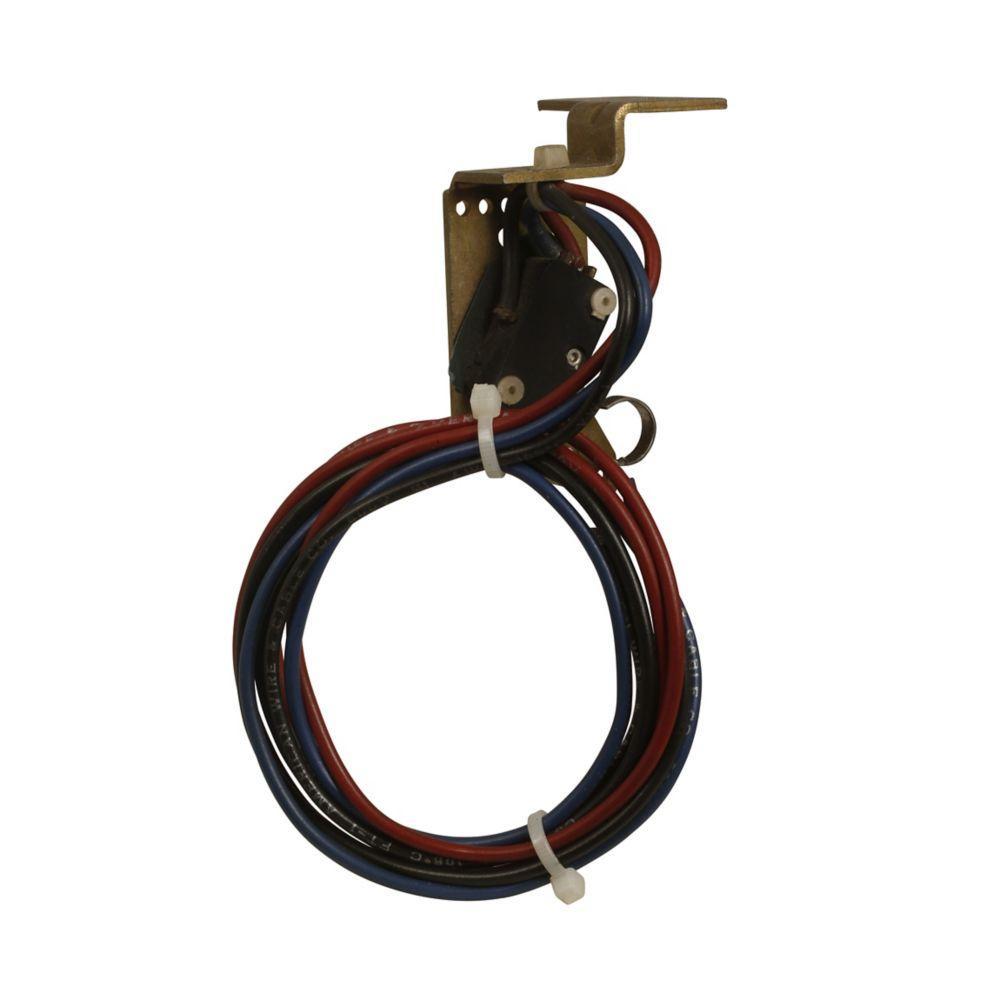

Description: EATON Alarm Switch, Field Left Hand Pole Mount, 600 V AC/125/250 V DC, 0.25/0.5/6 A, 1 Contact, MK-BK, For Use With: C Series L, M Frames and HMCP Molded Case Circuit Breaker, Pigtail

Manufacturer PN: A1L4LPK

UPC: 78667957512

Kendall Electric Inc PN: 2432145

Invoice Description:

A1L4LPK C-H Alarm Switch 78667957512

SPEC SHEET

▸ See All in Breaker Auxiliary Switches-Contacts

How Can We Make This Page Better?

EATON A1L4LPK Field Left Hand Pole Mount Alarm Switch, 600 V AC/125/250 V DC, 0.25/0.5/6 A, 1 Contact, For Use With C Series L, M Frames and HMCP Molded Case Circuit Breaker, Pigtail

Note: Lead times are estimates only

Description Specifications Resources

Description

For remote indication of automatic trip operation. Does not function with manual switching however, it will operate when either a shunt trip or undervoltage release is operated. A "make" contact closes and a "break" contact opens when the alarm/lockout switch operates. The switch automatically resets when the circuit breaker is reset.

EATON Alarm Switch, Field Left Hand Pole Mount, 600 V AC/125/250 V DC, 0.25/0.5/6 A, 1 Contact, MK-BK, For Use With: C Series L, M Frames and HMCP Molded Case Circuit Breaker, Pigtail

Specifications

Amperage Rating	0.25/0.5/6 A
Application	Circuit Protection Applications
Brand Name	EATON
Connection Type	Pigtail
Contact Configuration	MK-BK
Manufacturer Part Number	A1L4LPK
PART NUMBER KEYWORDS	A1L4LPK ; 7432328 ; 786679575123 ; 78667957512 ; 00786679575123
Standards/Approvals	Contact Manufacturer
Suitable For Use With	C Series L, M Frames and HMCP Molded Case Circuit Breaker
Type	Field Left Hand Pole Mount
Video Links
Voltage Rating	600 V AC/125/250 V DC
