Eaton

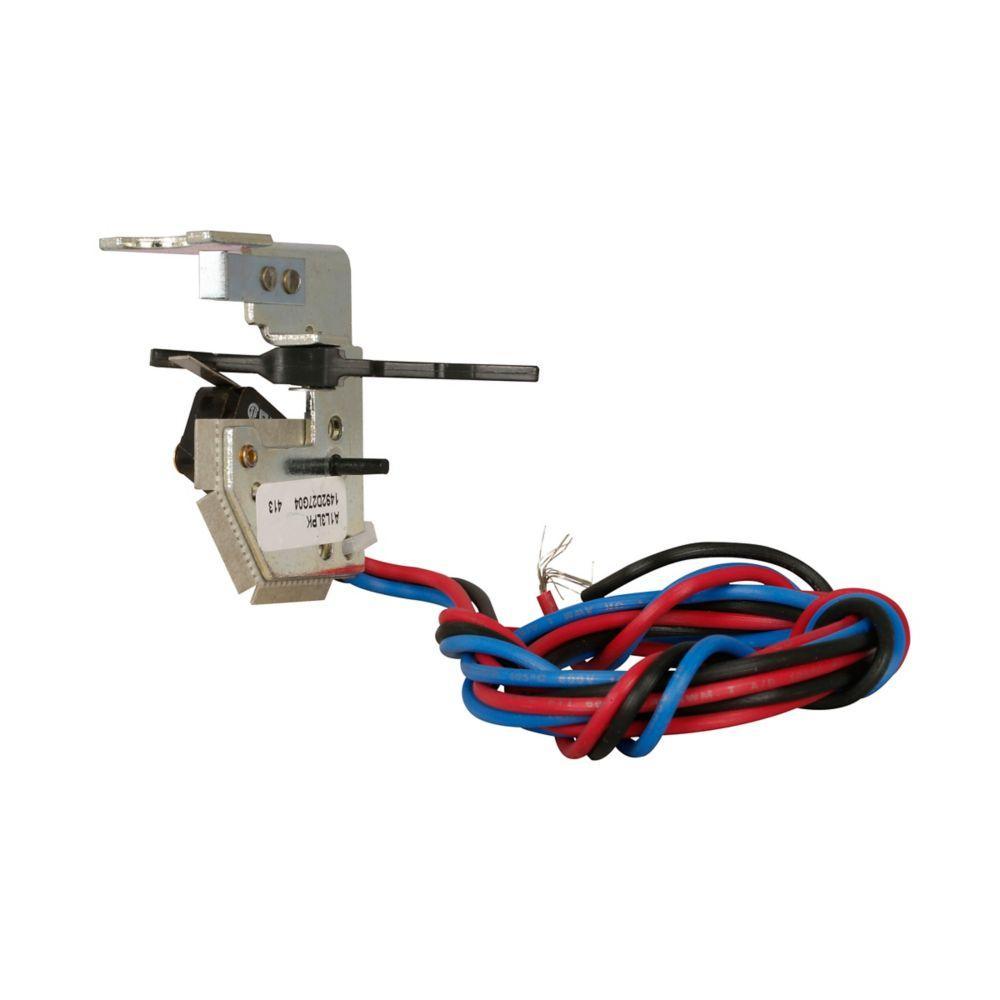

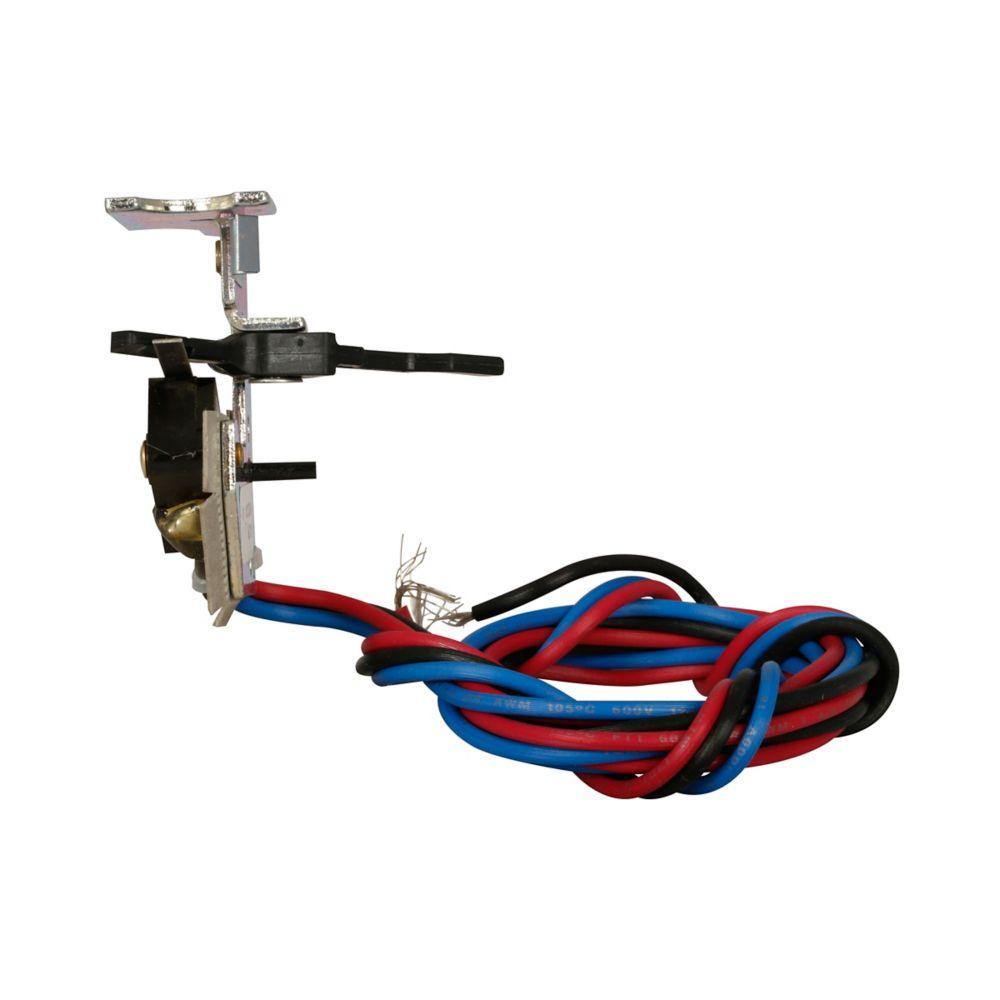

A1L2LPK CH ALARM SIGNAL LOCKOUT SWITCH WITH PIGTAIL LEADS

Mouse over image to zoom, click to enlarge

Description: EATON Alarm Switch, Field/Left Hand Pole Mount, 600 V AC/125/250 V DC, 0.25/0.5/6 A, 1 Contact, MK-BK, For Use With: C Series J Frame and HMCP Molded Case Circuit Breaker, Pigtail

Manufacturer PN: A1L2LPK

UPC: 78667914925

Kendall Electric Inc PN: 2353225

Invoice Description:

A1L2LPK CH ALARM SIGNAL LOCKOUT SWITCH WITH PIGTAIL LEADS

SPEC SHEET

How Can We Make This Page Better?

EATON A1L2LPK Field/Left Hand Pole Mount Alarm Switch, 600 V AC/125/250 V DC, 0.25/0.5/6 A, 1 Contact, For Use With C Series J Frame and HMCP Molded Case Circuit Breaker, Pigtail

Note: Lead times are estimates only

Description Specifications Resources

Description

For remote indication of automatic trip operation. Does not function with manual switching however, it will operate when either a shunt trip or undervoltage release is operated. A "make" contact closes and a "break" contact opens when the alarm/lockout switch operates. The switch automatically resets when the circuit breaker is reset.

EATON Alarm Switch, Field/Left Hand Pole Mount, 600 V AC/125/250 V DC, 0.25/0.5/6 A, 1 Contact, MK-BK, For Use With: C Series J Frame and HMCP Molded Case Circuit Breaker, Pigtail

Specifications

Amperage Rating	0.25/0.5/6 A
Application	Circuit Protection Applications
Brand Name	EATON
Connection Type	Pigtail
Contact Configuration	MK-BK
Manufacturer Part Number	A1L2LPK
PART NUMBER KEYWORDS	A1L2LPK ; 7417308 ; 786679149256 ; 78667914925 ; 00786679149256
Standards/Approvals	UL Listed,Contact Manufacturer
Suitable For Use With	C Series J Frame and HMCP Molded Case Circuit Breaker
Type	Field/Left Hand Pole Mount
Video Links
Voltage Rating	600 V AC/125/250 V DC
