Schneider Electric
  • 9999SP2R SQD CONTACTOR STARTER
  • 9999SP2R SQD CONTACTOR STARTER
  • 9999SP2R SQD CONTACTOR STARTER

Description: Square D™ Pilot Light Kit, Type S, NEMA Size 00 to 1 Contactor, For Use With: Contactor and Starter, Specifications: Direct Mount, NEMA 1, Incandescent, Red and Green

Manufacturer PN: 9999SP2R

UPC:  78590186731

Kendall Electric Inc PN: 3959033

Invoice Description:

9999SP2R SQD CONTACTOR STARTER


SPEC SHEET

▸ See All in Contactor Replacement Parts


How Can We Make This Page Better?

Square D™ 9999SP2R Type S Pilot Light Kit, NEMA Size 00 to 1 Contactor, For Use With Contactor and Starter

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

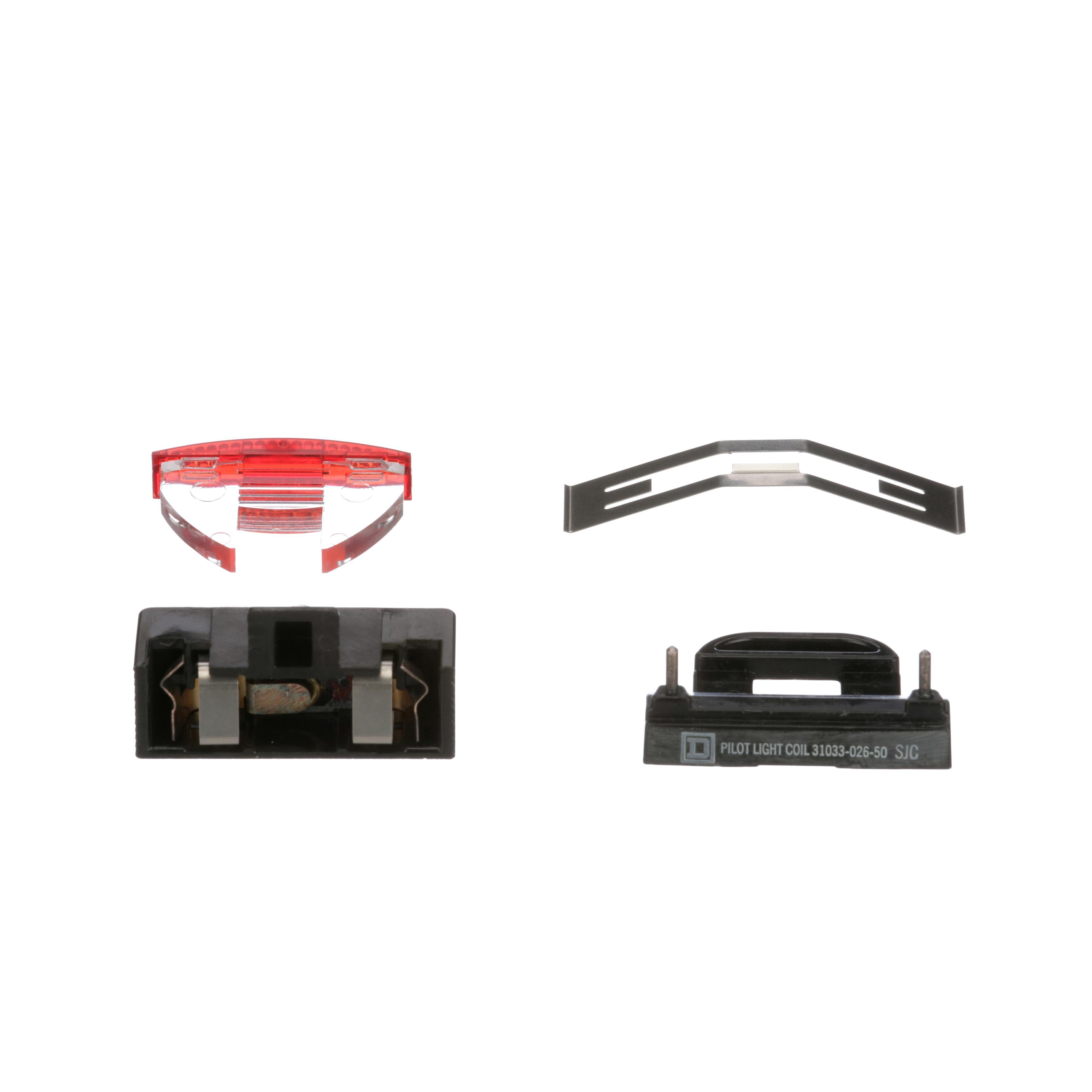

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This pilot light kit is for NEMA size 00, 0, 1 and 1P Type S contactors and starters in NEMA 1 enclosure. This pilot light kit will work from 6 to 600 volt. The pilot light kit comes with a red and green lens. The pilot light is mounted on the top of the Type S device. The lens in inserted into the knockout in the enclosure cover. This light module kit is UL listed and CSA certified.
Square D™ Pilot Light Kit, Type S, NEMA Size 00 to 1 Contactor, For Use With: Contactor and Starter, Specifications: Direct Mount, NEMA 1, Incandescent, Red and Green

Specifications

 Application For field installation of pilot light on NEMA 1 enclosures applications
 Brand Name Square D
 Contactor Size NEMA Size 00 to 1
 Manufacturer Part Number 9999SP2R
 PART NUMBER KEYWORDS 9999SP2R ; 8065725 ; 785901867319 ; 78590186731 ; 00785901867319 ; 0785901867319
 Specifications Direct Mount, NEMA 1, Incandescent, Red and Green
 Standards/Approvals ECCN: EAR99|PROP65: This product can expose you to chemicals including: Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With Contactor and Starter
 Type Type S

Features

▪ Available in wide variety of enclosures suitable for lighting control
▪ Field-convertible contacts with N.O. and N.C. indicators (8 N.C. contacts maximum)
▪ Electrically and mechanically held
