Schneider Electric
  • 9998L44 SQD CONTACTOR RELAY COIL
  • 9998L44 SQD CONTACTOR RELAY COIL
  • 9998L44 SQD CONTACTOR RELAY COIL
  • 9998L44 SQD CONTACTOR RELAY COIL
  • 9998L44 SQD CONTACTOR RELAY COIL
  • 9998L44 SQD CONTACTOR RELAY COIL

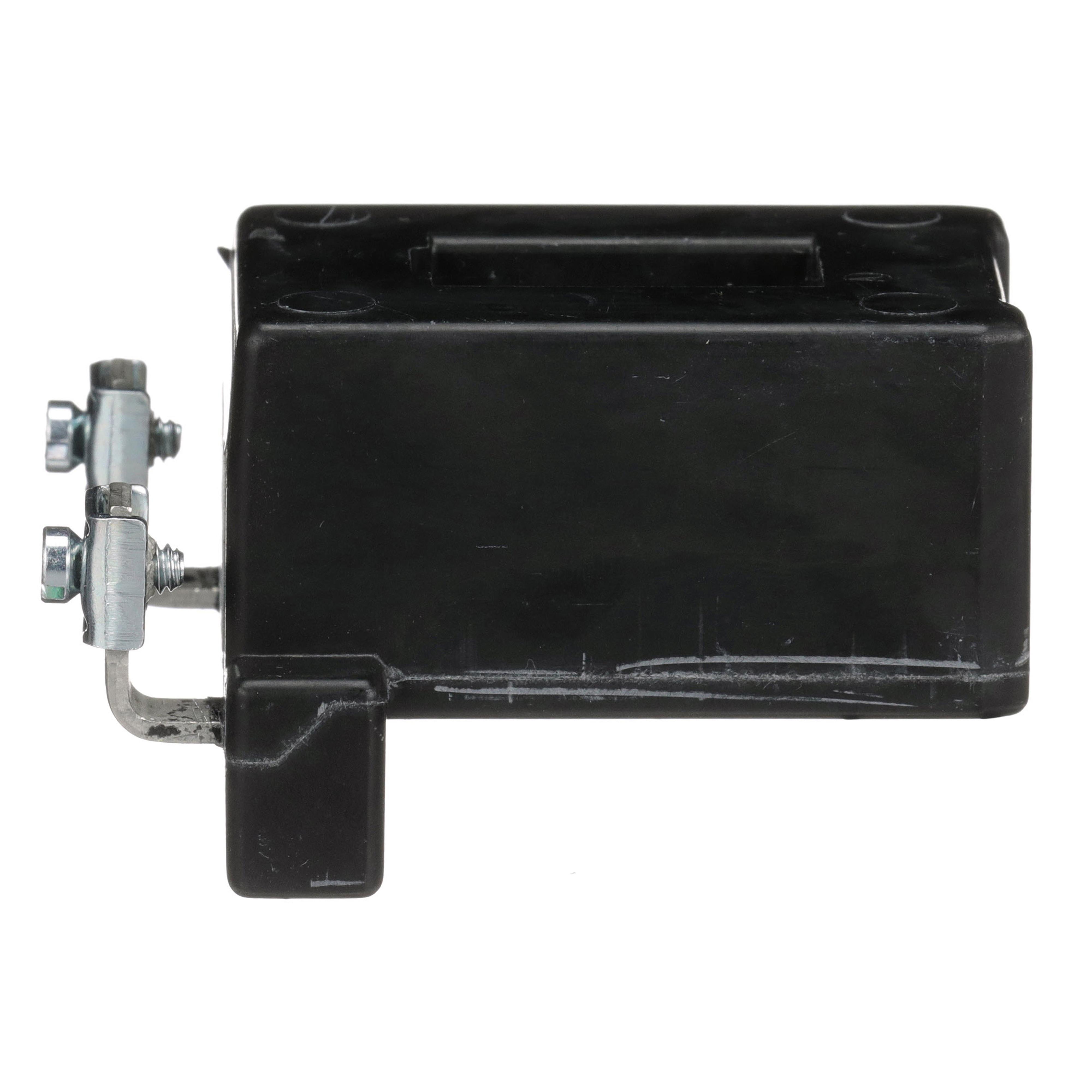

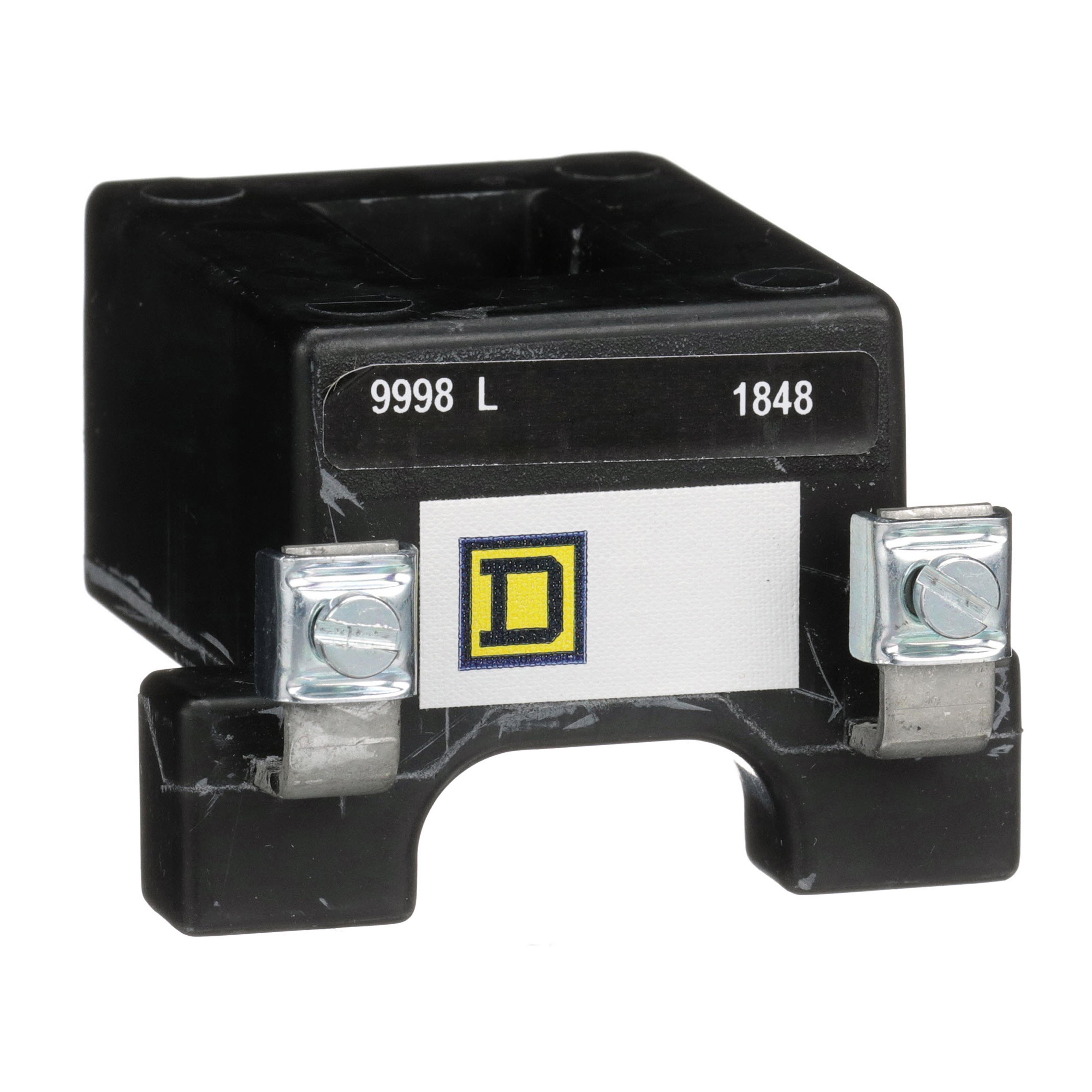

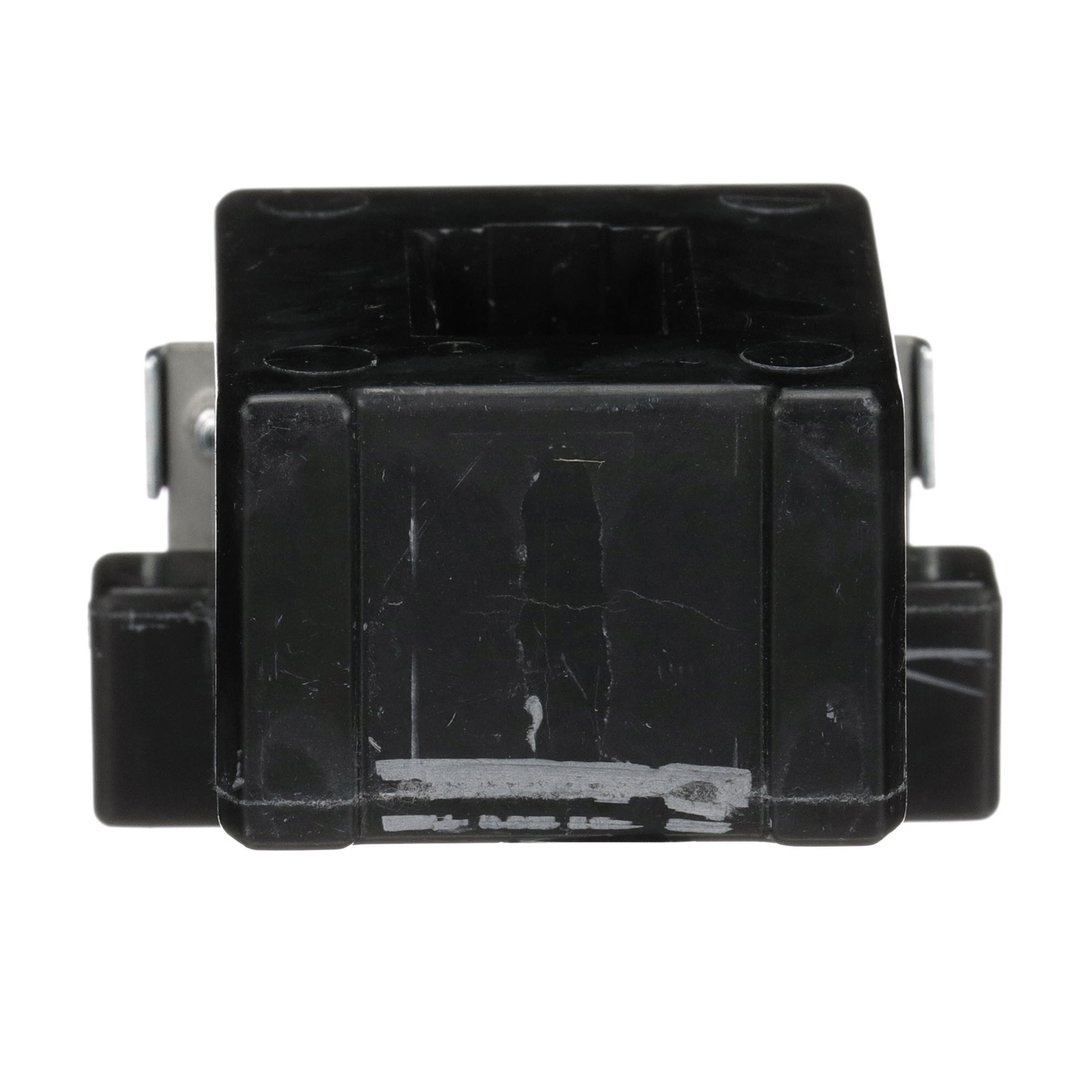

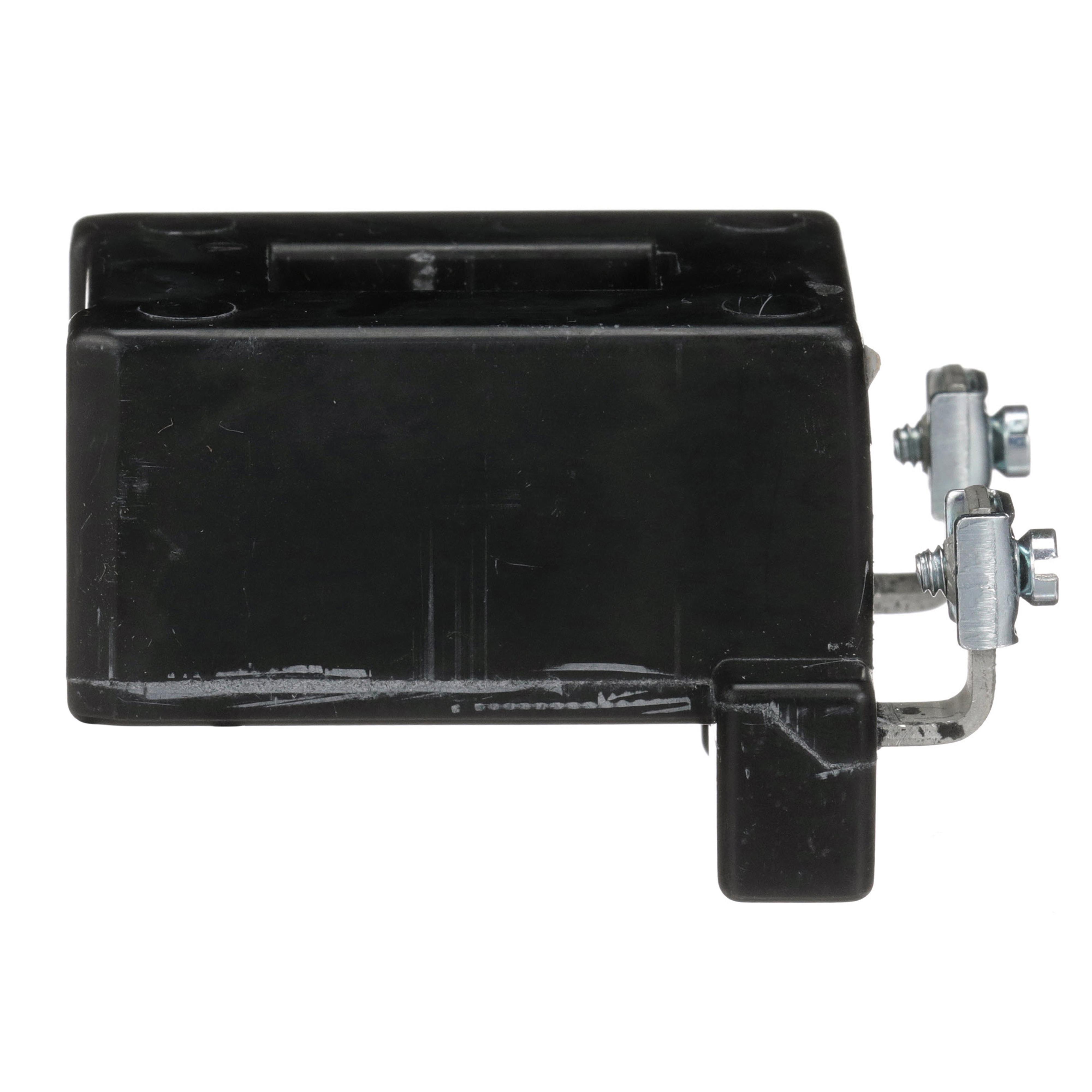

Description: Square D™ Replacement Relay Coil, Series: 9998, 110/115/120 V AC, 50/60 Hz, For Use with: Class 8502, 8536, 8538, 8539 and 8606 Magnetic Contactor/Starter

Manufacturer PN: 9998L44

UPC:  78590108121

Kendall Electric Inc PN: 3999087

Invoice Description:

9998L44 SQD CONTACTOR RELAY COIL


SPEC SHEET

▸ See All in Motor Control Coils


How Can We Make This Page Better?

Square D™ 9998L44 Replacement Relay Coil, 110/115/120 V AC, 50/60 Hz, For Use With Class 8502, 8536, 8538, 8539 and 8606 Magnetic Contactor/Starter

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. By changing out the coil, the lighting contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 2 to 6 poles, and 8930LX, 2 to 4 poles, lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 150 VA. It has an average sealed consumption of 30 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Square D™ Replacement Relay Coil, Series: 9998, 110/115/120 V AC, 50/60 Hz, For Use with: Class 8502, 8536, 8538, 8539 and 8606 Magnetic Contactor/Starter

Specifications

 Brand Name Square D
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 9998L44
 PART NUMBER KEYWORDS 9998L44 ; 8009507 ; 785901081210 ; 78590108121 ; 00785901081210 ; 0785901081210
 Series 9998
 Standards/Approvals REACH Compliant
 Suitable For Use With Class 8502, 8536, 8538, 8539 and 8606 Magnetic Contactor/Starter
 Video Links
 Voltage Rating 110/115/120 V AC

Features

▪ Robust design and reliable build
▪ Easy to Service with replaceable parts
▪ Available in NEMA Sizes 00 to 7
▪ 600 V maximum
▪ Customizable with hundreds of combinations
