United Technologies

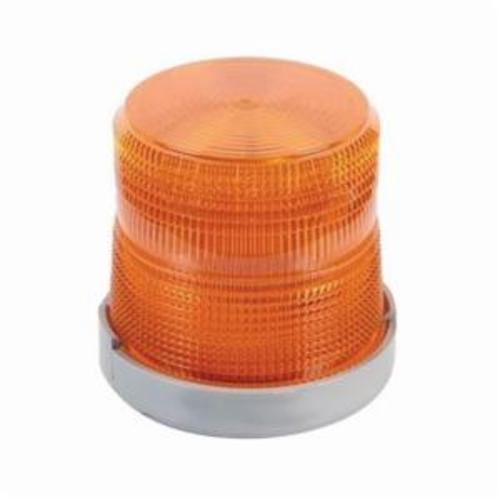

98BA-G1 EDW STROBE_AMB_24DC 78264044374

Mouse over image to zoom, click to enlarge

  • 98BA-G1 EDW STROBE_AMB_24DC 78264044374
  • 98BA-G1 EDW STROBE_AMB_24DC 78264044374

Description: Edwards Signaling™ Strobe Beacon, Light Duty, Series: 98 Series, 24 V DC, 0.3 A, 4-9/32 in Diameter, Xenon Lamp, Amber, 65 fpm Flash, 300000 cd Light Output, 3000 hr Average Life, Surface Mounting, NEMA 4X, -31 to 150 deg F, Specifications Met: UL 1638, cUL Listed, High Impact Plastic Base Housing Material, 4-7/32 in H

Manufacturer PN: 98BA-G1

UPC:  78264044374

Kendall Electric Inc PN: 2124781

Invoice Description:

98BA-G1 EDW STROBE_AMB_24DC 78264044374


How Can We Make This Page Better?

Edwards Signaling™ 98BA-G1 Light Duty Strobe Beacon, 24 V DC, Xenon Lamp, Amber, Surface Mounting, Specifications Met: UL 1638, cUL Listed, NEMA 4X

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Edwards 96B and 98B series xenon strobe beacons are light-duty visual signals suitable for use in industrial, commercial and institutional applications where short-term intermittent visual signaling is required. Both series feature a corrosion-resistant NEMA type 4X enclosure and can be panel or conduit mounted. Optically designed fresnel lenses improve viewer perception for indoor and outdoor applications. The 96B and 98B series are often used where a smaller output is desired or where multiple, smaller strobes are required. Trigger and timing circuits are included as integral parts of the power supply. Replacement costs are reduced, as it is necessary to replace only the strobe tube.
Edwards Signaling™ Strobe Beacon, Light Duty, Series: 98 Series, 24 V DC, 0.3 A, 4-9/32 in Diameter, Xenon Lamp, Amber, 65 fpm Flash, 300000 cd Light Output, 3000 hr Average Life, Surface Mounting, NEMA 4X, -31 to 150 deg F, Specifications Met: UL 1638, cUL Listed, High Impact Plastic Base Housing Material, 4-7/32 in H

Specifications

 Amperage Rating 0.3 A
 Application Indoor and Outdoor Applications
 Average Life 3000 hr
 Brand Name Edwards Signaling™
 Color Amber
 Dimensions 4-7/32 in H
 Flash Rate 65 fpm
 Housing Material High Impact Plastic Base
 Lamp Type Xenon
 Light Output 300000 cd
 Manufacturer Part Number 98BA-G1
 Mounting Type Surface
 NEMA Rating NEMA 4X
 PART NUMBER KEYWORDS 98BA-G1 ; 98BAG1 ; 782640443743 ; 78264044374 ; 00782640443743
 Series 98 Series
 Specifications Met UL 1638, cUL Listed
 Standards/Approvals ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Type Light Duty
 Voltage Rating 24 V DC

Features

▪ Snap-on high impact plastic base
▪ Resistant to shock and vibration
▪ May be direct or 1/2 in conduit mounted on any plane
▪ For outdoor use, lens should face up
