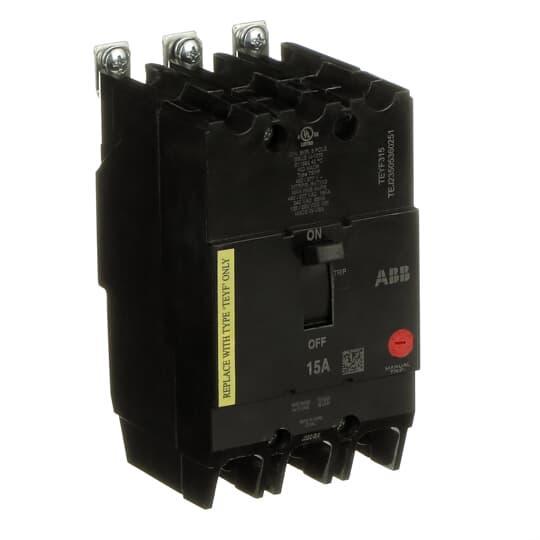

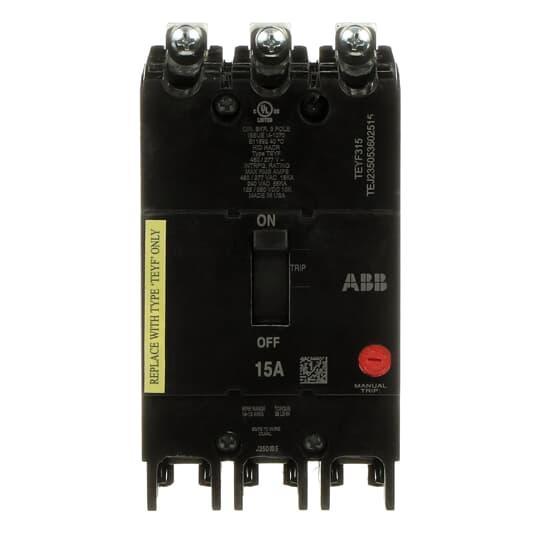

  • GENERAL ELECTRIC TEYF315 TEYF 3 POLE 15 AMP
  • GENERAL ELECTRIC TEYF315 TEYF 3 POLE 15 AMP
  • GENERAL ELECTRIC TEYF315 TEYF 3 POLE 15 AMP
  • GENERAL ELECTRIC TEYF315 TEYF 3 POLE 15 AMP

Description: GE Lighting Panel Circuit Breaker, Compact, 120/240/277/480 V AC, 15 A, 50/60 Hz Frequency, 65/18 kA Interrupt, TEYF Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Saddle Clamp Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Manufacturer PN: TEYF315

UPC:  78316438847

Kendall Electric Inc PN: 4364456

Invoice Description:

GENERAL ELECTRIC TEYF315 TEYF 3 POLE 15 AMP


SPEC SHEET

▸ See All in Lighting Panel Circuit Breakers


How Can We Make This Page Better?

GE TEYF315 Compact Lighting Panel Circuit Breaker, 120/240/277/480 V AC, 15 A, 65/18 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The TEYF is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEYF suitable for varied applications as a lug-lug breaker. All TEYF circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYF breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.
GE Lighting Panel Circuit Breaker, Compact, 120/240/277/480 V AC, 15 A, 50/60 Hz Frequency, 65/18 kA Interrupt, TEYF Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Handle Actuator, Saddle Clamp Connection, 14 to 10 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions, Plastic

Specifications

 Actuator Type Handle
 Amperage Rating 15 A
 Application For health care facilities, elevators, emergency systems, legally required standby systems such as generators, many other critical load scenarios, electrical distribution and control applications
 Brand Name GE
 Connection Type Saddle Clamp
 Dimensions 5-1/4 in H x 3 in W x 3-1/16 in D
 Frame TEYF
 Frequency Rating 50/60 Hz
 Manufacturer Part Number TEYF315
 Material Plastic
 Mounting Type Bolted-On
 Number of Poles 3
 PART NUMBER KEYWORDS TEYF315 ; 12325573 ; 783164388473 ; 78316438847 ; 00783164388473
 Phase 3
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E11592|CSA File No. LR57114|HACR Rated
 Temperature Rating 40 deg C
 Type Compact
 Voltage Rating 120/240/277/480 V AC

Features

▪ Ambient compensated
▪ Multiple short circuit tiers
▪ Cost effective protection
▪ Mounting base for unit mount installations
▪ 18 kA at 277 VAC, 65 kA at 120/240 VAC, 65 kA at 240 VAC, 18 kA at 480/277 VAC interrupt rating
