3M

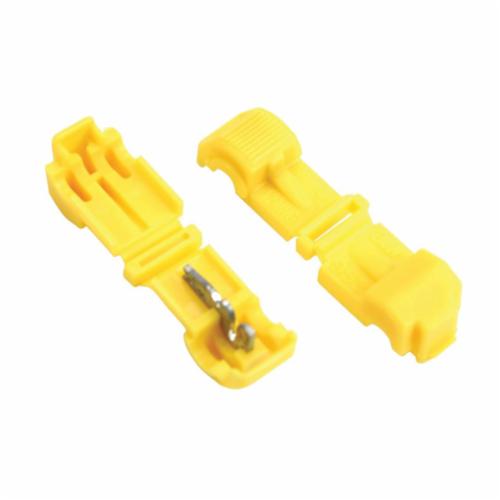

953X-BOTTLE 3M SELF-STRIP T-TAP (50/BOTTLE) 05400712314

Mouse over image to zoom, click to enlarge

  • 953X-BOTTLE 3M SELF-STRIP T-TAP (50/BOTTLE) 05400712314
  • 953X-BOTTLE 3M SELF-STRIP T-TAP (50/BOTTLE) 05400712314

Description: 3M™, 7000058874, Disconnect, Female, Series: 953X, Solid/Stranded Copper Wire, 12 AWG Wire, Nylon Insulation, Self-Stripping Barrel, 0.25 in Pad Width, 600 V, Specifications: T-tap Connector, 105 deg C, Brass/Tin Plated, Yellow

Manufacturer PN: 7000058874

UPC:  05400712314

Kendall Electric Inc PN: 3353848

Invoice Description:

953X-BOTTLE 3M SELF-STRIP T-TAP (50/BOTTLE) 05400712314


SPEC SHEET

▸ See All in T-Tap Disconnects


How Can We Make This Page Better?

3M™ 7000058874 953X Female Disconnect, 12 AWG Solid/Stranded Copper Wire, Nylon Insulation, 0.25 in W Pad, Brass/Tin Plated

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

3M Scotchlok Insulation Displacement 951, 952 and 953 are quick slide t-tap disconnects used to electrically tap into a wire in mid span without cutting or stripping the wire. These blue wire connectors feature nylon insulation, making them ideal for use in light fixtures, appliances and other electrical OEM applications.
3M™, 7000058874, Disconnect, Female, Series: 953X, Solid/Stranded Copper Wire, 12 AWG Wire, Nylon Insulation, Self-Stripping Barrel, 0.25 in Pad Width, 600 V, Specifications: T-tap Connector, 105 deg C, Brass/Tin Plated, Yellow

Specifications

 Application Ideal for use in light fixtures, appliances and other electrical OEM applications
 Brand Name 3M
 Color Yellow
 Manufacturer Part Number 7000058874
 Material Brass/Tin Plated
 PART NUMBER KEYWORDS 7000058874 ; 00054007123149
 Series 953X
 Specifications T-tap Connector
 Standards/Approvals UL File Number E70512||CSA Certified|RoHS 2011/65/EU Compliant
 Temperature Rating 105 deg C
 Type Female
 Voltage Rating 600 V

Features

▪ Blue nylon-insulated female wire connectors electrically tap into a wire in mid-span without cutting
▪ Color-coded for quick and easy identification of appropriate wire size
▪ Accommodates 18 to 14 AWG solid/stranded copper
▪ Tin-plated brass element construction provides good conductivity and corrosion resistance
▪ Operating temperature 221F (105C)
