Knipex Tools

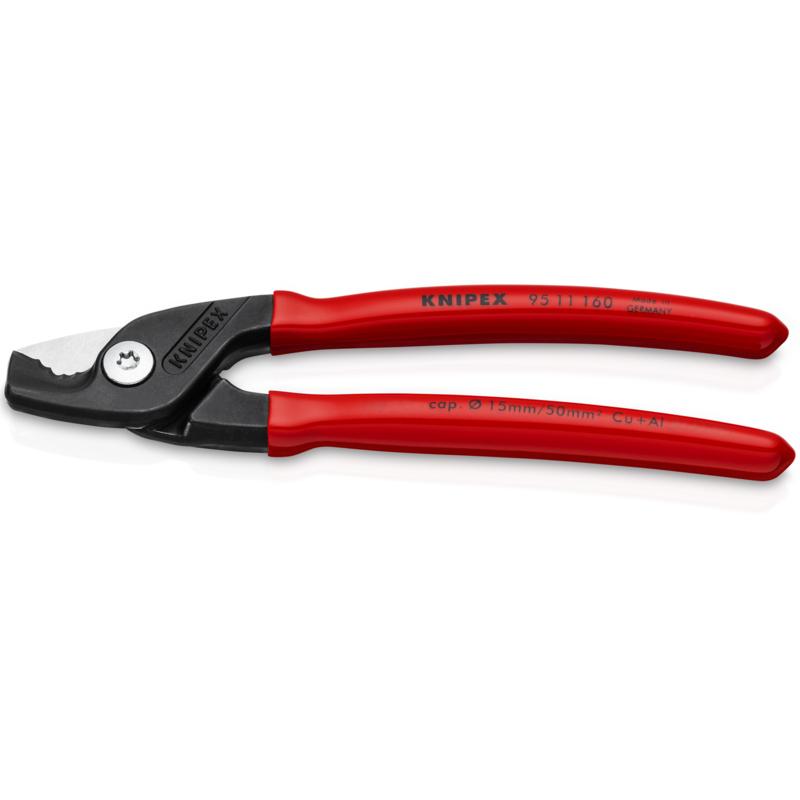

9511160SBA KNIPEX-TOOL 95 11 160 SBA 6 1/4IN STEPCUT CABLE SHEARS

Mouse over image to zoom, click to enlarge

  • 9511160SBA KNIPEX-TOOL 95 11 160 SBA 6 1/4IN STEPCUT CABLE SHEARS
  • 9511160SBA KNIPEX-TOOL 95 11 160 SBA 6 1/4IN STEPCUT CABLE SHEARS
  • 9511160SBA KNIPEX-TOOL 95 11 160 SBA 6 1/4IN STEPCUT CABLE SHEARS
  • 9511160SBA KNIPEX-TOOL 95 11 160 SBA 6 1/4IN STEPCUT CABLE SHEARS
  • 9511160SBA KNIPEX-TOOL 95 11 160 SBA 6 1/4IN STEPCUT CABLE SHEARS

Description: Knipex® StepCut, 95 11 160 SBA, Cable Shear, Series: 95 11, 50 sq-mm, 1 AWG Cable/Wire, 160 mm Overall Length, Shear Cut, Plastic Coated Steel Handle, Insulated: No, Black Oxide

Manufacturer PN: 9511160SBA

UPC:  84322102769

Kendall Electric Inc PN: 4730563

Invoice Description:

9511160SBA KNIPEX-TOOL 95 11 160 SBA 6 1/4IN STEPCUT CABLE SHEARS


SPEC SHEET

▸ See All in Cable & Wire Cutters


How Can We Make This Page Better?

Knipex® StepCut 95 11 160 SBA 95 11 Cable Shear, 50 sq-mm, 1 AWG Cable/Wire, 160 mm OAL, Shear Cut

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

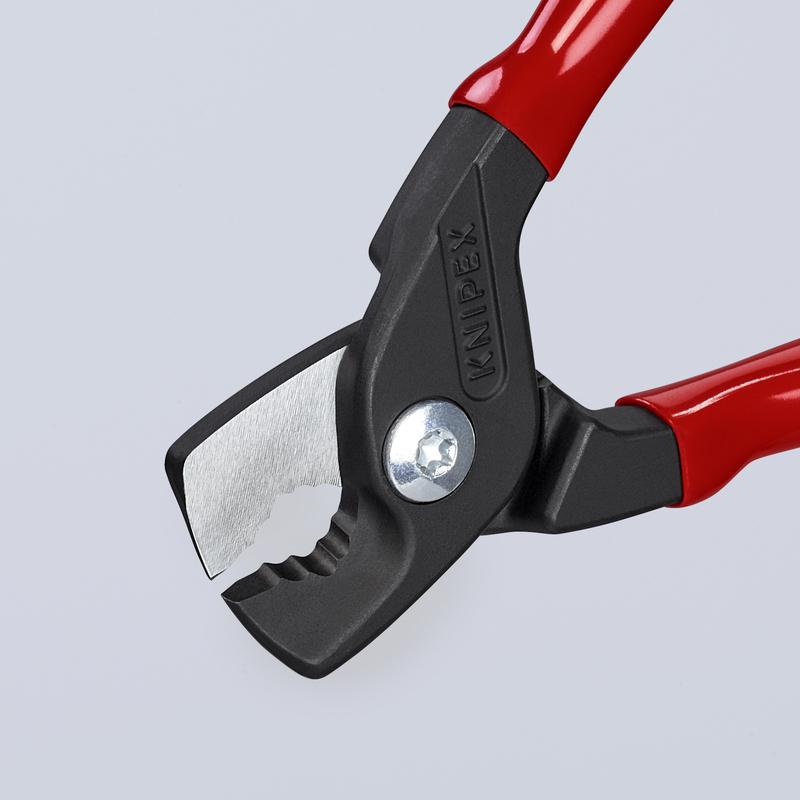

The StepCut cable shears is for solid, multi-core stranded copper and aluminum cables up to 1/0 AWG. The StepCut’s most unique feature is its cutting edge gradations that cut wires and strands one by one without crushing the cable. This process makes cutting up to 40 percent easier than standard cable shears of the same length. The StepCut features induction hardened cutting edges (approx. 56 HRC) and precision-ground blades for precise, clean cutting. The cutting edges are milled to a wavy form on the front and ground flat on the back. The StepCut comes in a compact 6 1/4" length and its bolted joint design provides precise and smooth cutting. Other features include a pinch guard that prevents the operator’s fingers from getting pinched and a body made from high-grade special tool steel that is forged and oil-hardened.
Knipex® StepCut, 95 11 160 SBA, Cable Shear, Series: 95 11, 50 sq-mm, 1 AWG Cable/Wire, 160 mm Overall Length, Shear Cut, Plastic Coated Steel Handle, Insulated: No, Black Oxide

Specifications

 Brand Name Knipex
 Cable Wire Size 50 sq-mm, 1 AWG
 Cut Type Shear
 Finish Black Oxide
 Handle Material Plastic Coated Steel
 Insulated No
 Manufacturer Part Number 95 11 160 SBA
 Non Sparking No
 Overall Length 160 mm
 PART NUMBER KEYWORDS 95 11 160 SBA ; 9511160SBA ; 843221027698 ; 84322102769 ; 4003773085911
 Series 95 11
 Spring Return No
 Video Links

Features

▪ High-grade special tool steel, forged, oil hardened

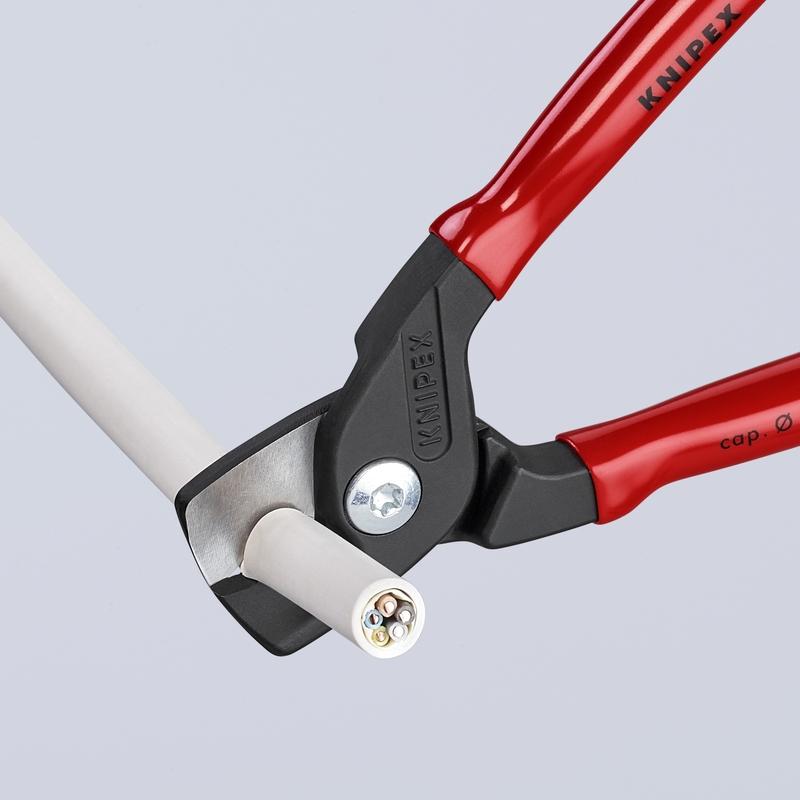

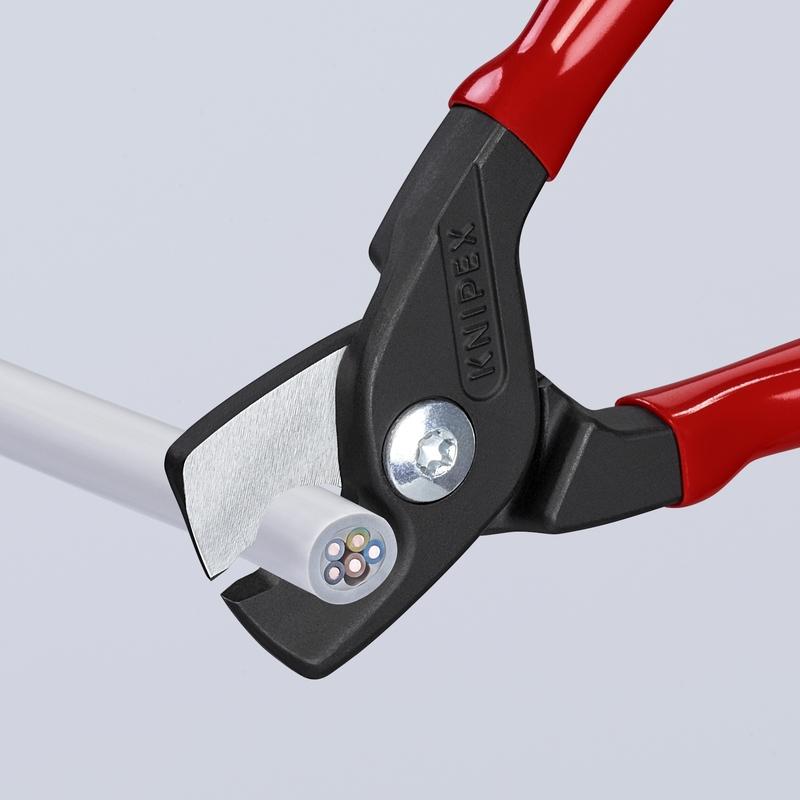

▪ Cable cutting made easy - innovative step cutting separates and cuts one by one
▪ Small, light, strong - comfortable cutting without crushing and just 6-1/4 in length
▪ The cutting edge gradations cut wires one after the other making cutting 40% easier than with standard Cable Shears of the same length
▪ Cuts multi-core stranded copper and aluminum cables, single and multi-stranded wire up to 1/0 AWG
▪ Not suitable for steel wire and hard drawn copper conductors
▪ Easy cutting with one-hand operation
▪ Adjustable bolted joint provides precise and smooth cutting
▪ Pinch guard prevents operators fingers being pinched
▪ Induction hardened cutting edges approx. 56 HRC
