Schneider Electric
  • 9422CFT31 SQD DISCONNECT SWITCH
  • 9422CFT31 SQD DISCONNECT SWITCH
  • 9422CFT31 SQD DISCONNECT SWITCH
  • 9422CFT31 SQD DISCONNECT SWITCH
  • 9422CFT31 SQD DISCONNECT SWITCH
  • 9422CFT31 SQD DISCONNECT SWITCH

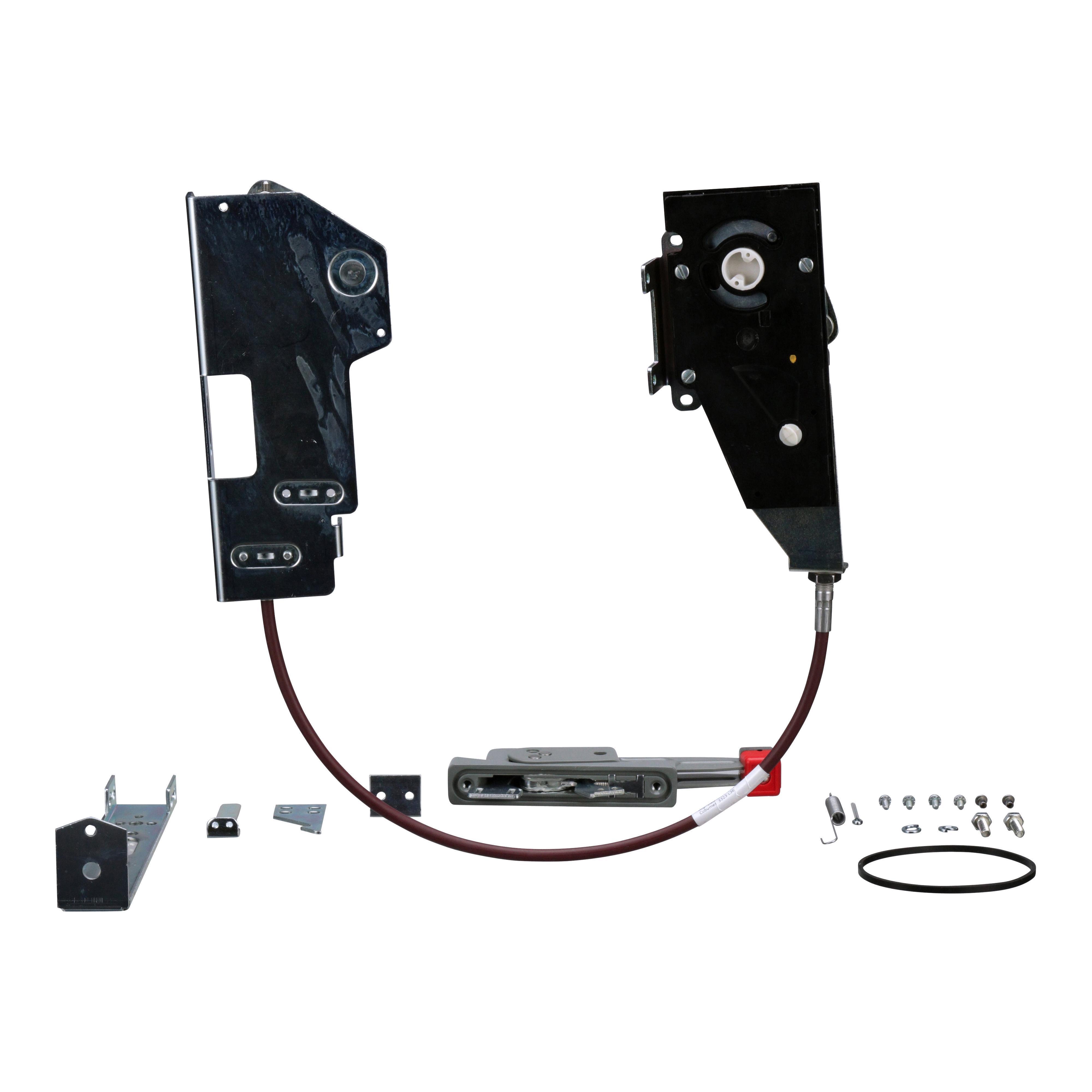

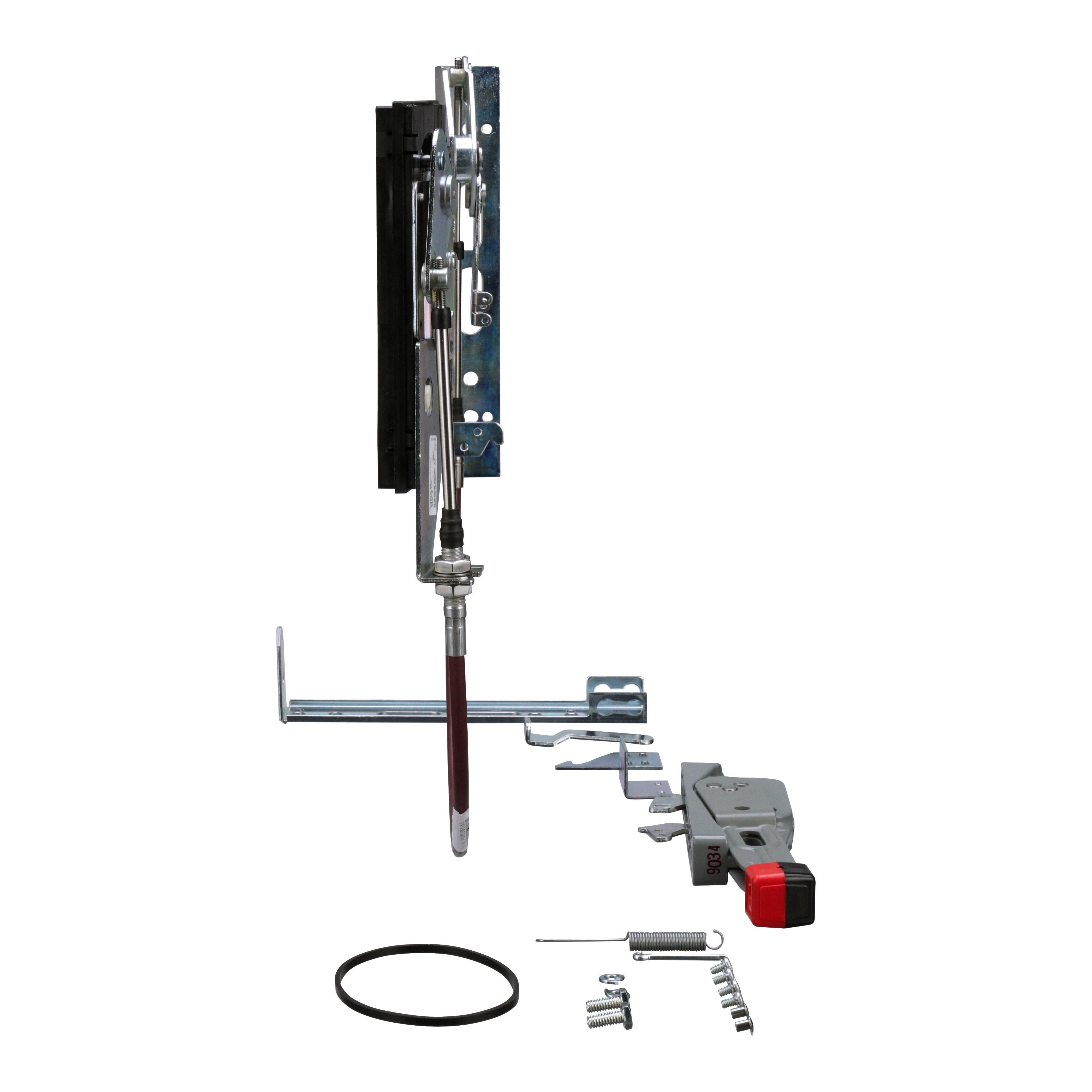

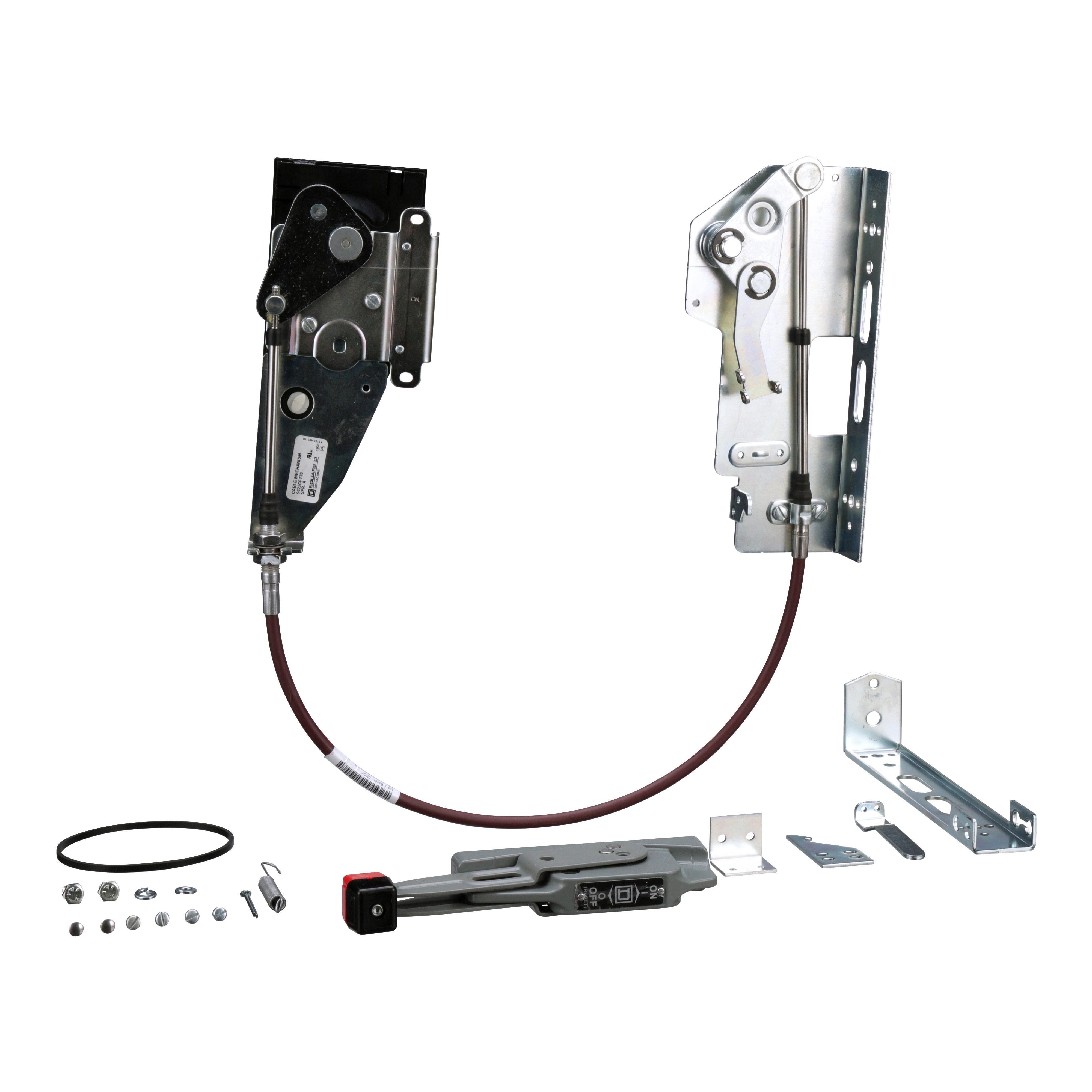

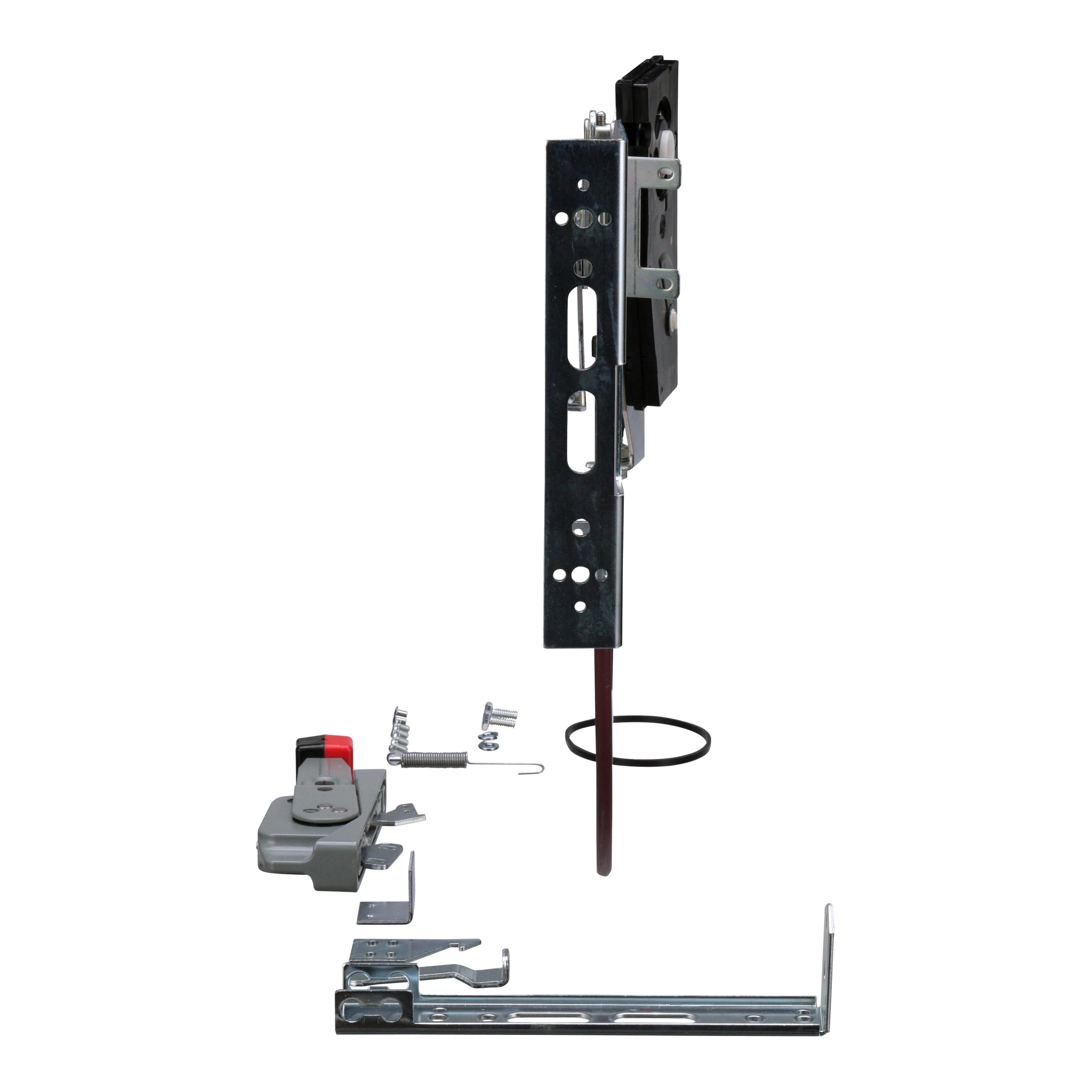

Description: Square D™ Disconnect Switch Operating Mechanism, Single Cable Operated, NEMA 1/3/3R/4/12 NEMA Rating, Flange Handle Mounting Position, For Use With: TCF, TCN, TDF, TDN, TEF, TEN Series 30 to 100 A, 9422T and 9422T Fusible and Non-Fusible Disconnect Switch, 36 in Cable Handle to Device Connection

Manufacturer PN: 9422CFT31

UPC:  78590180644

Kendall Electric Inc PN: 3959372

Invoice Description:

9422CFT31 SQD DISCONNECT SWITCH


SPEC SHEET

▸ See All in Disconnect Switch Operating Mechanisms


How Can We Make This Page Better?

Square D™ 9422CFT31 Single Cable Operated Disconnect Switch Operating Mechanism, NEMA 1/3/3R/4/12 NEMA Rating, Flange Handle Mounting, For Use With TCF, TCN, TDF, TDN, TEF, TEN Series 30 to 100 A, 9422T and 9422T Fusible and Non-Fusible Disconnect Switch

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. The cable mechanism has a cable length is 36 inches. The handle is NEMA 1, 3, 3R and 12 rated. 9422A1 operating handle is overpacked with this disconnect switch. The handle is NEMA 1, 3, 3R and 12 rated.
Square D™ Disconnect Switch Operating Mechanism, Single Cable Operated, NEMA 1/3/3R/4/12 NEMA Rating, Flange Handle Mounting Position, For Use With: TCF, TCN, TDF, TDN, TEF, TEN Series 30 to 100 A, 9422T and 9422T Fusible and Non-Fusible Disconnect Switch, 36 in Cable Handle to Device Connection

Specifications

 Brand Name Square D
 Handle Mounting Position Flange
 Handle to Device Connection 36 in Cable
 Includes Handle
 Manufacturer Part Number 9422CFT31
 NEMA Rating NEMA 1/3/3R/4/12
 PART NUMBER KEYWORDS 9422CFT31 ; 8039286 ; 785901806448 ; 78590180644 ; 00785901806448 ; 0785901806448
 Standards/Approvals RoHS Compliant|ECCN: EAR99|UL File No. E52639 CCN Guide No. WHTY2|CSA File No. LR44199 Class 4652-04|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With TCF, TCN, TDF, TDN, TEF, TEN Series 30 to 100 A, 9422T and 9422T Fusible and Non-Fusible Disconnect Switch
 Type Single Cable Operated

Features

▪ Two mounting methods offered for flexibility
▪ Disconnect switches were designed for control panel installations

Resources

 Catalog Page
 Product Data Sheet
 RoHS
