Description: Square D™ Disconnect Switch, Fixed/Variable Depth Fusible, Series: 9422AT, 250/600 V AC, 100 A, 75 hp, 3 Pole, Handle Actuator, Class H/J/K/R Insulation, NEMA 1/3/3R/4/12 Enclosure, Bracket/Flange Mounting, Lug Terminal

Manufacturer PN: 9422ATEF101

UPC:  78590187227

Kendall Electric Inc PN: 3958778

Invoice Description:

9422ATEF101 SQD DISCONNECT SWITCH


SPEC SHEET

▸ See All in Flange-Mount Disconnects


How Can We Make This Page Better?

Square D™ 9422ATEF101 Fixed/Variable Depth Fusible Disconnect Switch, 250/600 V AC, 100 A, 75 hp, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ Disconnect Switch, Fixed/Variable Depth Fusible, Series: 9422AT, 250/600 V AC, 100 A, 75 hp, 3 Pole, Handle Actuator, Class H/J/K/R Insulation, NEMA 1/3/3R/4/12 Enclosure, Bracket/Flange Mounting, Lug Terminal

Specifications

 Actuator Type Handle
 Amperage Rating 100 A
 Application For control panel installations and variable depth rod operator applications
 Brand Name Square D
 Enclosure NEMA 1/3/3R/4/12
 Horsepower 75 hp

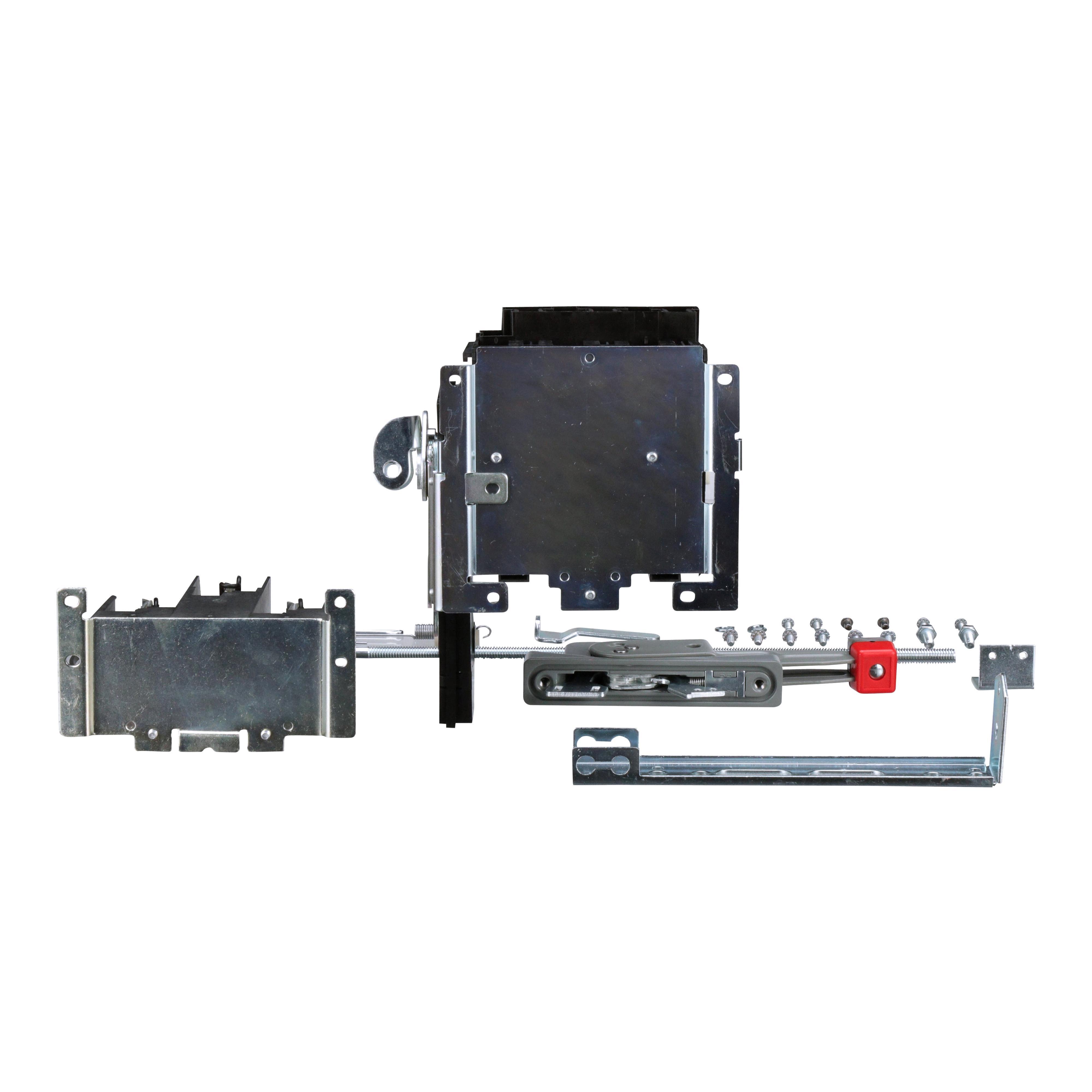

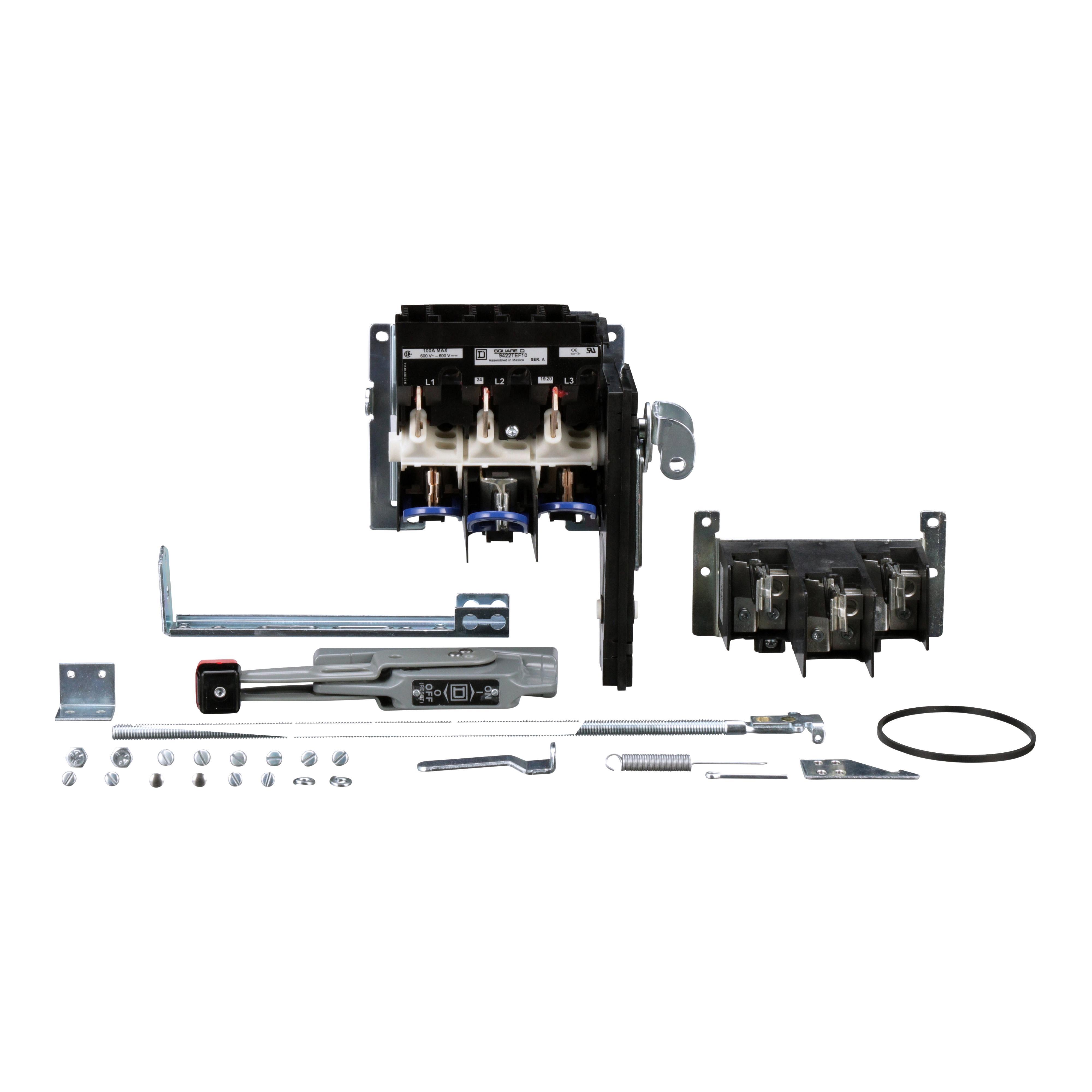

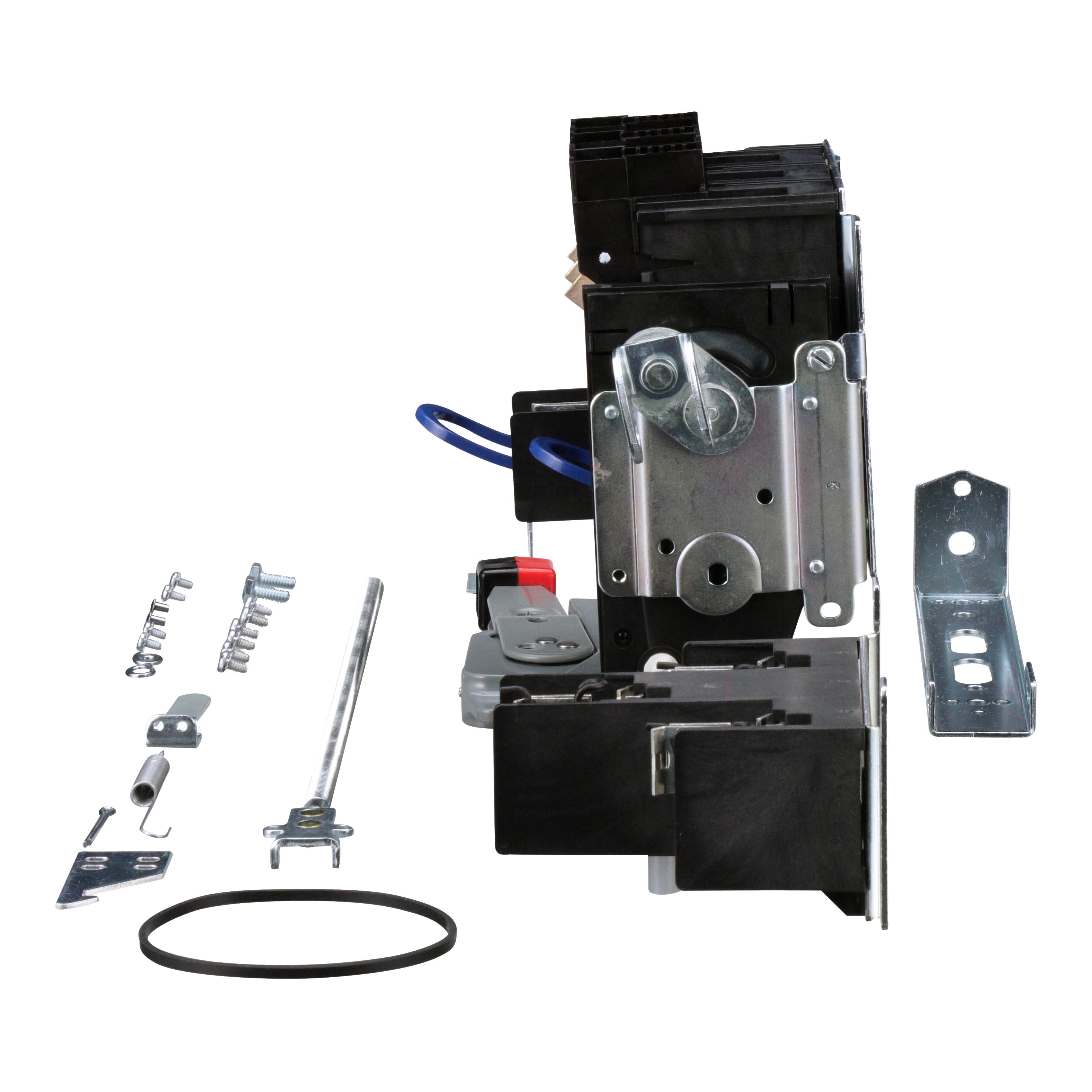

 Includes 9422A1 6 in Handle, 9422TEF10 6-5/8 to 18 in Variable Depth Disconnect Switch and Operating Mechanism
 Manufacturer Part Number 9422ATEF101
 Mounting Type Bracket/Flange
 Number of Poles 3
 Series 9422AT
 Standards/Approvals RoHS Compliant|ECCN: EAR99|CSA File No. LR44199 Class 4652-04|UL File No. E52639|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Terminal Type Lug
 Type Fixed/Variable Depth Fusible
 Voltage Rating 250/600 V AC

Features

▪ Used with all disconnect switch and circuit breaker installations
▪ Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
▪ Two mounting methods offered for flexibility
