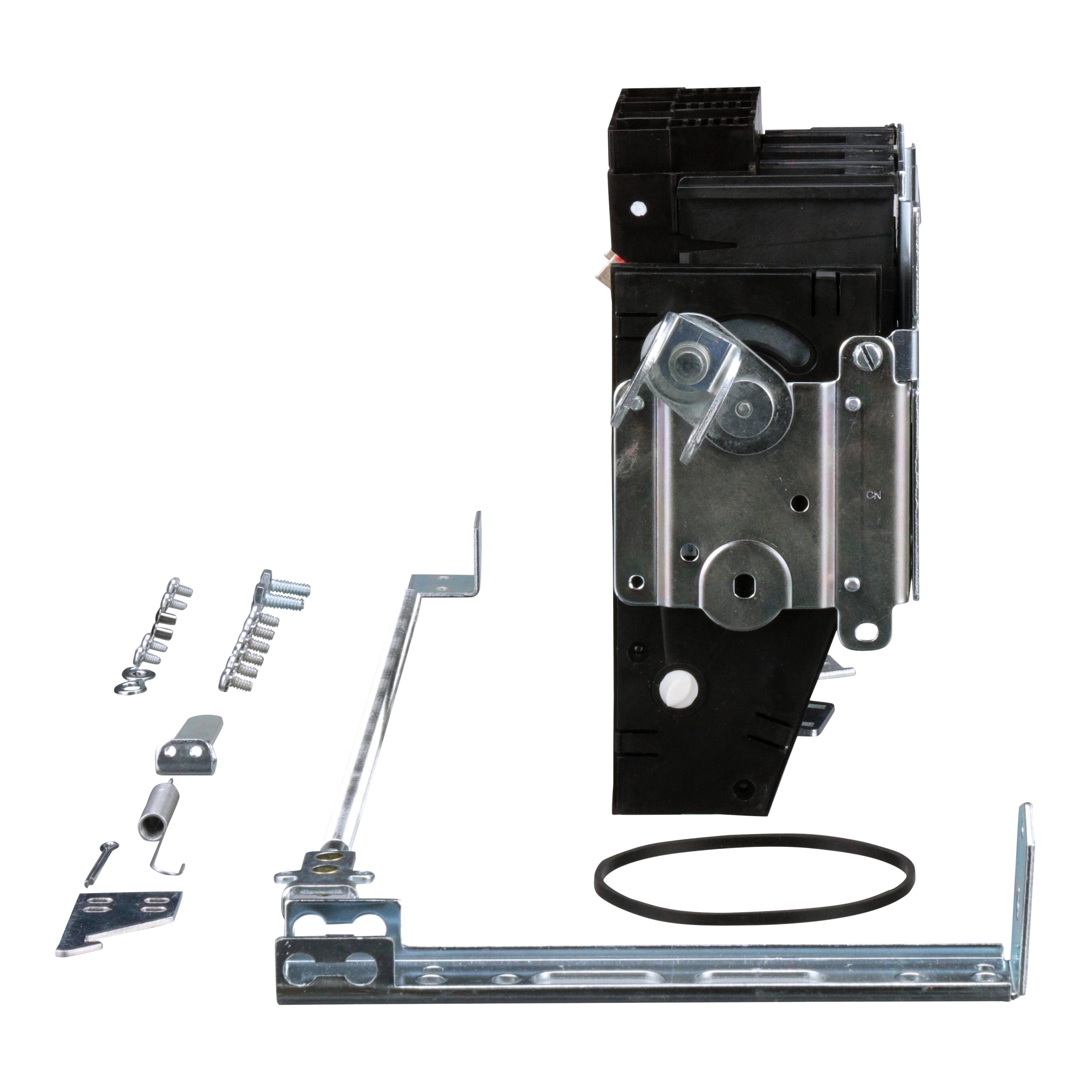

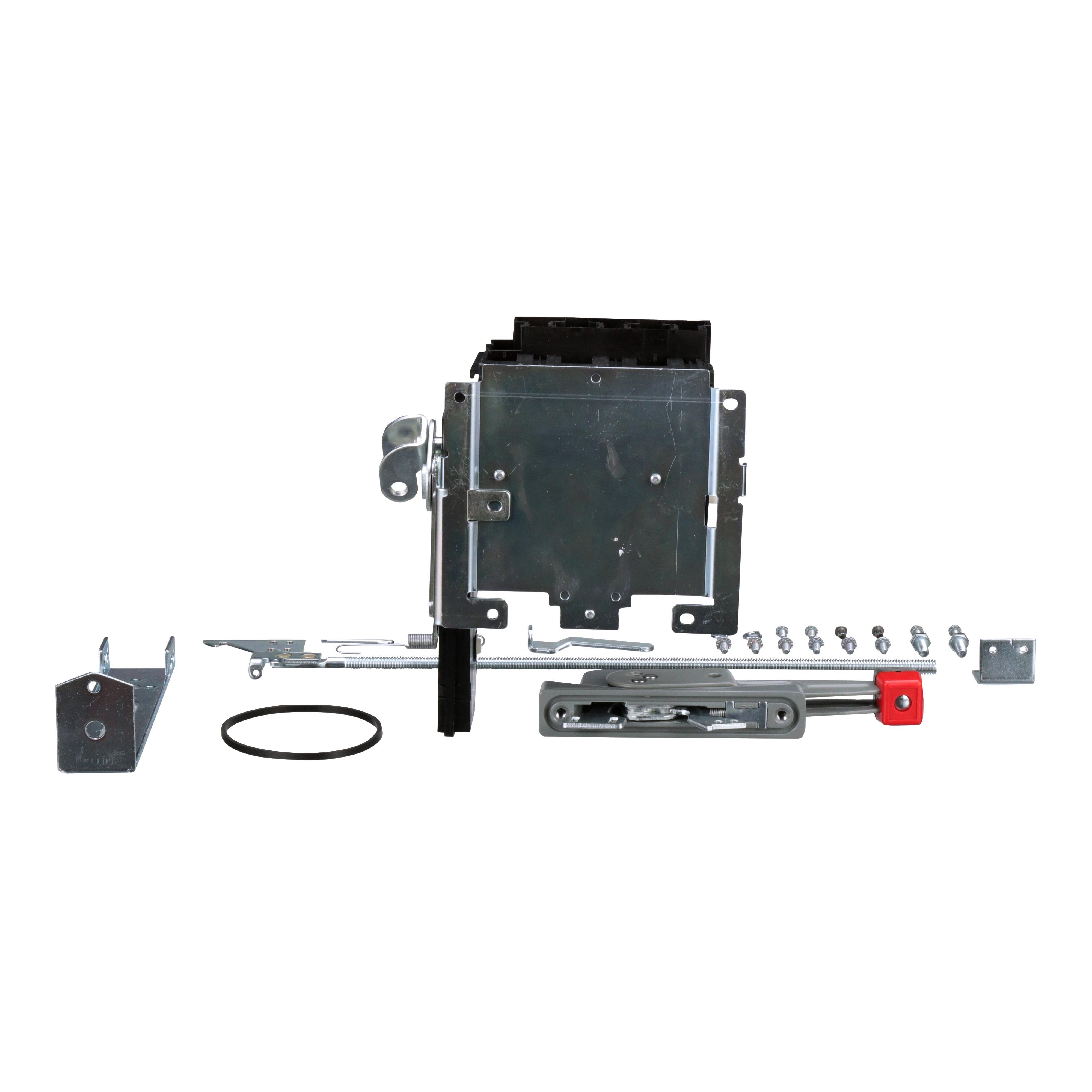

Description: Square D™ Disconnect Switch, Fixed/Variable Depth Non-Fusible Rod Operated, Series: 9422AT, 600 V AC, 30 A, 7.5 hp at 200 V AC, 7.5 hp at 230 V AC, 15 hp at 460 V AC, 20 hp at 575 V AC, 5 hp at 250 VDC, 3 Pole, Handle Actuator, NEMA 1/3/3R/4 Enclosure, Flange Mounting, Lug Terminal, Sheet Steel

Manufacturer PN: 9422ATCN301

UPC:  78590187214

Kendall Electric Inc PN: 3958775

Invoice Description:

9422ATCN301 SQD SWITCH A1


SPEC SHEET

▸ See All in Flange-Mount Disconnects


How Can We Make This Page Better?

Square D™ 9422ATCN301 Fixed/Variable Depth Non-Fusible Rod Operated Disconnect Switch, 600 V AC, 30 A, 7.5 hp at 200 V AC, 7.5 hp at 230 V AC, 15 hp at 460 V AC, 20 hp at 575 V AC, 5 hp at 250 VDC, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ Disconnect Switch, Fixed/Variable Depth Non-Fusible Rod Operated, Series: 9422AT, 600 V AC, 30 A, 7.5 hp at 200 V AC, 7.5 hp at 230 V AC, 15 hp at 460 V AC, 20 hp at 575 V AC, 5 hp at 250 VDC, 3 Pole, Handle Actuator, NEMA 1/3/3R/4 Enclosure, Flange Mounting, Lug Terminal, Sheet Steel

Specifications

 Actuator Type Handle
 Amperage Rating 30 A
 Brand Name Square D
 Enclosure NEMA 1/3/3R/4
 Horsepower 7.5 hp at 200 VAC, 7.5 hp at 230 VAC, 15 hp at 460 VAC, 20 hp at 575 VAC, 5 hp at 250 VDC
 Includes 6 in Handle
 Manufacturer Part Number 9422ATCN301
 Material Sheet Steel
 Mounting Type Flange
 Number of Poles 3
 Series 9422AT
 Standards/Approvals RoHS Compliant|CSA Class File No. LR44199/4652/04|UL File No. E52639 CCN Guide No. WHTY2|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Terminal Type Lug
 Type Fixed/Variable Depth Non-Fusible Rod Operated
 Voltage Rating 600 V AC

Features

▪ Used with all disconnect switch and circuit breaker installations
▪ Two mounting methods offered for flexibility
