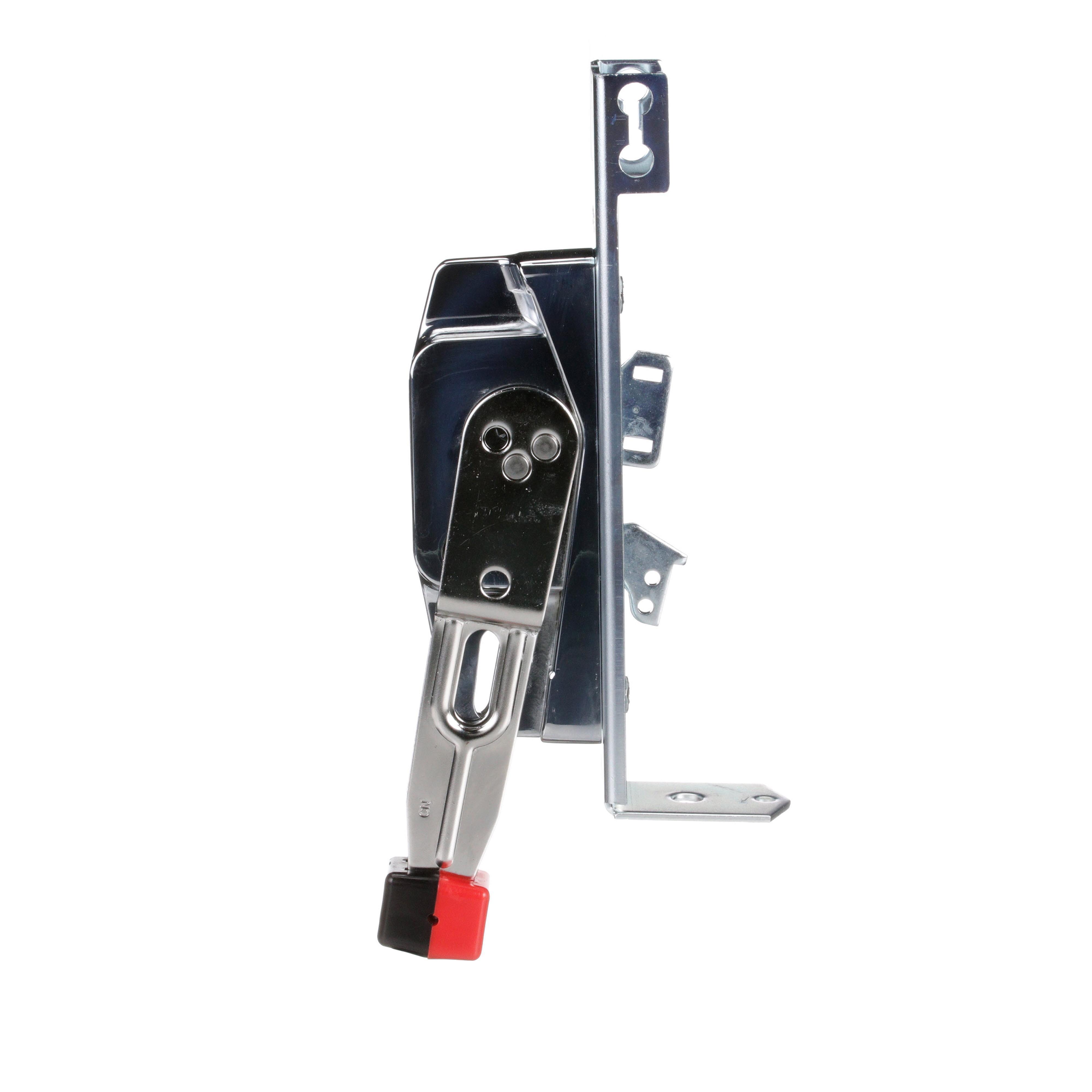

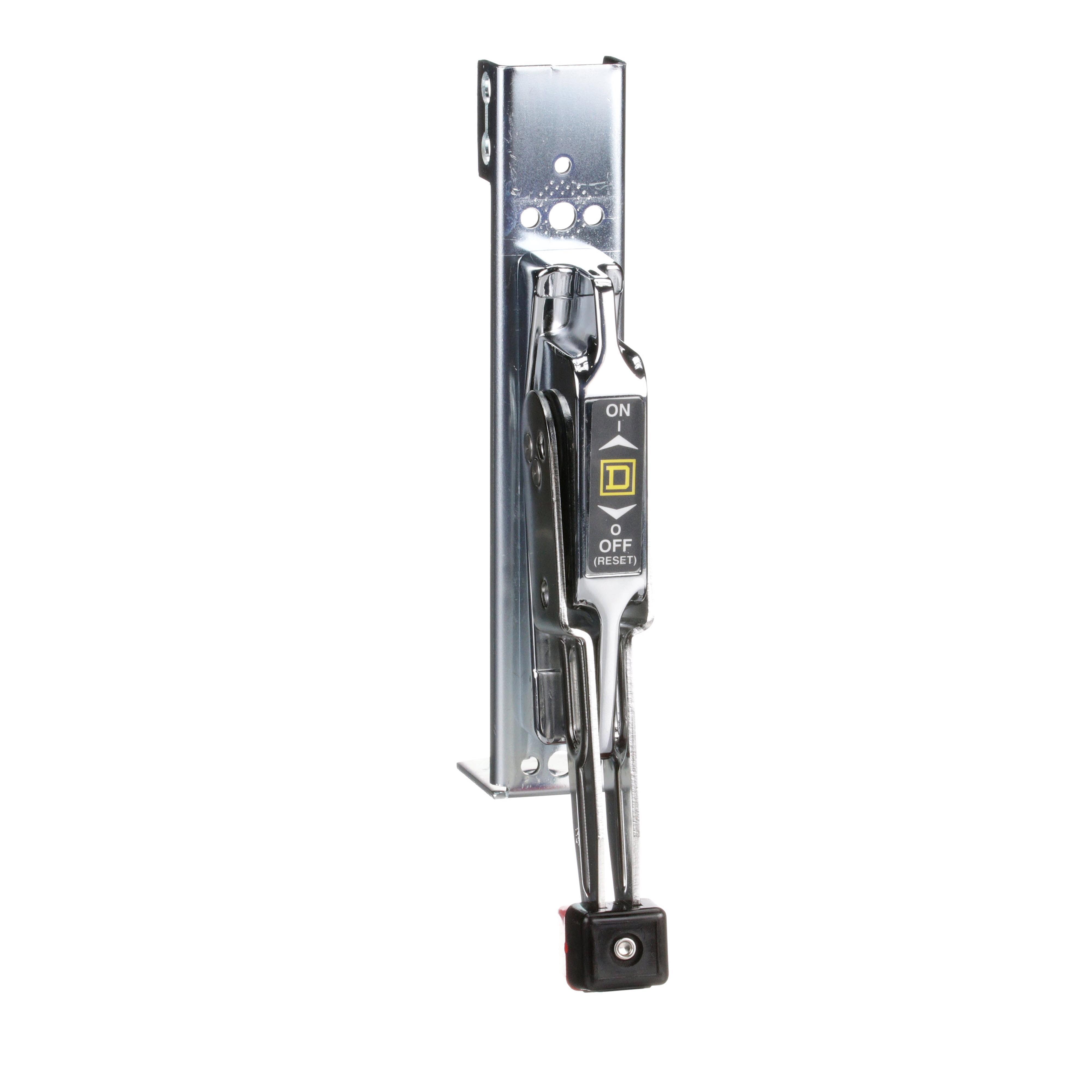

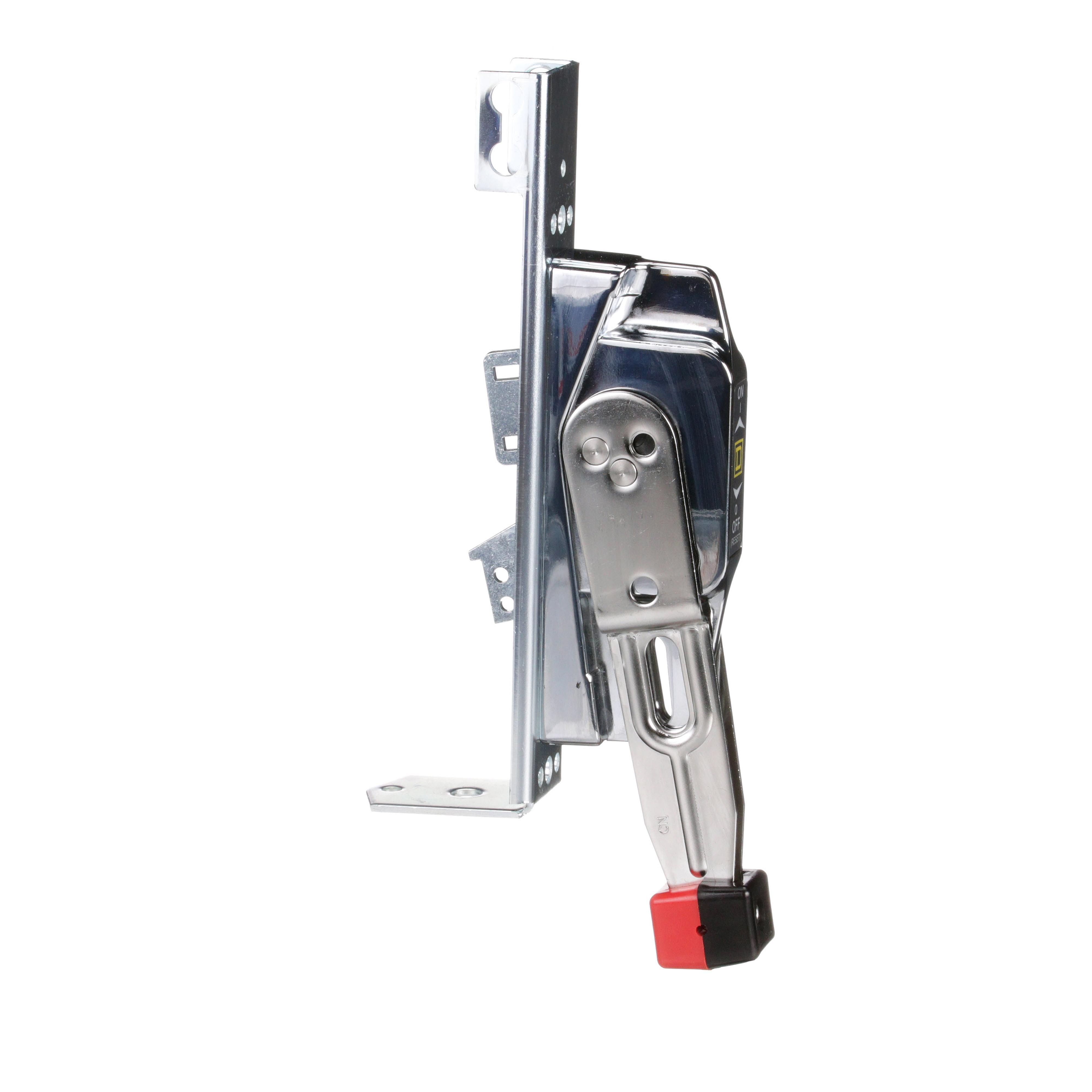

Description: Square D™ Operating Mechanism Handle, Variable Depth, NEMA 4/4X NEMA Rating, Flange Handle Mounting Position, For Use With: 30 to 200 A Frame Disconnect Switch, All Circuit Breaker Mechanism, 9422 Disconnect Switch and 9421 Operating Mechanism, Stainless Steel, 6 in L Dimensions

Manufacturer PN: 9422A2

UPC:  78590173980

Kendall Electric Inc PN: 3958772

Invoice Description:

9422A2 SQD OPERATING MECHANISM


SPEC SHEET

▸ See All in Disconnect Switch Operating Mechanisms


How Can We Make This Page Better?

Square D™ 9422A2 Variable Depth Operating Mechanism Handle, NEMA 4/4X NEMA Rating, Flange Handle Mounting, For Use With 30 to 200 A Frame Disconnect Switch, All Circuit Breaker Mechanism, 9422 Disconnect Switch and 9421 Operating Mechanism

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 4/4X. This handle is for use with 30-200A 9422 switches and all circuit breaker mechanisms. This product complies with UL standards.
Square D™ Operating Mechanism Handle, Variable Depth, NEMA 4/4X NEMA Rating, Flange Handle Mounting Position, For Use With: 30 to 200 A Frame Disconnect Switch, All Circuit Breaker Mechanism, 9422 Disconnect Switch and 9421 Operating Mechanism, Stainless Steel, 6 in L Dimensions

Specifications

 Brand Name Square D
 Dimensions 6 in L
 Handle Mounting Position Flange
 Manufacturer Part Number 9422A2
 Material Stainless Steel
 NEMA Rating NEMA 4/4X
 PART NUMBER KEYWORDS 9422A2 ; 8149615 ; 785901739807 ; 78590173980 ; 00785901739807 ; 0785901739807
 Standards/Approvals RoHS Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With 30 to 200 A Frame Disconnect Switch, All Circuit Breaker Mechanism, 9422 Disconnect Switch and 9421 Operating Mechanism
 Type Variable Depth

Features

▪ Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
▪ Two mounting methods offered for flexibility
▪ Disconnect switches were designed for control panel installations
