Schneider Electric
  • 9422A1 SQD OPERATING MECHANISM
  • 9422A1 SQD OPERATING MECHANISM
  • 9422A1 SQD OPERATING MECHANISM
  • 9422A1 SQD OPERATING MECHANISM
  • 9422A1 SQD OPERATING MECHANISM
  • 9422A1 SQD OPERATING MECHANISM

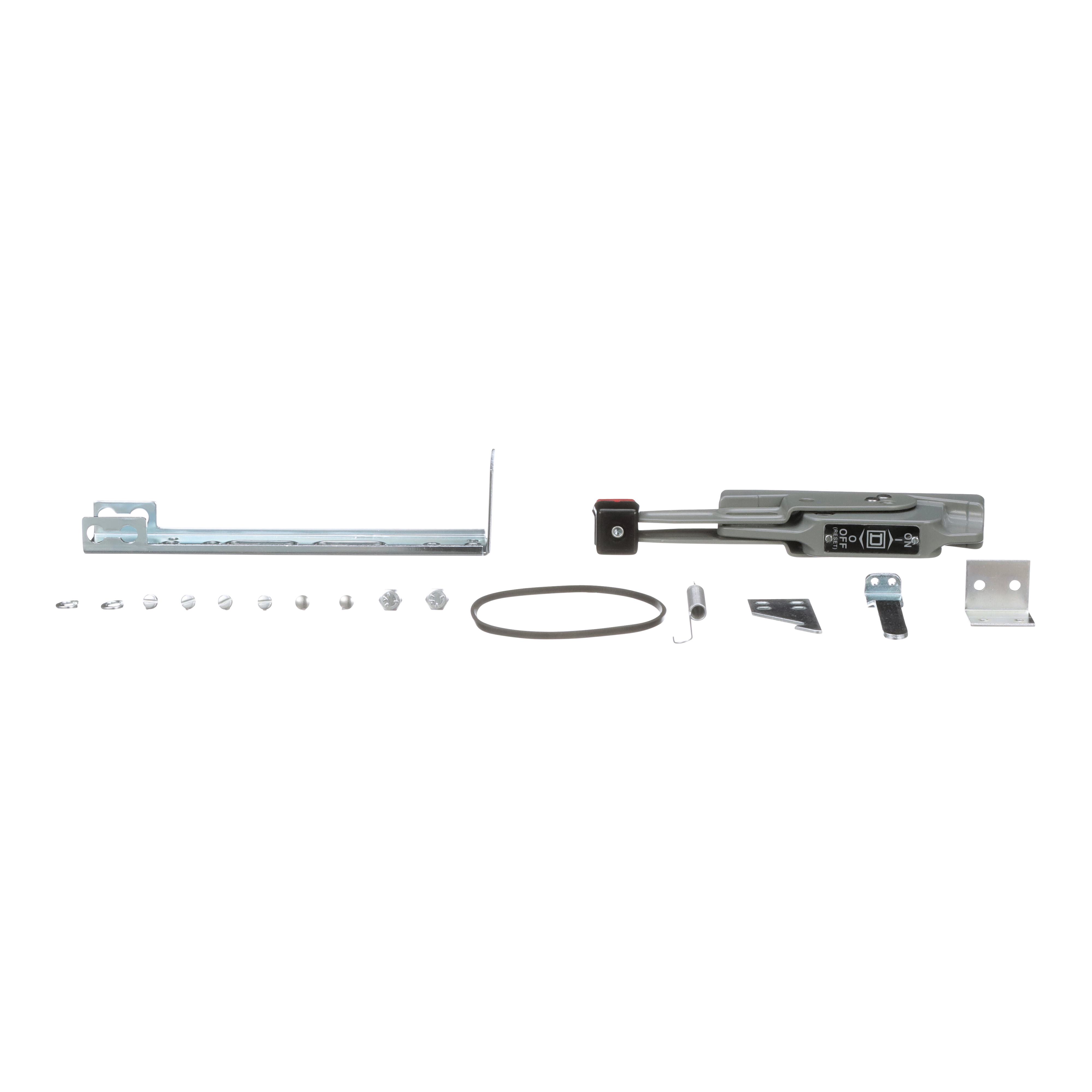

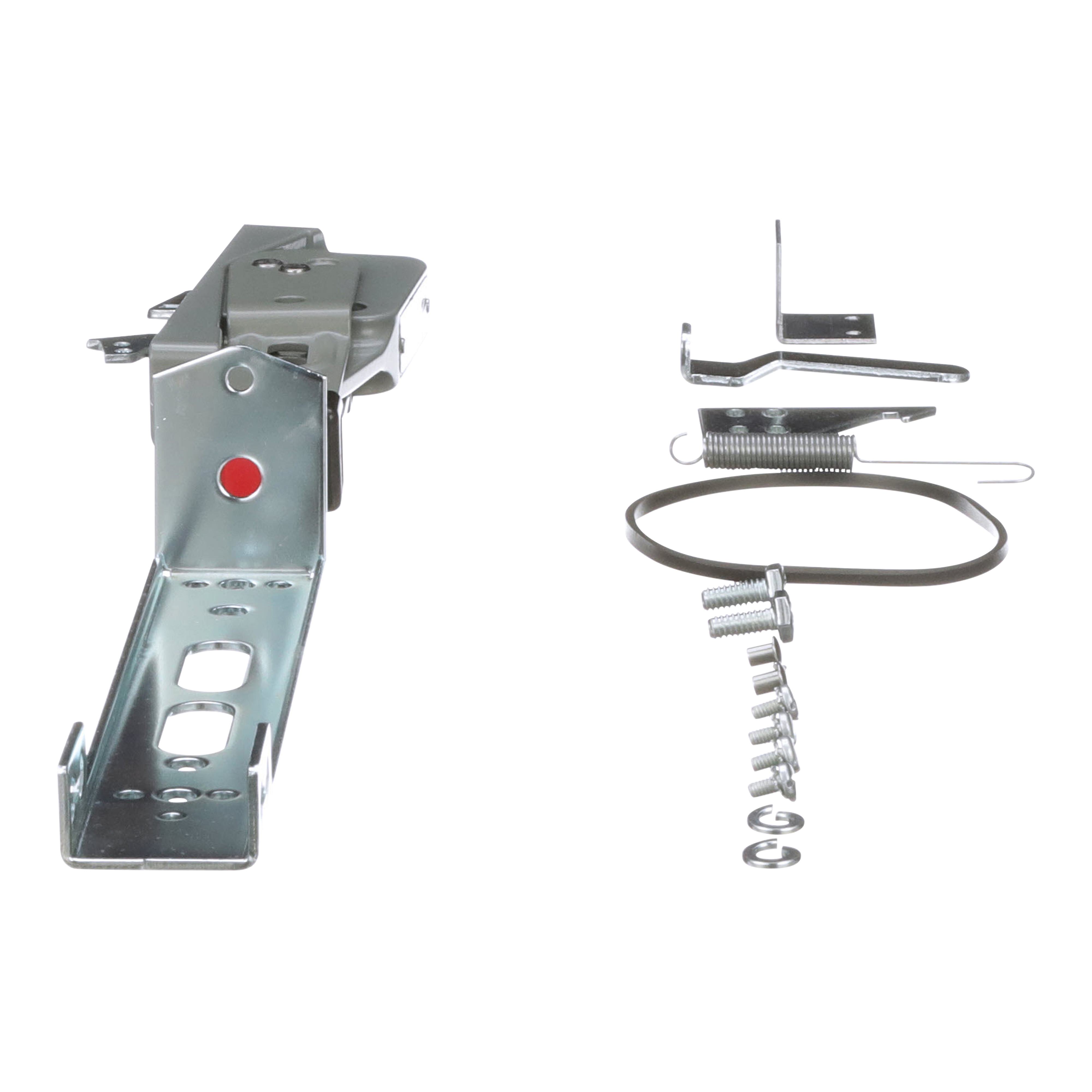

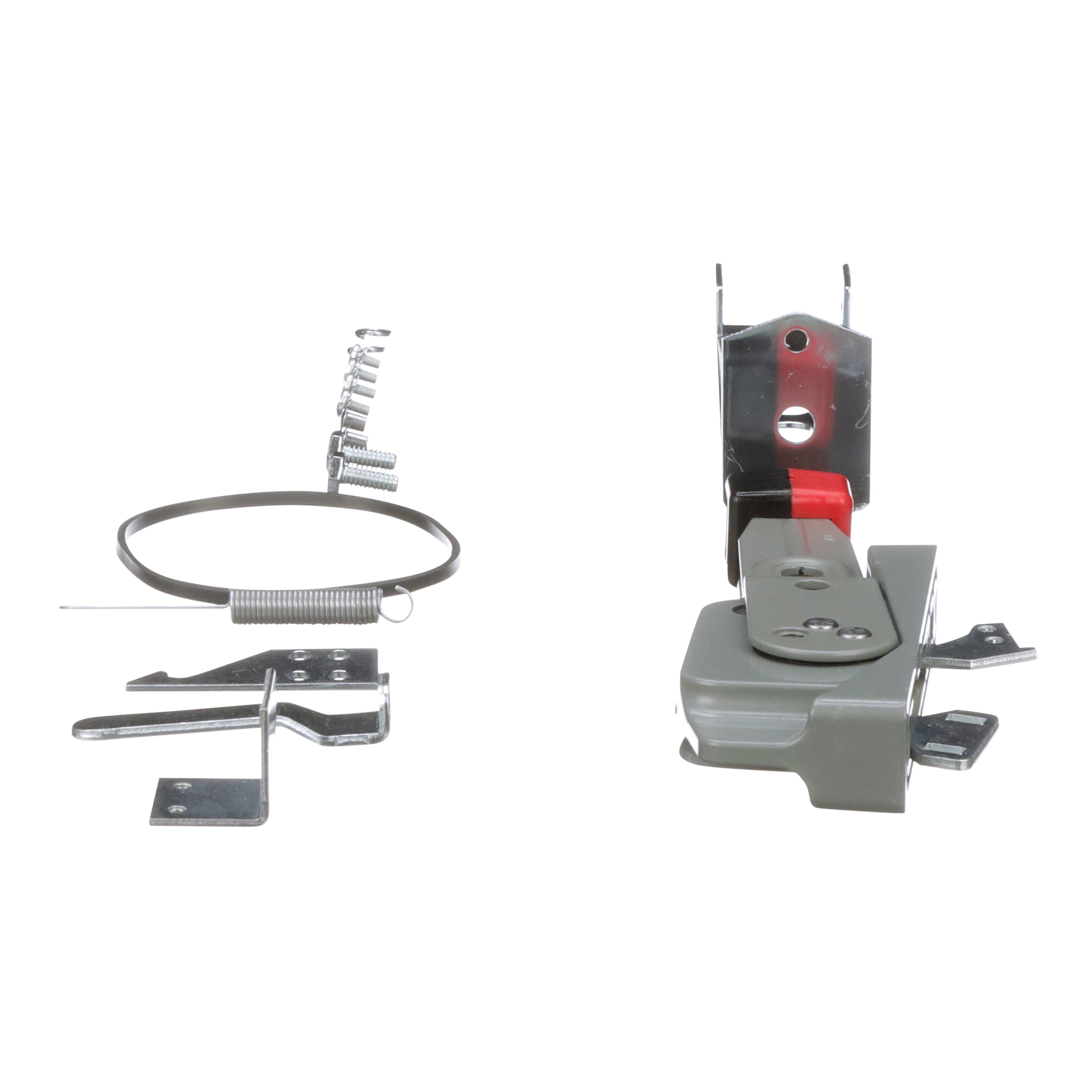

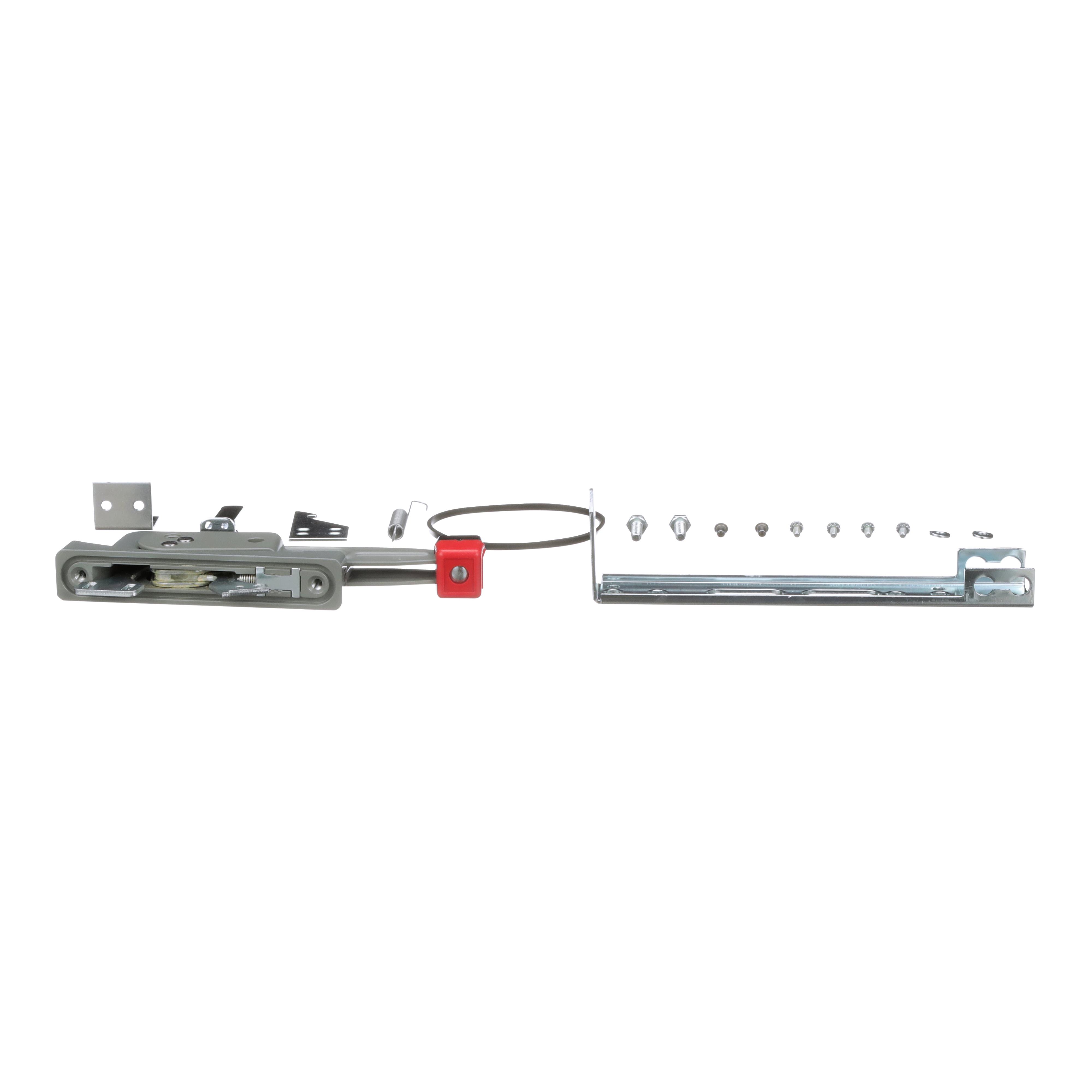

Description: Square D™ Circuit Breaker Operating Mechanism, Variable Depth, Series: 9422A, NEMA 1/3R/12, Flange Handle Mounting Position, For Use With: 30 to 200 A Switches and All CB Mechanism, 152 mm L

Manufacturer PN: 9422A1

UPC:  78590173973

Kendall Electric Inc PN: 3999063

Invoice Description:

9422A1 SQD OPERATING MECHANISM


SPEC SHEET

▸ See All in Disconnect Operating Mechanisms


How Can We Make This Page Better?

Square D™ 9422A1 Variable Depth Circuit Breaker Operating Mechanism, NEMA 1/3R/12 NEMA Rating, Flange Handle Mounting, For Use With 30 to 200 A Switches and All CB Mechanism

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This handle mechanism is a 6 inch handle depth for NEMA 1/3/3R/4/12. This handle is for use with 30-200A 9422 switches and all circuit breaker mechanisms. This product complies with UL standards.
Square D™ Circuit Breaker Operating Mechanism, Variable Depth, Series: 9422A, NEMA 1/3R/12, Flange Handle Mounting Position, For Use With: 30 to 200 A Switches and All CB Mechanism, 152 mm L

Specifications

 Brand Name Square D
 Dimensions 152 mm L
 Handle Mounting Position Flange
 Manufacturer Part Number 9422A1
 NEMA Rating NEMA 1/3R/12
 PART NUMBER KEYWORDS 9422A1 ; 8149599 ; 785901739739 ; 78590173973 ; 00785901739739 ; 0785901739739
 Series 9422A
 Standards/Approvals CSA Certified|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With 30 to 200 A Switches and All CB Mechanism
 Type Variable Depth

Features

▪ Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
▪ Two mounting methods offered for flexibility
▪ Disconnect switches were designed for control panel installations
