Schneider Electric
  • 9421LW4 SQD OPERATING MECHANISM
  • 9421LW4 SQD OPERATING MECHANISM
  • 9421LW4 SQD OPERATING MECHANISM
  • 9421LW4 SQD OPERATING MECHANISM
  • 9421LW4 SQD OPERATING MECHANISM

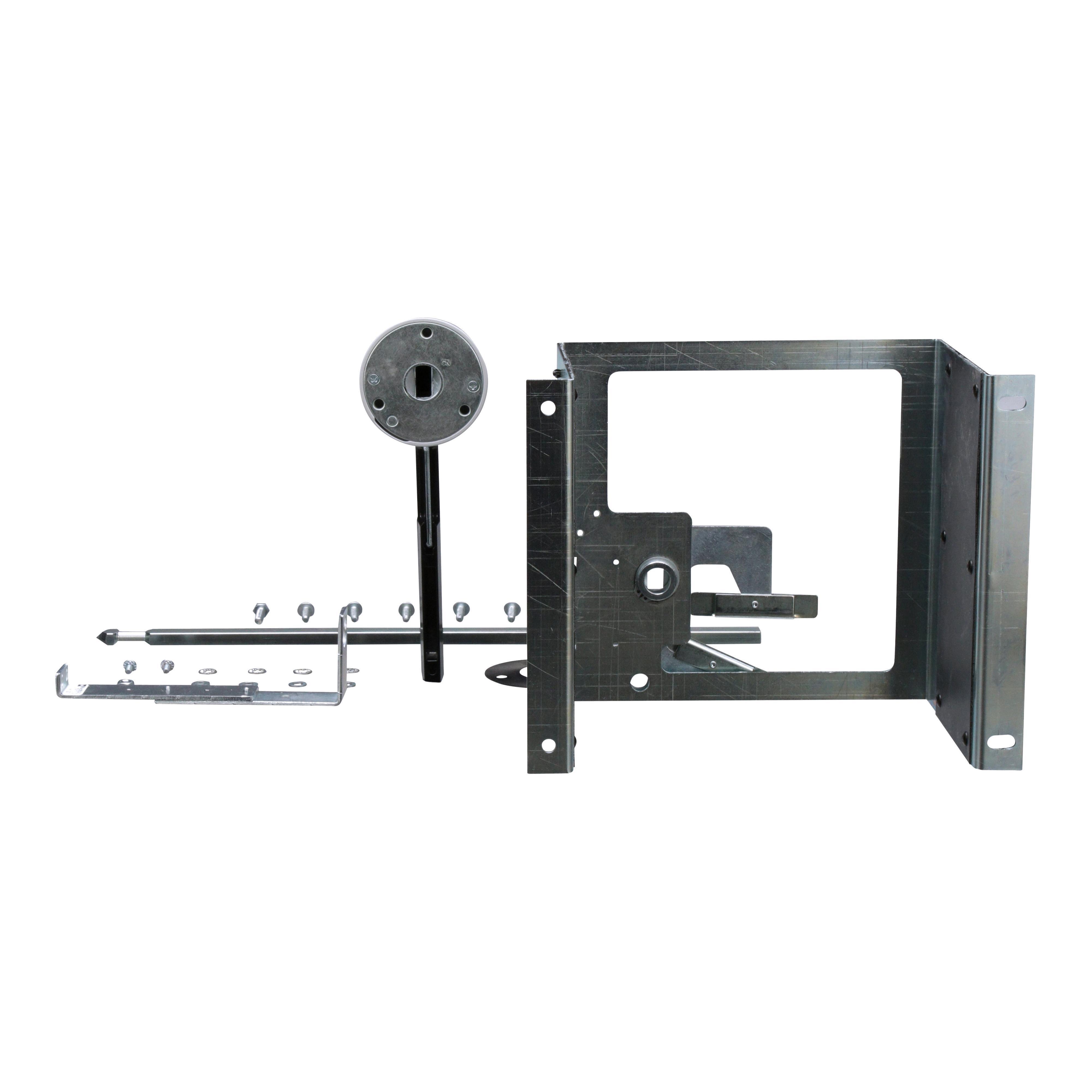

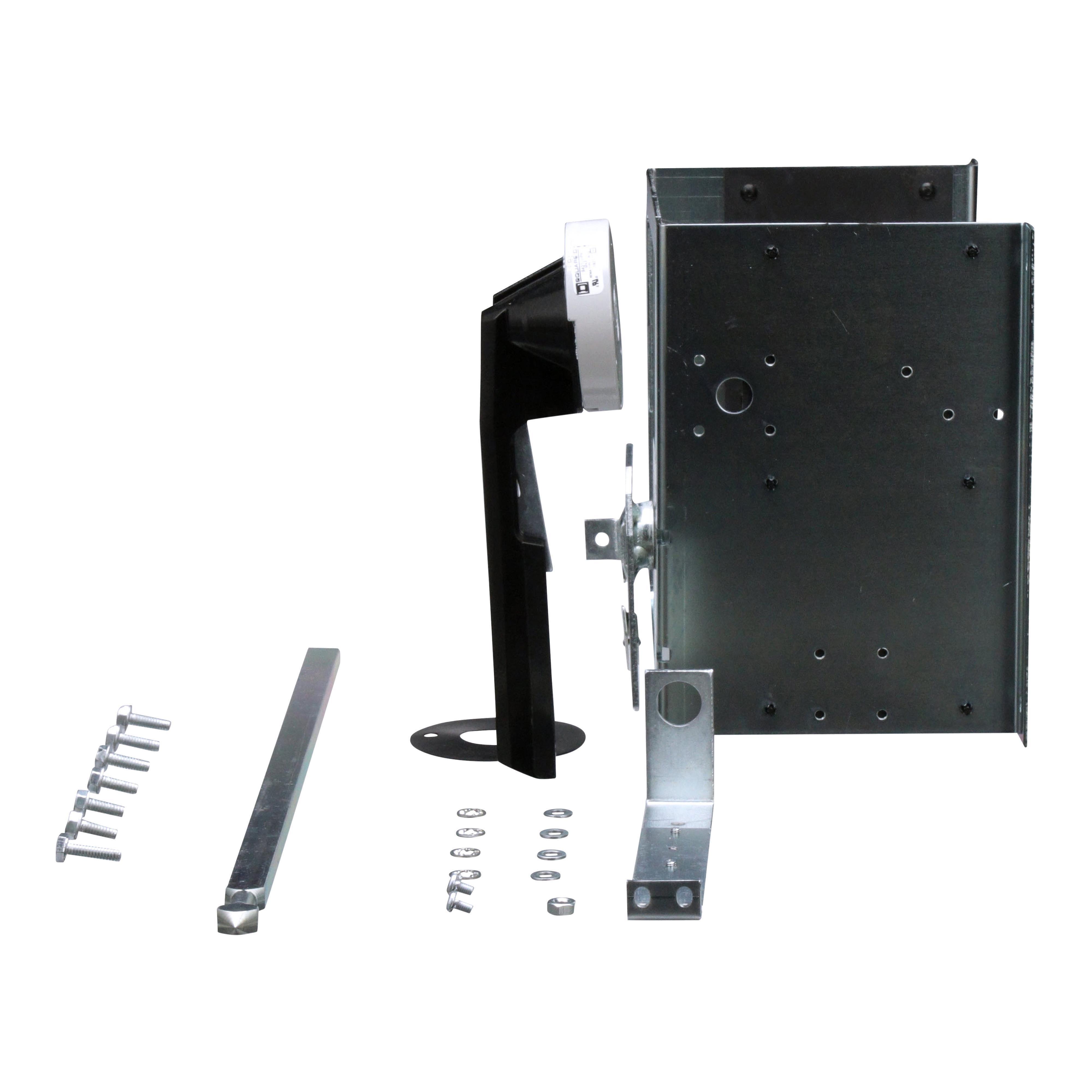

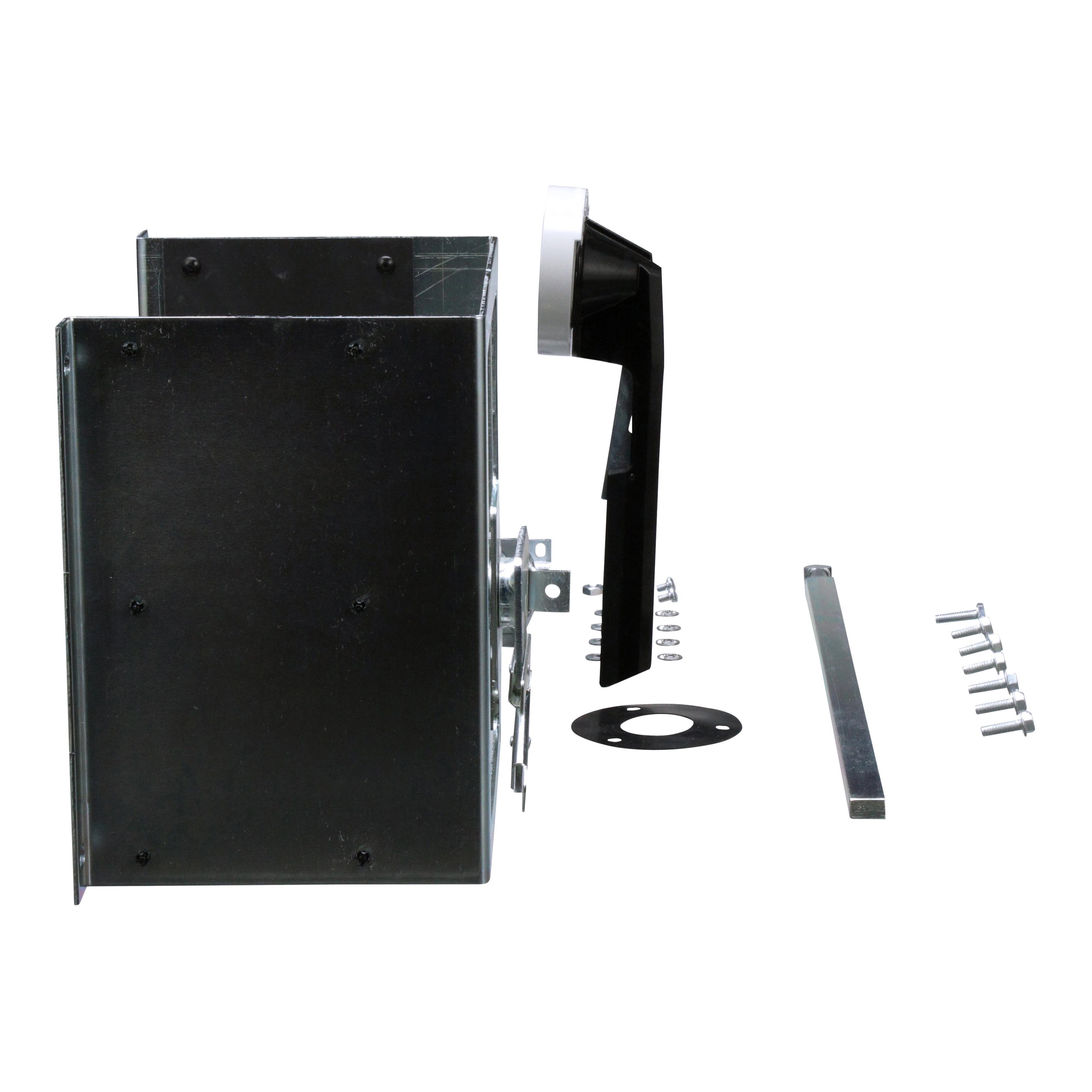

Description: Square D™ Circuit Breaker Operating Mechanism, Long Shaft, Series: 9421L, Rotary Handle Handle/Operation, Direct Mount Handle Mounting Position, For Use With: PowerPact® M or P-Frame 1200 A Circuit Breaker, 8 in L Dimensions

Manufacturer PN: 9421LW4

UPC:  78590180121

Kendall Electric Inc PN: 3962063

Invoice Description:

9421LW4 SQD OPERATING MECHANISM


SPEC SHEET

▸ See All in Disconnect Operating Mechanisms


How Can We Make This Page Better?

Square D™ 9421LW4 Long Shaft Circuit Breaker Operating Mechanism, Rotary Handle Handle/Operation, Direct Mount Handle Mounting, For Use With PowerPact® M or P-Frame 1200 A Circuit Breaker

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. These Type L door mounted operating mechanisms feature heavy duty, all metal construction. Door mounted operating mechanisms are available for PowerPacT M and P circuit breakers. This Type L mechanism has a painted 8 inch handle assembly. Its shaft mounting depth is 7.2in to 22.25in. This product complies with UL standards.
Square D™ Circuit Breaker Operating Mechanism, Long Shaft, Series: 9421L, Rotary Handle Handle/Operation, Direct Mount Handle Mounting Position, For Use With: PowerPact® M or P-Frame 1200 A Circuit Breaker, 8 in L Dimensions

Specifications

 Brand Name Square D
 Dimensions 8 in L
 Handle Mounting Position Direct Mount
 Handle Operation Rotary Handle
 Manufacturer Part Number 9421LW4
 PART NUMBER KEYWORDS 9421LW4 ; 10004044 ; 785901801214 ; 78590180121 ; 00785901801214 ; 0785901801214
 Series 9421L
 Standards/Approvals RoHS Compliant|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With PowerPact® M or P-Frame 1200 A Circuit Breaker
 Type Long Shaft

Features

▪ Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
▪ Two mounting methods offered for flexibility
▪ Disconnect switches were designed for control panel installations
