Description: Square D™ Circuit Breaker Operating Mechanism, Long Shaft, Series: 9421L, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, For Use With: LAL/LHL, Q4L Series 400 A Circuit Breaker

Manufacturer PN: 9421LR4

UPC:  78590111112

Kendall Electric Inc PN: 3958771

Invoice Description:

9421LR4 SQD OPERATING MECHANISM


SPEC SHEET

How Can We Make This Page Better?

Square D™ 9421LR4 Long Shaft Circuit Breaker Operating Mechanism, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, For Use With LAL/LHL, Q4L Series 400 A Circuit Breaker

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

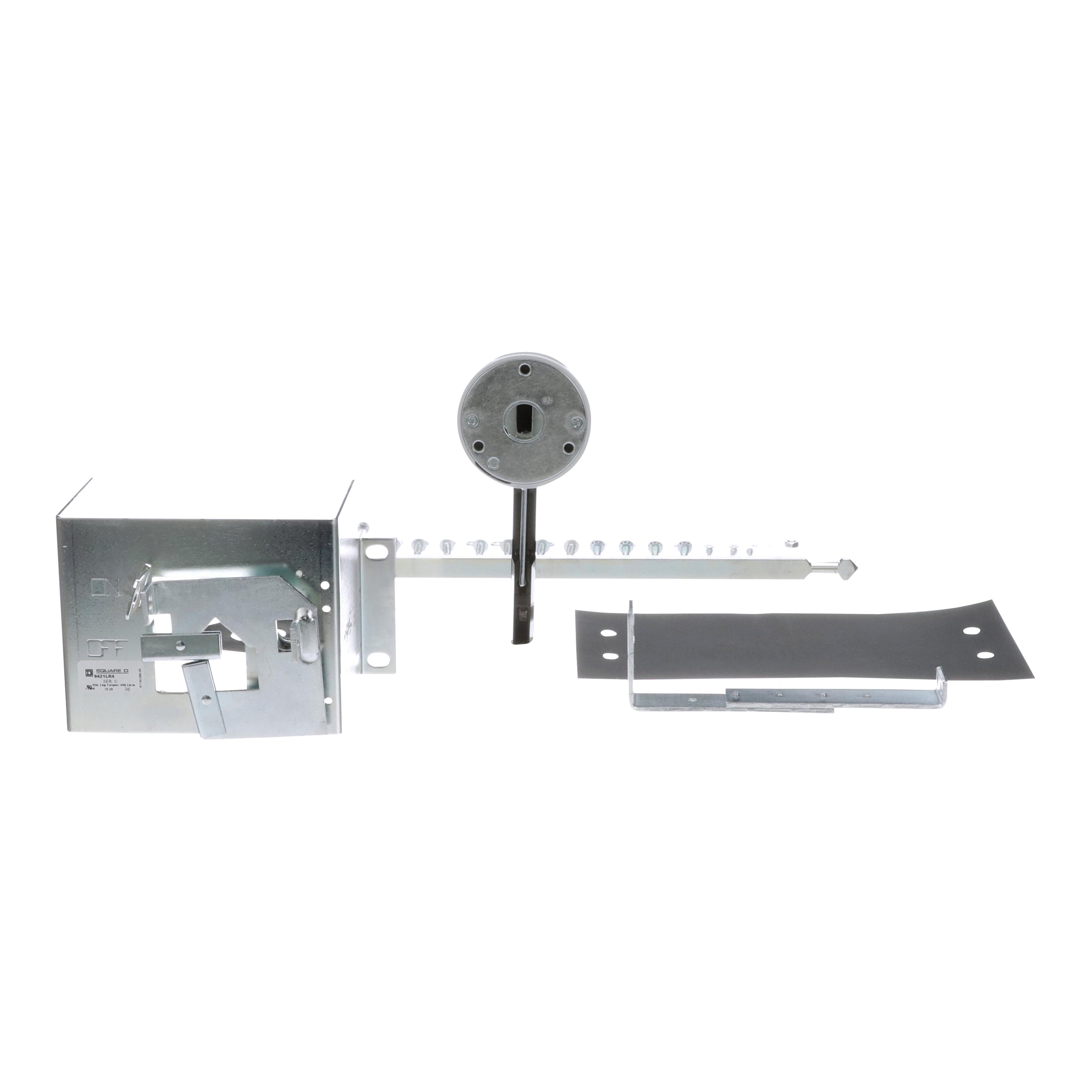

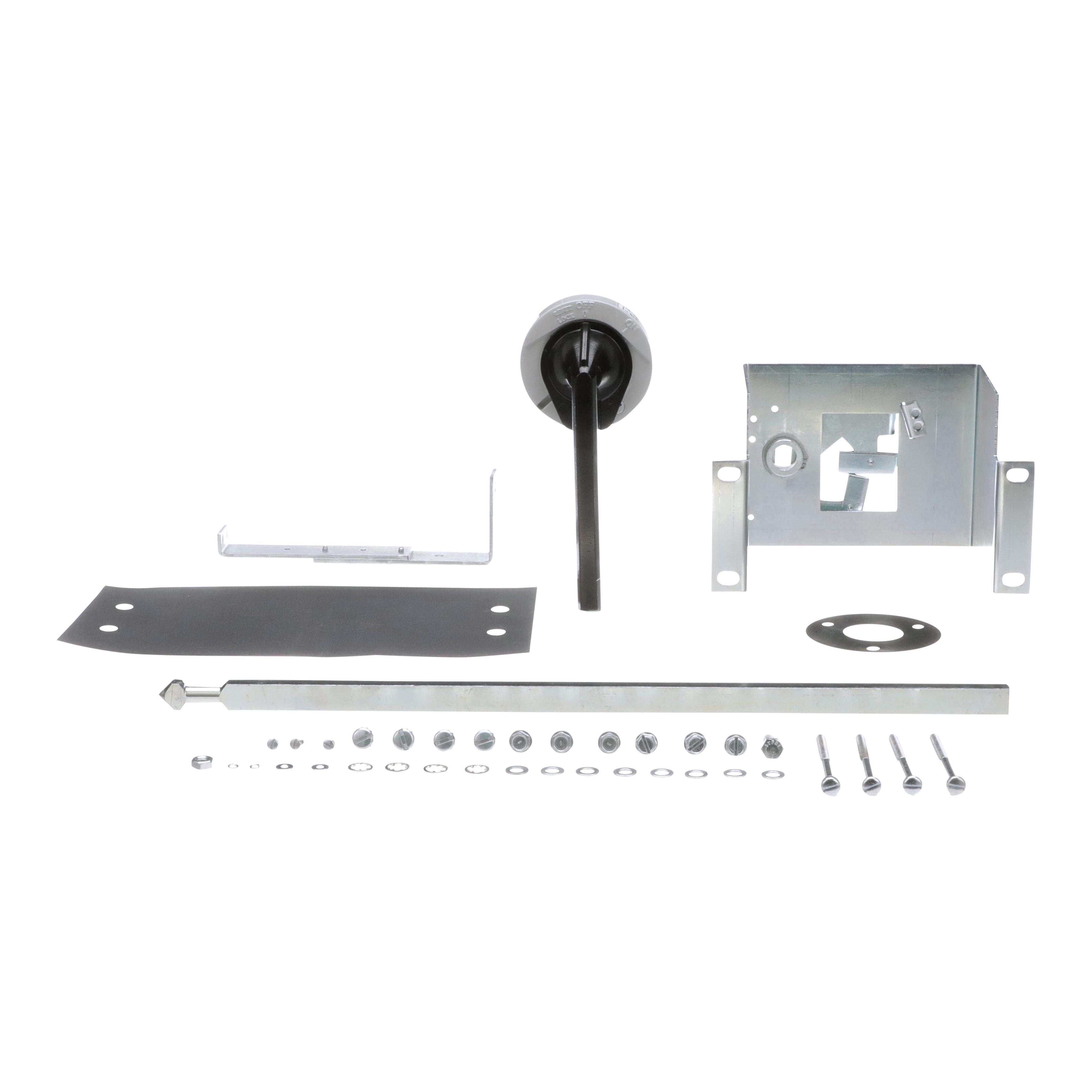

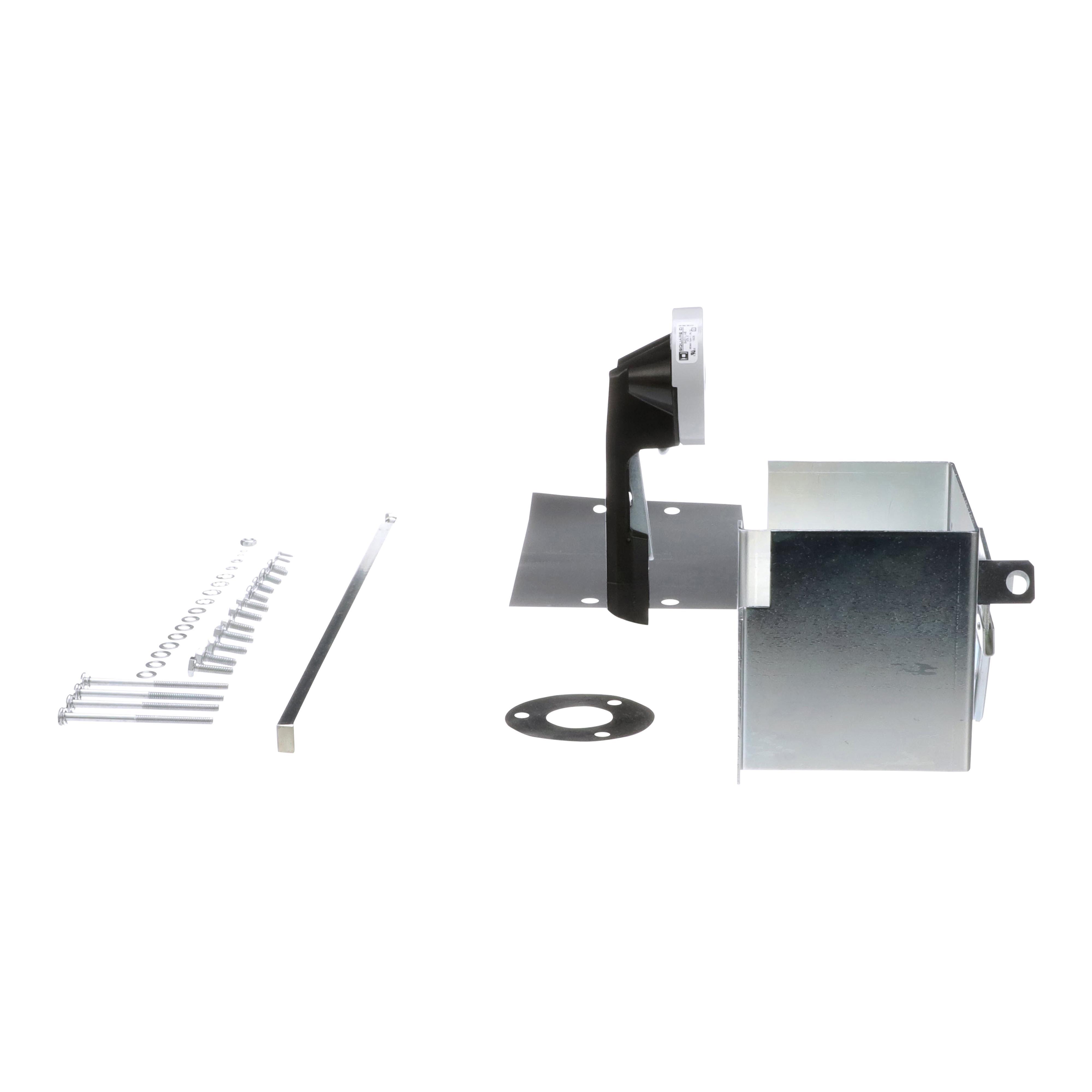

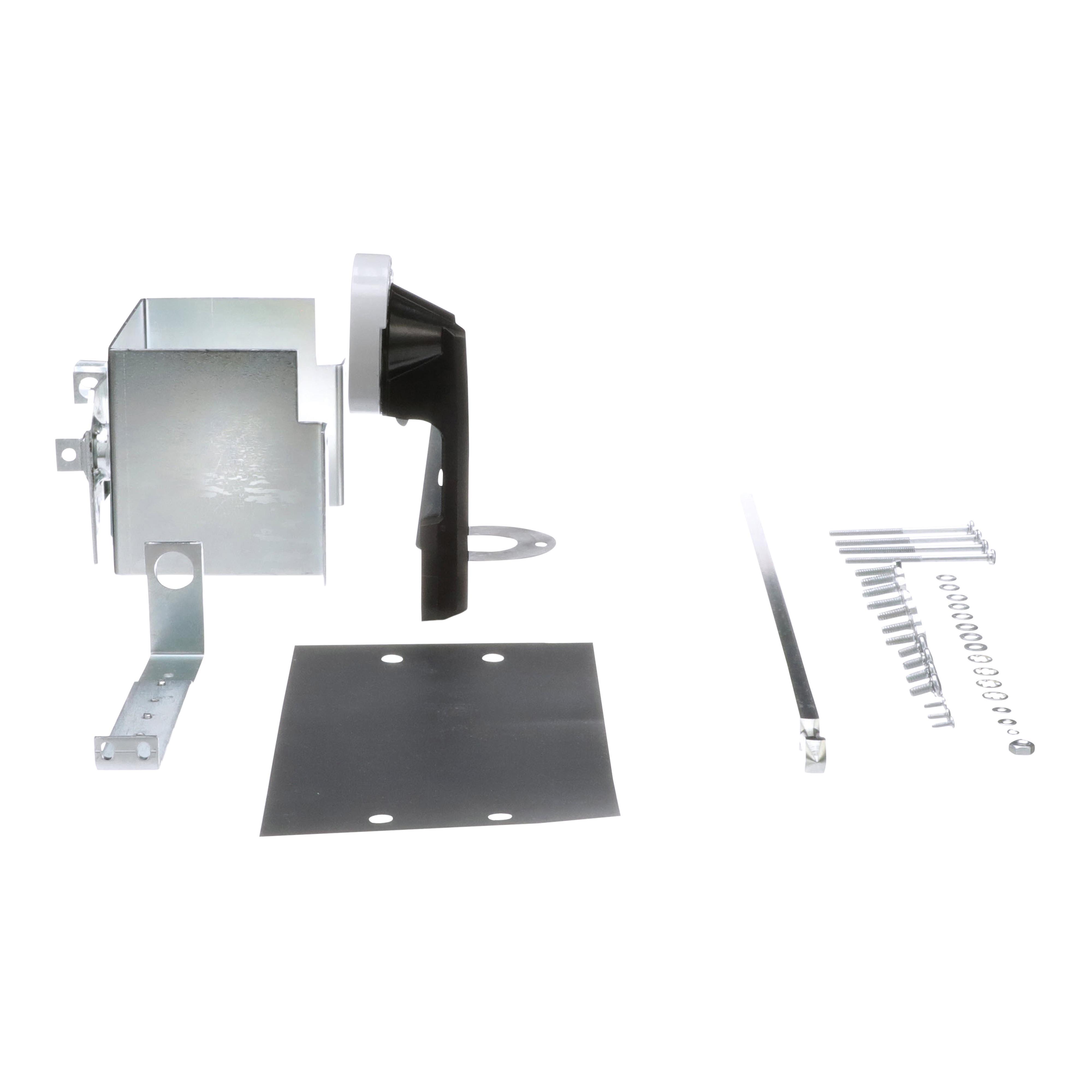

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with LAL, LHL and Q4L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 400A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 6.31 to 21.50 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.
Square D™ Circuit Breaker Operating Mechanism, Long Shaft, Series: 9421L, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, For Use With: LAL/LHL, Q4L Series 400 A Circuit Breaker

Specifications

 Brand Name Square D
 Handle Operation Rotary Handle
 Manufacturer Part Number 9421LR4
 NEMA Rating NEMA 1/3R/12
 PART NUMBER KEYWORDS 9421LR4 ; 8028167 ; 785901111122 ; 78590111112 ; 00785901111122 ; 0785901111122
 Series 9421L
 Standards/Approvals RoHS Compliant|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With LAL/LHL, Q4L Series 400 A Circuit Breaker
 Type Long Shaft

Features

▪ Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
▪ Two mounting methods offered for flexibility
▪ Disconnect switches were designed for control panel installations
