Schneider Electric
  • 9421LJ7 SQD ROTARY OPERATING MECH
  • 9421LJ7 SQD ROTARY OPERATING MECH
  • 9421LJ7 SQD ROTARY OPERATING MECH
  • 9421LJ7 SQD ROTARY OPERATING MECH
  • 9421LJ7 SQD ROTARY OPERATING MECH
  • 9421LJ7 SQD ROTARY OPERATING MECH

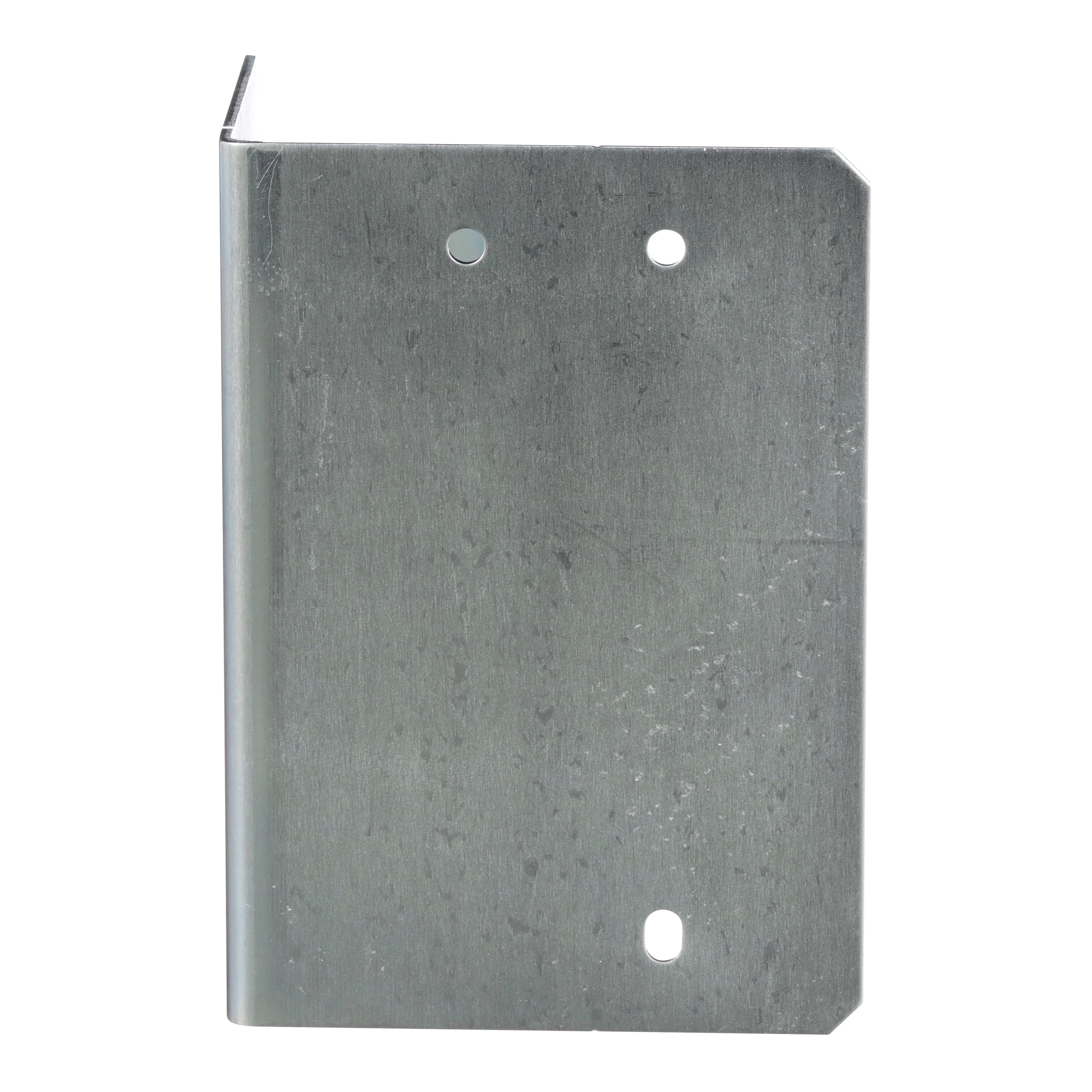

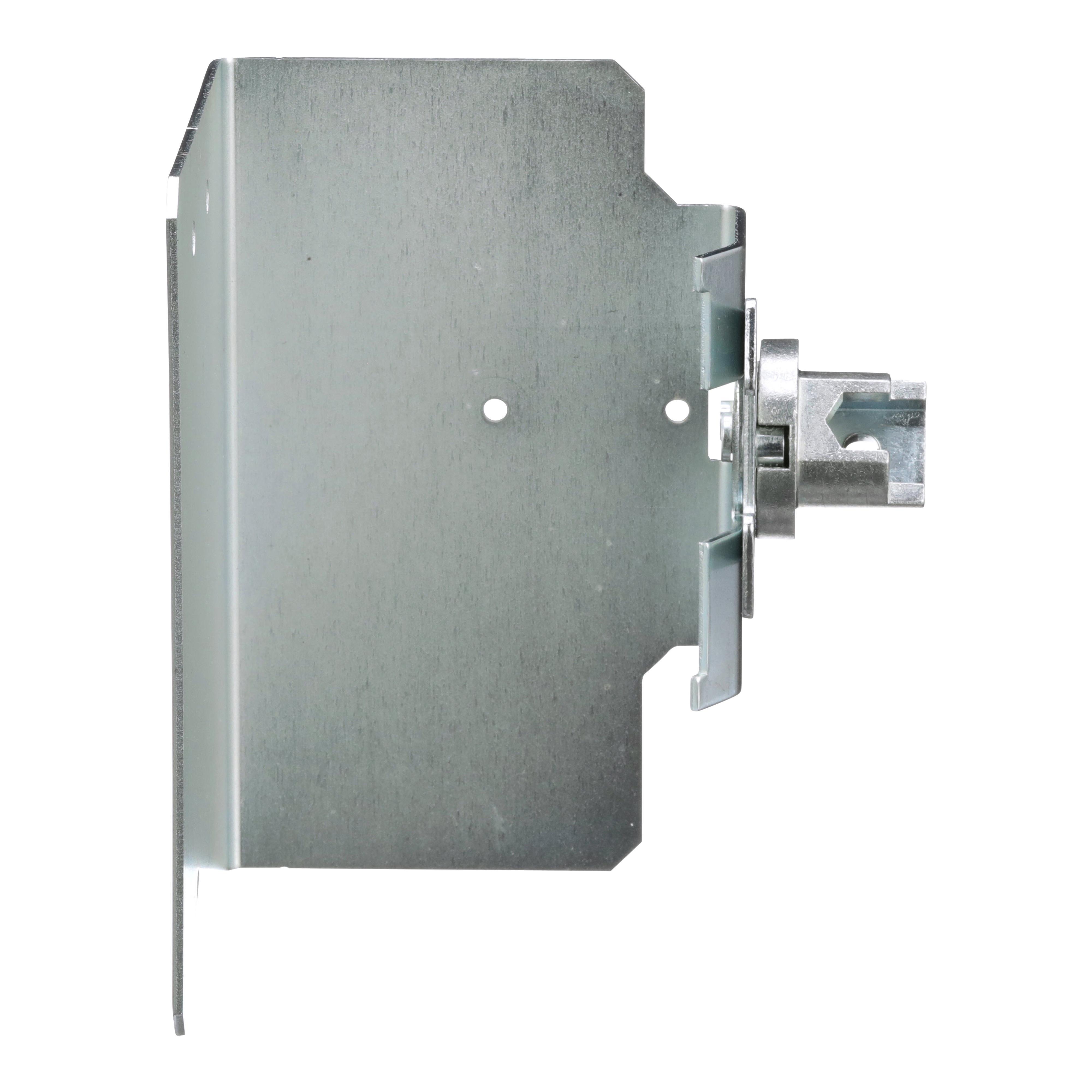

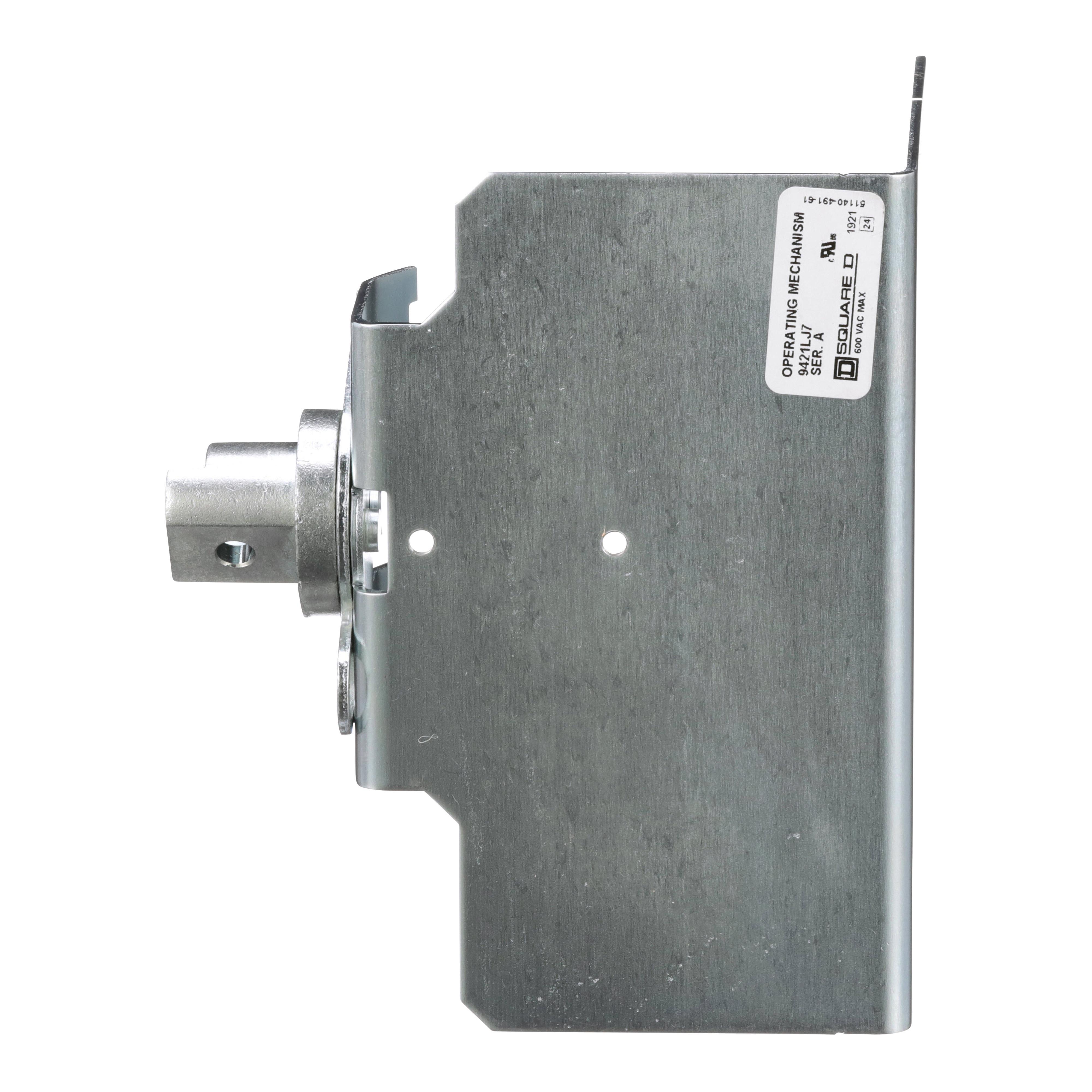

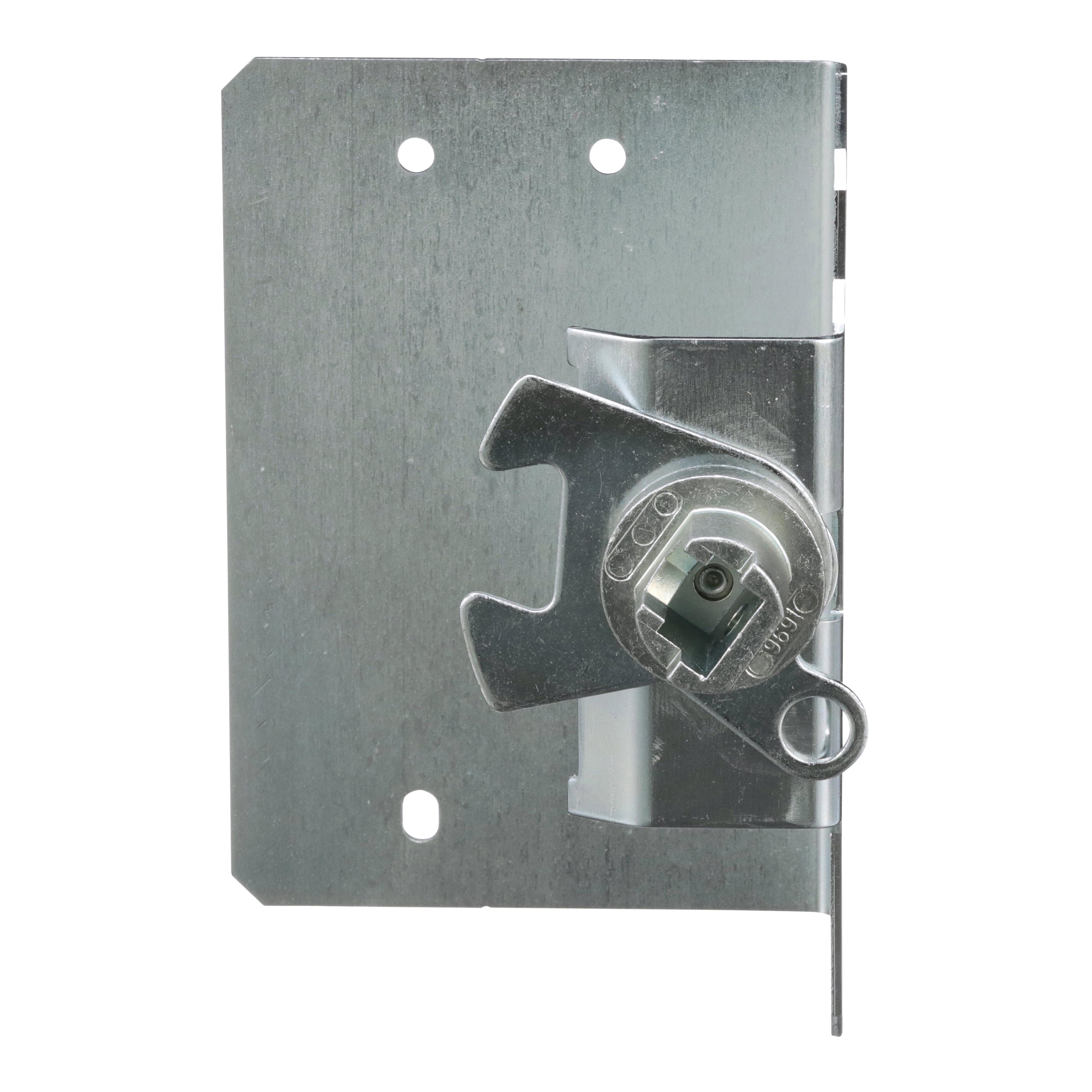

Description: Square D™ Circuit Breaker Operating Mechanism, Series: 9421L, Rotary Handle Handle/Operation, Direct Mount Handle Mounting Position, For Use With: MG-NSF and PowerPact® H or J-Frame 250 A Circuit Breaker

Manufacturer PN: 9421LJ7

UPC:  78590153802

Kendall Electric Inc PN: 3961848

Invoice Description:

9421LJ7 SQD ROTARY OPERATING MECH


SPEC SHEET

▸ See All in Disconnect Operating Mechanisms


How Can We Make This Page Better?

Square D™ 9421LJ7 Circuit Breaker Operating Mechanism, Rotary Handle Handle/Operation, Direct Mount Handle Mounting, For Use With MG-NSF and PowerPact® H or J-Frame 250 A Circuit Breaker

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPacT H and PowerPacT J and Compact NSF circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker, operating handle and operating shaft must be ordered separately. Mechanism is UL Component Recognized and CSA certified.
Square D™ Circuit Breaker Operating Mechanism, Series: 9421L, Rotary Handle Handle/Operation, Direct Mount Handle Mounting Position, For Use With: MG-NSF and PowerPact® H or J-Frame 250 A Circuit Breaker

Specifications

 Brand Name Square D
 Handle Mounting Position Direct Mount
 Handle Operation Rotary Handle
 Includes Lockout
 Manufacturer Part Number 9421LJ7
 PART NUMBER KEYWORDS 9421LJ7 ; 9583260 ; 785901538028 ; 78590153802 ; 00785901538028 ; 0785901538028
 Series 9421L
 Standards/Approvals RoHS Compliant|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With MG-NSF and PowerPact® H or J-Frame 250 A Circuit Breaker

Features

▪ Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
▪ Two mounting methods offered for flexibility
▪ Disconnect switches were designed for control panel installations
