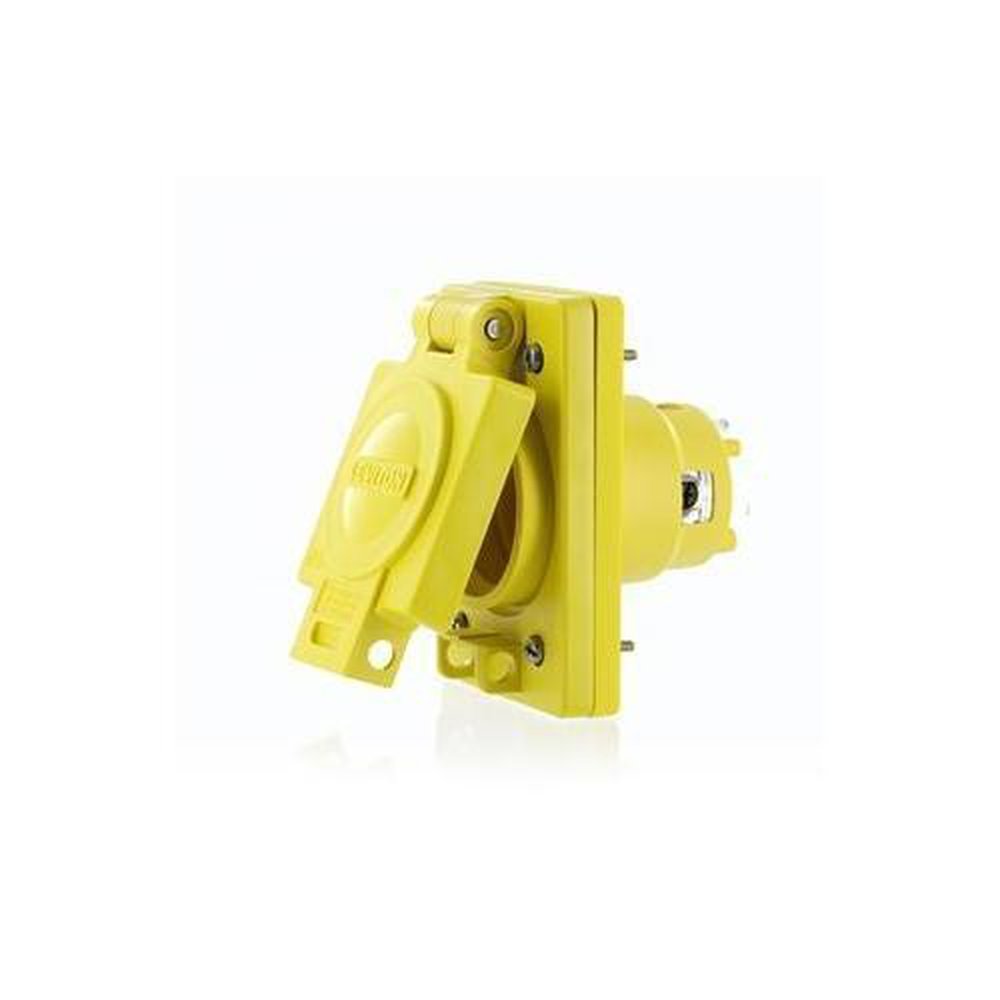

90W48-S LEVITON 6-20R WETGUIARD OUTLET

Mouse over image to zoom, click to enlarge

Description: Leviton® Wetguard® Straight Blade Single Outlet, Grounding, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Yellow, 4.63 in H x 3.13 in W x 2.9 in D Dimensions

Manufacturer PN: 90W48-S

UPC:  07847751950

Kendall Electric Inc PN: 3793815

Invoice Description:

90W48-S LEVITON 6-20R WETGUIARD OUTLET


SPEC SHEET

How Can We Make This Page Better?

Leviton® Wetguard® 90W48-S Grounding Straight Blade Single Outlet, 250 V AC, 20 A, 2 Poles, 3 Wires, Yellow

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton® Wetguard® Straight Blade Single Outlet, Grounding, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Yellow, 4.63 in H x 3.13 in W x 2.9 in D Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Leviton®
 Color Yellow
 Dimensions 4.63 in H x 3.13 in W x 2.9 in D
 Enclosure NEMA 4/4X/12/IP66
 Grade Industrial
 Manufacturer Part Number 90W48-S
 Material Nylon
 NEMA Rating NEMA 6-20
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 90W48-S ; 90W48S ; 11294211 ; 078477519509 ; 78477519509 ; 07847751950 ; 00078477519509
 Standards/Approvals ANSI C73|NOM 057|NEMA WD6|CSA C22.2 No. 42|UL 498
 Temperature Rating -40 to 60 deg C
 Terminal Type Screw
 Type Grounding
 Video Links
 Voltage Rating 250 V AC

Features

▪ Corrosion resistant

Resources

 Catalog
 Catalog Page
 MSDS URL
 Product Data Sheet
