Schneider Electric
  • 9070TF250D1 SQD TRANSFORMER CONTROL
  • 9070TF250D1 SQD TRANSFORMER CONTROL
  • 9070TF250D1 SQD TRANSFORMER CONTROL
  • 9070TF250D1 SQD TRANSFORMER CONTROL
  • 9070TF250D1 SQD TRANSFORMER CONTROL

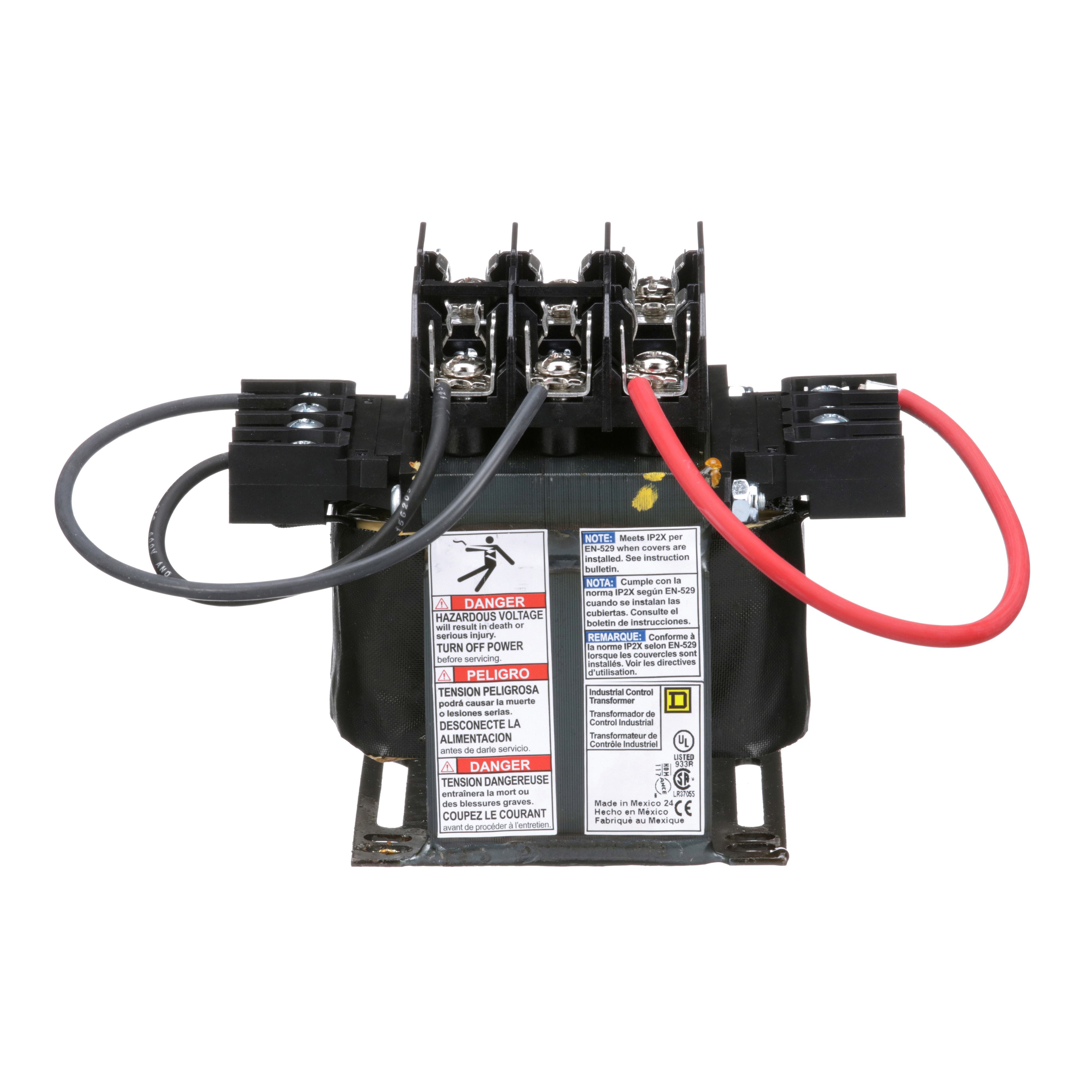

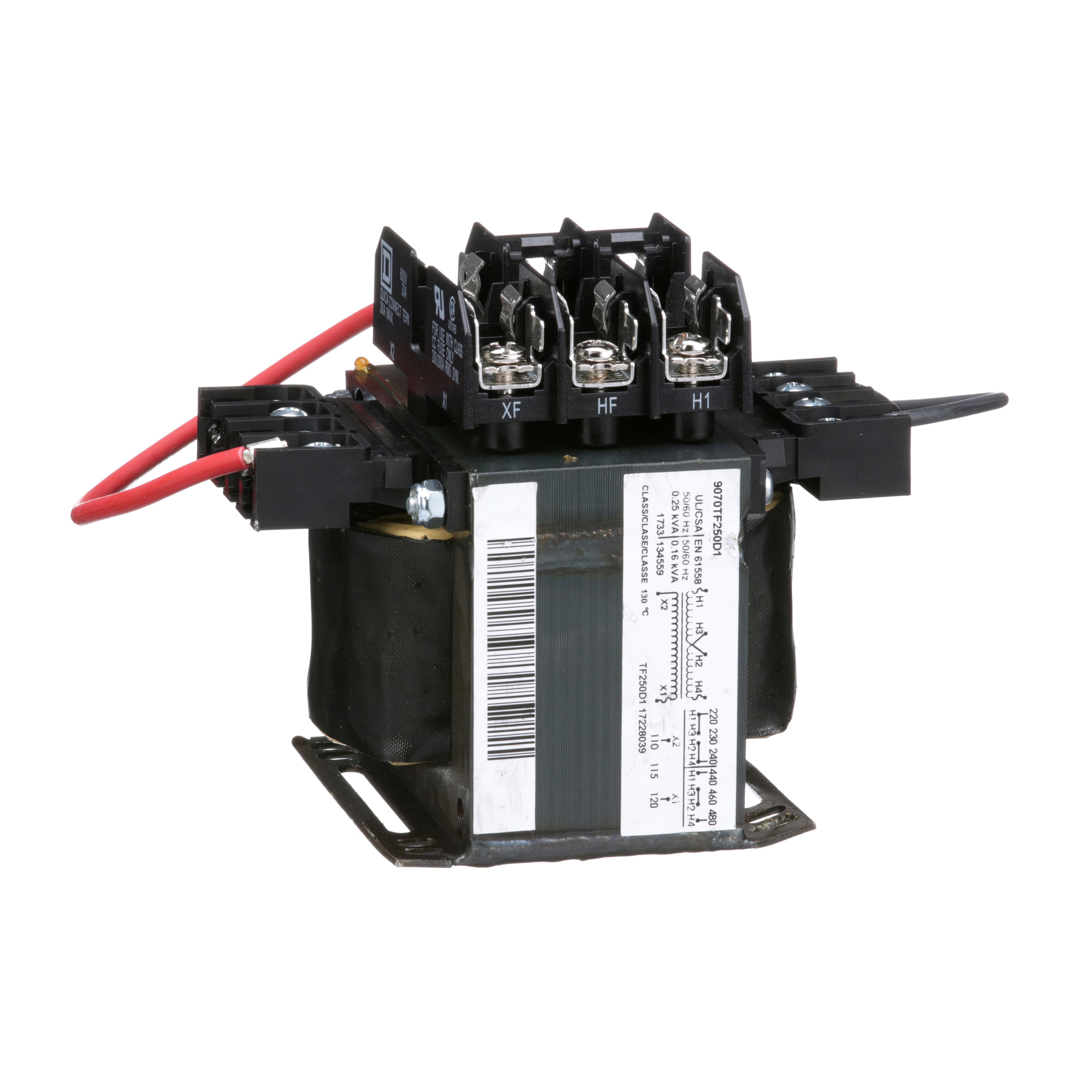

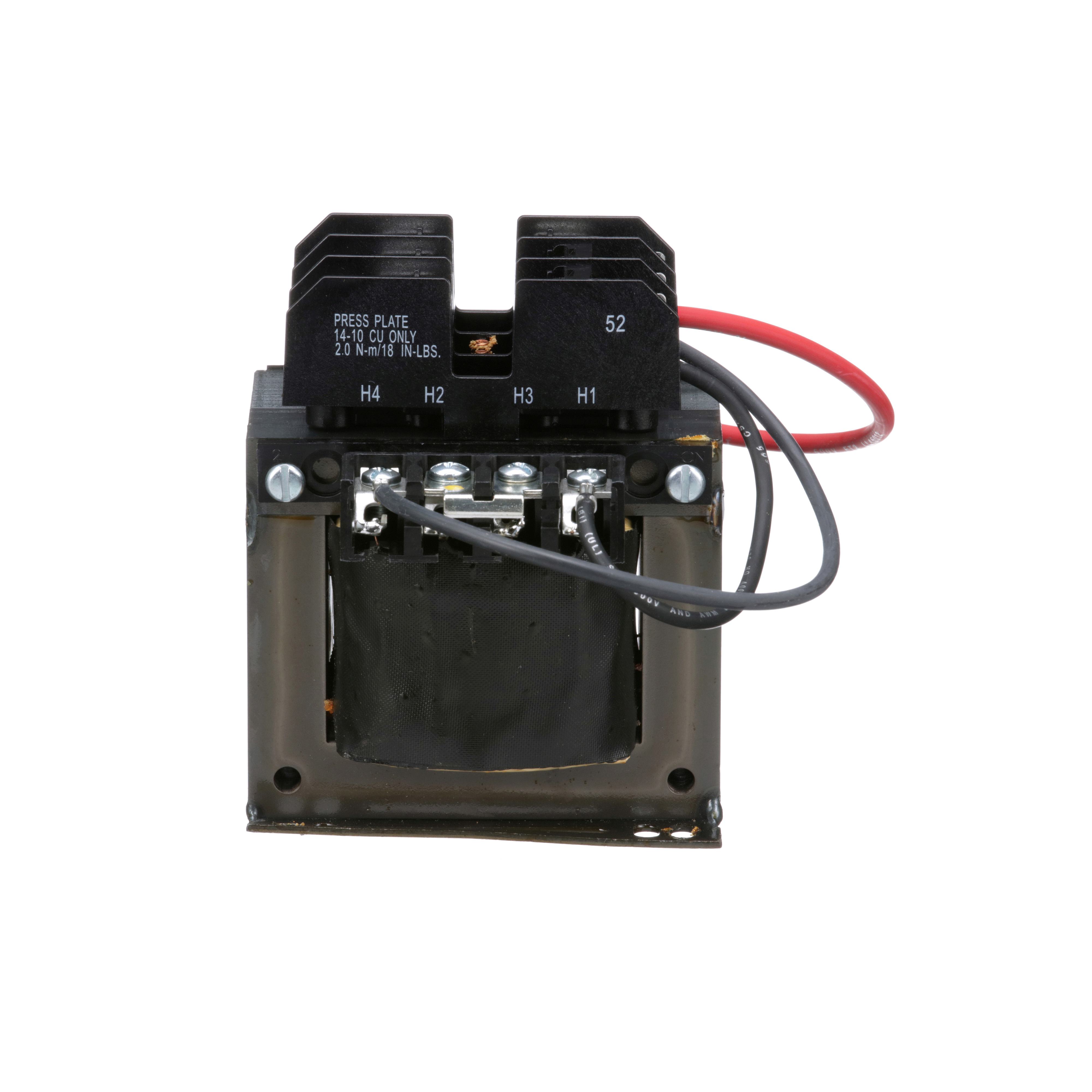

Description: Square D™ Control Transformer, Type TF Industrial Open Style, 240/480/230/460/220/440 V AC Primary, 110/115/120 VAC Secondary, 250 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 130 deg C, Open, 80 deg C, 3.75 in W x 5.3 in D x 4.5 in H

Manufacturer PN: 9070TF250D1

UPC:  78590190486

Kendall Electric Inc PN: 3958717

Invoice Description:

9070TF250D1 SQD TRANSFORMER CONTROL


SPEC SHEET

▸ See All in Control Transformers


How Can We Make This Page Better?

Square D™ 9070TF250D1 Type TF Industrial Open Style Control Transformer, 240/480/230/460/220/440 V AC Primary, 110/115/120 VAC Secondary, 250 VA Power Rating, 50/60 Hz, 1 Phase

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Type TF transformers include factory installed primary and secondary fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block. The primary includes rejection style clips to increase the AIC ratings for the fuses. Since the fuse blocks are mounted on the top of the transformer, type TF transformers are interchangeable with type T transformers except for their increased height.
Square D™ Control Transformer, Type TF Industrial Open Style, 240/480/230/460/220/440 V AC Primary, 110/115/120 VAC Secondary, 250 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 130 deg C, Open, 80 deg C, 3.75 in W x 5.3 in D x 4.5 in H

Specifications

 Brand Name Square D
 Connection Type Screw Clamp

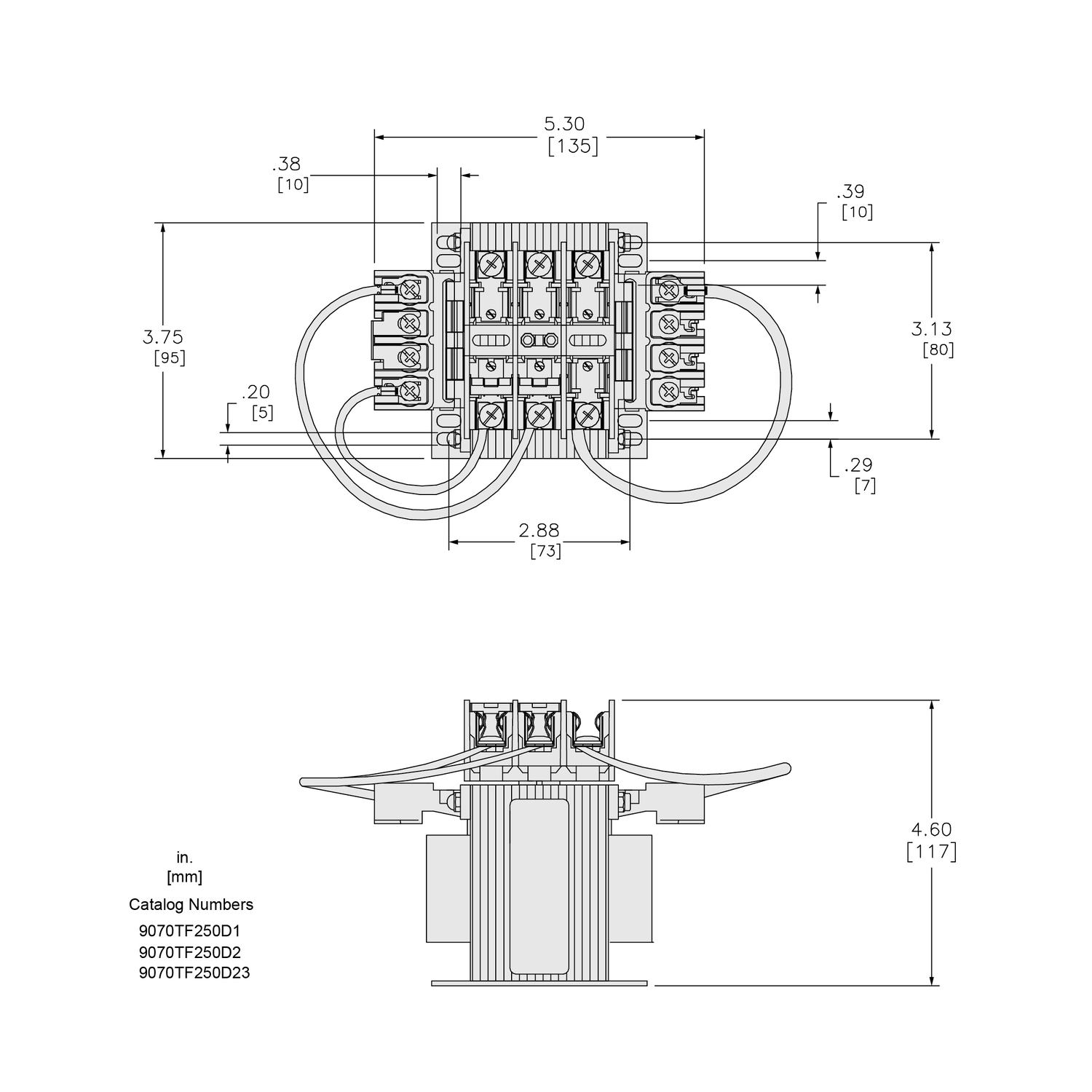

 Dimensions 3.75 in W x 5.3 in D x 4.5 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Includes Top Mounted Fuse Block
 Insulation 130 deg C
 Manufacturer Part Number 9070TF250D1
 Mounting Type Panel
 PART NUMBER KEYWORDS 9070TF250D1 ; 8081992 ; 785901904861 ; 78590190486 ; 00785901904861 ; 0785901904861
 Phase 1
 Power Rating 250 VA
 Secondary Voltage 110/115/120 V AC
 Standards/Approvals Buy American Act Compliant|CE Certified|CSA File No. LR37055 Guide No. 184-N-90|ECCN EAR99|NEC Article 450|RoHS Compliant|UL 508 File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating 80 deg C
 Type Type TF Industrial Open Style
 Video Links

Features

▪ Type TF's ability to handle high inrush current makes it reliable for contactors, starters, solenoids, and relays
▪ Dual primary transformers allow flexibility to produce needed secondary outputs
▪ Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
