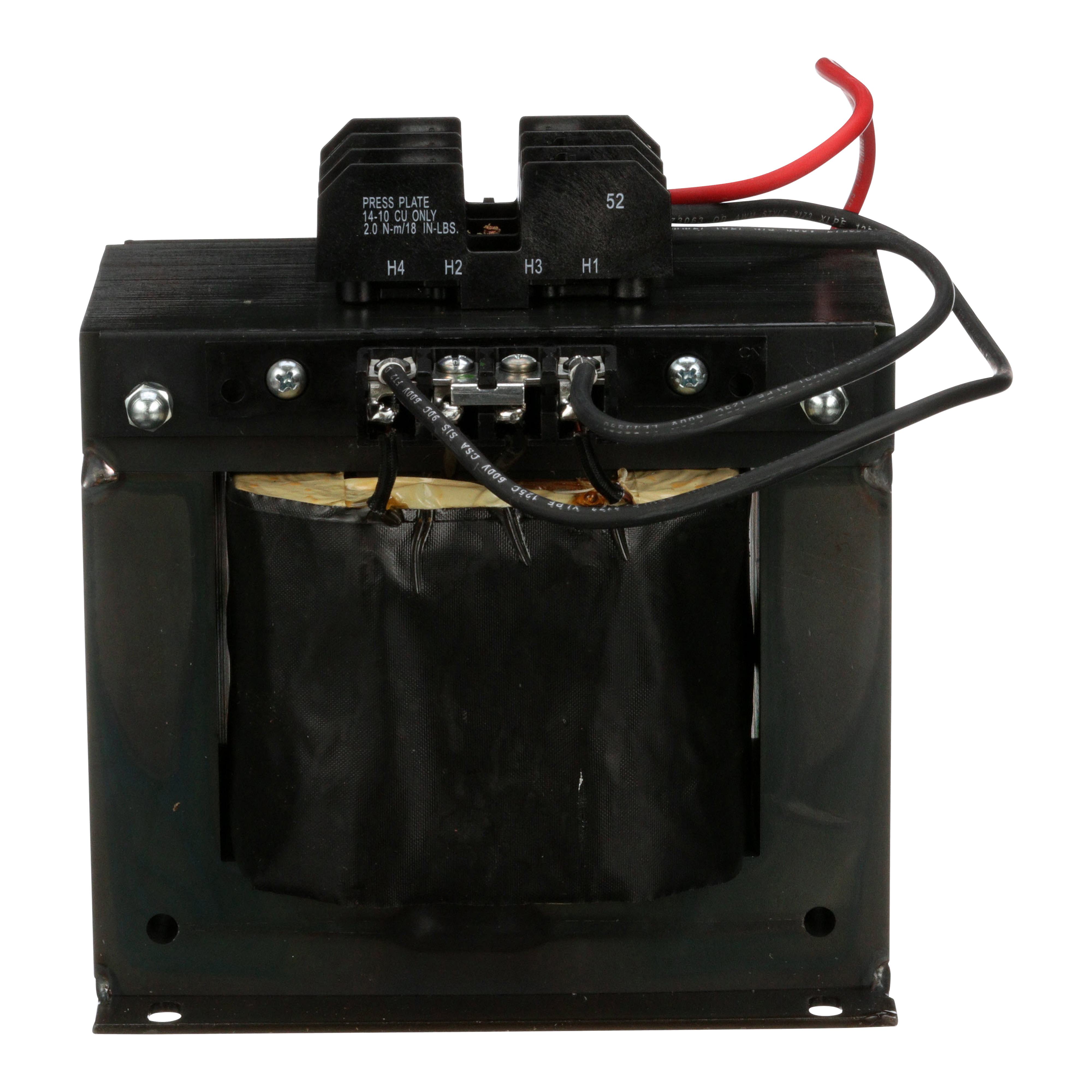

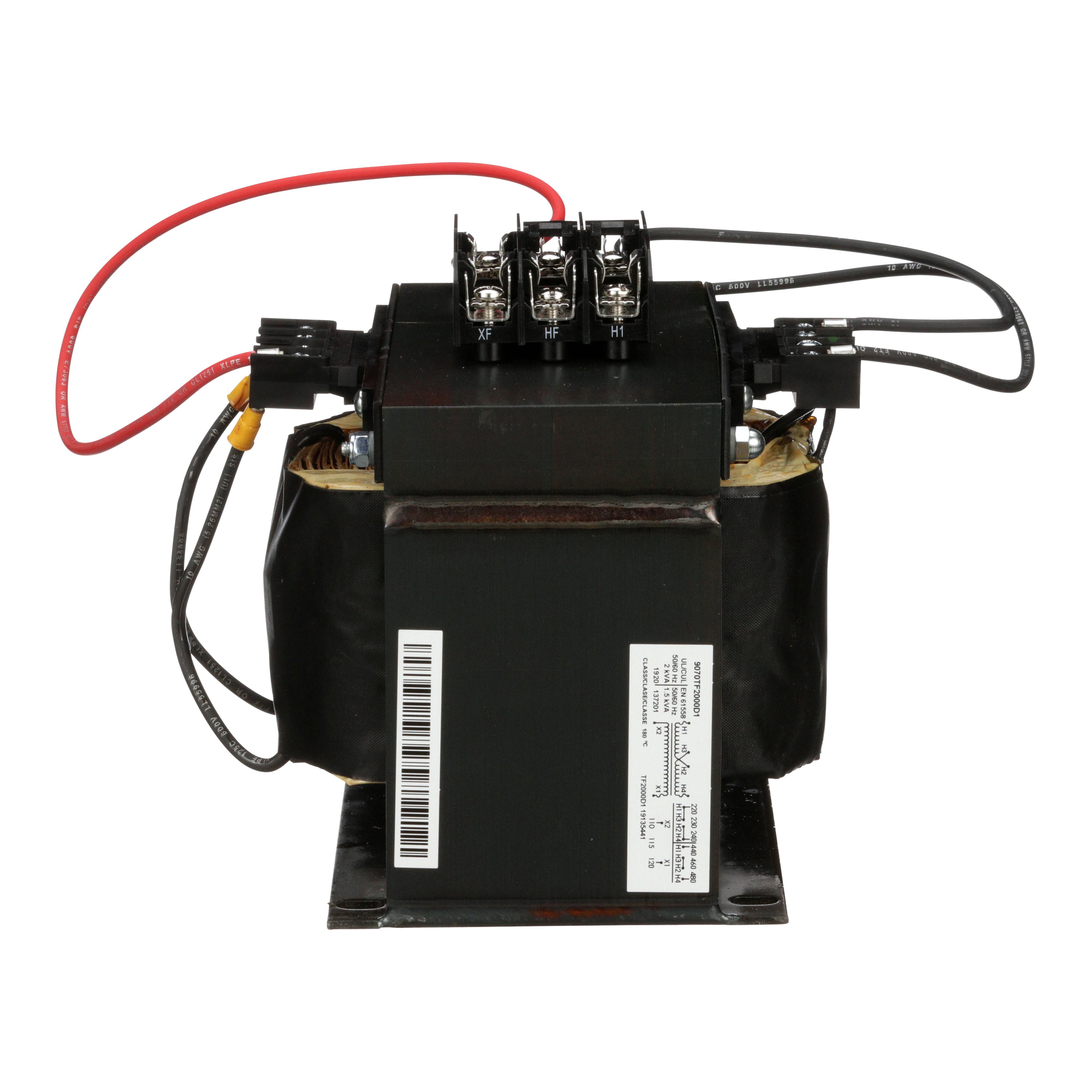

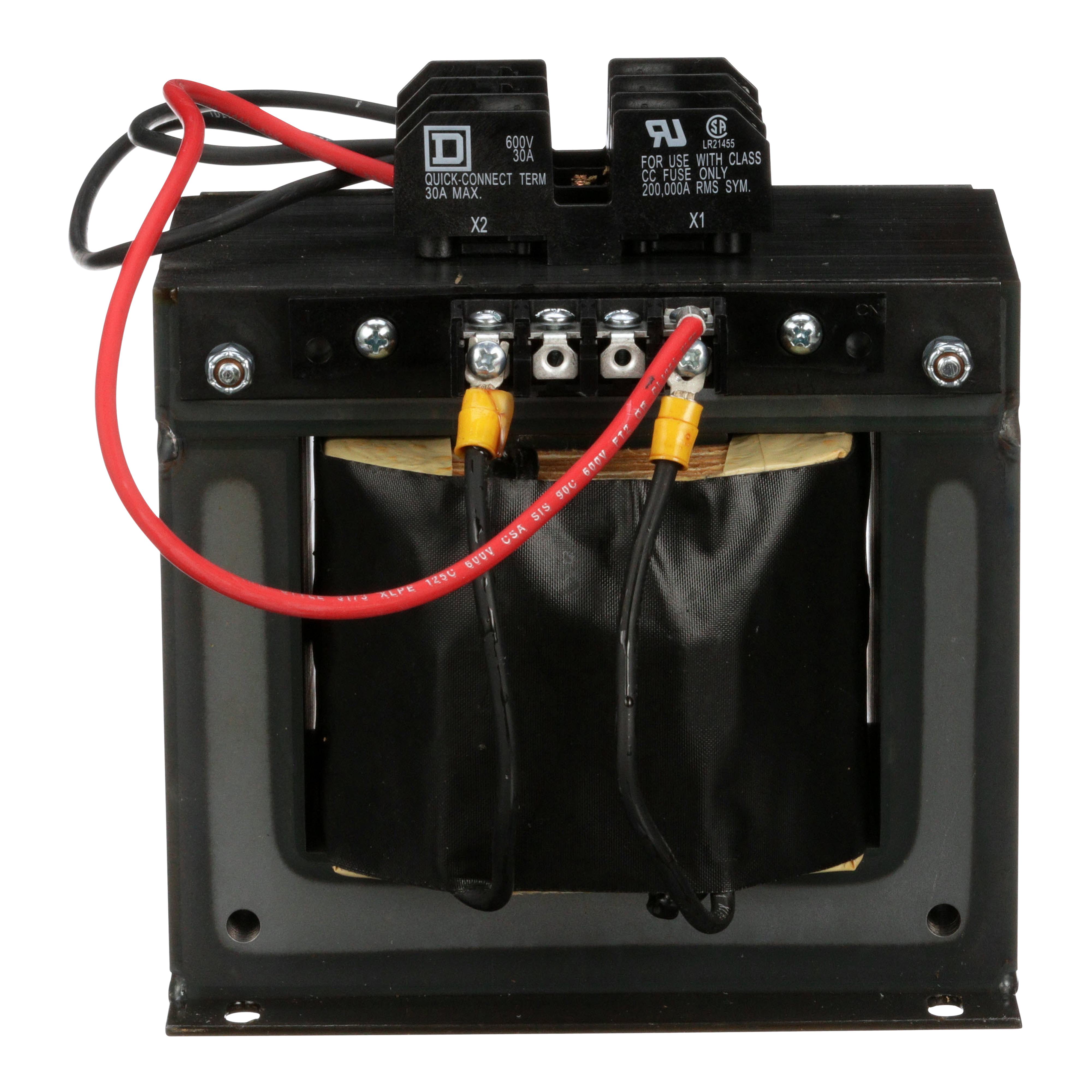

Description: Square D™ Control Transformer, Type TF Industrial, 240 x 480, 230 x 460, 220 x 440 V AC Primary, 110/115/120 VAC Secondary, 2000 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 180 deg C, Open, 115 deg C, 7.06 in W x 7.17 in D x 7.46 in H

Manufacturer PN: 9070TF2000D1

UPC:  78590131436

Kendall Electric Inc PN: 3959404

Invoice Description:

9070TF2000D1 SQD TRANSFORMER


SPEC SHEET

▸ See All in Control Transformers


How Can We Make This Page Better?

Square D™ 9070TF2000D1 Type TF Industrial Control Transformer, 240 x 480, 230 x 460, 220 x 440 V AC Primary, 110/115/120 VAC Secondary, 2000 VA Power Rating, 50/60 Hz, 1 Phase

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 2000VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 7.46 in (H), 7.06 in (W), 7.17 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding.This product has a compatability for FSC2. This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2.
Square D™ Control Transformer, Type TF Industrial, 240 x 480, 230 x 460, 220 x 440 V AC Primary, 110/115/120 VAC Secondary, 2000 VA, 50/60 Hz, 1 ph, Screw Clamp, Panel Mount, 180 deg C, Open, 115 deg C, 7.06 in W x 7.17 in D x 7.46 in H

Specifications

 Brand Name Square D
 Connection Type Screw Clamp

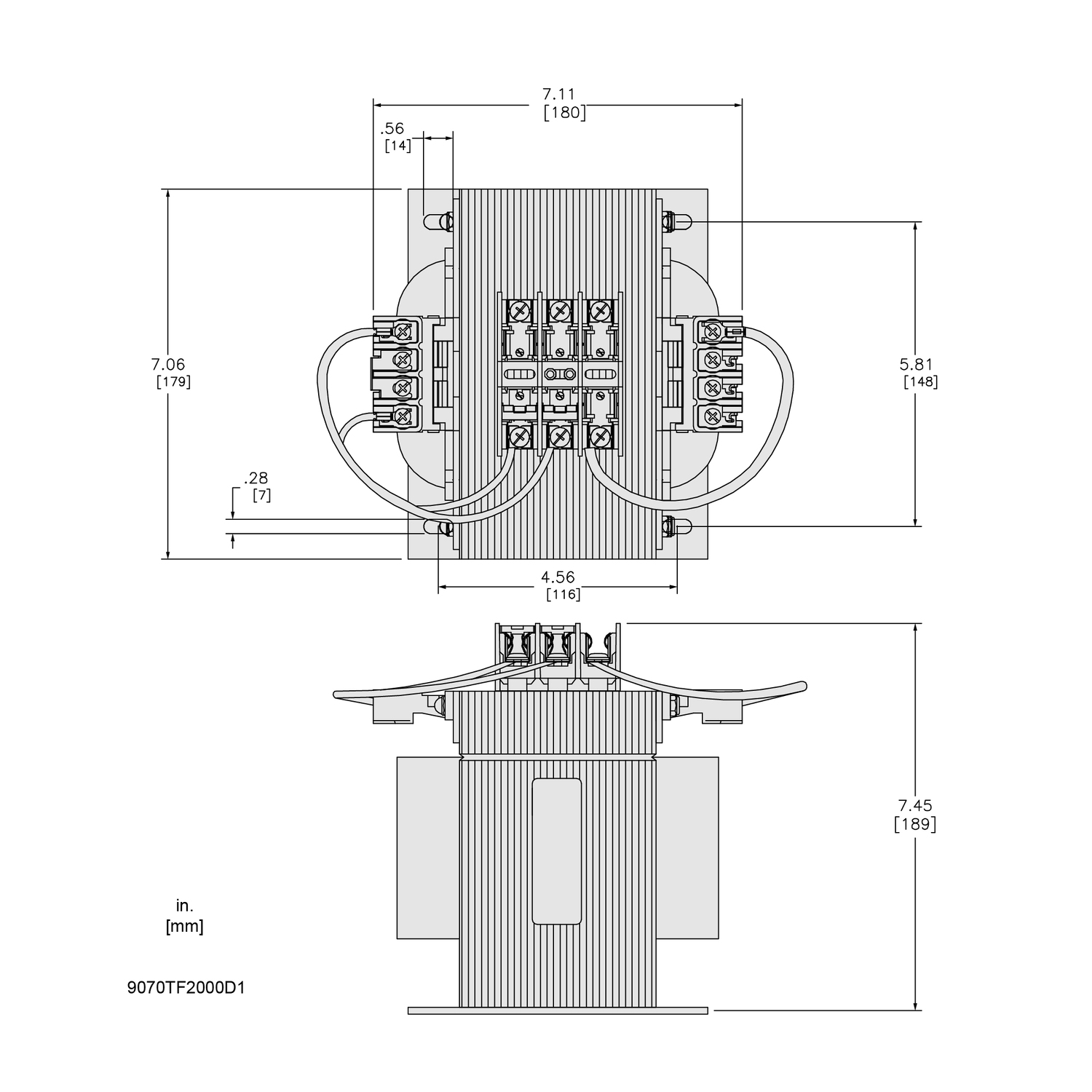

 Dimensions 7.06 in W x 7.17 in D x 7.46 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Includes Top Mounted Fuse Block
 Insulation 180 deg C
 Manufacturer Part Number 9070TF2000D1
 Mounting Type Panel
 PART NUMBER KEYWORDS 9070TF2000D1 ; 8132557 ; 785901314363 ; 78590131436 ; 00785901314363 ; 0785901314363
 Phase 1
 Power Rating 2000 VA
 Secondary Voltage 110/115/120 V AC
 Standards/Approvals RoHS Compliant|UL 508 File No. E61239|CSA File No. LR37055 Guide No. 184-N-90|CE Certified|NEC Article 450|ECCN EAR99|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Temperature Rating 115 deg C
 Type Type TF Industrial
 Video Links

Features

▪ Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time
▪ Provides reliable power using voltage regulation
▪ Protects against accidental shocks through the use of touch-safe terminals
