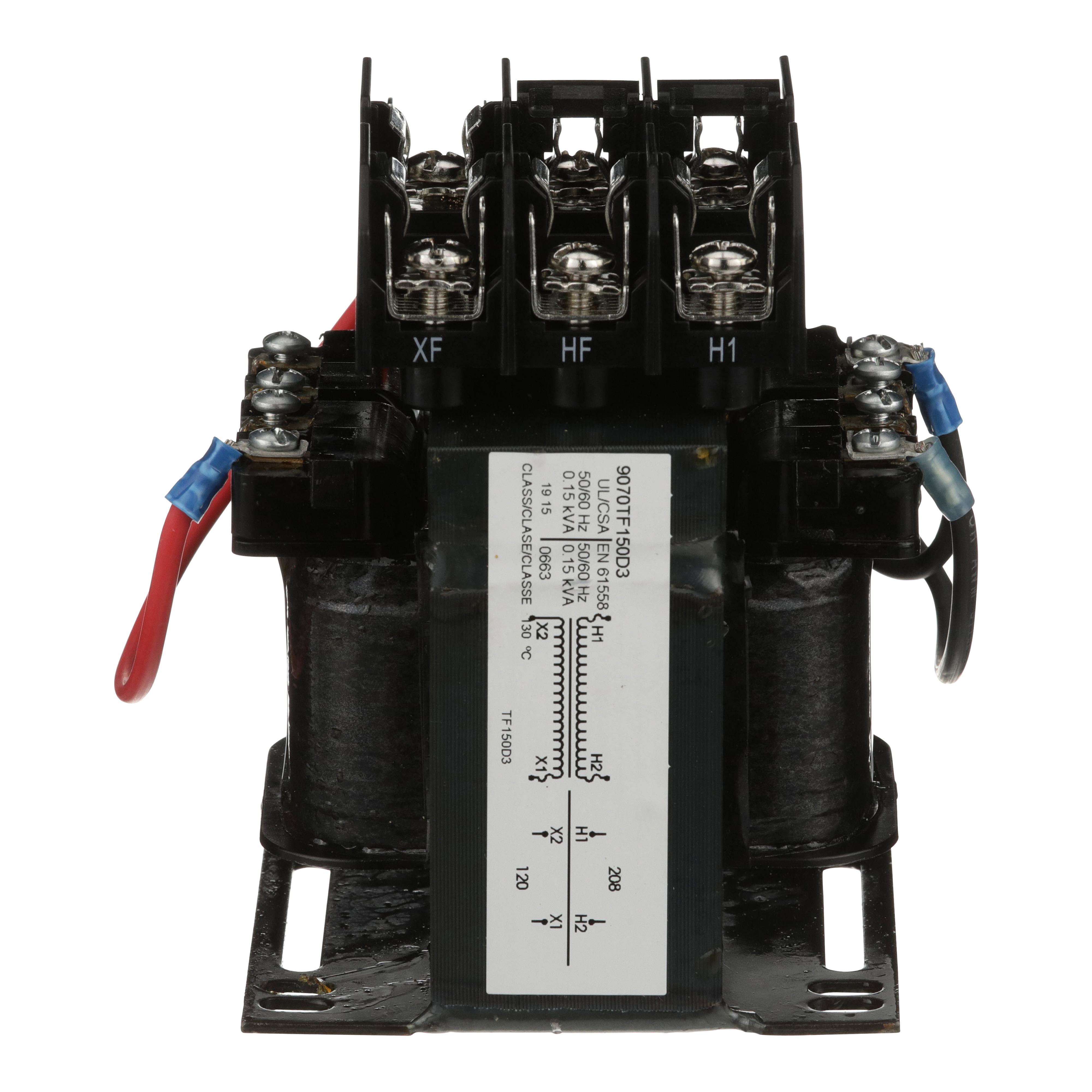

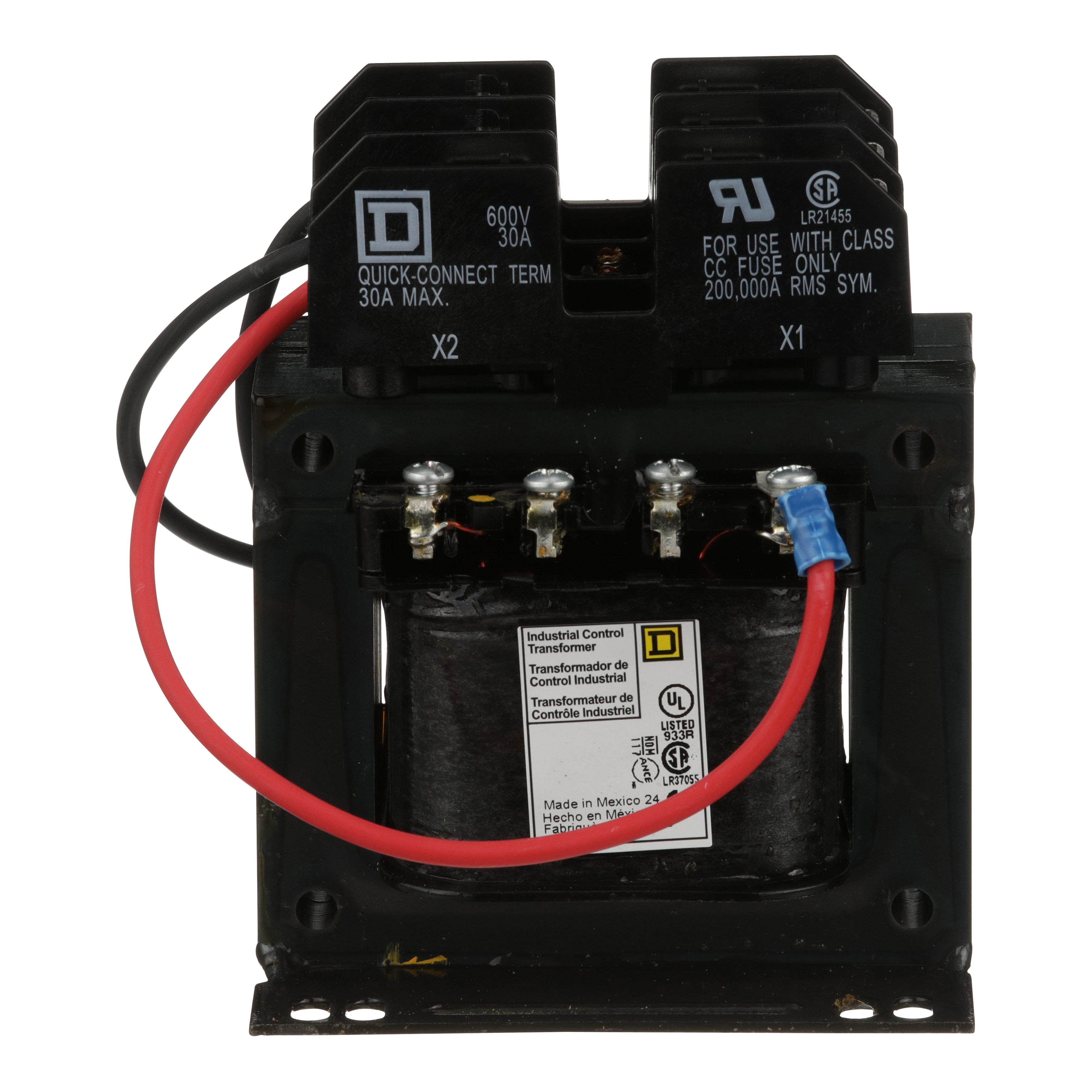

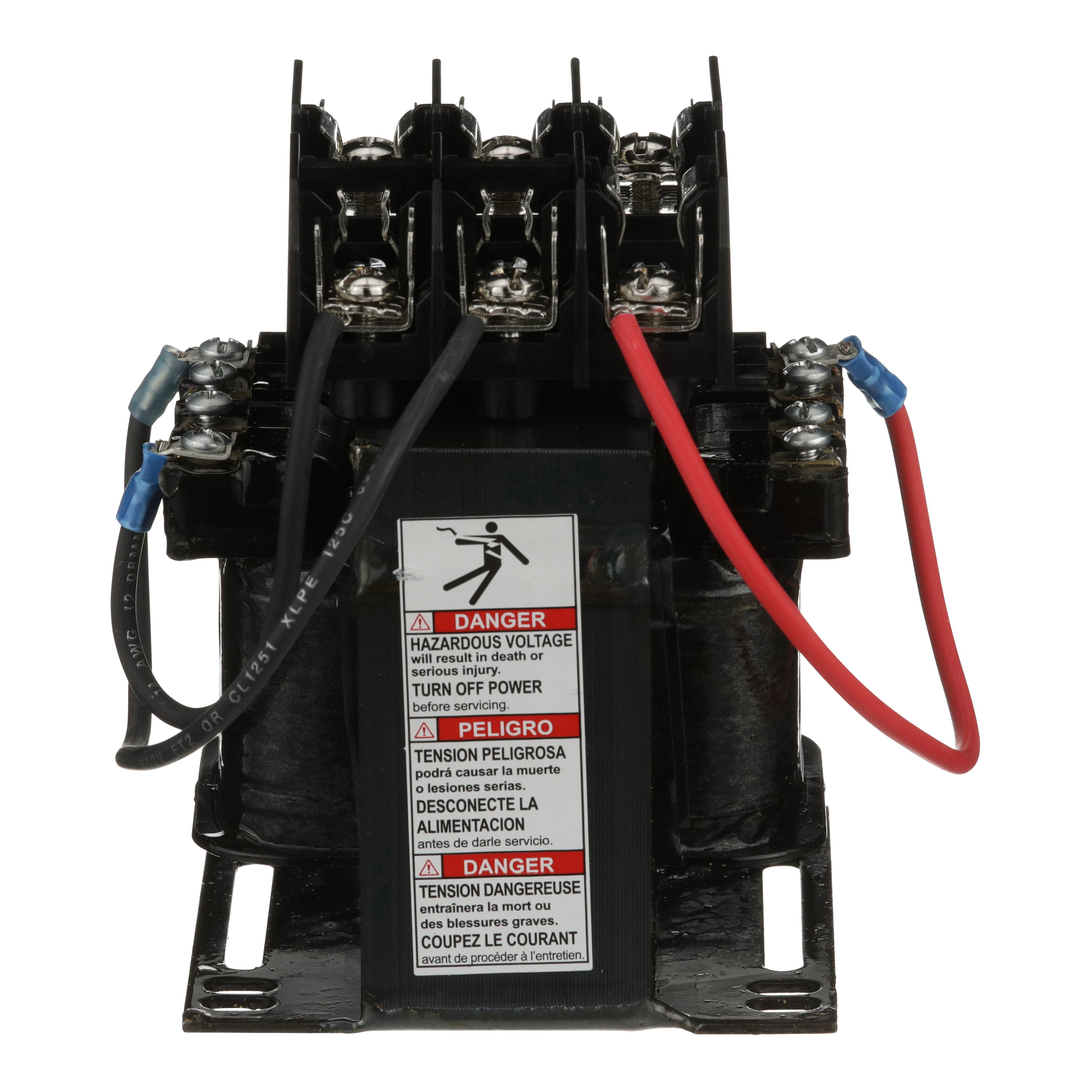

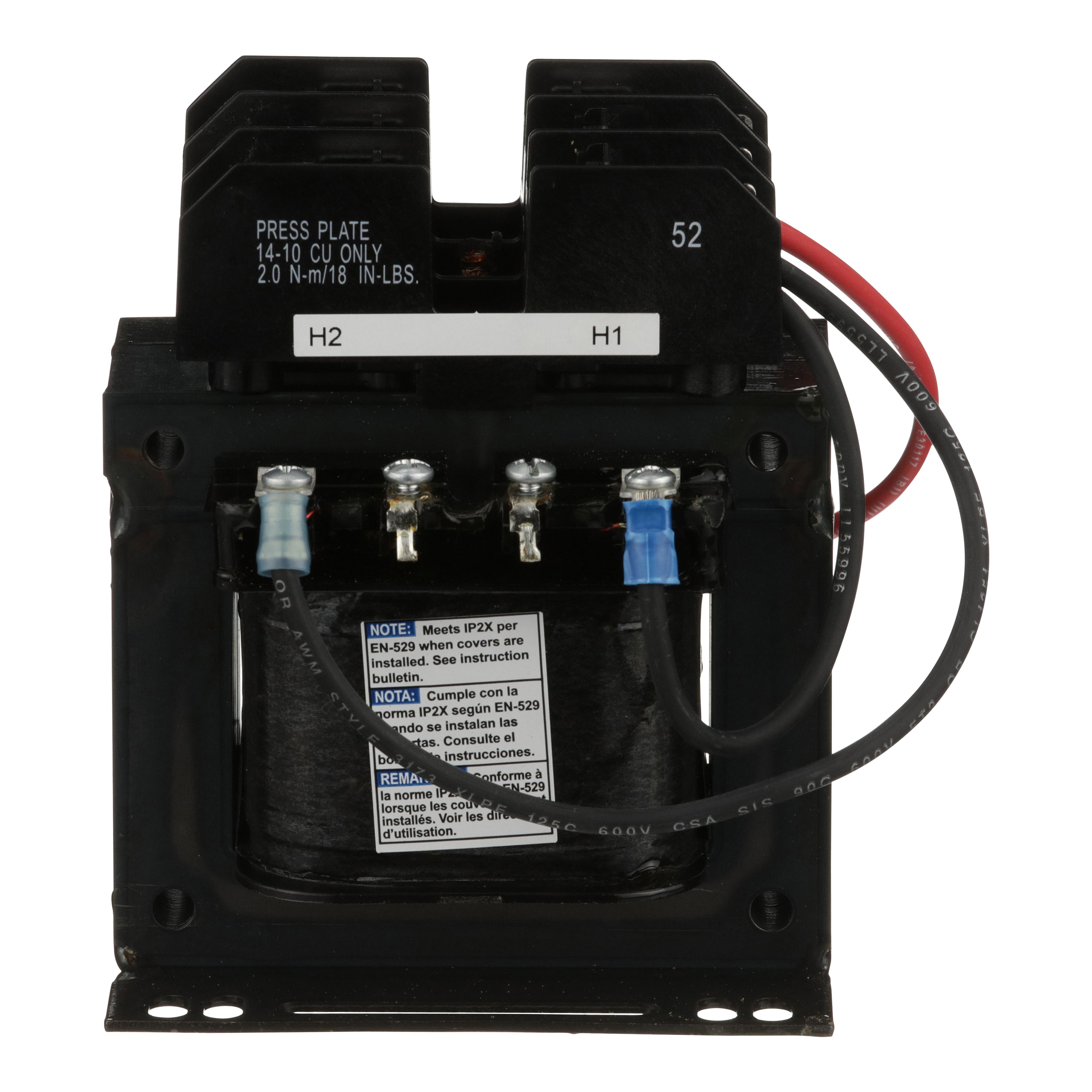

Description: Square D™ Control Transformer, Type TF Industrial, 208 V AC Primary, 120 VAC Secondary, 150 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 3.75 in W x 3.59 in D x 4.55 in H Dimensions

Manufacturer PN: 9070TF150D3

UPC:  78590190578

Kendall Electric Inc PN: 3959597

Invoice Description:

9070TF150D3 SQD TRANSFORMER CONTROL


SPEC SHEET

▸ See All in Control Transformers


How Can We Make This Page Better?

Square D™ 9070TF150D3 Type TF Industrial Control Transformer, 208 V AC Primary, 120 VAC Secondary, 150 VA Power Rating, 50/60 Hz, 1 Phase

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 150VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
Square D™ Control Transformer, Type TF Industrial, 208 V AC Primary, 120 VAC Secondary, 150 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 3.75 in W x 3.59 in D x 4.55 in H Dimensions

Specifications

 Brand Name Square D
 Connection Type Screw Clamp

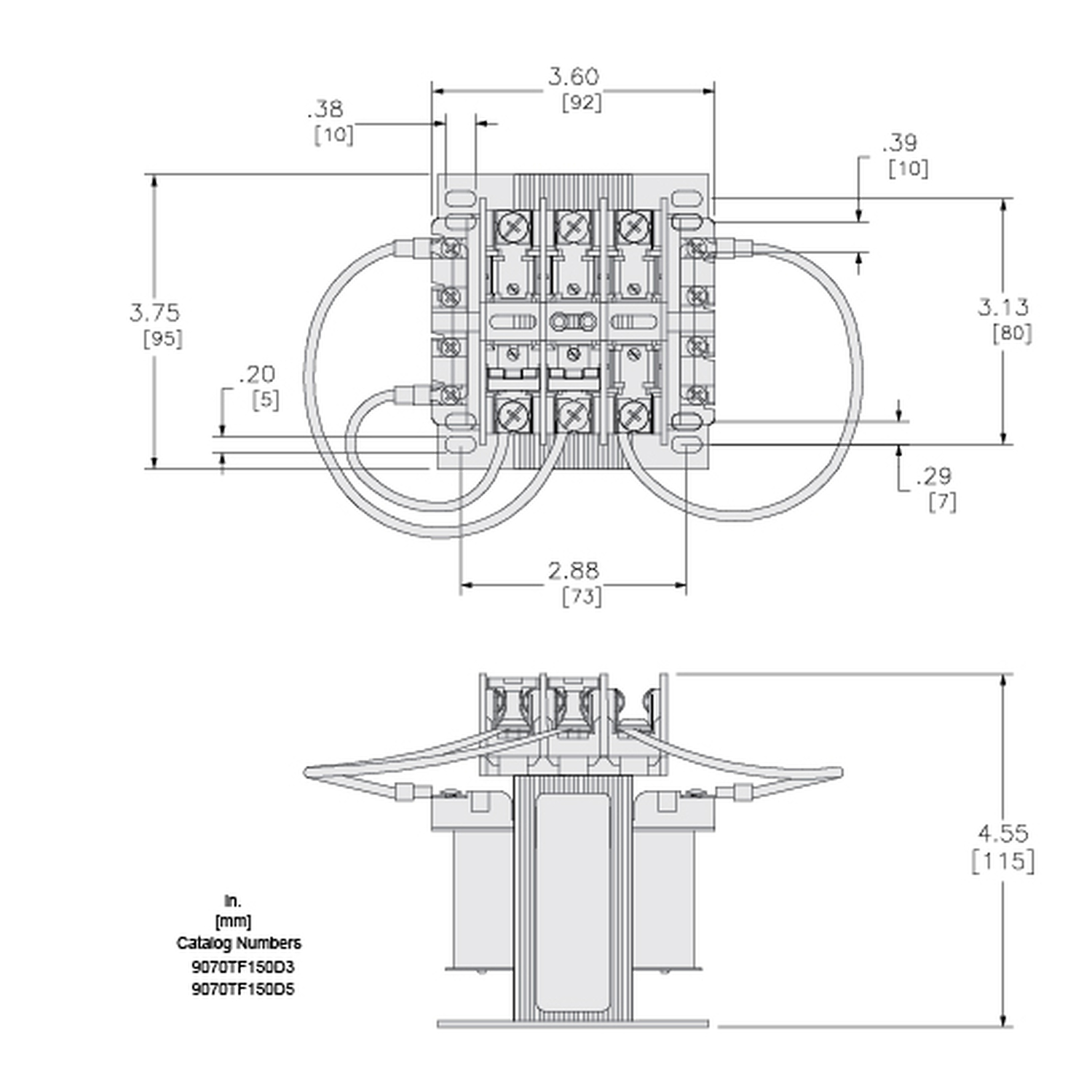

 Dimensions 3.75 in W x 3.59 in D x 4.55 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Includes Top Mounted Fuse Block
 Insulation 105 deg C
 Manufacturer Part Number 9070TF150D3
 Mounting Type Panel
 PART NUMBER KEYWORDS 9070TF150D3 ; 8082719 ; 785901905783 ; 78590190578 ; 00785901905783 ; 0785901905783
 Phase 1
 Power Rating 150 VA
 Secondary Voltage 120 V AC
 Standards/Approvals RoHS Compliant|eccn: EAR99|CE Certified|CSA File No. LR37055 Guide 184-N-90|cUL File No. E61239|UL 508 File No. E61239 Guide XPTQ2|NEC 450/508|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov
 Temperature Rating 55 deg C
 Type Type TF Industrial
 Video Links

Features

▪ Type TF's ability to handle high inrush current makes it reliable for contactors, starters, solenoids, and relays
▪ Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
