  • 9070T100D1 SQD TRANSFORMER CONTROL
  • 9070T100D1 SQD TRANSFORMER CONTROL
  • 9070T100D1 SQD TRANSFORMER CONTROL

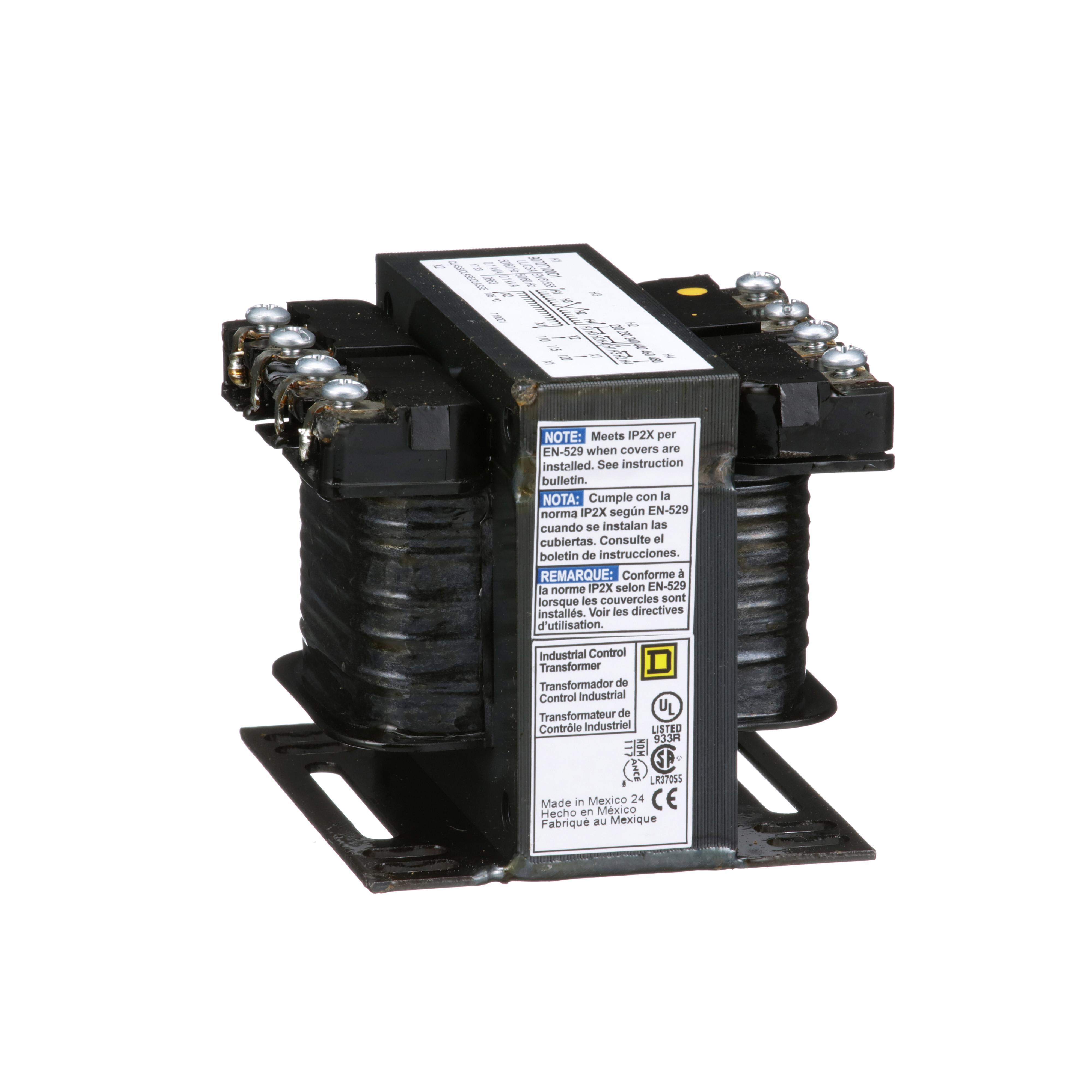

Description: Square D™, 9070T100D1, Control Transformer, Series: 9070, 240/480 V AC Primary, 120 VAC Secondary, 100 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 2.89 in H x 3.38 in W x 3.34 in D Dimensions

Manufacturer PN: 9070T100D1

UPC:  78590190464

Kendall Electric Inc PN: 3998971

Invoice Description:

9070T100D1 SQD TRANSFORMER CONTROL


SPEC SHEET

▸ See All in Control Transformers


How Can We Make This Page Better?

Square D™ 9070T100D1 9070 Control Transformer, 240/480 V AC Primary, 120 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
Square D™, 9070T100D1, Control Transformer, Series: 9070, 240/480 V AC Primary, 120 VAC Secondary, 100 VA Power, 50/60 Hz Frequency, 1 ph, Screw Clamp Connection, Panel Mounting, 105 deg C Insulation, Open Enclosure, 55 deg C, 2.89 in H x 3.38 in W x 3.34 in D Dimensions

Specifications

 Application For handling high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes and OEM commercial, industrial markets and electrical equipment OEM applications
 Brand Name Square D
 Connection Type Screw Clamp

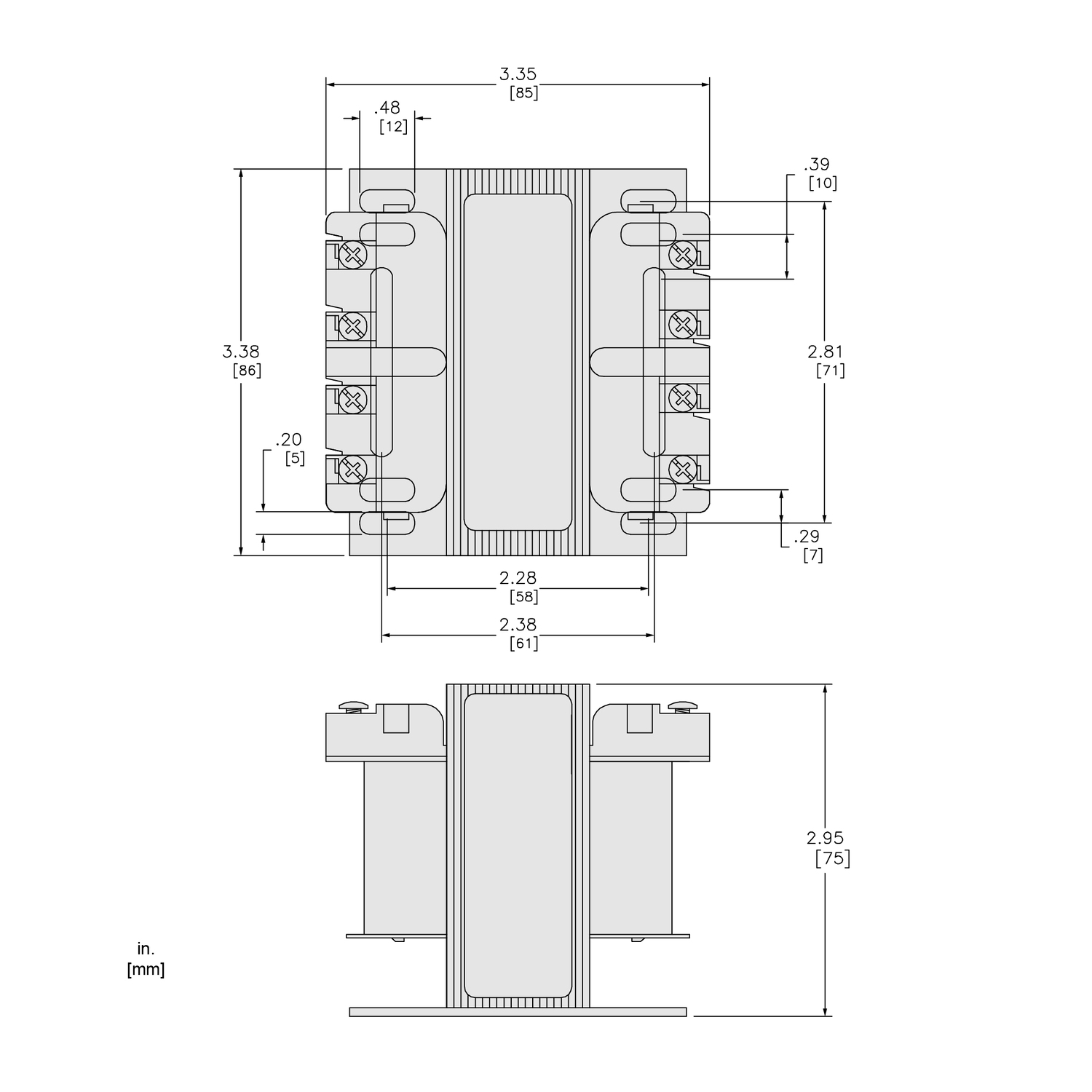

 Dimensions 2.89 in H x 3.38 in W x 3.34 in D
 Enclosure Open
 Frequency Rating 50/60 Hz
 Insulation 105 deg C
 Manufacturer Part Number 9070T100D1
 Mounting Type Panel
 PART NUMBER KEYWORDS 9070T100D1 ; 8081811 ; 785901904649 ; 78590190464 ; 00785901904649 ; 0785901904649
 Phase 1
 Power Rating 100 VA
 Secondary Voltage 120 V AC
 Series 9070
 Standards/Approvals CE Certified|CSA File No. LR37055 Guide No. 184-N-90|ECCN: EAR99|NEC Article 450|RoHS Compliant|UL 508 File No. E61239|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating 55 deg C
 Type Type T Industrial Open Style

Features

▪ Designed with various temperature classes
▪ Customer installed accessories
