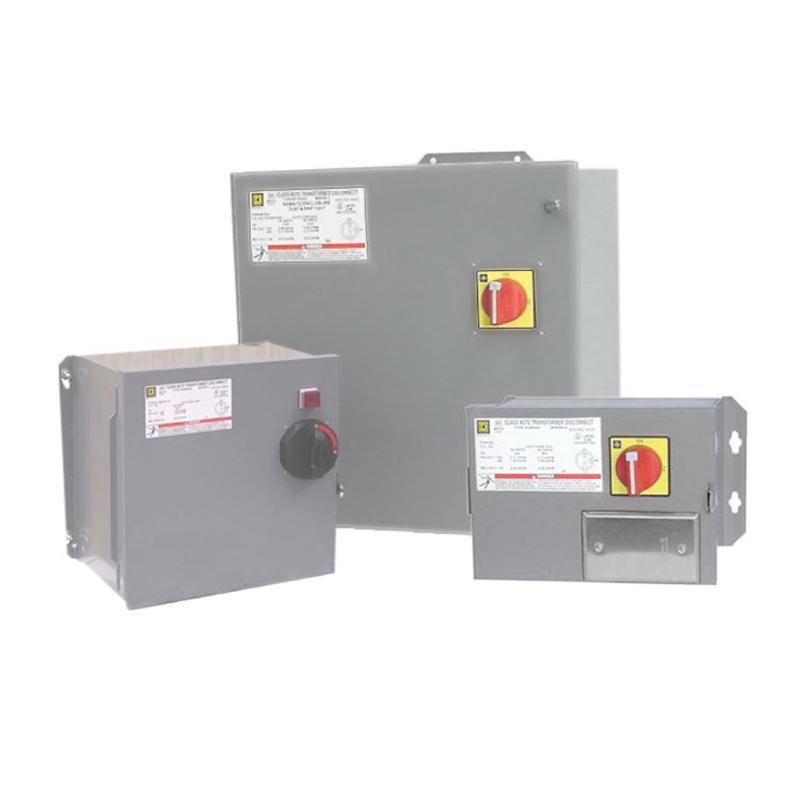

9070SK2000G2D1G13 SQD TRANSFORMER

Mouse over image to zoom, click to enlarge

  • 9070SK2000G2D1G13 SQD TRANSFORMER
  • 9070SK2000G2D1G13 SQD TRANSFORMER

Description: Square D™ Transformer Disconnect, 1-Phase Type SK Class 9070, 120/240/480 V AC, 45 A, 2 kVA Power, 50/60 Hz Frequency, Screw Clamp Electrical Connections, Surface/Panel Mounting, 356 deg F Insulation, NEMA 1 NEMA Rating, 115 deg C, 13.4 in H x 14.8 in W x 12.21 in D Dimensions

Manufacturer PN: 9070SK2000G2D1G13

UPC:  78590172082

Kendall Electric Inc PN: 4728558

Invoice Description:

9070SK2000G2D1G13 SQD TRANSFORMER


SPEC SHEET

▸ See All in Transformer Disconnects


How Can We Make This Page Better?

Square D™ 9070SK2000G2D1G13 1-Phase Type SK Class 9070 Transformer Disconnect With Outlet, 120/240/480 V AC, 45 A, 50/60 Hz, NEMA 1 NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Schneider Electrics Square D™ transformer disconnects mount inside or outside a control system enclosure and provide power to auxiliary, 1-phase loads when the main three-phase disconnect is either ON or OFF. The transformer disconnect is normally wired to the line side of the control panel's main disconnect. This convenient source of 120 V power can be used for auxiliary or isolated loads, such as panel lighting, portable power tools and programmable controller equipment. Units consist of copper wound transformers, a disconnect switch and primary and secondary fuse blocks. All blocks are installed in NEMA 1 or NEMA 12 enclosures.
Square D™ Transformer Disconnect, 1-Phase Type SK Class 9070, 120/240/480 V AC, 45 A, 2 kVA Power, 50/60 Hz Frequency, Screw Clamp Electrical Connections, Surface/Panel Mounting, 356 deg F Insulation, NEMA 1 NEMA Rating, 115 deg C, 13.4 in H x 14.8 in W x 12.21 in D Dimensions

Specifications

 Amperage Rating 45 A
 Application Auxiliary/Isolated Loads, Panel Lighting, Portable Power Tools, Programmable Controller Equipment and Automotive Applications
 Brand Name Square D
 Dimensions 13.4 in H x 14.8 in W x 12.21 in D
 Electrical Connections Screw Clamp
 Frequency Rating 50/60 Hz
 Insulation 356 deg F
 Manufacturer Part Number 9070SK2000G2D1G13
 Mounting Type Surface/Panel
 NEMA Rating NEMA 1
 PART NUMBER KEYWORDS 9070SK2000G2D1G13 ; 8140945 ; 785901720829 ; 78590172082 ; 00785901720829 ; 0785901720829
 Power Rating 2 kVA
 Standards/Approvals CSA Certified|UL Listed|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Temperature Rating 115 deg C
 Type 1-Phase Type SK Class 9070
 Voltage Rating 120/240/480 V AC

Features

▪ The square D® disconnect switch is rated 600 VAC, 45 A, 100 kA, the disconnect can be locked in the OFF position
▪ Knockouts conveniently located on NEMA 1 enclosures
▪ External mounting flanges with slotted holes for "hook and hang" mounting on NEMA 1 enclosures
▪ Ground terminal
▪ 90 deg access cover stop
▪ 240/480 VAC primary voltage 120 secondary voltage
▪ Duplex receptacle, door mounted
