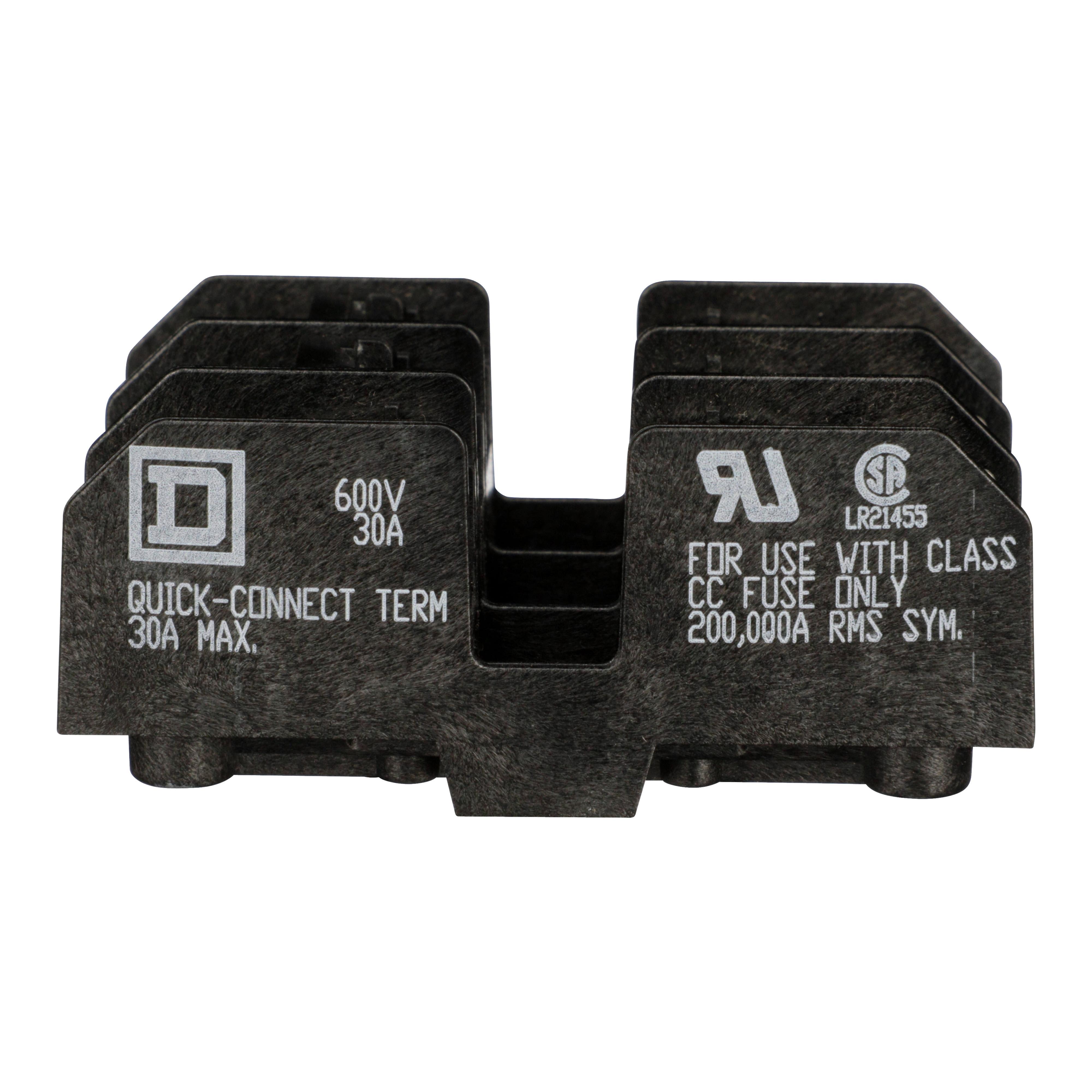

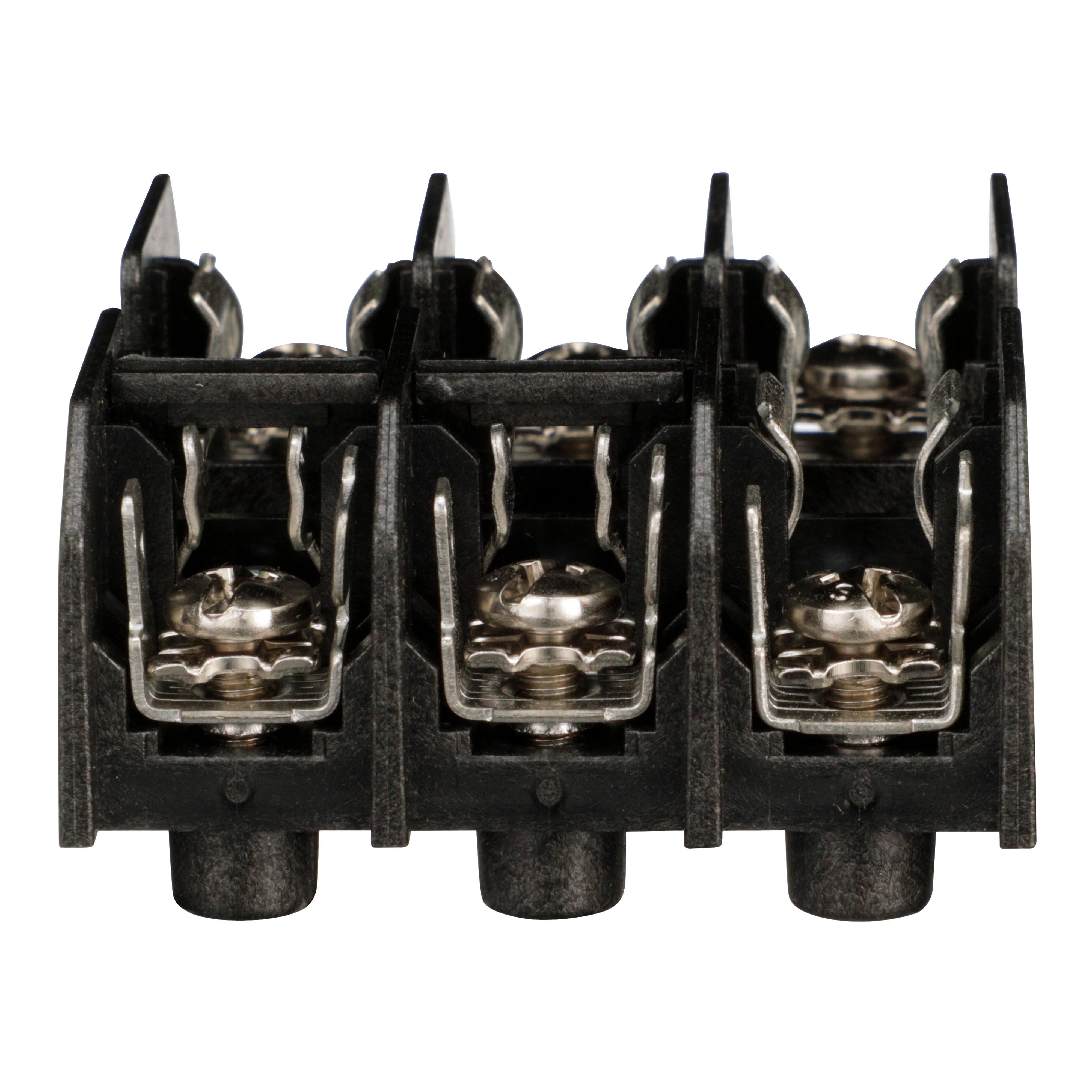

Description: Square D™ Transformer Fuse Block, 200 to 600 V AC, 25/200 A, Midget Fuse, 3 Poles

Manufacturer PN: 9070FB3A

UPC:  78590190794

Kendall Electric Inc PN: 3958978

Invoice Description:

9070FB3A SQD FUSE BLOCKS


SPEC SHEET

▸ See All in Transformer Fuse Blocks


How Can We Make This Page Better?

Square D™ 9070FB3A Transformer Fuse Block, 200 to 600 V AC, 25/200 A, Midget Fuse

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

In a control transformer system, the fuse block serves a critical protective function by safeguarding both the transformer and the connected control circuitry from overcurrent conditions. Typically installed on the primary side of the transformer, the fuse block contains replaceable fuses that are designed to interrupt the electrical flow when current exceeds safe operating limits. This prevents damage caused by short circuits, overloads, or equipment faults, thereby enhancing system reliability and safety. Additionally, fuse blocks facilitate easy maintenance and troubleshooting by allowing quick visual inspection and replacement of blown fuses, making them an essential component in industrial and commercial control panels. It is a 3 pole fuse block for Primary and Secondary fusing. It accommodates 1-1/2 x 13/32 inches midget fuse.
Square D™ Transformer Fuse Block, 200 to 600 V AC, 25/200 A, Midget Fuse, 3 Poles

Specifications

 Amperage Rating 25/200 A
 Application For primary and secondary fusing applications
 Brand Name Square D
 Fuse Type Midget
 Manufacturer Part Number 9070FB3A
 Poles 3
 Standards/Approvals RoHS Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Video Links
 Voltage Rating 200 to 600 V AC

Features

▪ Field installed
