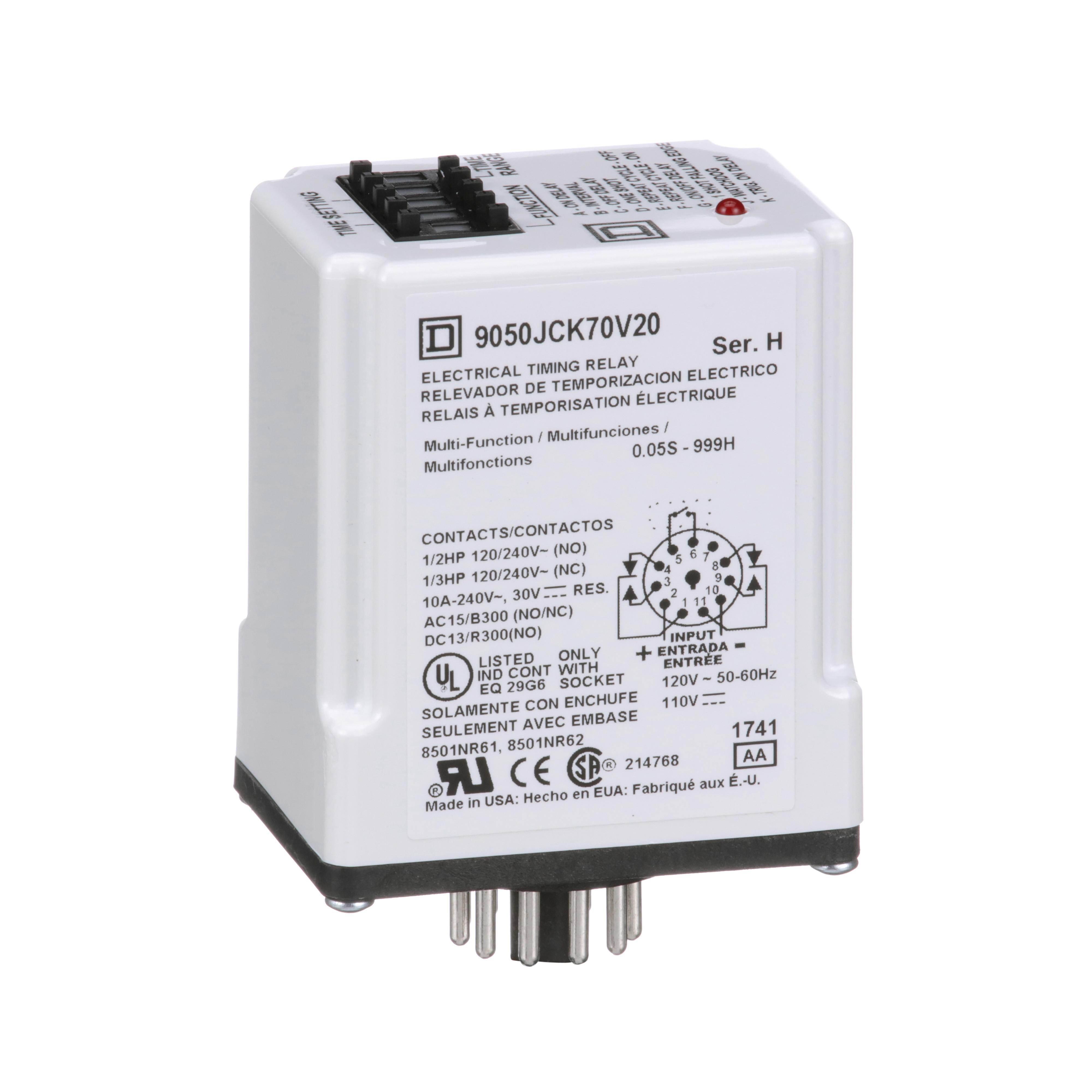

Description: Square D™ Timing Relay, Type JCK, Series: 9050, Operation Mode: On-Delay, 240 V AC, 10 A, 1/2 hp, 11 Pins, 2NO-2NC 2 Form C DPDT, 1 to 999 min, 120 V AC Coil, Tubular, -18 to 150 deg F, Socket Mount, 44 mm W x 60 mm D x 91 mm H

Manufacturer PN: 9050JCK70V20

UPC:  78590105388

Kendall Electric Inc PN: 4004766

Invoice Description:

9050JCK70V20 SQD TIMER RELAY 120VAC


SPEC SHEET

▸ See All in Timing Relays - Fixed Mode Operation


How Can We Make This Page Better?

Square D™ 9050JCK70V20 Type JCK Timing Relay, 1 to 999 min Setting, 240 V AC, 11 Pin, 2NO-2NC 2 Form C DPDT Contact

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
Square D™ Timing Relay, Type JCK, Series: 9050, Operation Mode: On-Delay, 240 V AC, 10 A, 1/2 hp, 11 Pins, 2NO-2NC 2 Form C DPDT, 1 to 999 min, 120 V AC Coil, Tubular, -18 to 150 deg F, Socket Mount, 44 mm W x 60 mm D x 91 mm H

Specifications

 Amperage Rating 10 A
 Brand Name Square D
 Coil Voltage 120 V AC
 Contact Form 2NO-2NC 2 Form C DPDT
 Dimensions 44 mm W x 60 mm D x 91 mm H
 Electrical Connections Tubular
 Horsepower 1/2 hp
 Manufacturer Part Number 9050JCK70V20
 Mounting Type Socket
 Number of Pins 11
 Operation Mode On-Delay
 PART NUMBER KEYWORDS 9050JCK70V20 ; 7995597 ; 785901053880 ; 78590105388 ; 00785901053880 ; 0785901053880
 Series 9050
 Standards/Approvals CE Certified|CSA File No. LR60905/Class 321104|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E78351 CCN NLDX|UL Listed|UL Recognized
 Temperature Rating -18 to 150 deg F
 Time Setting 1 to 999 min
 Type Type JCK
 Video Links
 Voltage Rating 240 V AC

Features

▪ Easy to set up and install
▪ Wide range of operating temperature from -18.4 deg F to 150.8 deg F
