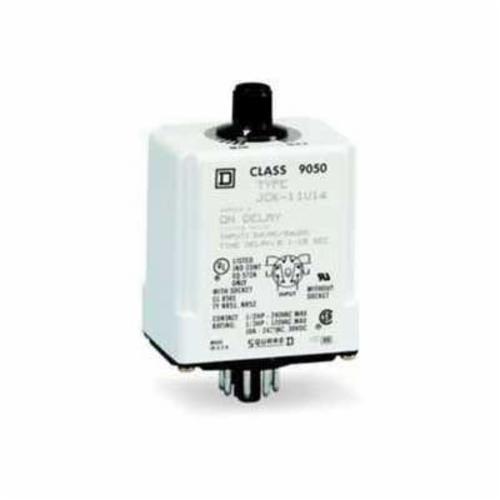

  • 9050JCK60V20 SQD TIMER RELAY 240VAC
  • 9050JCK60V20 SQD TIMER RELAY 240VAC
  • 9050JCK60V20 SQD TIMER RELAY 240VAC

Description: Square D™ Timing Relay, Type JCK, Series: 9050, Operation Mode: On-Delay, 240 V AC, 10 A, 1/2 hp, 8 Pins, 2NO-2NC 2 Form C DPDT, 1 to 999 min, 120 V AC Coil, Tubular, -18 to 150 deg F, Socket Mount, 44 mm W x 60 mm D x 91 mm H

Manufacturer PN: 9050JCK60V20

UPC:  78590105386

Kendall Electric Inc PN: 4004830

Invoice Description:

9050JCK60V20 SQD TIMER RELAY 240VAC


SPEC SHEET

▸ See All in Timing Relays - Fixed Mode Operation


How Can We Make This Page Better?

Square D™ 9050JCK60V20 Type JCK Timing Relay, 1 to 999 min Setting, 240 V AC, 8 Pin, 2NO-2NC 2 Form C DPDT Contact

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the input voltage is removed, contacts return to their shelf state. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
Square D™ Timing Relay, Type JCK, Series: 9050, Operation Mode: On-Delay, 240 V AC, 10 A, 1/2 hp, 8 Pins, 2NO-2NC 2 Form C DPDT, 1 to 999 min, 120 V AC Coil, Tubular, -18 to 150 deg F, Socket Mount, 44 mm W x 60 mm D x 91 mm H

Specifications

 Amperage Rating 10 A
 Brand Name Square D
 Coil Voltage 120 V AC
 Contact Form 2NO-2NC 2 Form C DPDT
 Dimensions 44 mm W x 60 mm D x 91 mm H
 Electrical Connections Tubular
 Horsepower 1/2 hp
 Manufacturer Part Number 9050JCK60V20
 Mounting Type Socket
 Number of Pins 8
 Operation Mode On-Delay
 PART NUMBER KEYWORDS 9050JCK60V20 ; 7995580 ; 785901053866 ; 78590105386 ; 00785901053866 ; 0785901053866
 Series 9050
 Standards/Approvals CE Certified|CSA File No. LR60905/Class 321104|ECCN: EAR99|RoHS Compliant|UL File No. E78351 CCN NLDX|UL Recognized
 Temperature Rating -18 to 150 deg F
 Time Setting 1 to 999 min
 Type Type JCK
 Video Links
 Voltage Rating 240 V AC

Features

▪ Easy to set up and install
▪ Wide range of operating temperature from -18.4 deg F to 150.8 deg F
