Schneider Electric

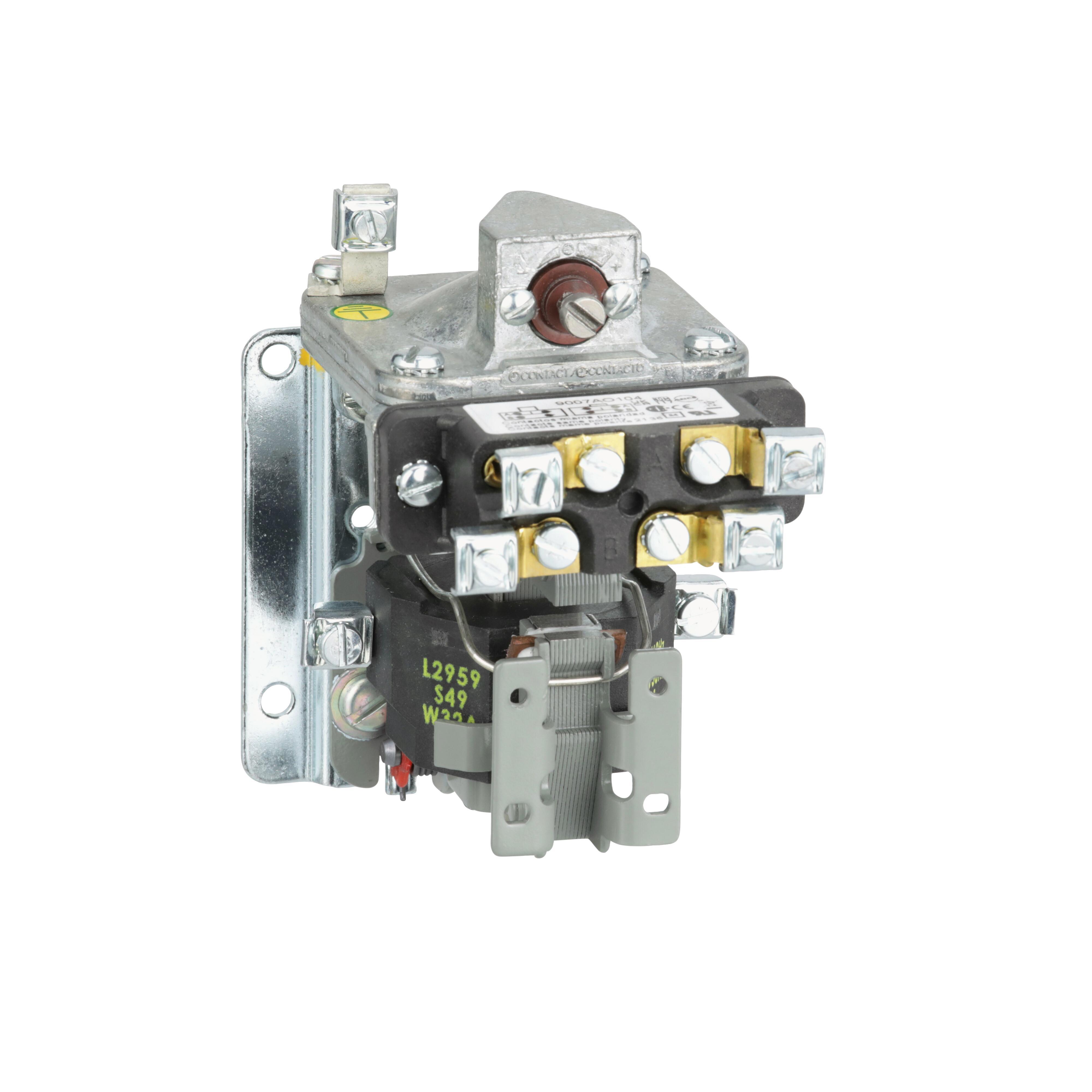

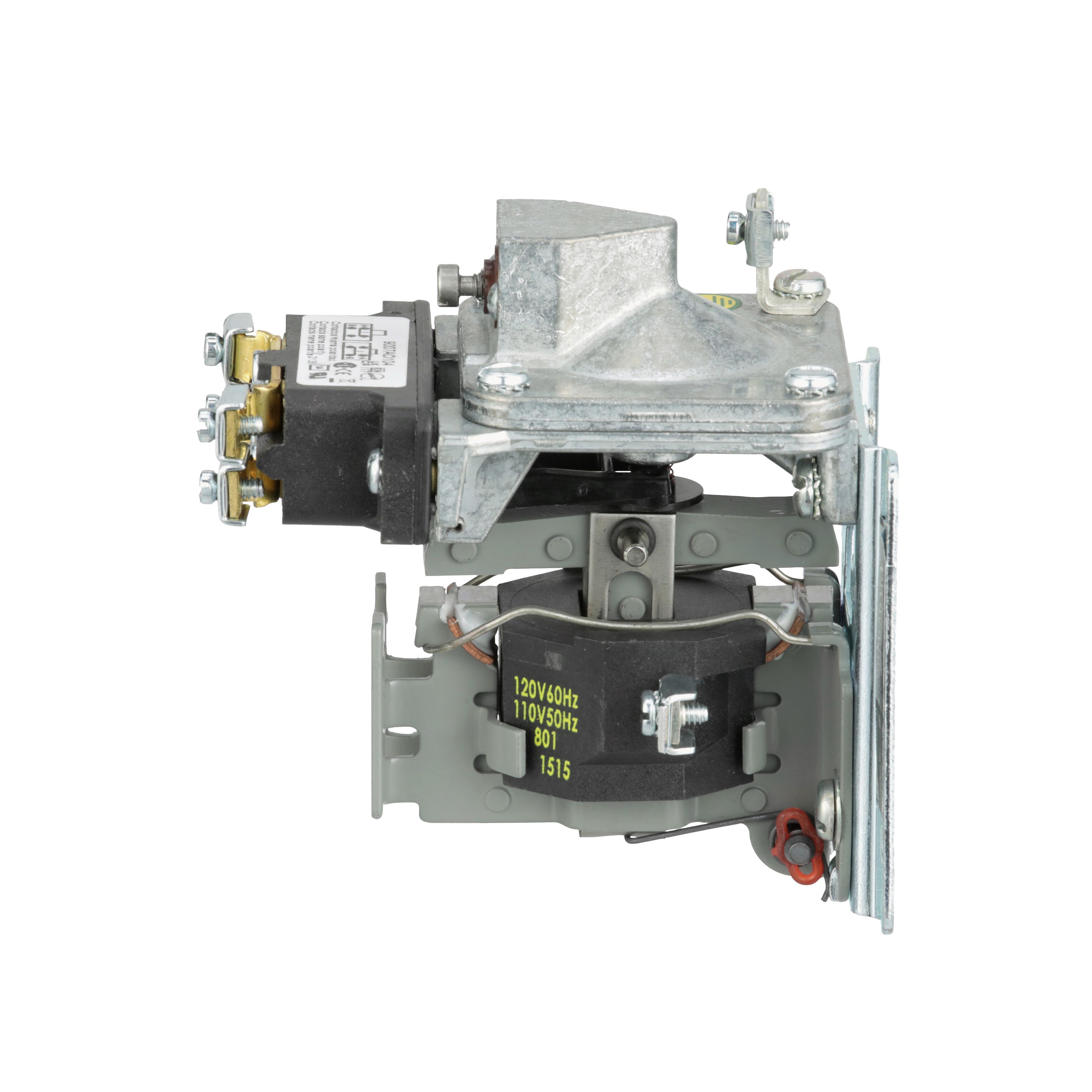

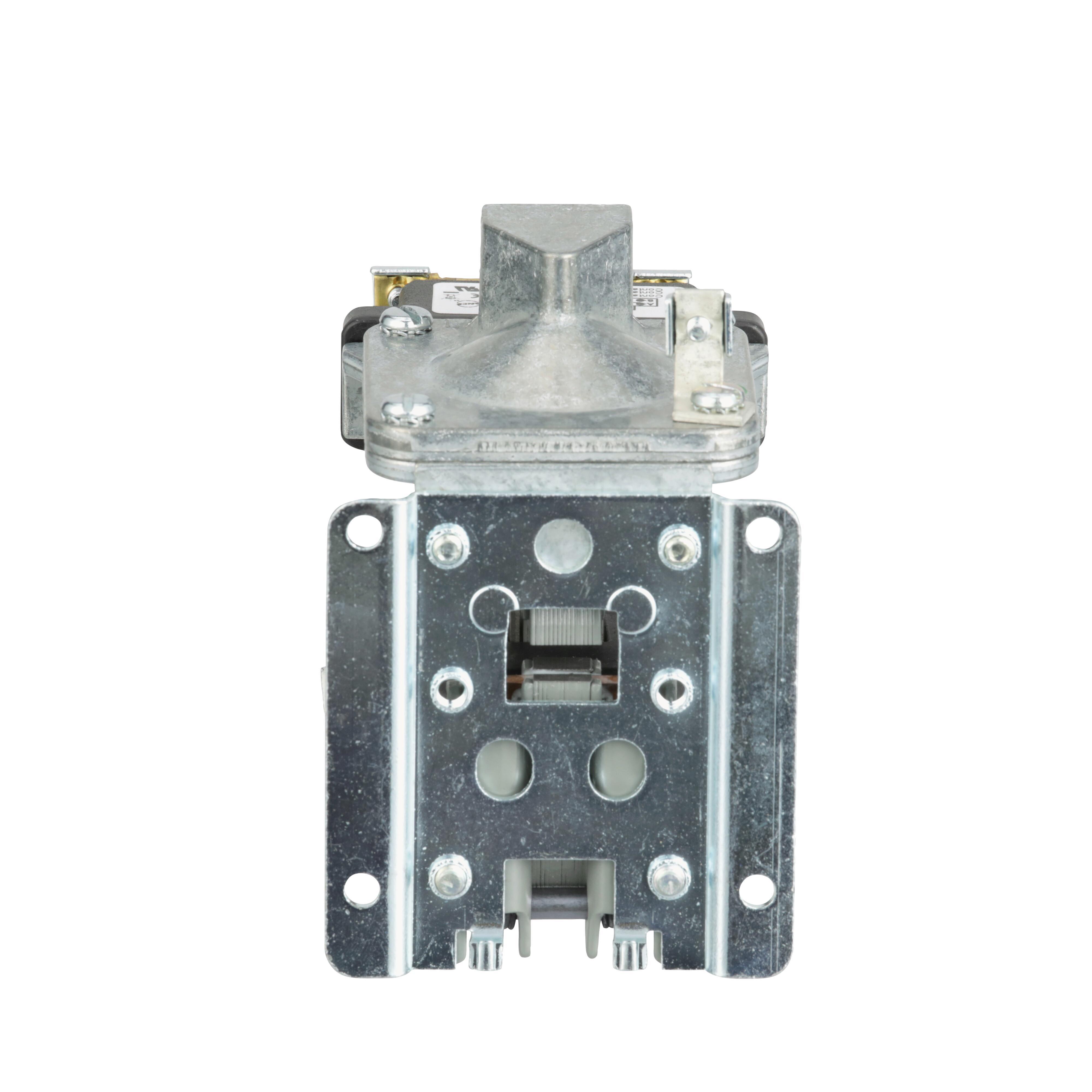

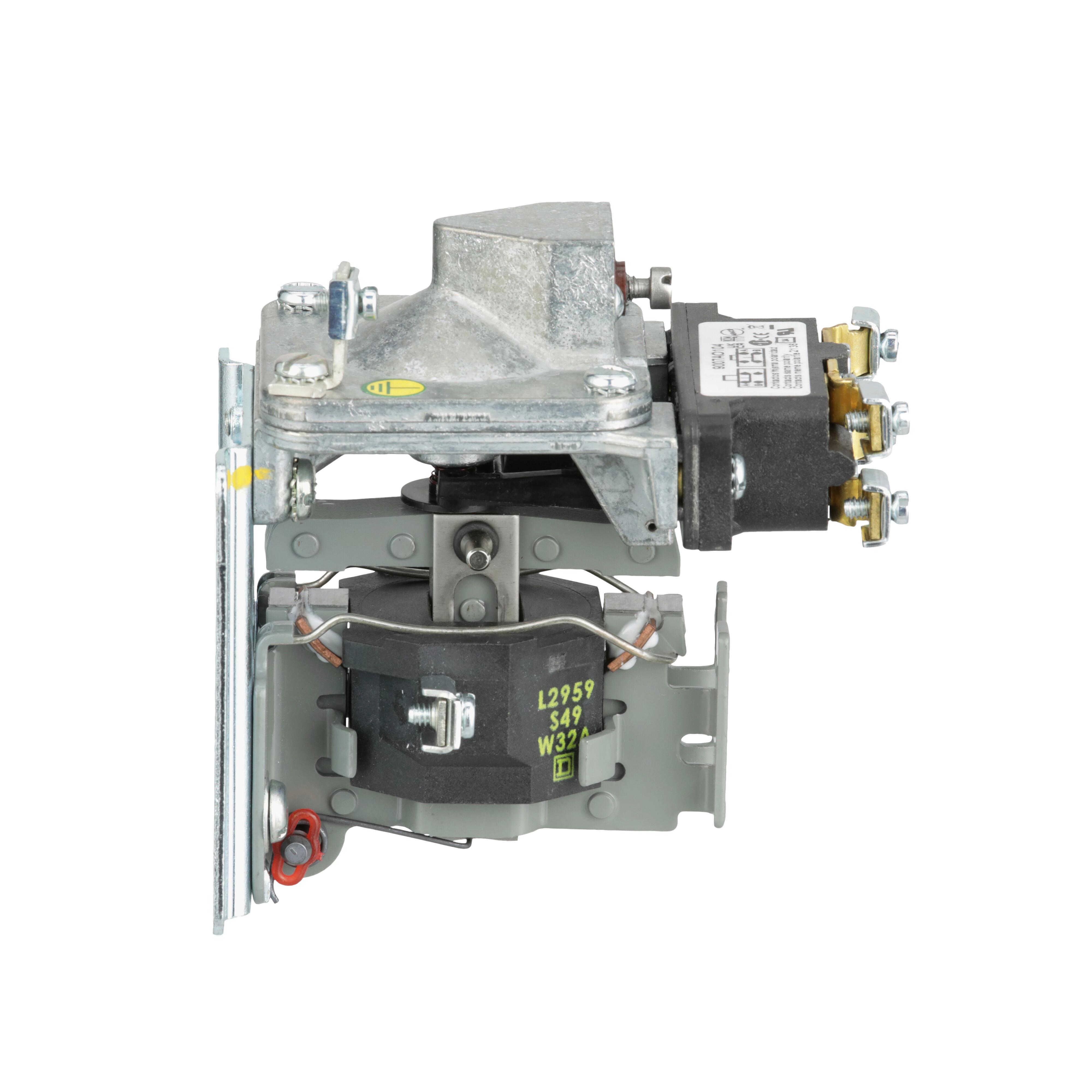

  • 9050AO10EV02 SQD PNEUMATIC TIMER
  • 9050AO10EV02 SQD PNEUMATIC TIMER
  • 9050AO10EV02 SQD PNEUMATIC TIMER
  • 9050AO10EV02 SQD PNEUMATIC TIMER
  • 9050AO10EV02 SQD PNEUMATIC TIMER
  • 9050AO10EV02 SQD PNEUMATIC TIMER

Description: Square D™ Pneumatic Timer, Operation Mode: On-Delay, 1 Pole, 1CO 1 Form C SPDT Contact Form, 0.1 s to 1 min Time Setting, 15 A Contact, 110 to 120 V AC Coil, 68 to 104 deg F, Panel Mounting

Manufacturer PN: 9050AO10EV02

UPC:  78590186431

Kendall Electric Inc PN: 4048197

Invoice Description:

9050AO10EV02 SQD PNEUMATIC TIMER


SPEC SHEET

How Can We Make This Page Better?

Square D™ 9050AO10EV02 Pneumatic Timer, 0.1 s to 1 min Setting, 1CO 1 Form C SPDT Contact, 1 Pole

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this on delay timer is typically about one minute. This timing relay can be converted by a customer from on delay to off delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 110/120 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. This pneumatic timing relay is 2.64 inches tall, 4.02 inches wide and 4.37 inches deep. 9050A pneumatic timing relays are UL listed and CSA certified.
Square D™ Pneumatic Timer, Operation Mode: On-Delay, 1 Pole, 1CO 1 Form C SPDT Contact Form, 0.1 s to 1 min Time Setting, 15 A Contact, 110 to 120 V AC Coil, 68 to 104 deg F, Panel Mounting

Specifications

 Brand Name Square D
 Coil Voltage 110 to 120 V AC
 Contact Form 1CO 1 Form C SPDT
 Contact Rating 15 A
 Manufacturer Part Number 9050AO10EV02
 Mounting Type Panel
 Number of Poles 1
 Operation Mode On-Delay
 PART NUMBER KEYWORDS 9050AO10EV02 ; 8064856 ; 785901864318 ; 78590186431 ; 00785901864318 ; 0785901864318
 Standards/Approvals CSA File No. LR60905 Class 3211 03|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant|UL File No. E78403 CCN NKCR
 Temperature Rating 68 to 104 deg F
 Time Setting 0.1 s to 1 min

Features

▪ Coil voltage is 110/120VAC at 50/60Hz with a maximum switching voltage of 600VAC
▪ On delay timing can be set from 0.1 seconds to 60 seconds
▪ These pneumatic timers are solid performers in industries with high risk of electronic fires
