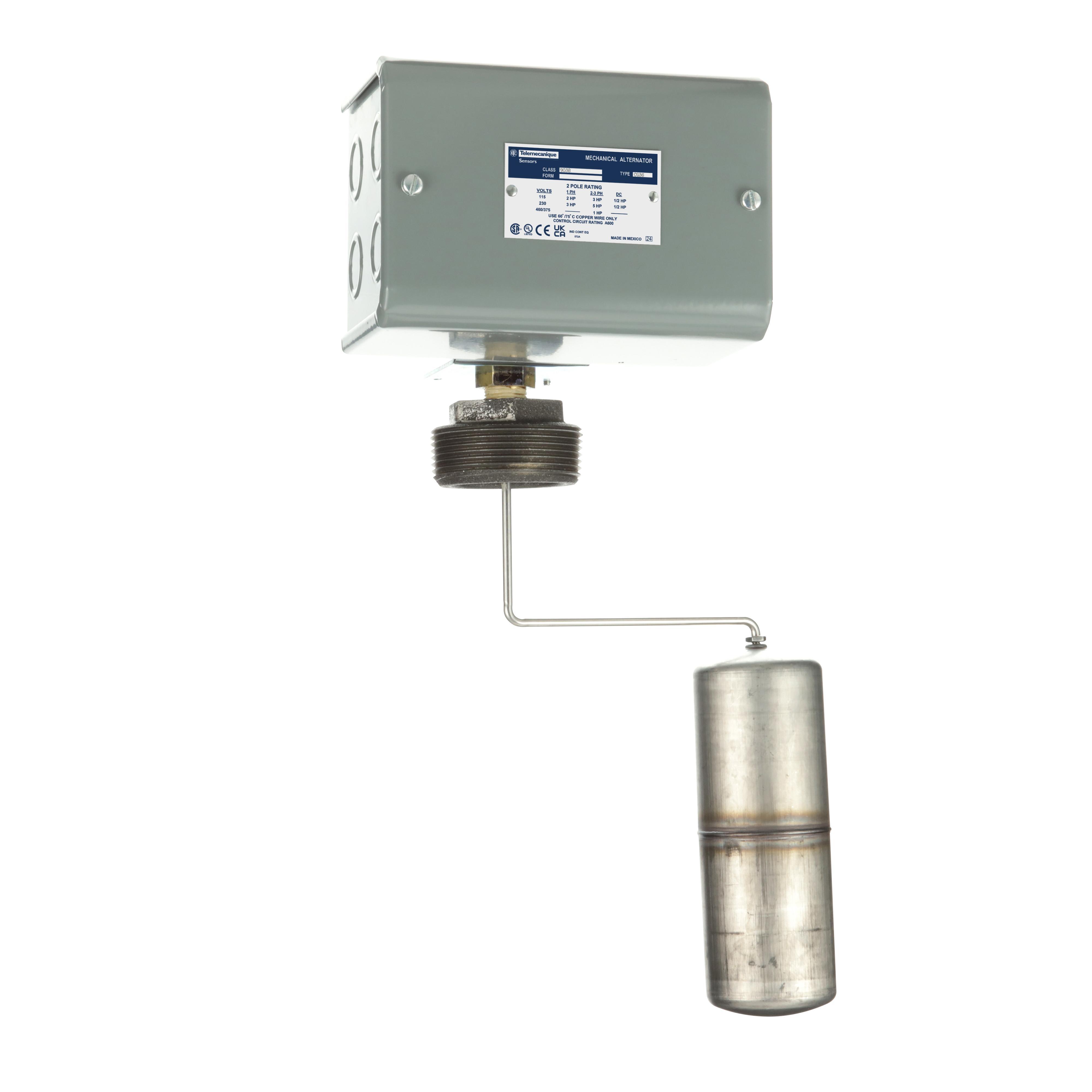

  • 9038CG36 TELEMECANIQUE FLOAT SWITCH 575VAC
  • 9038CG36 TELEMECANIQUE FLOAT SWITCH 575VAC
  • 9038CG36 TELEMECANIQUE FLOAT SWITCH 575VAC

Description: Telemecanique Float Switch, Type C Adjustable Closed Tank Mechanical Alternator, Series: 9038, 575 V AC Input, -22 to 220 deg F, Cold Rolled Steel, Painted

Manufacturer PN: 9038CG36

UPC:  78590106444

Kendall Electric Inc PN: 4004604

Invoice Description:

9038CG36 TELEMECANIQUE FLOAT SWITCH 575VAC


SPEC SHEET

How Can We Make This Page Better?

Telemecanique 9038CG36 Type C Adjustable Closed Tank Mechanical Alternator Float Switch, 575 V AC Input, -22 to 220 deg F

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Telemecanique Float Switch, Type C Adjustable Closed Tank Mechanical Alternator, Series: 9038, 575 V AC Input, -22 to 220 deg F, Cold Rolled Steel, Painted

Specifications

 Application For mechanically alternating the operation of two pumps or motors and indoor applications
 Brand Name Telemecanique
 Finish Painted
 Input 575 V AC
 Manufacturer Part Number 9038CG36
 Material Cold Rolled Steel
 PART NUMBER KEYWORDS 9038CG36 ; 8001122 ; 785901064442 ; 78590106444 ; 00785901064442 ; 0785901064442
 Series 9038
 Standards/Approvals CE Certified|CSA File No. LR25490|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 508 File No. E12158
 Temperature Rating -22 to 220 deg F
 Type Type C Adjustable Closed Tank Mechanical Alternator

Features

▪ Screw clamp connection
▪ 1/2 in, 3/4 in conduit
▪ 90 deg (offset) float rod angle
▪ 2-1/2 in Dia x 7 in L float dimension
▪ 3.7 kW at 230 VAC 3 ph
▪ 4-3/4 to 9-1/2 in adjustable float movement
▪ 1 hp power rating
▪ Screw-in bushing mounting
▪ NEMA 1 enclosure
▪ 4-1/2 in sensing range

Resources

 Product Data Sheet
 RoHS
