Schneider Electric

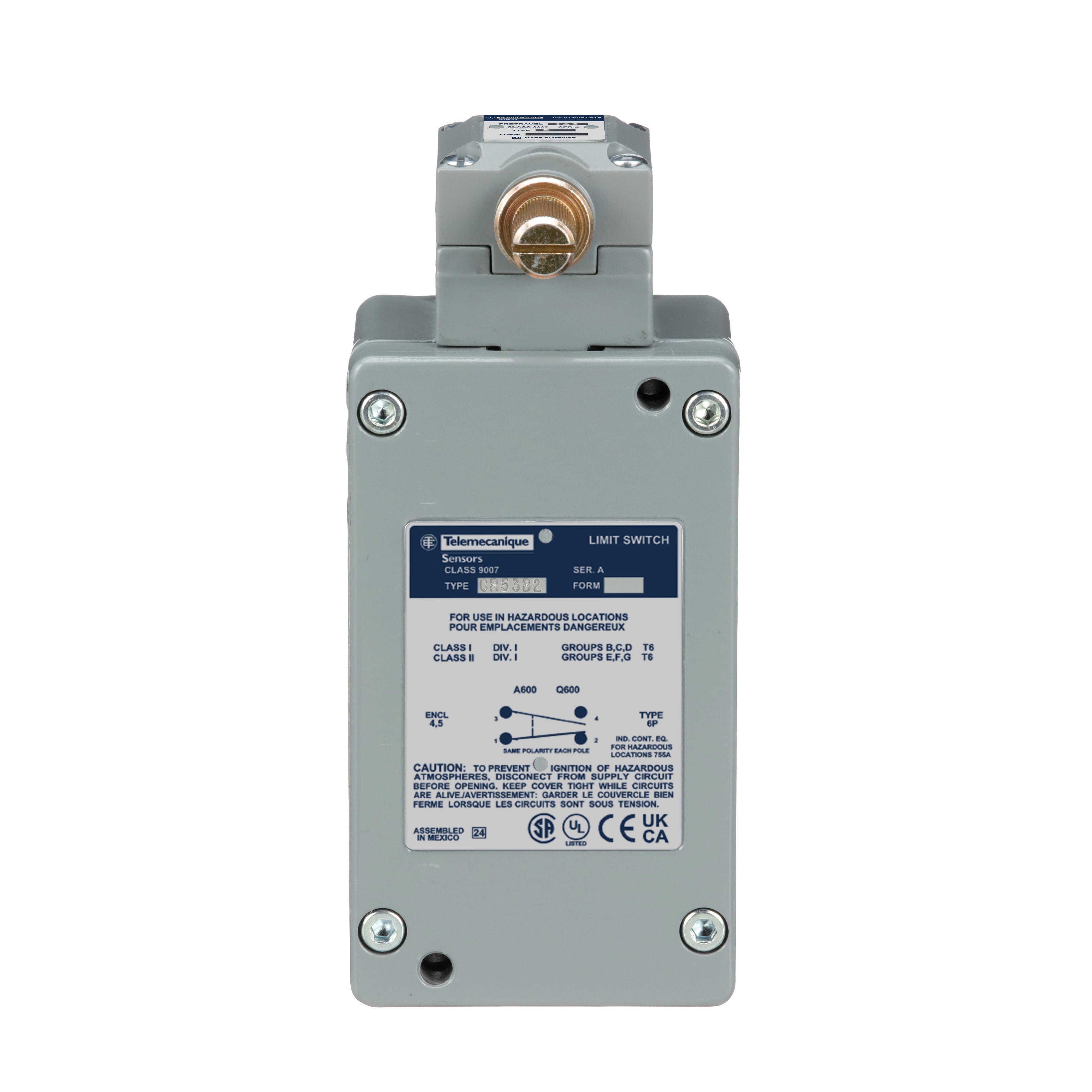

9007CR61B2 TELEMECANIQUE LIMIT SWITCH 600V

Mouse over image to zoom, click to enlarge

  • 9007CR61B2 TELEMECANIQUE LIMIT SWITCH 600V
  • 9007CR61B2 TELEMECANIQUE LIMIT SWITCH 600V

Description: Square D™ Rotary Actuated Limit Switch, Fixed Heavy Duty Rotary Head, Series: 9007CR, 600 V AC, 10 A, 2NO-2NC DPDT-DB Contact Configuration, 1.2 A at 600 V AC, 0.11 A at 250 VDC Contact, 2 Pole, Snap Action, Spring Return Lever Arm Actuator, Screw Clamp Connection, NEMA 2/4/6P/7/9/13 Enclosure, 2.72 in W x 2.79 in D x 6.1 in H Size, 1000000 Cycles Operating Cycles, -20 to 185 deg F Operating, Aluminum, Epoxy Powder Coated

Manufacturer PN: 9007CR61B2

UPC:  78590178369

Kendall Electric Inc PN: 3959671

Invoice Description:

9007CR61B2 TELEMECANIQUE LIMIT SWITCH 600V


SPEC SHEET

▸ See All in Explosionproof Limit Switches


How Can We Make This Page Better?

Square D™ 9007CR61B2 Fixed Heavy Duty Rotary Head Rotary Actuated Limit Switch, 600 V AC, 10 A, Spring Return Lever Arm Actuator, 2NO-2NC DPDT-DB Contact, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Square D™ Rotary Actuated Limit Switch, Fixed Heavy Duty Rotary Head, Series: 9007CR, 600 V AC, 10 A, 2NO-2NC DPDT-DB Contact Configuration, 1.2 A at 600 V AC, 0.11 A at 250 VDC Contact, 2 Pole, Snap Action, Spring Return Lever Arm Actuator, Screw Clamp Connection, NEMA 2/4/6P/7/9/13 Enclosure, 2.72 in W x 2.79 in D x 6.1 in H Size, 1000000 Cycles Operating Cycles, -20 to 185 deg F Operating, Aluminum, Epoxy Powder Coated

Specifications

 Actuator Lever
 Amperage Rating 10 A
 Application For use with 9007CR limit switch and hazardous location like gas, dust environment
 Brand Name Square D™
 Connection Type Screw Clamp
 Contact Configuration 2NO-2NC DPDT-DB
 Contact Rating 1.2 A at 600 V AC, 0.11 A at 250 V DC
 Enclosure NEMA 2/4/6P/7/9/13
 Finish Epoxy Powder Coated
 Manufacturer Part Number 9007CR61B2
 Material Aluminum
 Number of Poles 2
 Operating Cycles 1000000 Cycles
 Operating Temperature -20 to 185 deg F
 PART NUMBER KEYWORDS 9007CR61B2 ; 8029612 ; 785901783695 ; 78590178369 ; 00785901783695 ; 0785901783695
 Series 9007CR
 Size 2.72 in W x 2.79 in D x 6.1 in H
 Standards/Approvals CE Marked|CENELEC EN 50041/609475-1/60204-1|IEC 60204-1/609475-1|CSA C22.2 No. 14|RoHS Compliant|UL 508|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
 Type Fixed Heavy Duty Rotary Head
 Voltage Rating 600 V AC

Features

▪ 9007C heavy duty semi-modular 39 mm metal body
▪ 4 in-lb operating torque
▪ 1/2 in NPT conduit entrance
▪ Standard environment
▪ CW and CCW control output
▪ For hazardous location
▪ Zinc spring return without operating lever operator
▪ From left and right, CW and CCW switch actuation
▪ 1 or 2 programmable direction lateral approach
▪ (1) cable entry for 1/2-14 NPT conforming to ANSI B1.20.1
▪ 1000000 cycles electrical durability, 10000000 cycles mechanical durability
▪ 25 gn (10/150 Hz) vibration-resistance
▪ Form Z, snap action silver contact
▪ Rotary movement of operating head
