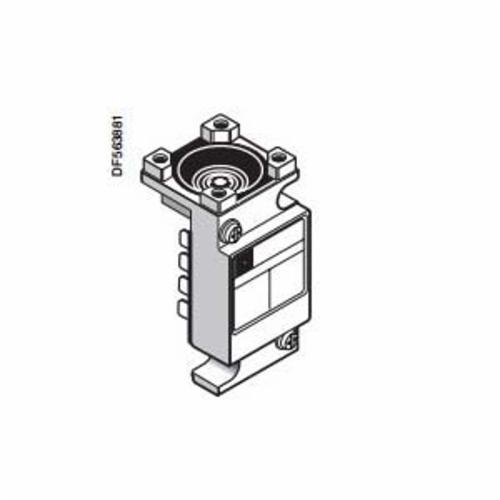

9007CO62 TELEMECANIQUE LIMIT SWITCH PLUG IN

Mouse over image to zoom, click to enlarge

  • 9007CO62 TELEMECANIQUE LIMIT SWITCH PLUG IN
  • 9007CO62 TELEMECANIQUE LIMIT SWITCH PLUG IN

Description: Telemecanique Osiswitch® Limit Switch Body, Type C Heavy Duty Standard, Series: 9007, 2NO-2NC DPDT Contact Configuration, 10 A at 600 V AC, 2.5 A at 600 V DC Contact, NEMA 1/2/4/6/6P/12/13 Enclosure, -20 to 185 deg F, Plug-In Connection, For Use With: 9007C Series Limit Switch, Zinc Alloy, 1.55 in W x 1.79 in D x 3.14 in H Dimensions

Manufacturer PN: 9007CO62

UPC:  78590150085

Kendall Electric Inc PN: 4053083

Invoice Description:

9007CO62 TELEMECANIQUE LIMIT SWITCH PLUG IN


SPEC SHEET

▸ See All in Limit Switch Bodies


How Can We Make This Page Better?

Telemecanique Osiswitch® 9007CO62 Type C Heavy Duty Standard Limit Switch Body, 2NO-2NC DPDT Contact, For Use With 9007C Series Limit Switch, 10 A at 600 V AC, 2.5 A at 600 V DC Contact, NEMA 1/2/4/6/6P/12/13 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Telemecanique Osiswitch® Limit Switch Body, Type C Heavy Duty Standard, Series: 9007, 2NO-2NC DPDT Contact Configuration, 10 A at 600 V AC, 2.5 A at 600 V DC Contact, NEMA 1/2/4/6/6P/12/13 Enclosure, -20 to 185 deg F, Plug-In Connection, For Use With: 9007C Series Limit Switch, Zinc Alloy, 1.55 in W x 1.79 in D x 3.14 in H Dimensions

Specifications

 Brand Name Telemecanique
 Connection Type Plug-In
 Contact Configuration 2NO-2NC DPDT
 Contact Rating 10 A at 600 V AC, 2.5 A at 600 V DC
 Dimensions 1.55 in W x 1.79 in D x 3.14 in H
 Enclosure NEMA 1/2/4/6/6P/12/13
 Manufacturer Part Number 9007CO62
 Material Zinc Alloy
 PART NUMBER KEYWORDS 9007CO62 ; 8072518 ; 785901500858 ; 78590150085 ; 00785901500858 ; 0785901500858
 Series 9007
 Standards/Approvals CE Marked|CENELEC EN 50041|CSA C22.2 No. 14|EN 609475-1/60204-1|IEC 60204-1/609475-1|RoHS Compliant|UL 508|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
 Suitable For Use With 9007C Series Limit Switch
 Temperature Rating -20 to 185 deg F
 Type Type C Heavy Duty Standard

Features

▪ Snap action contact operation
▪ Heavy duty semi-modular
▪ 39 mm metal body
▪ Standard environment

Resources

 Product Data Sheet
