Schneider Electric

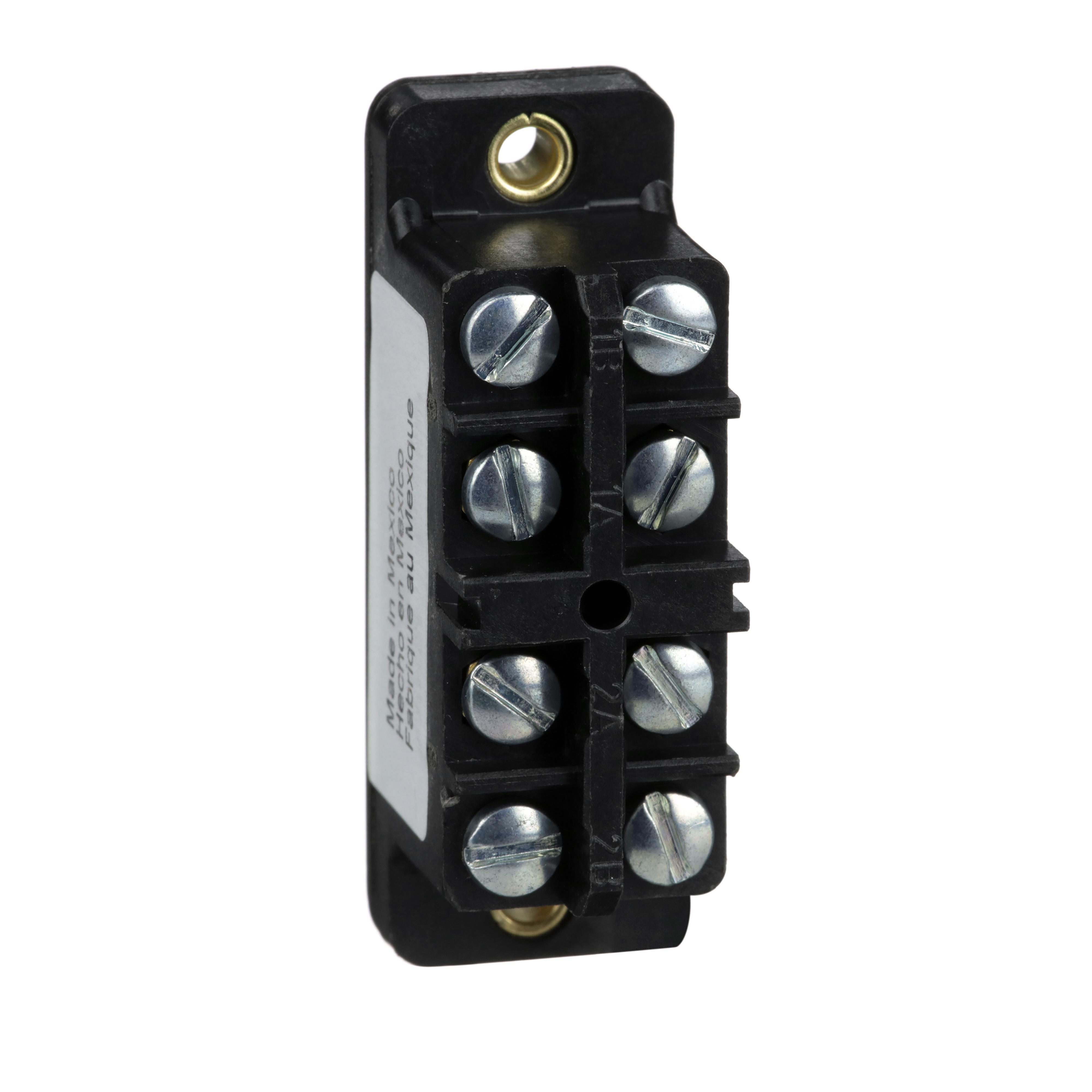

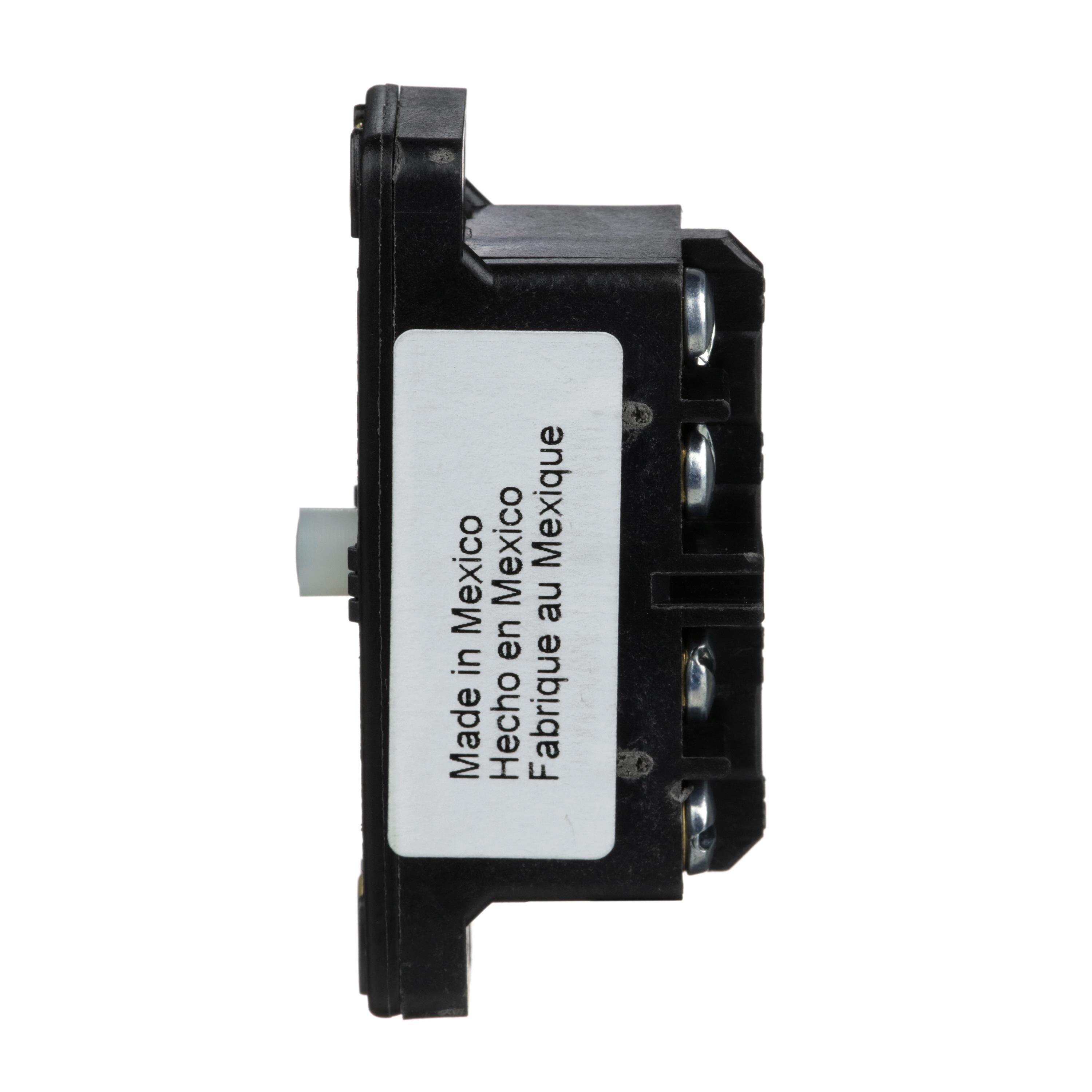

  • 9007CO3 TELEMECANIQUE SNAP SWITCH 600V 10AMP
  • 9007CO3 TELEMECANIQUE SNAP SWITCH 600V 10AMP
  • 9007CO3 TELEMECANIQUE SNAP SWITCH 600V 10AMP
  • 9007CO3 TELEMECANIQUE SNAP SWITCH 600V 10AMP

Description: Square D™ OsiSense® Snap Action Limit Switch, Fixed Heavy Duty, Series: 9007, 600 V AC, 0.1/0.2/0.6/0.75/1.5/3/10 A, 2NO-2NC DPDT-DB Contact Configuration, 2 Pole, Linear/Snap Action, Screw Clamp Connection, NEMA 1/250 Enclosure, Body/Snap-On Mounting, 0.83 x 1.14 x 2.5 in Size, -20 to 185 deg F Operating, Cast Zinc/Metal

Manufacturer PN: 9007CO3

UPC:  78590182100

Kendall Electric Inc PN: 3998866

Invoice Description:

9007CO3 TELEMECANIQUE SNAP SWITCH 600V 10AMP


SPEC SHEET

▸ See All in Miniature & Snap Action Limit Switches


How Can We Make This Page Better?

Square D™ OsiSense® 9007CO3 Fixed Heavy Duty Snap Action Limit Switch, 600 V AC, 0.1/0.2/0.6/0.75/1.5/3/10 A, 2NO-2NC DPDT-DB Contact, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Square D™ OsiSense® Snap Action Limit Switch, Fixed Heavy Duty, Series: 9007, 600 V AC, 0.1/0.2/0.6/0.75/1.5/3/10 A, 2NO-2NC DPDT-DB Contact Configuration, 2 Pole, Linear/Snap Action, Screw Clamp Connection, NEMA 1/250 Enclosure, Body/Snap-On Mounting, 0.83 x 1.14 x 2.5 in Size, -20 to 185 deg F Operating, Cast Zinc/Metal

Specifications

 Amperage Rating 0.1/0.2/0.6/0.75/1.5/3/10 A
 Brand Name Square D™
 Connection Type Screw Clamp
 Contact Configuration 2NO-2NC DPDT-DB
 Enclosure NEMA 1/250
 Manufacturer Part Number 9007CO3
 Material Cast Zinc/Metal
 Mounting Type Body/Snap-On
 Number of Poles 2
 Operating Temperature -20 to 185 deg F
 Series 9007
 Size 0.83 x 1.14 x 2.5 in
 Standards/Approvals CE Certified|CSA File No. LR25490/Class 3211-03|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL File No. E42259 CCN NKCR
 Type Fixed Heavy Duty
 Voltage Rating 600 V AC

Features

▪ Momentary actuator action
▪ Vertical actuation
▪ -17.8 to 85 deg C operating temperature
▪ 2NO 2NC SPDT snap action double break Form ZZ body with contact type
▪ Open enclosure
